Alpine R2-DB8V-TRK 8″ Ported Dual Subwoofer Enclosure | ILX-407 7″ Car Receiver | RUX-KNOB.2 Remote Bass Control | JL Audio JD500/1 Mono Amplifier | Stinger SS600X 8 Gauge Wiring Kit

This Bundle Includes:
(1) Alpine R2-DB8V-TRK Halo Series 8″ Ported Dual Subwoofer Enclosure
(1) Alpine ILX-407 Double-Din 7″ Multimedia Car Receiver
(1) Alpine RUX-KNOB.2 Remote Bass Level Control
(1) JL Audio JD500/1 1 Ch. 500 Watt 2 Ohm Subwoofer Amplifier – #98362
(1) Stinger SS600X 600 Watt 8 Gauge Amplifier Wiring Kit

Alpine R2-DB8V-TRK Halo Series 8″ Ported Dual Subwoofer Enclosure with two 8″ R2-Series Subwoofers

Your truck deserves more than any old subwoofer system — you want sound and style. Alpine’s R2-DB8V-TRK loaded subwoofer enclosure gives you both. This versatile enclosure features two of Alpine’s new R2 subs and will fit most full-size trucks.

Solid subs

The R2-DB8V-TRK features two Alpine R2-Series subwoofers with Kevlar-reinforced pulp cones and rubber High Amplitude Multi-Roll (HAMR) surrounds for dependable performance at high volume levels. The enclosure handles up to 750 watts RMS so you’ll get the solid bass you’re looking for and is wired for a 2-ohm load, making amplifier selection simple. The enclosure’s side-firing ports use your truck’s interior to boost the lows, giving you deeper bass at higher volume levels.

Easy to fit

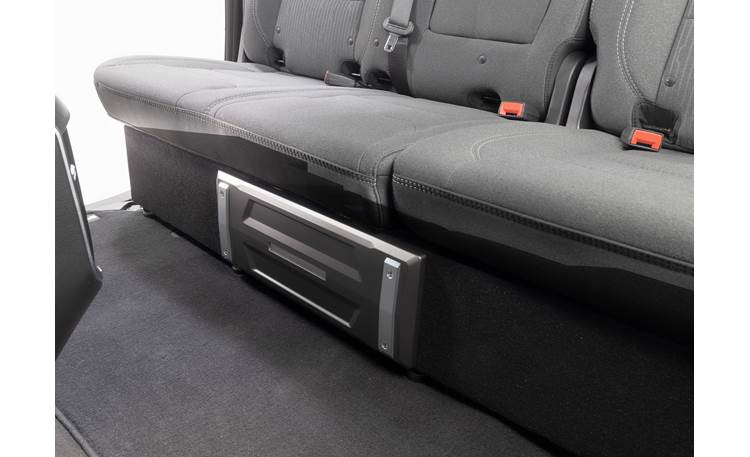

The rugged 5/8″ MDF enclosure is clothed in black carpet covering that combines toughness and good looks, with a central metal Pro-Link™ bracket that lets you adjust the enclosure’s total width from 40″ to 51″ to fit most full-sized trucks, plus Jeep Gladiators and 4-door Wranglers. An integrated amplifier mounting tray optimized for Alpine’s mono sub amps gives you a package designed to fit under the rear seat of your truck, and its EZ Change twist-lock grille system gives you speaker protection options to coordinate with your truck’s interior. Adjustable mounting feet ensure a secure fit.

Alpine ILX-407 Double-Din 7″ Multimedia Car Receiver

The new receiver is designed to be a simple, sound system builder

Let Alpine stack your dash

Alpine’s iLX-407 digital multimedia receiver fits a wide array of dashes thanks to its shallow chassis design, but the feature set this command center packs is anything but thin. It works with both Apple CarPlay and Android Auto™ for convenient control of your favorite smartphone functions, and it offers a bevy of entertainment options for the discerning road warrior. Best of all, it works with Alpine’s bodacious PowerStack amplifiers, so you can boost your system’s performance without the hassle of a full-blown amp installation.

Perfect for PowerStack amps

Alpine’s PowerStack technology packs a lot of juice into a REALLY small amp chassis, so you can stow the amp right behind the Alpine radio in your dash opening and still get hard-hitting audio performance.

Apple CarPlay and Android Auto

CarPlay integrates your iPhone into the driving experience in a seamless interface, allowing you to access iPhone content with the sound of your voice. That means easy access to your music library, audiobooks, phone, messages, navigation, and many third-party streaming music apps, too.

If you’re an Android user, this receiver is ready for your phone, too. Android Auto integrates your Android device into the driving experience without distracting you from the job at hand — driving. You’ll have easy voice access to Google Maps, weather, music, and apps, not to mention your text messages. And you can make calls, too, of course.

Hear things your way

The Alpine iLX-407 comes ready to play with a plethora of entertainment options:

You can use the rear USB pigtail to attach your smartphone or a thumb drive with your favorite music or video files. The rear HDMI connection allows you to hook up to an optional CD/DVD player or Blu-ray player to the mix.

More upgrades available

The iLX-407 offers more ways to satisfy your eyes and ears. You can use its many fingertip-friendly controls to set the 5-band parametric EQ, time correction, Bass Engine SQ, and much more. And if you’re thinking about safety, you can add up to two cameras to the iLX-407 to help get your vehicle into and out of tight quarters.

Built-in Bluetooth

Built-in Bluetooth allows you to use the iLX-407 for hands-free calling and music streaming through your smartphone. Alpine includes an external microphone for a crystal-clear conversations.

Alpine RUX-KNOB.2 Remote Bass Level Control

The optional Alpine RUX-KNOB.2 remote bass control knob plugs right in to select Alpine amplifiers for quick direct subwoofer control to make bass adjustments on the fly. This handy little knob adjusts your amp’s level from its set maximum volume all the way down to virtually “off.” Since it adjusts level and not “bass boost,” you’ll maintain the same bass tone as you turn the volume up and down.

Tweak the Subwoofer Volume Driver’s Seat

The RUX-KNOB.2 remote level controller works with Alpine’s amplifiers so you can manage your bass level from the front of your vehicle. This handy little knob adjusts your amp’s level from its set maximum volume all the way down to virtually “off.” Since it adjusts level and not “bass boost,” you’ll maintain the same bass tone as you turn the volume up and down. You can control multiple amplifiers with a single remote by adding a standard phone cable splitter (not included).

From the Inside

With the RUX-KNOB.2, get full control over your Alpine amplifier, conveniently from inside the car. With the RUX-KNOB.2 installed inside the vehicle cabin, easily adjust the bass gain of your amp while seated inside.

RUX-KNOB.2 highlights:

• remote level controller for Alpine amplifiers
  • mono amps
  • sub channel of 5-channel amps
• adjusts gain from 0 to -12 dB
• multi-amp capable (standard phone cable splitter required — not included)
• 16′ connection cable

JL Audio JD500/1 Monoblock Class D Subwoofer Amplifier – #98362

JD500/1 Monoblock Class D Subwoofer Amplifier, 500 W x 1 @ 2 Ohm / 250 W x 1 @ 4 Ohm – 14.4V

Designed to produce a whopping 500 watts into 2 ohms (14.4V, 1% THD), the JD500/1 amplifier is a great solution for powering subwoofers in a cost-conscious system. Our proprietary NexD™ switching technology delivers large amounts of real-world power output with excellent efficiency and ultra-low distortion.

The JD500/1’s controls are located on the input panel. while the power and speaker connections can be found along the opposite end of its extruded aluminum chassis. Signal processing features include a 12 dB / octave low-pass filter, with continuously variable frequency selection from 50-500 Hz, and a variable bass boost EQ. Dual-range, differential-balanced inputs are also on-hand, capable of accepting line-level and speaker-level signals. Automatic turn-on capability (via signal sensing or DC-offset sensing) is standard, along with a set of preamp outputs so you can easily pass signals to another amplifier.

The JD500/1 is also equipped with an onboard LED-clipping indicator ring, surrounding the input sensitivity control. This useful feature lets you set your amplifier’s input sensitivity, quickly and accurately, without special equipment. With the addition of an RBC-1 remote level control (sold separately), you can control the subwoofer level from the driver’s seat.

Power up the bass

JL Audio’s JX Series amplifiers were very popular with our customers, garnishing rave reviews citing their tremendous performance and value. We think their latest JD Series amps will follow in their footsteps, offering superior power and serious features for your dollar. The JD500/1 mono subwoofer amplifier will send up to 500 watts RMS to a sub, so you’ll hear and feel the bass the way you want it. A variable low-pass filter and bass boost help you tune your sub to fit your system and sound its best. An optional wired remote control lets you turn the sub up or down from the front seat.

Connection features

The amp includes speaker-level inputs with signal-sensing amp turn-on, along with preamp inputs and outputs, so it’s ready to work in virtually any system. Differential-balanced inputs plus JL Audio’s NexD™ amp technology keep the signal sounding pure and noise-free at all times.

JD500/1 NexD™ Switching Technology

Summary:
NexD™ amplifier technologies produce exceptional audio quality, unsurpassed total efficiency and high power from very compact amplifier designs.

Detailed Information:
Beginning with the original ‘Slash’ subwoofer amplifiers, JL Audio has been at the forefront of Class D amplifier design. Our NexD™ switching technology stems from our Class D expertise to deliver outstanding fidelity and efficiency, leading to compact amplifiers that deliver high power and exceptional value.

Let’s get a little nerdy… A traditional PWM switching amp design uses a fixed switching frequency and varies the pulse width based solely on the audio input signal to the pulse modulator. This basic approach assumes some ideal conditions, like a rock-steady power supply, that do not necessarily occur in a real, in-car installation. Power supply sag with signal causes distortion at all power levels with these designs, even well below clipping. The cure for this is feedback (a corrective signal sent back to the input side), but this becomes impractical as the audio frequency increases, making it a good solution for band-limited (subwoofer) amps, but not for full-range amplifiers.

Taking the above into account when designing the NexD™ subwoofer amplifiers, we have taken the simple fixed PWM approach and enhanced it with a very high switching frequency: 240 kHz, which is about 4x higher than most Class D subwoofer amplifiers. This pushes the amplifier’s bandwidth to at least 500 Hz with minimal distortion and improves efficiency, while keeping typically bulky circuity more compact. Your subwoofers will reward you with tight, rock-solid bass performance.

For the full-range NexD™ amplifiers and channels we applied a variable, ultra-high speed version of the NexD™ technology (switching at well over 400 kHz). In these designs, a self-oscillating modulator with “feed-forward” sends information about the instantaneous power supply voltage to the modulator, combining this with the input signal to cancel out any distortion due to supply voltage fluctuation. This reduces distortion prior to applying feedback, simplifying the overall feedback loop design.

The bottom line is simply great audio: clean, powerful and reliable.

JD500/1 Differential-Balanced Inputs

Summary:
JL Audio’s Differential-Balanced Inputs are engineered to combat induced cable noise, which is a common problem in car and marine audio installations. This technology allows for the use of conventional RCA cables, while delivering many of the benefits of a true balanced connection and accepting a wide range of input signal levels.

Stinger SS600X 600 Watt 8 Gauge Amplifier Wiring Kit

This Stinger SS600X is capable of safely powering a 600 Watt amplifier. This kit includes all of the cables and fuses needed to hookup your system. Also with full copper construction for excellent current transfer to power-hungry amplifiers. Quality twisted pair interconnects for noise-free signal transfer. Also includes ultra-flexible speaker wire, remote turn-on, water-resistant high current fuse holder, and terminals for a complete installation package. All the necessary parts for installing your next 2 channel amplifier so your ready to blast your favorite tunes.
