Alpine R2-W8D2 8″ Subwoofer with Dual 2-ohm Voice Coils
Brand: Alpine
Model Number: R2-W8D2
UPC: 793276084705
Model Number: R2-W8D2
UPC: 793276084705
Save $79.00
$350.00
$429.00
|
OR
|
Payments as low as
$29.17/mo
Special Order
Alpine R2-W8D2 8″ Subwoofer with Dual 2-ohm Voice Coils
- Kevlar reinforced pulp cone with HAMR Santoprene rubber surround
- Frequency response: 30-200 Hz
- Power handling: 150-350 watts RMS (175 watts per coil)
- Peak power: 1,000 watts
- Sensitivity: 83.6 dB
Special Order
Related Products:
-
Alpine KTA-30MW Compact All-Weather Subwoofer Amplifier – Open Box
Save $269.01
$429.99
$699.00
Alpine RUX-C810 Status DSP Remote Controller for HDP-D90
Save $30.00
$169.00
$199.00

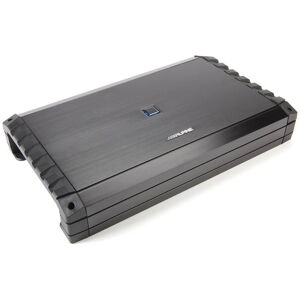

Alpine S2-A120M S-Series 1200W Mono Amplifier
$699.00
Product Description
Features & Specifications
Documents
Warranty
Alpine R2-W8D2 8″ Subwoofer with Dual 2-ohm Voice Coils
The R2-W8D2 8″ sub capitalizes on this knowledge with a new motor structure with double-stacked magnets for deeper bass and tighter sound. Its Kevlar-reinforced pulp cone features a durable HAMR Santoprene™ surround that allows for huge amounts of excursion, and an oversized poly ceramic dust cap supplies rigidity to keep the sound tight. It’s the perfect sub for bassheads that want the best of both worlds: accurate response and otherworldly thump.
Power play
The R2-W8D2 handles up to 350 watts RMS. Its dual oversized 2-ohm voice coils allow you to draw maximum power from your mono amp. Since it works well in sealed or ported enclosures you’ll enjoy your music the way you like to hear it.
Note: If you are wiring this DVC sub for lower impedance, make sure that your amp is compatible.
Product: Alpine R2-W8D2 8" Subwoofer with Dual 2-ohm Voice CoilsSpecifications Size: 8 -inch
Impedance: 1 ohm
Cone Material: Kevlar Reinforced Paper
Surround Material: Santoprene Rubber
Ideal Sealed Box Volume (cubic feet): 0.3
Ideal Ported Box Volume (cubic feet): 0.73
Free-Air: No
Dual Voice Coil: Yes
Sensitivity: 83.6 dB at 1 watt
Frequency Response: 30 – 200 Hz
Max RMS Power Handling: 350
Peak Power Handling (Watts): 1000
Top Mount Depth (inches): 4 11/16
Cutout Diameter or Length (inches): 6 15/16
Vas (liters): 10.1
Fs (Hz): 42
Qts: 0.48
Xmax (millimeters): 12What's in the box Alpine R2-W8D2 owner's manual
One 8" Dual 2-ohm voice coil subwoofer
Plastic trim ring
Two 4.5" jumper wires (each wire has a single banana connector on both ends)
Application guide (English/ French)
On-line product registration information
Warranty information (English/ French)
Important Notice (English /French)RMS Power 201 to 400 Watts
Impedance 1 Ω
Car Subwoofer Features Dual Voice Coil
Car Subwoofer Size 8"
