Kenwood DPX505BT 2-DIN CD Receiver with Bluetooth

Brand: Kenwood
Model Number: DPX505BT
UPC: 019048233714
Model Number: DPX505BT
UPC: 019048233714
Free Shipping

Save $21.00

$228.00

$249.00

|

OR

|

Payments as low as

$19.00/mo

Affirm

Availability: In Stock

Kenwood DPX505BT 2-DIN CD Receiver with Bluetooth

  • Equipped with the Intuitive KENWOOD Music Mix
  • Dual Phone Connection
  • KENWOOD Remote App Ready
  • Android Rapid Charge
  • MP3/WMA/AAC/WAV/FLAC Files Playback
  • Wireless Music Browsing
  • Equipped with Front USB Port
  • Spotify Ready

Product Description

Features & Specifications

Documents

Warranty

Kenwood DPX505BT 2-DIN CD Receiver with Bluetooth

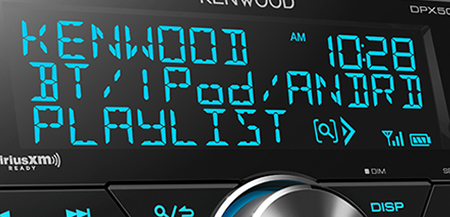

The Kenwood DPX505BT 2-DIN CD Receiver with Bluetooth is a feature-packed device that offers a variety of options for enjoying your favorite music. It includes an AM/FM tuner and a CD player, allowing you to listen to your favorite radio stations or play your favorite CDs. The high-contrast 3-line display with 3-zone variable-color illumination makes it easy to navigate through your music collection and customize the look of the device to match your style. The Kenwood DPX505BT includes Amazon Alexa voice control, allowing you to control the device with your voice, as well as access other Alexa-enabled devices in your home. The device plays USB drives loaded with high-res FLAC music files, supporting playback of up to 24-bit/96kHz, providing you with the highest quality music experience possible. Overall, the Kenwood DPX505BT 2-DIN CD Receiver with Bluetooth is an excellent choice for anyone looking for a high-quality, versatile, and feature-rich music player for their car.

Pandora/Spotify Ready so You Can Stream Your Favorite Songs from Your Smartphone

Ability to control Pandora and Spotify from your iPhone via USB/Bluetooth or from your Android via Bluetooth to enjoy millions of songs you like.

Equipped with the Intuitive KENWOOD Music Mix

Up to 5 Bluetooth® devices can be connected to the head unit at the same time and you can enjoy audio streaming just by switching the devices with your friends or family.

Dual Phone Connection Allows You to Operate up to Two Phones Hands-Free

Allows two phones to be connected for hands-free operation at any time. Easily switch between both phones for incoming call. Also includes wide-band hands-free profile ver.1.6 for high quality clear calling.
DPX505BT

Operate the Receiver from Your Smartphone with the KENWOOD Remote App

A smartphone application can control most basic functions of the receiver over the Bluetooth connection of the paired phone (iPhone or Android).

Front USB and AUX Input Compatible with a Variety of USB-Enabled Devices

Easy front panel connection for your compatible USB- enabled devices. These include Mass Storage Class devices like smartphones, USB thumb drives and portable hard drives. This USB input will allow you to charge and control the music playback on your connected device.

Match Your Mood with Variable Color Illumination

Bright variable color LED’s can be adjusted to match any color dash lighting.
DPX505BT

Playable in Various Audio File Formats

Compatible with a broad range of audio file formats from high-resolution audio sources such as FLAC and WAV, to MP3, WMA and AAC.

Optimal Sound Performance with 13 Band Graphic EQ and Time Alignment

Use the graphic equalizer to tailor the sound quality to your unique tastes. Additional sound staging is available with the Time Alignment feature, designed to provide optimal sound performance.

Wireless Music Browsing (AVRCP 1.5)

Search and select songs from your music collection through a Bluetooth® connection.

Android Rapid Charge

Rapidly charge your compatible Android smartphone with the USB port, up to a maximum of 1.5A.

DPX505BT Highlights:

  • Equipped with the Intuitive KENWOOD Music Mix
  • Dual Phone Connection
  • KENWOOD Remote App Ready
  • Android Rapid Charge
  • MP3/WMA/AAC/WAV/FLAC Files Playback
  • Wireless Music Browsing
  • Equipped with Front USB Port
  • Spotify Ready
Brand Kenwood   Model Kenwood DPX505BT
Product: Kenwood DPX505BT 2-DIN CD Receiver with Bluetooth
Specifications

FM
Frequency Range: 87.9MHz – 107.9MHz
(Frequency step): (200kHz)
Usable Sensitivity: 8.2dBf
S/N:30dB Dev 22.5kHz: 0.71μV/75Ω)
Quieting Sensitivity: 17.2dBf
DIN S/N 46dB Dev 40kHz: (2.0μV/75Ω)
Frequency Response: 30Hz-15kHz
S/N: 64dB (MONO)
Stereo Separation: 40dB (1kHz)

AM
Frequency Range: 530kHz – 1700kHz
(Frequency step): (10kHz)
Usable sensitivity: 29dBμ (28.2μv)

CD
Laser Diode: GaAlAs
Digital Filter (D/A): 8 Times OverSampling
Spindle Speed: 500~200rpm (CLV)
Wow & Flutter: Below Mesurable Limit
Frequency Response: 20-20kHz (±1dB)
Total Harmonic Distortion: 0.01% (1kHz)
S/N Ratio (dB): 105dB (1kHz)
Dynamic Range: 90dB
Channel Separation: 85dB
MP3 Decode: Compliant with MPEG-1/2 Audio Layer-3
WMA Decode: Compliant with WINDOWS MEDIA AUDIO
AAC Decode: AAC-LC ".aac" files
WAV Decode:

USB I/F
USB USB: 1.1 / 2.0 full speed
File System: FAT12 / 16 / 32
Maximum Supply current: DC5V(DC logo) 1.5A
MP3 decode: Compliant with MPEG-1/2 Audio Layer-3
WMA decode: Compliant with Windows Media Audio
AAC Decode: AAC-LC ".aac" files (.m4a)
WAV Decode: Linear-PCM
FLAC Decode: FLAC file (Up to 96kHz/24bit)
Preout Level(mV)/Load -Unbalanced: 2500mV/10kΩ(CD)
Preout Impedance(Ω): ≦600Ω
Speaker Impedance(Ω): 4-8Ω

AUX INPUT
Frequency Response: 20Hz~20kHz ±3dB
Input Maximum Voltage: 1000mV
Input Impedance: 30kΩ

AMP
Maximum Power: 50Wx4
Full Bandwidth: Power
(at less than 1%THD): 22Wx4

TONE
Band1: 62.5Hz ±9dB
Band2: 100Hz ±9dB
Band3: 160Hz ±9dB
Band4: 250Hz ±9dB
Band5: 400Hz ±9dB
Band6: 630Hz ±9dB
Band7: 1kHz ±9dB
Band8: 1.6kHz ±9dB
Band9: 2.5kHz ±9dB
Band10: 4kHz ±9dB
Band11: 6.3kHz ±9dB
Band12: 10kHz ±9dB
Band13: 16kHz ±9dB

BLUETOOTH
Version: Bluetooth 3.0
Frequency Range: 2.402-2.480GHz
Output Power: +4dBm(MAX)、0dBm(AVE)Power Class 2
Maximum Communication range: Line of sight approx.10m(32.8ft)

Profile:
HFP (Hands Free Profile)
SPP (Serial Port Profile)
PBAP (Phonebook Access Profile)
A2DP (Advanced Audio Distribution Profile)
AVRCP (Audio/Video Remote Control Profile)

GENE
Operating voltage: 14.4V (10.5~16v allowable)
Maximum Current Consumption: 10A
Operational Temperature Range: -10°C to +60°C
Dimensions (W)(H)(D): 180(mm) 7-1/8(in) x 100(mm) 4(in) x 158(mm) 6-1/4(in)
Weight: 1.3(kg) 2.9(lbs)

Car/Marine Receiver Features

Android Auto, Bluetooth, CD/DVD Player

Car/Marine Receiver Type

Double Din
