Kenwood KAC-D5101 Class-D Mono Power Amplifier

Brand: Kenwood
Model Number: KAC-D5101
UPC: 019048226327
Model Number: KAC-D5101
UPC: 019048226327
Free Shipping

Save $135.00

$194.00

$329.00

|

OR

|

Payments as low as

$16.17/mo

Affirm
Order Now - In Stock Today!

Availability: In Stock

Kenwood KAC-D5101 Class-D Mono Power Amplifier

  • Mono subwoofer amplifier
  • 300 watts RMS x 1 at 4 ohms (500 watts x 1 at 2 ohms)
  • CEA-2006 compliant
  • Speaker Level Input
  • Signal Sensing Turn-On
Order Now - In Stock Today!

Frequently Bought Together

Kenwood KAC-D5101+Stinger SK6641C Front+Stinger SI4617 Front
Price for all three:   $531.98

Product Description

Features & Specifications

Documents

Warranty

Kenwood KAC-D5101 Class-D Mono Power Amplifier

Kenwood KAC-D5101 Class-D Mono Power Amplifier is a Class D mono power amplifier that features up to 1000 watts of max power. This advanced negative feedback circuit improves damping factor and increases accuracy and sound quality.

When a signal is passed to a subwoofer, like a 50Hz note, the speaker will move and create the note. However, because the speaker has mass and a suspension, it won’t stop moving once it’s in motion. This extra movement (sound) creates a type of distortion that’s not part of the original signal.

The negative feedback circuit senses this unwanted movement and sends out an opposite pulse to stop the speaker like an electronic brake.

Small Size Big Power

The KAC-D5101 is small in size but with its tremendous sound output, it is extremely versatile. It can be installed in vehicles where space is limited and is perfect for vehicle owners who don’t want to sacrifice cargo room or who prefer hidden installations.

Dual Sigma Drive

This advanced negative feedback circuit improves damping factor and increases accuracy and sound quality. When a signal is passed to a subwoofer, like a 50Hz note, the speaker will move and create the note. However, because the speaker has mass and a suspension, it won’t stop moving once it’s in motion. This extra movement (sound) creates a type of distortion that’s not part of the original signal. The negative feedback circuit senses this unwanted movement and sends out an opposite pulse to stop the speaker like an electronic brake.

  1.  Fuse (30A x 2)
  2.  Battery Terminal (Power IN BATT.)
  3.  Ground Terminal (GND)
  4.  Power Control Terminal (P.CON)
  5.  Speaker Output Terminals
  6.  LPF Frequency Control
  7.  Bass Boost Level Control
  8.  Input Sensitivity Control
  9.  Line In Terminal



KAC-D5101 Features:

  • Mono subwoofer amplifier
  • 300 watts RMS x 1 at 4 ohms (500 watts x 1 at 2 ohms)
  • CEA-2006 compliant
  • variable low-pass filter (50-200 Hz at 24 dB per octave)
  • bass boost (0-18 dB at 40 Hz )
  • Class D design
  • preamp inputs
  • fuse rating: 30A x 2
  • Kenwood KAC-D5101
Brand Kenwood   Model Kenwood KAC-D5101
Product: Kenwood KAC-D5101 Class-D Mono Power Amplifier
Specifications

Features
– Power Output : 300 Watts
– RMS x 1 at 4 Ohms and ≤1%THD+N
– Signal-to-Noise Ratio: 85dBA (Reference: 1Watt into 4Ohms)

Maximum Power Output
– MAX POWER: 1000W
– Rated Power Output at : 14.4V
– SUB (4 Ohms): 300Watts RMS x 1 (4 Ohms, 20-200Hz, ≤0.5% THD)
– SUB (2 Ohms): 500Watts RMS x 1 (2 Ohms, 100Hz, ≤0.5% THD)
– Signal to Noise Ratio: 100dB (Reference: Rated Power into 4Ohms at 14.4V)
– Frequency Response: 20Hz-200Hz (+0dB, -3dB)
– Speaker Impedance: 4Ω (2Ω to 8Ω allowable)

Bridged Connection
– Audio Section: Low
– Pass Filter: 50Hz-200Hz, -24dB/oct

High-Pass Filter
– Bass Boost: 40Hz, 0dB – +18dB
– RCA Input Sensitivity: 0.2[V] – 5.0 [V]

Speaker Level
– Input Sensitivity : 4.0[V] – 12.0 [V]

Terminals
– Battery & Ground: M6 Screw Type Terminal Block
– Speaker Output: M4 Screw
– Type Terminal Block

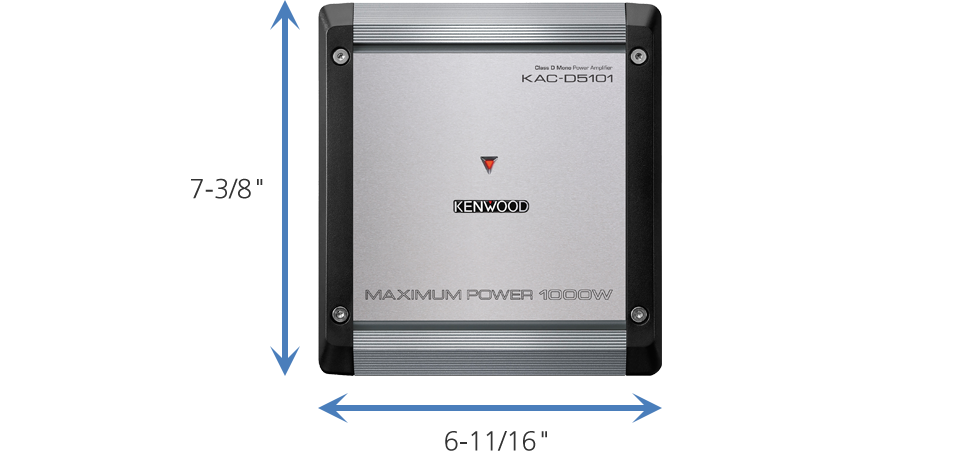

– General Dimensions(WxHxD): 6-11/16 x 2-3/16 x 7-3/8 [inch]
– Operating Voltage: 14.4V(11-16V allowable)
– Current Consumption: 34 [A]

– Key Features
– CTA-2006 Compliant
– 2 Ohms Load Capability
– Speaker Level Input with Signal Sensing : Turn-on
– Power MOS-FET Switching Power Supply
– Extruded Aluminum Heat Sink Design

Mobile Amplifier Class

Class D

Mobile Amplifier RMS

201 to 350 watts

Mobile Amplifier Channels

1 Channel (Mono)

Mobile Amplifier Features

High-Pass Filter, Low-Pass Filter, Speaker Level Inputs

Mobile Amplifier Fuse Rating

30

Mobile Min Impedance

2
