Kenwood Marine KMR-M332BT Receiver | Clarion CMSP-651RGB-SWG 6.5″ RGB Speakers (2 Pairs) | XC2510 5Ch Amplifier | CMSP-101RGB-4 10″ RGB Subwoofer

This Bundle Includes:
(1) Kenwood KMR-M332BT Marine Digital Media Receiver with Bluetooth
(2) Clarion CMSP-651RGB-SWG 6.5″ Premium Marine Coaxial RGB Speakers with Sport Grilles – #92620
(1) Clarion XC2510 Compact Class D 5-Channel Marine Amplifier – 50 watts RMS x 4 at 4 ohms + 300 watts RMS x 1 at 2 ohms – #92761
(1) Clarion CMSP-101RGB-4 Premium Series 10″ 4-Ohm Marine RGB LED Subwoofer – #92622


Kenwood KMR-M332BT Digital Media Receiver with Bluetooth

With the marine receiver KMR-M332BT, every day on the water can be enjoyable. With a conformal coating that prevents moisture from getting inside the internal circuitry, unique double covers for the USB and auxiliary inputs on the front panel, Kenwood designed this receiver to handle the demanding circumstances of the maritime environment.

KMR-M332BT Features:

  • Conformal Coating: Improved moisture resistance of the circuit boards to prevent corrosion.
  • Music Mix: Up to 5 Bluetooth® devices can be paired to the receiver at the same time. You can enjoy audio streaming just by switching the devices with your friends or family.
  • Dual Phone Connection: While you are connected through Bluetooth, with a touch of a button you can switch between two phones.
  • Remote App: A smartphone application can control most basic functions of the receiver over the Bluetooth connection of the paired phone (iPhone or Android).
  • Graphic EQ / Digital Time Alignment: 13-Band equalizer and DTA gives optimal tuning enhancements for listeners.
  • Drive EQ: Boosts specific frequencies in the audio signal to overcome the negative impact of road noise.
  • Variable Color Illumination: Bright variable color LEDs can be adjusted to match any color dash lighting.
  • Short Chassis: With receivers shorter in depth than any of our previous models, installation is made easier in a wider range of cars than ever before.

Smartphone Connectivity

Equipped with the Intuitive KENWOOD Music Mix

Up to 5 Bluetooth® devices can be connected to the receiver at the same time, allowing you to take turns streaming music with your friends and family.

Dual Phone Connection

While you are connected through Bluetooth, with a touch of a button you can switch between two phones.

Control the Receiver from Your Smartphone with the KENWOOD Remote App

A smartphone application can control most basic functions of the receiver over the Bluetooth connection of the paired phone (iPhone or Android).

Streaming Music

Listen to popular music applications and music stored on your device with basic audio controls.

Designed for Ease of Use

Direct Bluetooth keys allow you to access quickly to answering to and making a call, and entering Bluetooth Audio source. And Vertical Alignment LCD display secures higher visibility during day-time drive.

Front USB and AUX Input Compatible with a Variety of USB-Enabled Devices

Easy front panel connection for your compatible USB- enabled devices. These include Mass Storage Class devices like iPods, smartphones, and USB flash drives. The USB input will allow you to charge and control the music playback of your select devices.

The Best Audio Experience

13-Band EQ / Digital Time Alignment

13-Band equalizer and DTA gives optimal tuning enhancements for the listener.

Playable USB Files

Compatible with a broad range of audio file formats from FLAC and WAV, to MP3, WMA and AAC.

Digital Time Alignment

Sound coming from a variety of speakers located within your car are time aligned to arrive at your ear at exactly the same time.

Drive Equalizer

Drive EQ boosts specific frequencies in the audio signal to compensate the negative impact of road noise.

System EXPANSION Ready

The KENWOOD receiver has RCA outputs to expand the system to connect to an additional amplifier or powered subwoofer.

Additional Features

Variable Color Display

Bright variable color LED’s can be adjusted to match your environment.

Short Chassis Design

With audio receivers shorter in depth, installation is made easier in a wider range of cars.

SiriusXM Radio Ready

Access additional music, sports and entertainment content on the go with SiriusXM Radio.
(Optional SiriusXM tuner required, sold separately)

Spanish and French Text Display

On-screen display menu now available in Spanish and French.

Wired Remote Control (Optional)

Remote control and remote extension cables are optionally available.


Clarion CMSP-651RGB-SWG 6.5″ Premium Marine Coaxial RGB Speakers with Sport Grilles – #92620

(2 Pairs)

6.5-inch Coaxial Marine Speakers with built-in RGB illumination 50W RMS power handling 1-inch (25 mm) silk dome tweeter Includes White & Gray Metallic Sport Grilles.

Clarion’s 6-1/2″ CMSP-651RGB-SWG Premium marine speakers will bring outstanding performance and the cool glow of RGB LED lighting to your boat. Like all Clarion marine gear, these premium speakers are made for life on the water.

Serious sound by the seashore

If you’re going to invest in marine speakers, you want to know you’re getting speakers that can be heard over engine noise and wind roar. These Clarions will do exactly that, and you’ll also be impressed with the depth and detail they bring to your tunes.

These full-range speakers will handle up to 50 watts RMS and they’re tough enough to handle high volume all day long. With polypropylene woofer cones, 1″ silk dome tweeters, and brawny magnets, these speakers have heft and quality that you’ll notice the moment you take them out of the box. They come with white and gray metallic grilles, too, so you can choose the style that suits your boat.

Salt and Sun Certified

Clarion designs their marine gear to stand up to the worst Mother Nature can dish out. A rugged die-cast aluminum basket protects the entire structure, and the high-impact plastic grilles are UV-treated to resist punishing sunlight. A liquid drainage system designed into the structure keeps rain and spray from pooling up. All Clarion marine speakers are designed to meet or exceed industry standards for UV-ray, salt, fog, and moisture resistance.

CMSP-651RGB-SWG Features:

  • Includes White & Metallic Gray Sport Grilles
  • Salt & Sun Certified
  • Built-In RGB LED Lighting
  • 50W RMS power handling, perfect for use with Clarion Marine amplifiers
  • Bridge-mounted, 1-inch (25 mm), edge-driven, silk dome tweeter with neodymium magnet and ferrofluid cooling
  • Standard cutout size and mounting hole for easy retrofitting

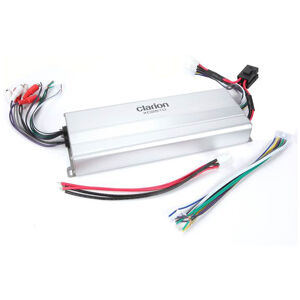

Clarion XC2510 Compact Class D 5-Channel Marine Amplifier – 50 watts RMS x 4 at 4 ohms + 300 watts RMS x 1 at 2 ohms – #92761

Clarion’s XC2510 5-channel amplifier delivers 50 watts RMS to your front and rear speakers while sending up to 300 watts RMS to a sub, all from a chassis that’s just slightly larger than your hand. This micro-sized amp can fit almost anywhere, even behind many dashboards. And Clarion managed to pack more watts per square inch inside this little powerhouse than almost any other 5-channel amp made.

Ready for outdoor work

The XC2510’s circuits are coated on both sides for protection, so this amp is a great candidate for powering speakers and subs in ATVs, boats, and other challenging applications. Clarion nickel-plated all the connectors to resist corrosion and ensure electrical flow, even during harsh conditions.

Super-clean signal

The XC2510’s input circuitry resists the electronic noise common in cars, so you will enjoy clean, distortion-free music. Soft turn-on and turn-off circuitry prevents potentially damaging thumps to your system as it powers on or off.

Variable high-pass filters help you clarify the sound by eliminating the extremely low bass that your speakers can’t reproduce, while a low-pass filter eliminates the higher frequencies from the subwoofer to clean up your bass. A bass boost on the sub channel lets you emphasize the low-end thump. You’ll also appreciate the high-level inputs, so you can hook this amp up to almost any system, even to factory radios without RCA connections.

Circuit Design Achieves High Quality Sound

Clarion amplifiers feature uncompromising resistance to magnetic noise, thereby minimizing distortion, as well as high quality terminals to offer low electrical and contact resistance. Easy subwoofer system configuration is possible with the embedded high pass and low pass filters. The result is high quality sound you can enjoy in a variety of systems.

Corrosion Resistant RCA and Connectors on All XC series Amplifiers

By utilizing corrosion resistant RCA and Connectors, XC series amplifiers offer improved durability and reliability in harsh environments. The XC series amplifiers are true marine amplifiers with efficient aluminum heatsinks and locking power terminals for the harsh marine conditions.
XC2410_hi_02

MOS-FET Power Amp

There’ s only one way for Clarion’ s main units to deliver unyielding power output and linearity: MOS-FET amplification, or Metal Oxide Semiconductor Field Effect Transistor amplification. Smaller and more efficient than conventional power supplies, a MOS-FET amplification circuit delivers power with less distortion and zero On/Off switching noise. This means you can crank up the volume or set it to easy listening. Either way, your sound will be crystal clear.

HIgh-Density Amp with Four-Layer Circuit Board

A four-layer circuit board topology reduces noise interference while filtering signals to produce high-quality sound.

2-Ohm Stability

Utilizing this design for peak performance and unwavering reliability, Clarion’s amplifiers can drive lower impedance loads for increased power.
XC2410_hi_03

CEA 2006 Power Ratings

50W × 4 + 200W x 1 RMS [4Ω @ ≤ 14.4V 1% THD+N]
75W x 4 + 300W x 1 RMS [2Ω @ ≤ 14.4V 1% THD+N]
S/N ≧ 70dB (Ref: 1W into 4Ω)

XC2510 Features:

  • 700 Watts of Maximum Power Output
  • 50 Watts × 4 + 200 Watts × 1 Continuous @ 4-Ohms
  • 75 Watts × 4 + 300 Watts × 1 Continuous @ 2-Ohms
  • 150 Watts × 2 Continuous @ 4-Ohms Bridged
  • 4 Layer Conformal Coated PCB Assembly
  • Bass Boost Adjustment
  • MOS-FET Power Supply
  • 12dB/Oct. Low/High Pass Electronic Crossover. Variable 35-250Hz (SUB) / 15-250Hz (FR/RR)
  • Variable Gain Control
  • Turn-On/Off Muting Circuitry (Soft Mute)
  • Ground Loop Isolation Input Circuit
  • Corrosion Resistant Nickel Plated RCA, Power, and Speaker Connections
  • RCA and High Level Speaker Inputs

Clarion CMSP-101RGB-4 Premium Series 10″ 4-Ohm Marine RGB LED Subwoofer – #92622

Clarion has been an innovator in mobile electronics for over 60 years. They designed their Premium Series marine speakers to give you the benefits of their years of expertise in their best designs yet. These subs offer the big bass response you’re looking for in a marine-rated speaker with RGB lighting to add a little sparkle to your night on the water.

Made for sea and sun

The CMSP-101RGB-4 10″ 4-ohm marine subwoofer is made to kick out the jams while handling the demands of the marine environment. Its injection molded polypropylene cone is UV-protected to stand up to hours baking in the sun, and the Santoprene rubber surround and marine-grade synthetic spider keep the cone under control for tight bass response. This sub will handle up to 250 watts RMS, and it’s engineered to meet stringent standards for UV exposure and salt fog so you know it’ll hold up in your boat. Waterproof speaker and LED lighting connectors help keep moisture out.

Bring the rainbow

Clarion also packed this sub with color, giving you built-in RGB lighting to let you match the lighting to your music, your mood, or a particularly memorable sunset. You can select from seven fixed LED colors, or connect a RGB lighting controller (sold separately) for on-the-fly adjustments. (Note: LED lighting requires 12V DC wiring at each speaker location.)

This sub is designed for use in an infinite baffle application, so you can install it in a bulkhead without the need for a dedicated enclosure. Decorative grilles (sold separately) protect your speakers and give you finish options to coordinate with the look of your vessel.

CMSP-101RGB-4 Features

  • Marine Use: The speakers are tested to ensure they meet or surpass the ASTM-D4329 standard for UV stability and the ASTM-B117 standard for salt/fog resistance.
  • LEDs: There are multi colored LEDs on the back of the bridge across the subwoofer to create a glow on the cone. Depending on what combination of the LED wires is connected, they can light red, green, blue, yellow, pink, light blue, or white. A +12 volt power supply is needed to turn the LEDs on and Clarion recommends the power wire be fused at 250 mA.
  • Infinite-Baffle Operation: This sub is optimized for infinite-baffle operation (free air), so it can be installed in a variety of locations, without the need for a dedicated enclosure.
  • Terminals: Crimp-on quick slides are included for connecting the audio signal, designed for 14-16 gauge wire. A waterproof harness is included for the four 26 gauge LED wires.
Brand Clarion   Model Clarion 303975
Product: Kenwood Marine KMR-M332BT Receiver | Clarion CMSP-651RGB-SWG 6.5″ RGB Speakers (2 Pairs) | XC2510 5Ch Amplifier | CMSP-101RGB-4 10″ RGB Subwoofer
KMR-M332BT Receiver

Expandability
AUX Input: Front
USB Input: Front
USB Port Power: 1.5A
Siri Control: Yes
Android Control: Yes
Memory Card Slot: USB
Bluetooth Compatible: Built-in
Satellite Radio Ready: SiriusXM 2.0

iPod Compatibility
Touch: 6Gen and up
iPhone: 5S and newer

General
RMS Power (Manufacturer): 22 watts
Peak Output: 50 watts
RMS Power Bandwidth: 20-20kHz
Preamp Outputs: 6-channel
Sub Preamp Outputs: Yes
Preamp Voltage: 4 volts
Display Color: Variable
Key Button Color: Variable
EQ Bands: 13
Steering Wheel Control Compatible: Adapter required

Tuner
FM Sensitivity: 8.2 dBf
European Tuning: Yes
Seek/Scan: Seek
Radio Data System: Yes

File Playback
Music File Playback: MP3,WMA,AAC,WAV,FLAC
High-res Playback: FLAC (96kHz)

What's in the box
Kenwood KMR-M332BT owner's manual
Marine digital media receiver (10A fuse)
Face (attached)
Trim ring (attached)
Sleeve (installed)
Wiring harness
Microphone w/ bracket (attached 10' cable terminated by a right-angle mono 3.5mm connector)
4 Counter-sunk ISO-screws
4 Pan-head ISO-screws
2 Removal tools
Quick Start Gude
Warranty Card

CMSP-651RGB-SWG Speakers

Speaker Size: 6 1/2
Design: 2-way
Tweeter Design: 1" Dome
Tweeter Composition: Treated Silk
Woofer Composition: Injection Molded Polypropylene
Woofer Surround: Rubber
Sensitivity: 87 dB at 1 watt
Frequency Response: 55 – 20k Hz
Max RMS Power Handling: 50
Peak Power Handling (Watts): 100
Impedance (Ohms): 4
Top-mount Depth (Inches): 2 7/8
Cutout Diameter or Length (inches): 5

What's in the box:
Clarion CMSP-651RGB-SWG Premium owner's manual
Two 2-way speakers
2 White grilles
2 Gray Metallic grilles
Two 6" Waterproof 6-pin male SuperSeal speaker/LED (RGB) harnesses
Twelve 1-1/8" Stainless steel screws
Owner's manual
Template

XC2510 Amplifier

RMS Power Output (Watts x Channels): 50 x 4, 300 x 1
Power at 2 Ohms (Watts x Channels): 75 x 4
Bridged Power (Watts x Channels): 150 x 2
Minimum Impedance Bridged: 4
Minimum Impedance Unbridged: 2
Minimum Impedance: 2
Best Frequency Response: 20-30k Hz
THD at Rated RMS Power: 1%
Signal to Noise Ratio: 70 dB
Input Voltage: 14.4v
Amplifier Class: D
Low-Pass Crossover Frequency: 35-250 Hz
Low-Pass Slope (dB/octave): 12 dB/octave
High-Pass Crossover Frequency: 15-250 Hz
High-Pass Slope (dB/octave): 12 dB/octave
Bass Boost: 0-12 dB
Bass Boost Frequency: 50 Hz
Fan Cooled: No
Fuse Rating: 80
Speaker Level Inputs: Yes
Preamp Outputs: No
Width (inches): 12-1/4
Height (inches): 1-5/8
Depth (inches): 4-3/8

What's in the box
Clarion XC2510 owner's manual
5-Channel amplifier
Two 40-amp ATO fuses (installed in-line)
9" Power/Ground harness
9" Speaker-level output harness
Four 3/4" Self-tapping screws
4 Flat washers
Owner's manual (English/ French/ Spanish)
Warranty information

CMSP-101RGB-4 Subwoofer

10" 4-ohm marine subwoofer
UV protected injection molded polypropylene cone with santoprene rubber surround
marine-grade synthetic spider
polymer basket
meets ASTM standards for UV exposure (D4329) and salt fog (B117)
power handling: 250 watts RMS (500 watts peak power)
built-in RGB LED lighting
waterproof connectors for speaker and LED lighting
optimized for infinite baffle applications
grille sold separately
mounting hole diameter: 8-3/4"
top-mount depth: 5-3/16"

What's in the box
Clarion CMSP-101RGB-4 owner's manual
One 10" Marine subwoofer
6" Waterproof 4-pin LED harness
Six 1-3/8" Stainless steel screws
One 0.25" Crimp-on quick slide
One 0.187" Crimp-on quick slide
Installation manual
Template

Car/Marine Receiver Features

Bluetooth, SiriusXM Ready

Car/Marine Receiver Type

Single Din

Speaker Design

2-Way, Coaxial

Speaker Sensitivity

86 – 90 db

Speaker Size

6.5"

RMS Power

76 to 100 Watts, 201 to 400 Watts

Impedance

4 Ω

Mobile Amplifier Channels

5 Channel

Mobile Amplifier Class

Class D

Mobile Amplifier Features

Bass Boost, High-Pass Filter, Low-Pass Filter, Speaker Level Inputs, Weather Resistant

Mobile Amplifier Fuse Rating

80

Mobile Amplifier RMS

351 to 750 watts

Mobile Min Impedance

2

Marine Subwoofer Features

Single Voice Coil

Marine Subwoofer Size

10"

Estimated Shipping

When you add an item to your cart the Estimated Shipping* cost will be shown.  This estimated shipping* cost is accurate to most major city locations across Canada.  If the shipping cost is higher than the estimated shipping* then GibbysESM will contact you for approval before we process your order.

To learn more click Shipping Terms & Conditions

  • Kenwood 1 Year Limited Warranty
  • Clarion 1 Year Limited Warranty

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Save $261.00

$1,587.80

$1,848.80

|

OR

|

Payments as low as

$132.32/mo

Affirm
Order Now – Limited Quantities – Items may ship separately – Call to Inquire
FAST & FREE SHIPPING
ON MOST ORDERS*
LOWEST PRICE
GUARANTEE
KNOWLEDGABLE
CUSTOMER SERVICE
30 DAY RETURN
POLICY
preloader
feedback
X
Very Satisfied
Satisfied
Neutral
Dissatisfied
Very Dissatisfied
If you are having an issue with a function of the website; please provide as much information about the issue as you can.
Toll Free: 1-866-696-7189
Local: 289-275-1050
