NAD T 778 AV Surround Amplifier

Brand: NAD
Model Number: T 778
UPC: 786357000114
Model Number: T 778
UPC: 786357000114

NAD T 778 AV Surround Amplifier

  • Hybrid Digital Amplifier Technology
  • LCD touch screen and improved ergonomics for user-friendly
  • UHD 4K video pass-through
  • High-Res BluOS enabled Network Streaming
Special Order





Payments as low as


Special Order

Product Description

Features & Specifications

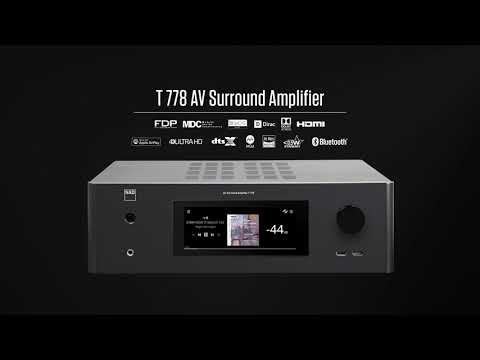

NAD T 778 AV Surround Amplifier

BluOS Enabled 4K Ultra HD Receiver with Immersive Sound

The NAD T 778 AV Surround Amplifier delivering real-world performance, simplicity of operation, and future upgradability. Only NAD offers Modular Design Construction
(MDC), Dolby® Atmos™ and DTS® Master Audio combine with Dirac Live™ room correction to deliver hyper-realism that captures every dimension of a performance. Add bit-perfect UHD 4K video pass-through and the NAD T 778 delivers the most accurate sound and image experience you’ve ever had. Musical performance is outstanding with High Res Multi-room streaming via BluOS and nine channels of high current amplification capable of powering any loudspeaker to its maximum potential.

Efficient Distortion-free Amplification

The NAD T 778 features the latest developments in NAD’s Hybrid Digital technology to create 9 high current/high power channels of amplification with improved efficiency. Designed with NAD’s full disclosure approach to power ratings, the NAD AVR conservatively delivers 85W FDP and 9 x 140W FTC, all channels driven at rated distortion. For flexibility, the amp channels are configurable to be used for surround or second zone audio. The silent black background and explosive dynamics afforded by this amplifier technology adds lifelike realism, drama and excitement to all your music and movies.

Fully Featured Surround

The NAD T 778 is second-to-none in terms of flexibility and up-to-the-minute digital technology. Only NAD offers Modular Design Construction (MDC), the company’s proven method for preventing premature obsolescence. 7.1.4 Dolby® Atmos™, DTS® Master Audio combine with Dirac Live™ room correction

Complete and Compact

As with all NAD components, the company’s latest offering continues their ‘simple is better’ design philosophy. This sensible approach contributes to ease of use and maximizes performance where it counts. A perfect example is the striking new touch screen and ergonomic refinements that simplify operation and ease of access. The NAD T 778 features legendary sound quality along with complete compatibility with all the latest features and formats to ensure lifelike music and movie enjoyment.

Brand NAD   Model NAD T 778
Model: NAD T 778
Product: NAD T 778 AV Surround Amplifier
Receivers - Channels


HDMI Outputs


HDMI Inputs



– 8 Ohms : 140W (21.5dBW)
– 4 Ohms : 170W (22.3dBW)
– Full Disclosure Power : 9 x 85W


– Frequency response : ±0.3dB (ref. 20Hz – 20kHz)
– Signal-to-noise ratio : >100dB (ref. 2V, A-Weighted)
– Total harmonic distortion : <0.01%
– Input sensitivity : 245mVrms (ref. 2V)
– Maximum output leve : l>4.5Vrms

– Input Sensitivity : 6.2mVrms (ref. 2V)(ref. 20Hz – 20kHz)
– Signal-to-noise ratio : >80dB (ref. 2V, A-Weighted)
– Maximum Input Level : >90mVrms (1kHz

IHF Dynamic Power

– 8 Ohms : 165W (22.2dBW)
– 4 Ohms : 280W (24.5dBW)
– Total harmonic distortion at rated power : <0.08%
– IM distortion at 1/3 rated power : <0.03%
– Damping factor : >300 (20Hz-1kHz, 8 ohms)
– Input sensitivity and impedance : 1.12Vrms (ref. 8 Ohms, VOL at 0dB)
– Frequency response : +0.3/-0.8dB (ref. 1kHz, 20Hz-20kHz)
– Signal/noise ratio : >100dB (ref. rated power at 8 Ohms, A-Weighted)
– Signal/noise ratio : >85dB (ref. 1W at 8 Ohms, A-Weighted)


Width : 435 mm ( 17 3/16" )
Height : 140 mm ( 5 9/16" )
Depth : 430 mm ( 16 15/16" )


12.1 kg ( 26.7 lb )



Amplifier - DAC


Amplifier Channels


RMS Power

101 to 200 Watts

Watts Per Channel

51 to 150w
