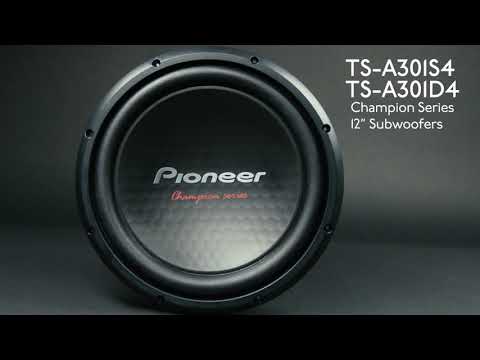

Pioneer TS-A301S4 12″ – 1600 W Single 4 Ohm Component Subwoofer

Brand: Pioneer
Model Number: TS-A301S4
UPC: 884938496056
Model Number: TS-A301S4
UPC: 884938496056
Free Shipping





Payments as low as


Special Order

Pioneer TS-A301S4 12″ – 1600 W Single 4 Ohm Champion Series – Component Subwoofer

  • 1600 W Max Power/500 W Nominal Power
  • Single Voice Coil
  • Honeycomb IMPP™ Composite Cone Structure
  • Dual layer fiber reinforced elastic polymer surround
Special Order

Product Description

Features & Specifications



Pioneer TS-A301S4 12″ – 1600 W Single 4 Ohm Champion Series – Component Subwoofer

The TS-A301S4 Champion Series subwoofers have evolved from Pioneer’s award winning “SPL Champion Edition” lineup, known for its deep and powerful bass production. The TS-A301S4 12” single-voice coil component subwoofer features a re-designed large and powerful motor assembly for improved efficiency and sensitivity. The subwoofers basket are optimized using a reinforced structure design for added strength and reduced vibration to deliver excellent sound quality. This subwoofer has continuous power of 500 watts with a maximum peak of 1,600 watts. It features an advanced 2-piece durable Honeycomb IMPP™ composite cone structure plus a rigid drive cone to deliver high output levels with reduced distortion.

Rolling in the deep

Pioneer’s Champion Series subwoofers are made to give you the deep, powerful lows you expect from Pioneer. The TS-A301S4 12″ subwoofer handles up to 500 watts RMS RMS and features an injection-molded polypropylene cone that’s impregnated with glass fibers and mica for exceptional precision and strength. An elastic polymer/reinforced fiber surround supports the woofer during cone excursion to give you accurate, hard-hitting bass notes when the music’s hot.

Dishing it out

This potent Pioneer sub will bring out all the power in your music by filling in the lowest frequencies of the sound spectrum. Its 4-ohm impedance makes it a great match for bridged amplifiers. When you’re looking for great bass, the TS-A301S4 is ready to dish it out.

Champion Series

The Pioneer Champion Series Subwoofers deliver powerful bass from their 12” subwoofers. These subwoofers are offered in either a dual or single 4-Ohm voice coil design with the ability to handle high power input at higher volume without compromising sound quality.

Iconic Champion Series Cosmetics

The Champion Series Subwoofers features iconic design elements that are symbolic to the subwoofer’s lineage including red graphics design decals; spider; and “Champion” cursive script.

Dual Layer Surround

A lighter and more durable surround, this subwoofer is comprised of elastic polymer and reinforced fiber to support the woofer during cone excursion for accurate and powerful bass.

2 layer cone

Advanced 2-Piece Cone

Designed with a highly rigid and durable Honeycomb IMPP™ composite seamless cone plus a rigid drive cone for deeper and louder bass reproduction.

sound adjustment

Large and Powerful Motor Assembly

The Champion Series subwoofers are designed with bigger voice coils and larger double stacked magnets to handle more power


Reinforced Basket

Featured in this Champion subwoofer is an enclosure basket structure that is designed to support the steel basket by reducing the spread of vibration that causes bass loss frequency.


2-Plate Magnetic Circuit

This subwoofer features a 2-plate magnetic circuit utilizing two magnet layers with thicker voice coil wiring wound around an aluminum bobbin for improved heat resistance and dispersion.


Pioneer’s CarSoundFit app is actually a car sound simulator for experiencing in-car sound with your own smartphone. Hear the difference between original car speakers and different Pioneer audio upgrades: convince yourself of the level of quality Pioneer can offer for your vehicle. For a virtual listening demonstration of these and many other Pioneer car speakers, download the free Pioneer CarSoundFit app.


TS-A301S4 Features

Woofer Cone: Pioneer uses an IMPP (Injection Molded Polypropylene) woofer cone. This process of cone molding assures a uniform cone thickness for superior linearity and clarity.

Terminals: The spring post terminals will accept pin connectors, single banana plugs, or bare wire up to 10 gauge.

Sealed Box Volume: Pioneer recommends a sealed enclosure with an internal volume between 0.85 ft³ and 1.75 ft³, with an ideal volume of 1.25 ft³. Sealed enclosures provide the most control over the woofer, will handle a lot of power, and provide accurate sonic reproduction, making them suitable to all types of music.

Ported Box Volume: The recommended ported box volume ranges from 1.25 ft³ to 2.0 ft³, with the ideal size being 1.5 ft³, using a single 3″ diameter x 6½” long port. Ported (or vented) enclosures typically provide better overall efficiency than sealed, maximizing bass output for a given amplifier.

Free-Air: The woofer can also be mounted in free air to a baffle board (infinite baffle, no enclosure). When mounted in free air, the power handling is reduced by 75% (to 125 watts).

Brand Pioneer   Model Pioneer TS-A301S4
Product: Pioneer TS-A301S4 12" - 1600 W Single 4 Ohm Component Subwoofer
Standards & Performance

Continuous Power Handling (RMS): 500 W
Frequency Range: 20 Hz to 1.6 kHz
Maximum Peak Power Handling: 1600 W
Nominal Load Impedance: 4-ohm
Sensitivity (1W/1m): 92 dB
System-Type: Component


Cut Out dimensions: 11.125"
Equivalent Compliance (VAS): 34.1
Free Air Resonance (Fs): 38
Linear Excursion (Xmax): 7.7
Port Diameter: 3"
Port Length: 6.5"
Recommended Ported Box volume: 1.5 Cu Ft / 42.5 Liters
Recommended Sealed Enclosure Volume: 1.25 Cu Ft / 35.4 Liters
Subwoofer Mounting Depth: 6.125"
Total Speaker "Q" (Qts): 0.64


Basket Material: Steel
Center Cap Material: Polypropylene
Damper: Poly cotton
Drive Cone Material: Cellulose Fiber
Installation Ring: ABS
Magnet Material: Ferrite
Magnet Weight: 90 oz
Surround Material: Elastic Polymer / Reinforced Fiber
Surround Type: Rolled
Voice Coil Bobbin: Aluminum
Voice Coil Type: Single Voice
Voice Coil wire: Copper
Wire Terminals: Push Type

What's in the box

Pioneer TS-A301S4 owner's manual
One 12" Subwoofer
Eight 1-1/8" Screws
Adhesive backed foam gasket
Manual (English/ French/ Spanish/ Portuguese)
Warranty information

Car Subwoofer Features

Single Voice Coil

Car Subwoofer Size



4 Ω

RMS Power

1201 to 1600 Watts
