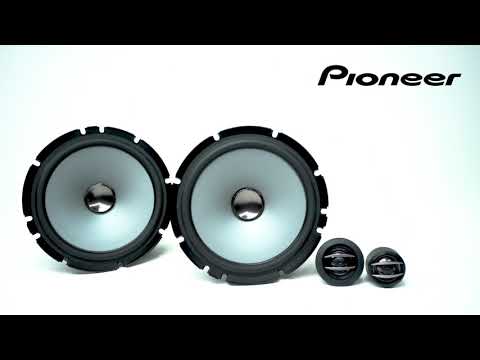

Pioneer TS-A652C 6.5″ 2-Way Component Car Speakers

Brand: Pioneer
Model Number: TS-A652C
UPC: 884938409773
Pioneer
Model Number: TS-A652C
UPC: 884938409773

Pioneer TS-A652C 6.5″ 2-Way Component Car Speakers

  • 6-1/2″ multilayer carbon
  • Separate 3/4″ polyimide hard dome tweeter with inline crossover
  • Woofer adapter and tweeter mounting equipment included
  • Handles up to 80 watts RMS (350 watts peak power)

Save $60.00

$169.99

$229.99

|

OR

|

Payments as low as

$14.17/mo

PayBright

Sale Ends In

30 DAY RETURN POLICY
LOW PRICE GUARANTEE

Availability: In stock

Product Description

Features & Specifications

Documents

Warranty

Pioneer TS-A652C 6.5″ 2-Way Component Car Speakers

Pioneer TS-A652C system includes flush mount rings and angled surface mount housings for the tweeters. The surface mount housing positions the tweeters at approximately a 45° angle. Bendable brackets are also included for mounting the tweeters in factory locations. Once installed the tweeters do not swivel.

Crossovers

The Pioneer TS-A652Chigh pass crossovers are integrated into the included speaker wire and the low pass crossovers are integrated into the woofer baskets. Both are 6 dB/octave and the crossover point is 2.5 kHz. Each length of speaker wire connects to both a woofer and tweeter. Quick slides connect to the woofer, a 40″ output leg with integrated crossover (approximately 1/2″ diameter x 1-3/4″ long) connects to the terminals attached to the tweeter, and an 11″ input leg connects to the source.

Open, smooth sound

If anyone knows how to make music sound phenomenal in your car, it’s Pioneer. With their A-Series speakers, you’ll experience their signature, open-and-smooth sound which helps overcome the limitations of off-axis listening in a vehicle while ensuring a seamless transition between woofer and tweeter playback. Best of all, Pioneer gives you this powerful speaker solution with a friendly price tag so you don’t go over budget building a whole system. Pair this TS-A652C 6-1/2″ component system with an outboard amp and power it with up to 80 watts RMS for seriously clean sound.

Optimized materials and design

A woofer cone made of carbon- and mica-reinforced polypropylene means awesome rigidity, low-frequency responsiveness, and weather-resistance. Pioneer also gives you versatile woofer brackets for use across all kinds of makes and models. Use the included tweeter mounts to install the separate 3/4″ tweeters in a good spot up high in your vehicle for better stereo imaging. Inline crossovers eliminate the need to find a spot for crossover modules.

What’s in the Box:

  • Two woofers
  • Two tweeters (with attached 10″ speaker leads terminated with quick-connects)
  • 2 Multi-application woofer mounting brackets
  • 2 Lengths of speaker wire (each has quick slides to connect to the woofer-a 40″ tweeter output leg with integrated crossover-and an 11″ input leg)
  • 2 Tweeter angled surface mount housings
  • 2 Tweeter flush mount rings
  • 2 Tweeter factory mount brackets
  • Eight 3/4″ Screws
  • Eight 3/8″ Screws
  • Six 1/2″ Screws
  • 8 Flat washers
  • 2 Speed clips
  • 2 Adhesive backed foam discs
  • Pioneer TS-A652C Warranty information
  • Template and specs on box
Brand Pioneer   Model Pioneer TS-A652C
Product: Pioneer TS-A652C 6.5" 2-Way Component Car Speakers
System

System Type: 2-way Component
Sound Pressure Level (Sensitivity): 85 dB (+- 1.5dB)
Frequency Range: 34 Hz to 49 kHz
Continuous Power Handling (RMS): 80 Watts
Maximum Peak Power Handling: 350 Watts
Nominal Impedance: 4 ohms

Woofer

Diameter: 6-1/2"
Cone Material: Carbon and mica reinforced IMPP in moonstone gray
Surround Material: Elastic polymer
Magnet Material: Ferrite
Magnet Weight: 11.3 oz

Tweeter

Type: Serparate component polyimide hard dome tweeter
Diameter: 20 mm
Size: 20mm

Crossover Network

Crossover Frequency: 2,500 Hz

What's in the box

Pioneer TS-A652C owner's manual
Two woofers
Two tweeters (with attached 10" speaker leads terminated with quick-connects)
2 Multi-application woofer mounting brackets
2 Lengths of speaker wire (each has quick slides to connect to the woofer-a 40" tweeter output leg with integrated crossover-and an 11" input leg)
2 Tweeter angled surface mount housings
2 Tweeter flush mount rings
2 Tweeter factory mount brackets
Eight 3/4" Screws
Eight 3/8" Screws
Six 1/2" Screws
8 Flat washers
2 Speed clips
2 Adhesive backed foam discs
Warranty information
Template and specs on box

Speaker Design

2-Way, Component Systems, Tweeter

Speaker Sensitivity

81 – 85 db

Speaker Size

6.5"

Tweeter Size

0.75" – .99"
