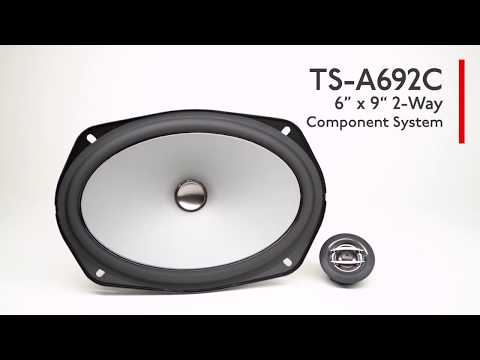

Pioneer TS-A692C A-Series 6×9″ 2-Way Component Car Speakers

Brand: Pioneer
Model Number: TS-A692C
UPC: 884938409827
Model Number: TS-A692C
UPC: 884938409827
Free Shipping

Save $75.00

$154.99

$229.99

|

OR

|

Payments as low as

$12.92/mo

Affirm

Availability: In Stock

Pioneer TS-A692C A-Series 6×9″ 2-Way Component Car Speakers

  • 450 Watts Max Power (100 Watts Nom)
  • New Carbon & Mica reinforced IMPP Cone Design
  • Pioneer “Open & Smooth”™ Sound Concept
  • Newly designed speaker adapters included

Product Description

Features & Specifications

Documents

Warranty

Pioneer TS-A692C A-Series 6×9″ 2-Way Component Car Speakers

Pioneer TS-A692C 6″x9″ component speaker system purposely matches the subwoofer and full-range loudspeakers to provide seamless and smooth sound characteristics with dynamic, high impact bass that lets you hear and feel the music.

Easy Installation

Included with the component system are 6″ x 9″ multi-fit installation adapters that expand flexibility and improve acoustic performance and also included are tweeter mounts for surface mounting, flush mounting and specially designed multi-fit adapters for mounting in original equipment (OE) tweeter locations.

Open & Smooth

Pioneer’s Open & Smooth sound concept provides a seamless and smooth transition between the midrange and tweeter drivers and delivers uniform off-axis frequency response optimized for automotive applications where one or more speakers are often aimed away from the listeners’ ears.

Car Sound Fit App

Pioneer’s Car SoundFit app is actually a car sound simulator for experiencing in-car sound with your own smartphone. Hear the difference between original car speakers and different Pioneer audio upgrades: convince yourself of the level of quality Pioneer can offer for your vehicle. For a virtual listening demonstration of these and many other Pioneer car speakers, download the free Pioneer CarSoundFit app. Pioneer’s next generation of TS-A series speakers offer Carbon & Mica reinforced IMPP cone for richer, deeper bass response. The new tweeter contributes to clearer high frequencies sound reproduction, significantly outperforming OEM systems. The long symmetrical voice coil and suspensions are well engineered for high linearity, more unpactful sound and richer bass with low distortion. The TS-A692C comes with newly designed adapters that give you more installation options and provide high dampening to improve sound quality.

IMPP Cone Construction: Carbon & Mica reinforced IMPP cone for deeper and richer bass response.

Pioneer’s Sound Concept “Open & Smooth”: The Pioneer “Open & Smooth”™ sound concept delivers open staging and smooth transition of driver response to provide the ultimate in-car sound.

Brand Pioneer   Model Pioneer TS-A692C
Product: Pioneer TS-A692C A-Series 6x9" 2-Way Component Car Speakers
System

System Type: 2-way Component
Sound Pressure Level (Sensitivity): 87 dB (+- 1.5dB)
Frequency Range: 33 Hz to 49 kHz
Continuous Power Handling (RMS): 100 Watts
Maximum Peak Power Handling: 450 Watts
Nominal Impedance: 4 ohms

Woofer

Diameter: 6 x 9"
Cone Material: Carbon and mica reinforced IMPP in moonstone gray
Surround Material: Elastic polymer
Magnet Material: Ferrite
Magnet Weight: 11.3 oz
Mounting Depth: 2-7/8"

Tweeter

Type: Serparate component polyimide hard dome tweeter
Diameter: 20 mm

Crossover Network

Crossover Frequency: 3,300 Hz

What's in the box

Pioneer TS-A692C owner's manual
Two woofers
Two tweeters (with attached 10" speaker leads terminated with quick-connects)
2 Multi-application woofer mounting brackets
2 Lengths of speaker wire (each has quick slides to connect to the woofer-a 40" tweeter output leg with integrated crossover-and an 11" input leg)
2 Tweeter angled surface mount housings
2 Tweeter flush mount rings
2 Tweeter factory mount brackets
Eight 1-1/8" Screws
Eight 3/8" Screws
Six 1/2" Screws
2 Speed clips
2 Adhesive backed foam discs
Warranty information
Template and specs on box

Speaker Design

2-Way, Component Systems, Tweeter

Speaker Sensitivity

86 – 90 db

Speaker Size

6" x 9"

RMS Power

76 to 100 Watts

Impedance

4 Ω

Estimated Shipping

When you add an item to your cart the Estimated Shipping* cost will be shown.  This estimated shipping* cost is accurate to most major city locations across Canada.  If the shipping cost is higher than the estimated shipping* then GibbysESM will contact you for approval before we process your order.

To learn more click Shipping Terms & Conditions

Pioneer Canada 1 Year Limited Warranty.
