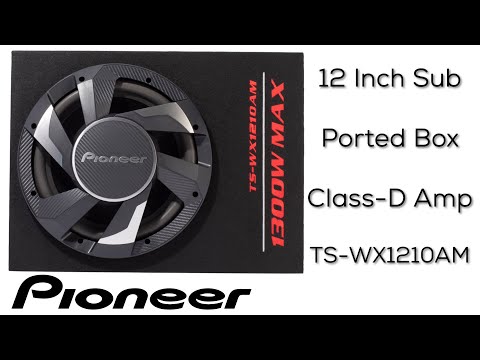

Pioneer TS-WX1210AM 12” 1300 Max Power Ported Enclosure Subwoofer with built-in Class-D Amplifier

Brand: Pioneer
Model Number: TS-WX1210AM
UPC: 884938486910
Model Number: TS-WX1210AM
UPC: 884938486910

Pioneer TS-WX1210AM 12” 1300 Max Power Ported Enclosure Subwoofer with built-in Class-D Amplifier

  • 1,300 Watts Max Power (350 Watts Nom.) – Subwoofer
  • 300 Watts Max (150 Watts Nominal) – Amplifier
  • Built-in Class-D Amplifier
  • Variable Bass Boost (0 to +12 dB, 20Hz to 130Hz)
  • 12” Ported Enclosure Subwoofer





Payments as low as



Availability: In stock

Product Description

Features & Specifications



Pioneer TS-WX1210AM 12” 1300 Max Power Ported Enclosure Subwoofer with built-in Class-D Amplifier

The TS-WX1210AM is a new powered bass-reflex subwoofer aimed at customers looking for an all-in-one solution that is quick and easy to install. Its format, which is considered tiny for a 12-inch ventilated subwoofer, will definitely appeal to those wishing to spice up their musical listening without breaking the bank!

The TS-WX1210AM ported enclosure subwoofer has an IMPPTM (Injection-Molded Polypropylene) composite speaker cone that delivers deep, rich bass to your music. It also includes a Class-D amplifier incorporated into the enclosure’s side, which not only amplifies the bass to high volumes, but also allows for a more compact design that’s appropriate for today’s smaller vehicles. The subwoofer enclosure has customizable settings, including adjustable bass boost, so the user may receive the style of bass they desire based on their musical preferences.

Clear Sound, Less Noise

subwoofer close upThe TS-WX1210AM features a cellulose fiber woofer cone, attached to a urethane surround, allowing for extra excursion to move more air and deliver accurate bass. A 4 ohm single voice coil design and Ferrite magnet assists in increasing the overall power handling and sound pressure level (SPL) output with no sacrifice in sound quality.

Powerful Amplified Subwoofer

sound adjustmentBuilt with a high output 300-watt Class-D amplifier attached to a high sensitivity woofer specifically optimized to give you solid bass response with minimal distortion. The Class D amplifier uses less power, takes up less space, and generates less heat than traditional amplifier designs.

Flexible Sound Adjustment

User adjustable controls include a variable bass boost (0 to +12 dB) providing enhanced bass boost control.

Flexible Installation

installation screwsThe trapezoid shaped enclosure is designed for high rigidity and to reduce internal standing waves, while also increasing installation flexibility. The enclosure can be installed freely in the cabin or re-positioned in the cargo area with the subwoofer firing rear, front or upwards for optimal bass tuning. The enclosure is fully carpeted, creating a non-slip, durable and scratch resistant surface. Installation flexibility includes speaker line or RCA connection signal input.


Pioneer’s CarSoundFit app is actually a car sound simulator for experiencing in-car sound with your own smartphone. Hear the difference between original car speakers and different Pioneer audio upgrades: convince yourself of the level of quality Pioneer can offer for your vehicle. For a virtual listening demonstration of these and many other Pioneer car speakers, download the free Pioneer CarSoundFit app.

TS-WX1210AM Features:

  • Single Driver Bass-Reflex Box Design
  • Black & Red carpet finish
  • Mica reinforced IMPP cone
  • Oversized magnet & Extended pole
  • Rubber surround
  • Voice-coil cooling system (VCCS)
  • 350 Watts Built-in digital amplifier
  • RCA low level inputs
  • Speaker / High level inputs
  • Built-in bass boost EQ
  • Adjustable 12 dB/oct. low pass X-over
    • 50Hz to 125Hz
  • Intelligent auto turn on/off function
  • Thermal and over voltage protection
Brand Pioneer   Model Pioneer TS-WX1210AM
Product: Pioneer TS-WX1210AM 12” 1300 Max Power Ported Enclosure Subwoofer with built-in Class-D Amplifier
Standard & Performance

Product Standard: CTA-2006
Amp – Max Current Consumption: 13 A
Amp – Power Source: DC 14.4 V
Bass Boost: 0 to +12 dB – Level
Continuous Power Handling: 350 W – Speaker / 150 W – Amplifier
Frequency Range: 20 Hz to 130 Hz
Maximum Peak Power Handling – Watts: 1300
Sensitivity (1W/1m): 113dB


Built In Amp: Yes
Port Box volume: 33
Port Diameter: 4.325
Port Length: 7.525
Subwoofer Grille: Resin
System-Type: Powered


Basket Material: Stamped Metal
Center Cone Material – SW: Cellulose Fiber
Center Cap Material: Polypropylene
Cone Material: Cellulose fiber
Damper: Aramid
Gasket: ABS
Surround Material: Urethane
Surround Type: Rolled
Voice Coil Bobbin: Polyimide
Voice Coil Type: Single Voice
Voice Coil wire: Copper
Woofer Magnet Material: Ferrite
Woofer Magnet Weight: 33.5

What’s in the Box

TS-WX1210AM Subwoofer
(8) screws
2 Brackets
Wiring Harness
One Year Warranty Sheet
