Sanus VLF525-B3 Large Full Motion Mount for 51″-70″ TVs

Brand: Sanus
Model Number: VLF525
UPC: 793795526960
Model Number: VLF525
UPC: 793795526960

Sanus VLF525-B3 Large Full Motion Mount for 51″-70″ TVs

  • Supports 51 to 70″ Displays Up to 125 lb
  • 300 x 200 to 700 x 400mm Mount Patterns
  • Provides ±90° of Pan and Swivel
  • Provides ±3° of Roll Adjustment
ETA Mid-Late August 2022





Payments as low as


ETA Mid-Late August 2022

Product Description

Features & Specifications



Sanus VLF525-B3 Large Full Motion Mount for 51″-70″ TVs

SANUS VLF525-B3 Premium Series full-motion mount lets you enjoy a great picture no matter where you watch. Tilt, swivel, extend and level your TV without the need for tools. Unsightly cables stay concealed, and tool-free assembly ensures a quick and easy installation.  The mount’s safety latch snaps shut with an audible click, so you know the arm is securely attached.  A wall mount cover hides ugly screwheads, giving your installation a finished look. The mount can support TVs with screen sizes from 51″ to 70″ and weighing up to 125 lbs. The articulated arm extends your TV up to 25″ out from the wall. You can swivel your TV from side to side, and tilt it up or down for optimal viewing.

A safe design for mounting

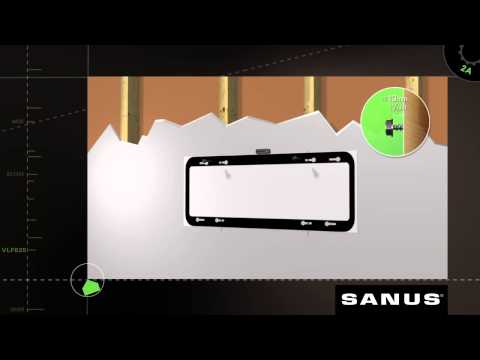

Once you’ve secured the brace to the wall, the arm just slides into position. A safety lock that closes with an audible click lets you know the arm is securely in place. And once you’ve positioned the arm the way you want it, a sliding tab locks it for stability. The provided stud finder and plastic template ensure mounting hardware is properly spaced.


Fine-tune your TV’s placement

After installation, the mount’s “roll” adjustment lets you fine-tune your TV’s position to ensure that the screen is perfectly level. The arm assembly can also be shifted slightly left or right on the wall plate so the TV is centered, even if your wall studs are off-center. Finally, the mount’s hollow arm lets you thread cables through it, keeping them out of sight and free from tangles.

  • designed for TVs 51″-70″
  • supports up to 125 lbs.
  • pivoting arm extends TV up to 25″ away from the wall
  • tilt range: +5° to -15° (may vary with size of TV)
  • roll adjustment: +3° to -3°
  • in-arm wire channel conceals cables without inhibiting movement
  • stud-mounting required
  • 30-7/8″W x 18-5/8″H x 3-5/8″D (up to 25″ with arm extended)
  • Easily adjust your TV without tools
  • Our TV Mount products are Safety Tested and UL Certified
  • Perfect for mounting your TV in a corner
  • Hardware included
Brand Sanus   Model Sanus VLF525
Product: Sanus VLF525-B3 Large Full Motion Mount for 51"-70" TVs
Weight 18.14 kg

– Supported Screen Sizes: 51 to 70" / 129.5 to 177.8 cm
– Supported Weight Capacity: 125 lb / 56.8 kg
– Mounting-Hole Pattern: 300 x 200 to 700 x 400 mm
– Number of Displays Supported: 1

– Tilt Adjustmen: t-15 to +5°
– Pan Adjustment: -90 to +90°
– Swivel Adjustment: -90 to +90°
– Roll (Level Alignment): -3 to +3°
– Orientation: Landscape

– Distance from Mounting Surface: 3.6 to 25.00" / 9.2 to 63.5 cm
– Dimensions: 30.9 x 18.7 x 3.6" / 78.4 x 47.4 x 9.2 cm
