Sanus VMF322B3 32″ – 50″ Full-motion TV Wall Mount

Sanus VMF322B3 is designed to hold your flat-panel TV close to the wall while still offering a full range of tilt and swivel motions. It is fashioned to mount virtually any 32 to 50″ display weighing up to 60 lb (27.2 kg). Employing Virtual Axis tilt technology, the Super Slim Wall Mount allows for fluid adjustments to easily reduce glare and reflections that may be caused by lights or windows. This Full-motion Mount fully extends up to 22″, retracts, tilts, and swivels with the touch of a finger.

The Sanus VMF322B3 keeps loose cables organized and concealed within the extension arm for a clean appearance without compromising TV motion. Its post-installation leveling adjustment ensures the TV is perfectly positioned on the wall. The VMF322 always has a finished appearance with a decorative cover that conceals assembly and mounting hardware.

Features:

• • Conceal unsightly cables
  • Easily adjust your TV without tools
  • Enjoy a great picture no matter where you watch
  • Hardware included
  • Leveling adjustments allow TV to be perfectly positioned after hanging
  • Our TV Mount products are Safety Tested and UL Certified
  • Position your TV as close to the wall as possible
  • Swivel your TV left and right for the perfect view
  • Tilt your TV for perfect viewing from the couch or floor

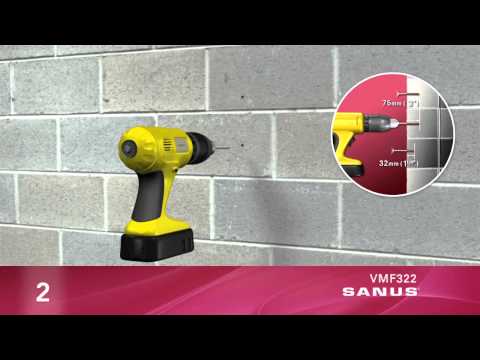

Tools You Will Need For Installation

7/32″ Drill Bit
3/8″ Masonry Bit (Concrete Installations)
1/2″ Socket Wrench
Awl
Electric Drill
Hammer
Level
Pencil
Phillips Head Screwdriver
Stud Finder
Tape Measure

Awards

SVI Best AV Mounting Solution Silver Award, Winner 2013 SVI Best AV Mounting Solution Silver Award, Winner 2013,
Custom Retailer Exc!te Award 2012 Custom Retailer Exc!te Award 2012

The Details

Product Brand: SANUS
Model Code: VMF322
UPC Code: 793795524287 – Black – Discontinued
Product Width: 22.16″ / 56.29cm
Product Height: 17.00″ / 43.18cm
Product Depth: 1.38″ – 22.09″ / 3.51cm – 56.11cm
Product Weight: 27.00lbs / 12.25kg
Package Width: 27.50″ / 69.85cm
Package Height: 3.00″ / 7.62cm
Package Depth: 18.00″ / 45.72cm
Package Weight: 28.10lbs / 12.75kg
TV Size Range: 32″ – 50″ / 81.28cm – 127.00cm
Maximum TV Weight: 60lbs / 27.22kg
Supported VESA Patterns View Supported Patterns
Pan: 90° / -90°
Tilt: 0° / -10°
Roll: 2° / -2°
Swivel: 90° / -90°
