JL Audio Home Audio ICS-SYS-108 8" In-Ceiling Powered Subwoofer System
Product Descriptions
Product Descriptions
JL Audio Home Audio Fathom ICS-SYS-108 8" In-Ceiling Powered Subwoofer System
ICS-SYS-108 - In-Ceiling Subwoofer System with Single 8-inch Subwoofer, 300 watts
Created from the same innovative technologies used to develop our free-standing powered subwoofers, the Fathom ICS in-ceiling subwoofer systems are engineered to deliver outstanding bass performance, with nearly unlimited placement freedom. Purpose-built to disappear into the ceilings of most home audio/theater environments, the 8-inch Fathom ICS systems are designed to fit 2" x 6" or larger ceiling joists and a wide range of assembled joist widths, while operating through very small grilles.

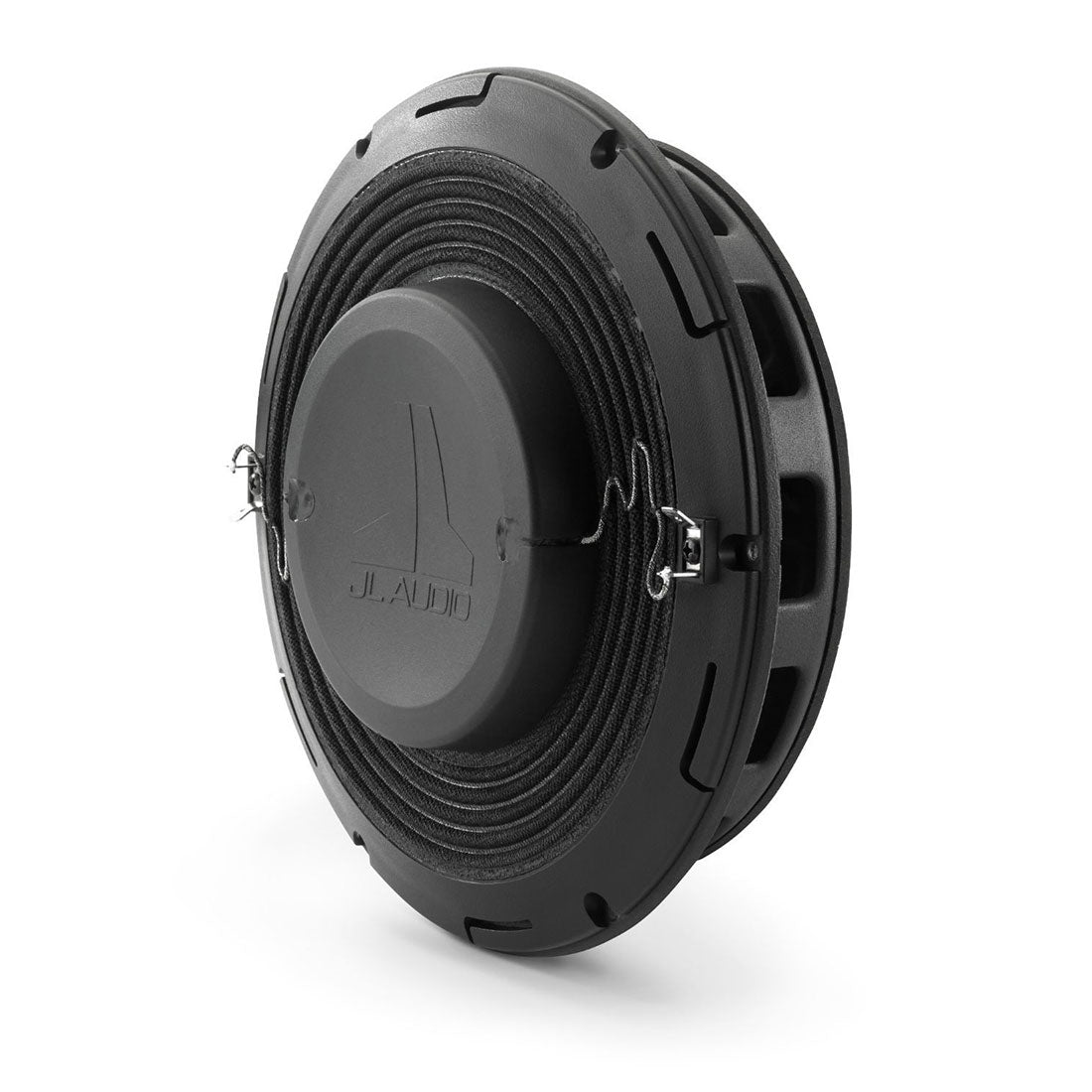

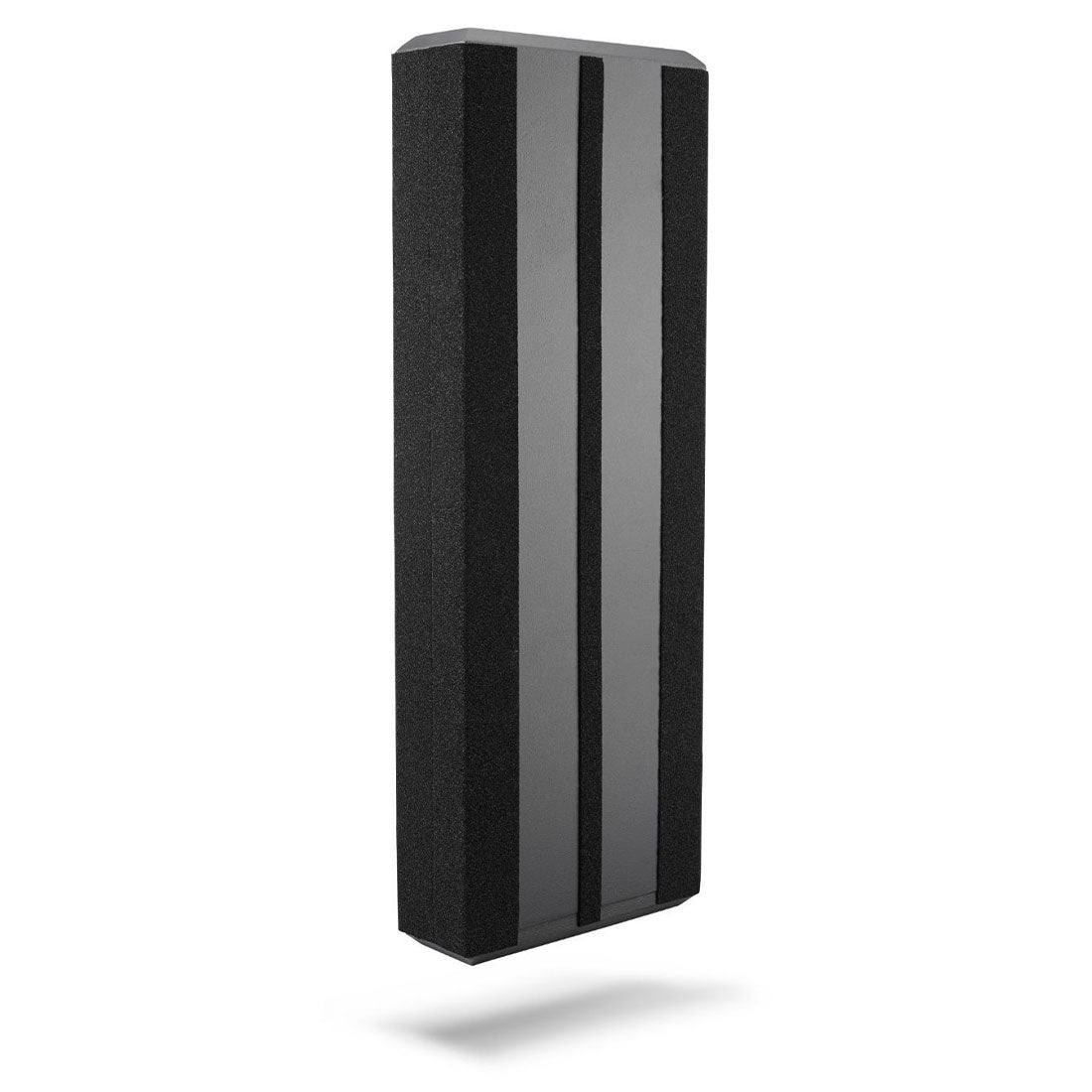

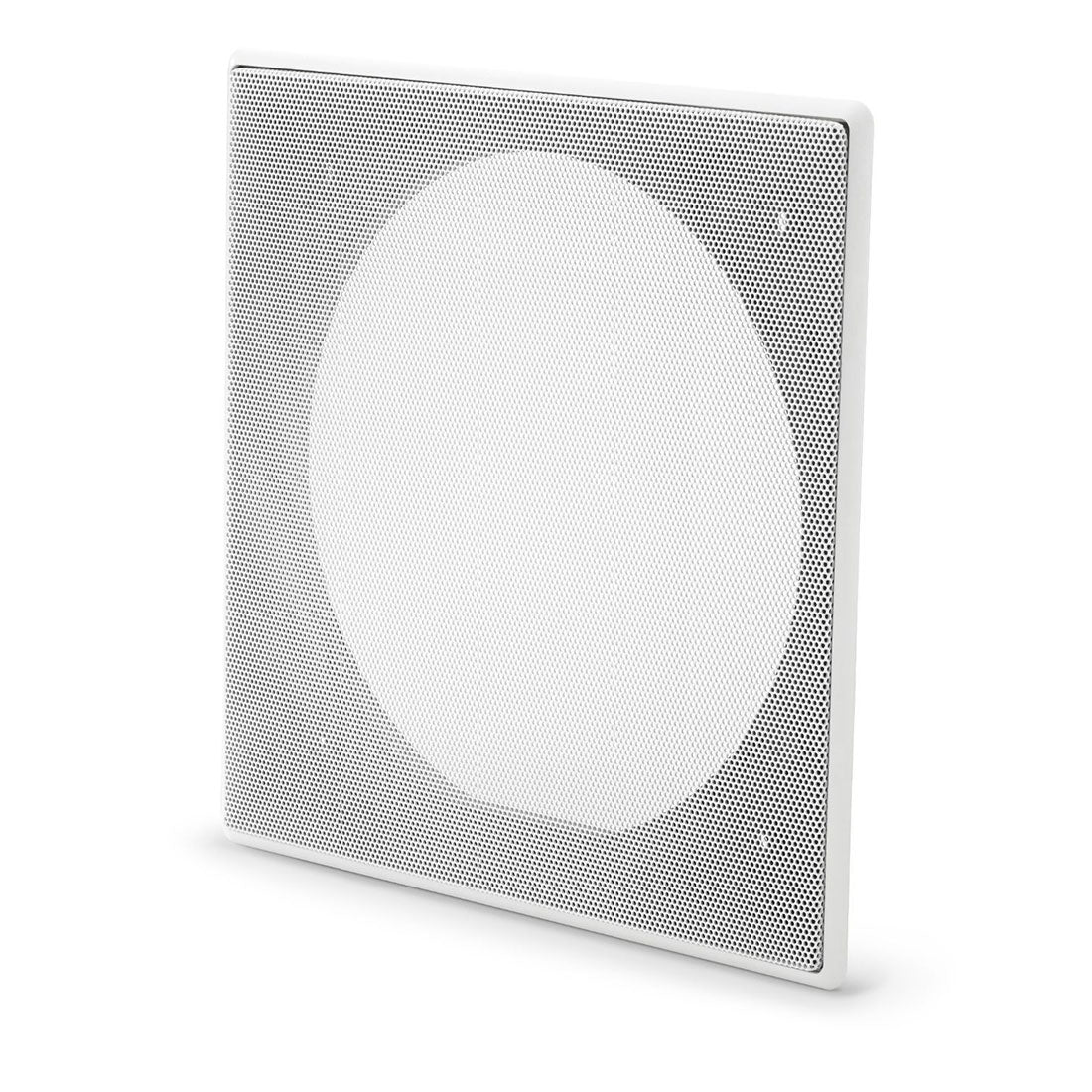

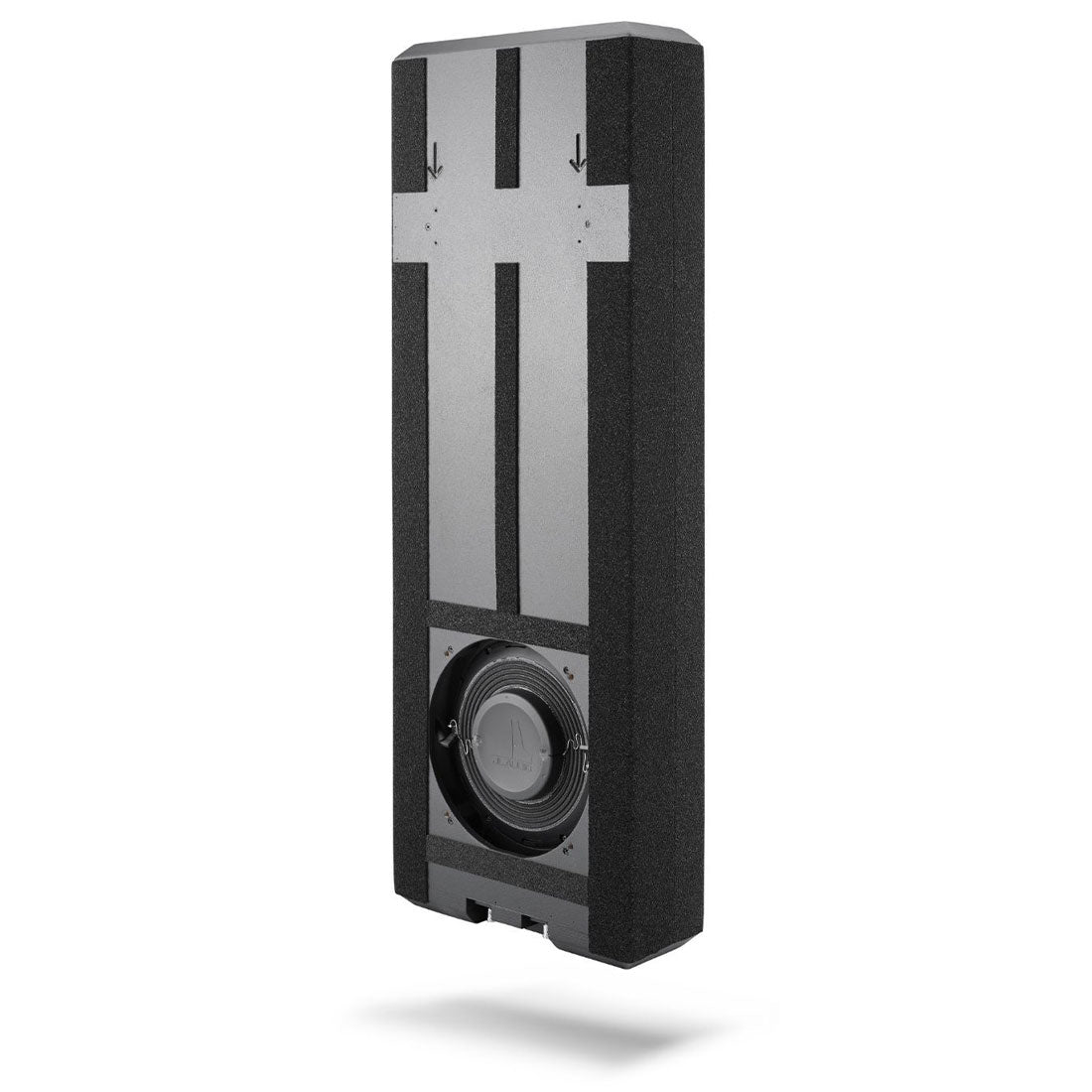

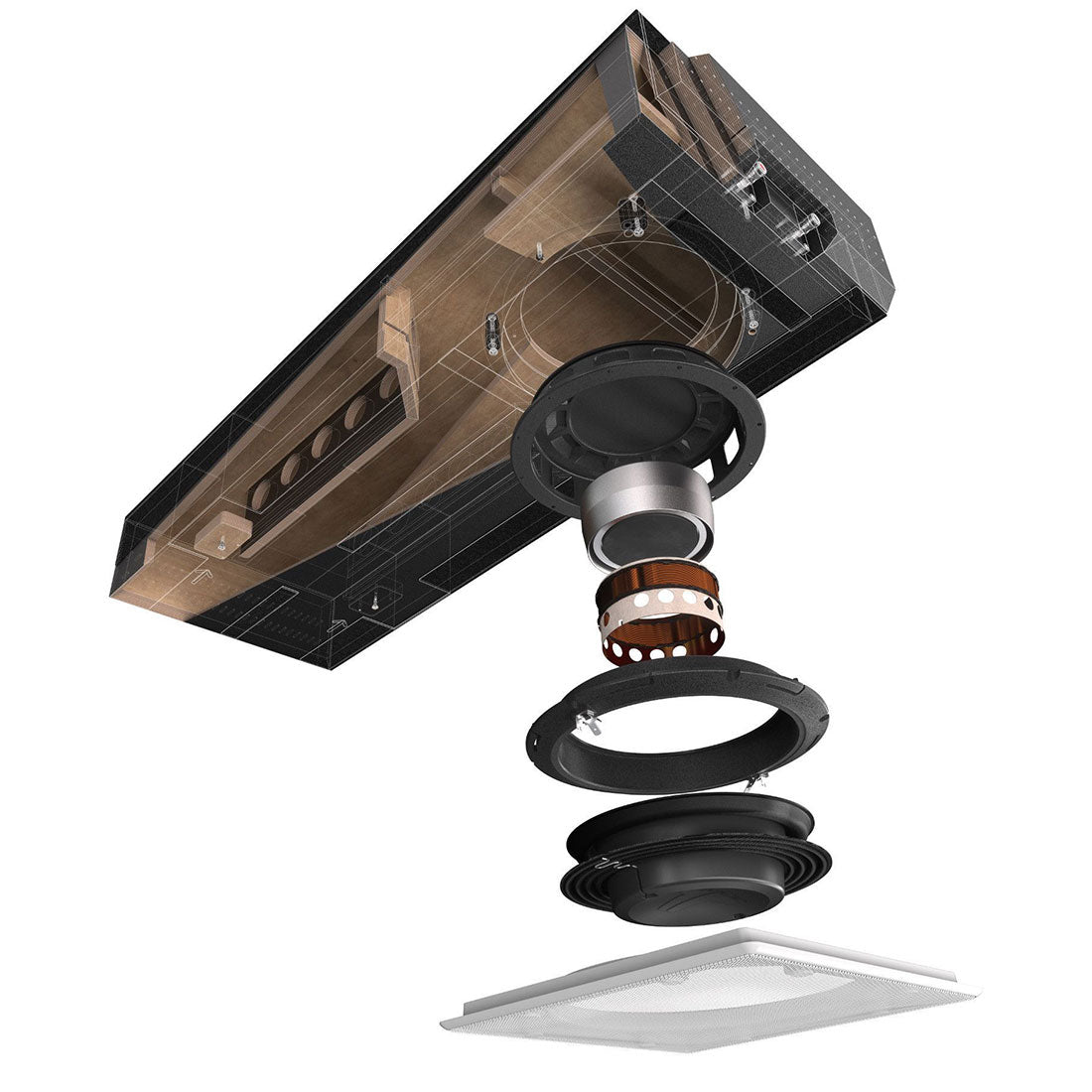

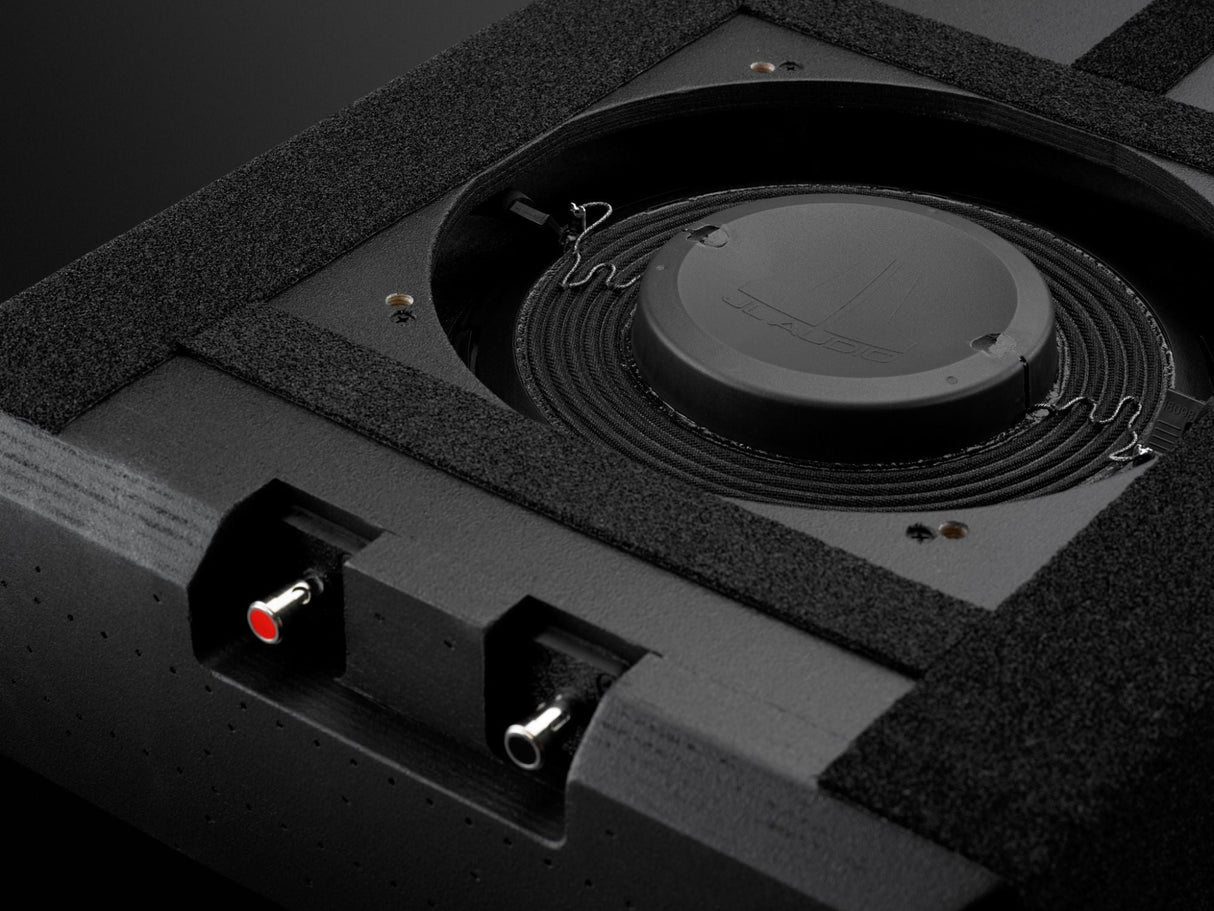

The grille’s clever design accommodates all common drywall thicknesses and can be easily painted to match a room’s décor. The subwoofer enclosures utilize extensive architectural features aimed at improving rigidity while keeping a very low profile and minimal wall thickness. A unique port design vents through a slot located at the perimeter of the driver mount to enhance efficiency and low-bass output. Inside the enclosure is a long-excursion, 8-inch thin-line woofer, built to exacting standards by JL Audio for the Fathom ICS products.

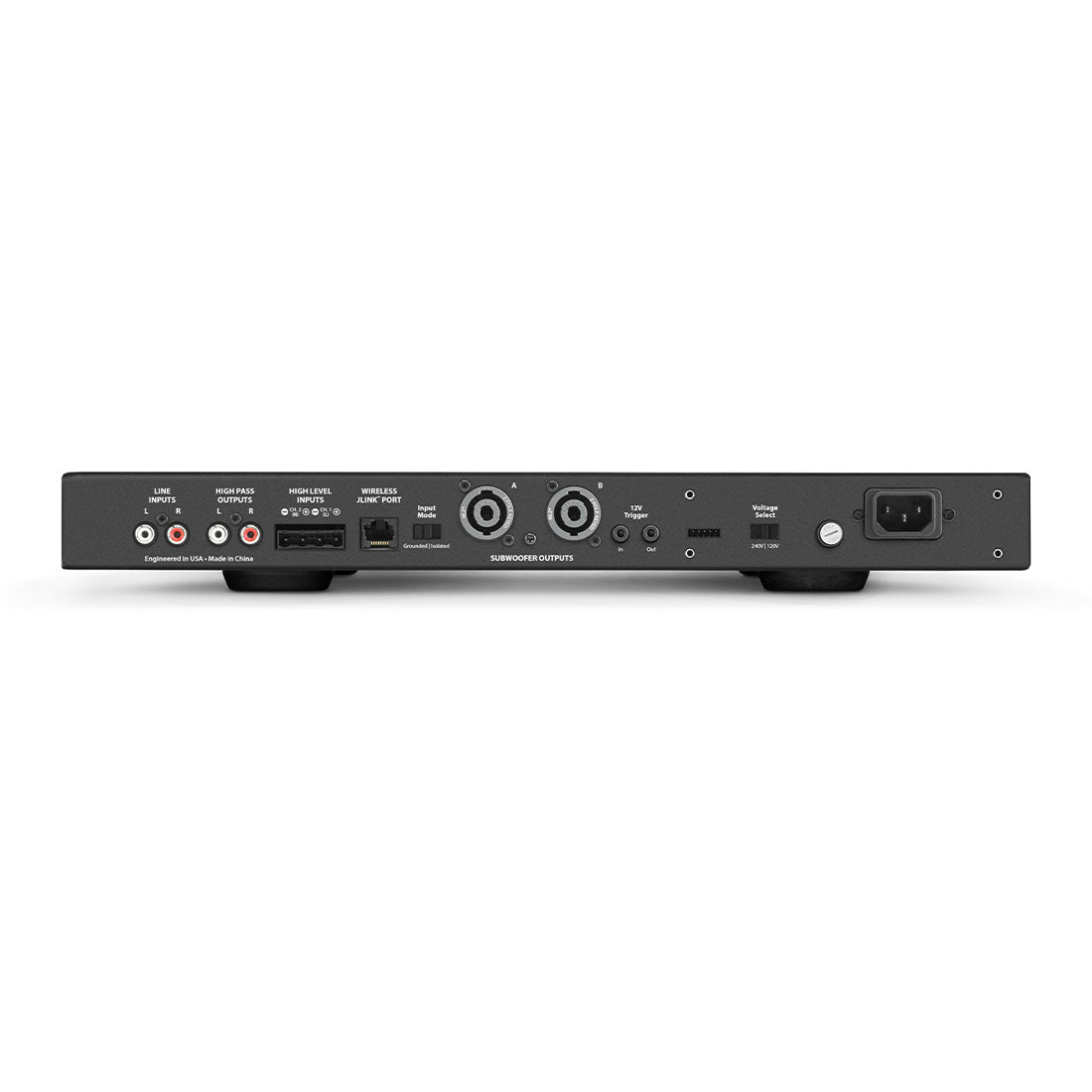

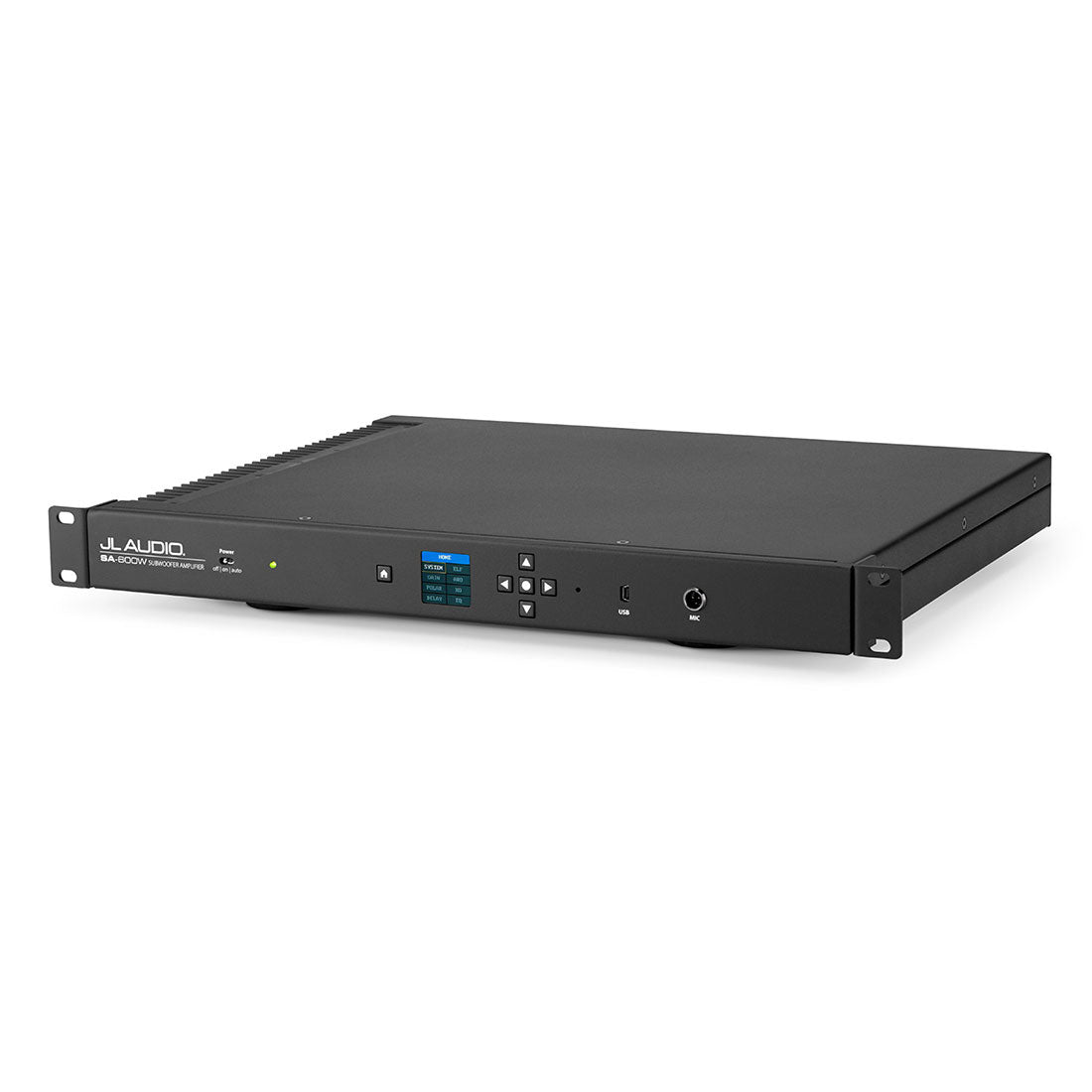

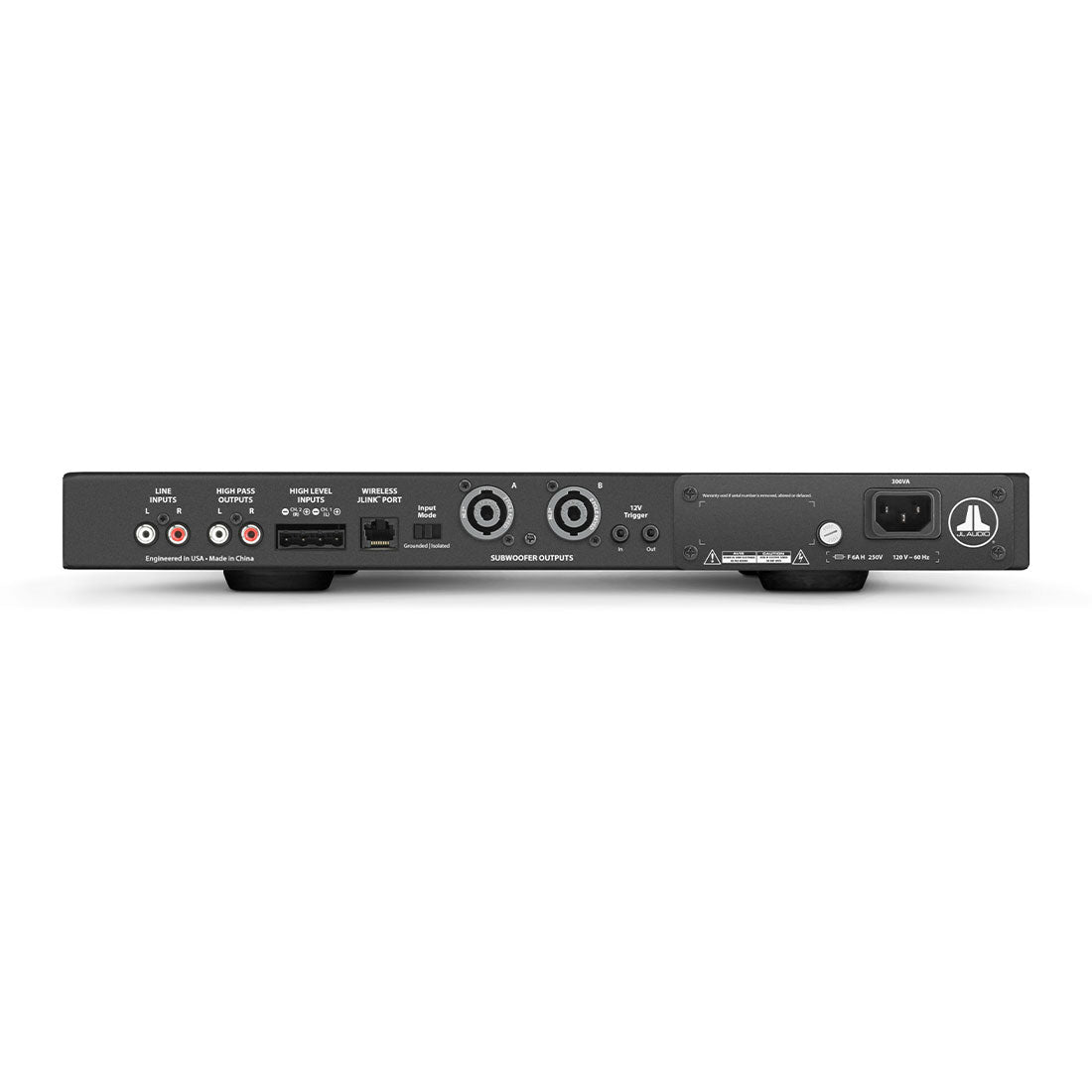

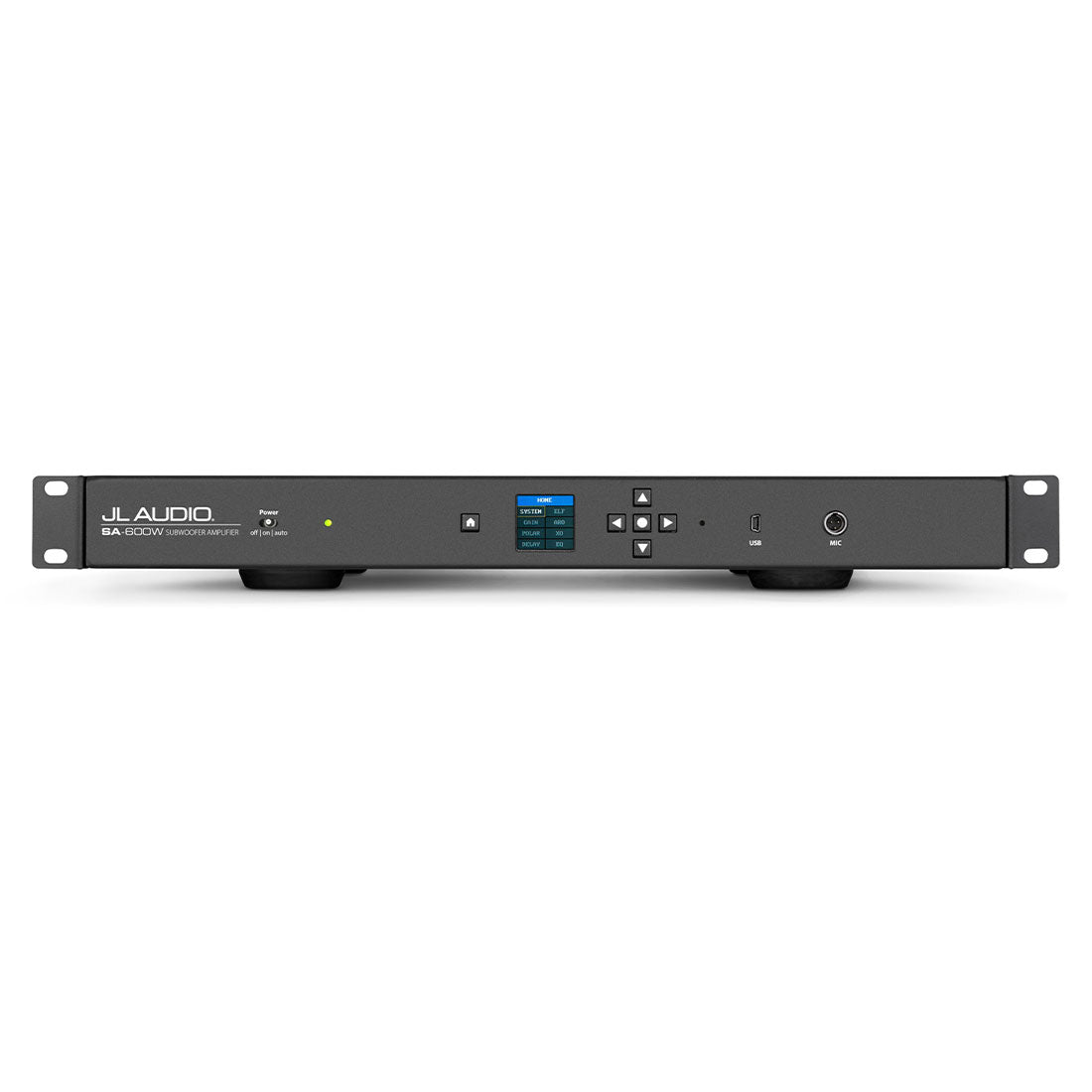

Each 8-inch Fathom ICS system is driven by a rack-mountable amplifier with up to 600 watts of clean power, programmed specifically for each system, and capable of driving up to two enclosures. A complete set of Fathom signal processing features is also onboard, including our powerful, 18-band Digital Automatic Room Optimization (D.A.R.O.) system, and high-pass crossover outputs, all accessible via an easy-to-use, menu-driven interface and LCD display. Note: D.A.R.O. functionality requires optional calibration microphone (sold separately).
ICS-SYS-108 Highlights
- The ICS-108 System fits 2" x 6" ceiling joists or larger, with assembled joists ranging from 16-inches to 25 1/2-inches on center.
- Enclosure Finish: Flat Black (hidden from view when installed)
- Grille finish: Primer White (paintable)
- Enclosure Construction: CNC-Cut Birch Plywood
2 x 6-inch Joist/Stud Enclosure Physical Specifications
| Joist/Stud Cavity Width (W) | Minimum: 16 in / 406 mm Maximum: 25.5 in / 648 mm (on center) |
| Joist/Stud Cavity Height (H) | Minimum: 58 in / 1,473 mm |
| Width (W) | 14 in / 355 mm |
| Height (H) | 40.71 in / 1,034 mm |
| Depth (D) | 5.13 in / 130 mm |
| Note: Enclosure dimensions do not include L-brackets or vibration-dampening padding. | |
Amplifier Physical Specifications
| Width (W) | 16.84 in / 428 mm |
| Height (H) | 1.75 in / 44 mm |
| Depth (D) | 13.63 in / 346 mm |
| Net Weight | 13.5 lb / 6.12 kg |
| Note: Single Rack Unit - Amplifier Height Dimensions do not include feet. | |
Grille Physical Specifications
| Grille Height (H) | 10.50 in / 267 mm |
| Wallboard Thickness Compatibility | 0.5 in to 1.75 in / 13 mm to 44 mm |
| Grille Width (W) | 10.50 in / 267 mm |
| Wall Opening Height (H) | 9.75 in / 248 mm |
| Wall Opening Width (W) | 9.75 in / 248 mm |
