TOA DP-SP3 CU Digital Processor (DPSP3 CU)
Product Description
Product Description

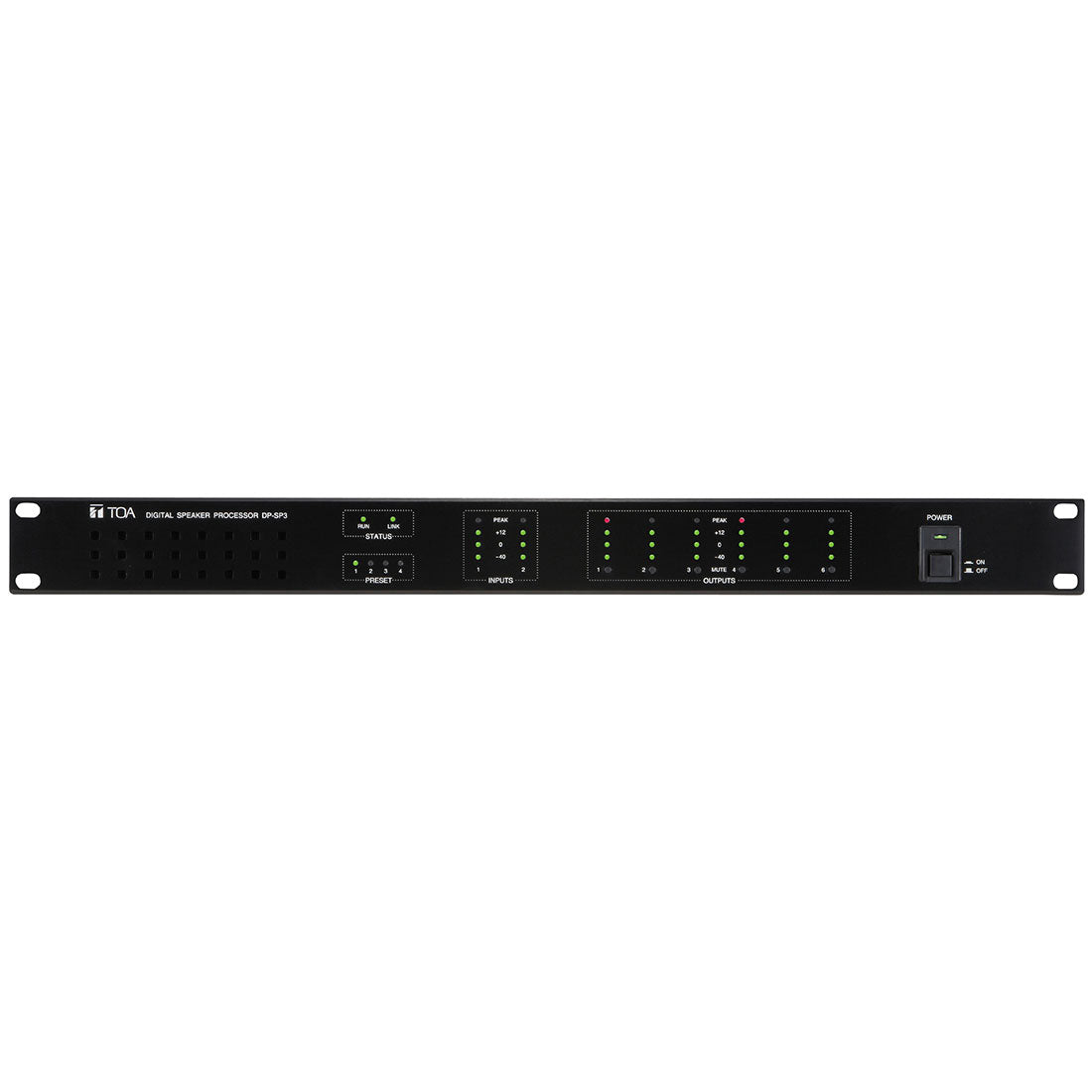

TOA DP-SP3 CU Digital Processor
The new TOA DP-SP3 Digital Speaker Processor makes it simple and affordable to improve your sound system. The processor, which was created expressly to work with speakers, draws out the greatest performance from each speaker by tapping into their unique qualities, enabling richer, more expressive sound to be realised in a range of settings. The DP-SP3 comes with a built-in library of presets for the most well-liked TOA speakers, allowing you to experience well-balanced sound right away without having to bother with tedious parameter input. Additionally, you can quickly recall the setting you require for a specific location thanks to a preset memory of up to 16 setting patterns. Equalizer, Crossover, Matrix, Compressor, and Delay are just a few of the crucial audio processing features that the processor is equipped with.
DP-SP3 CU Specifications
- Power Source: 100 - 120 V AC, 60 Hz
- Power Consumption: 25 W
- Frequency Response: 20 Hz - 20 kHz, ±1 dB
- Sampling Frequency: 96 kHz
- Dynamic Range: 110 dB or more
- Distortion: 0.03% or less, 1 kHz, +4 dB*, input/output, 20 Hz - 20 kHz BPF
- Crosstalk: -80 dB or less, 1 kHz
- Input: 2 channels, +4 dB* (max. +24 dB*), 10 k?, electronically-balanced, removable terminal block (3P)
- Output: 6 channels, +4 dB* (max. +24 dB*), applicable load 600? or more, electronically-balanced, removable terminal block (3P)
- AD Converter: 24 bits
- DA Converter: 24 bits
- Preset Memory: 16
