TOA TT-104B 304 L Program Timer (TT104B 304 L)
Product Description
Product Description

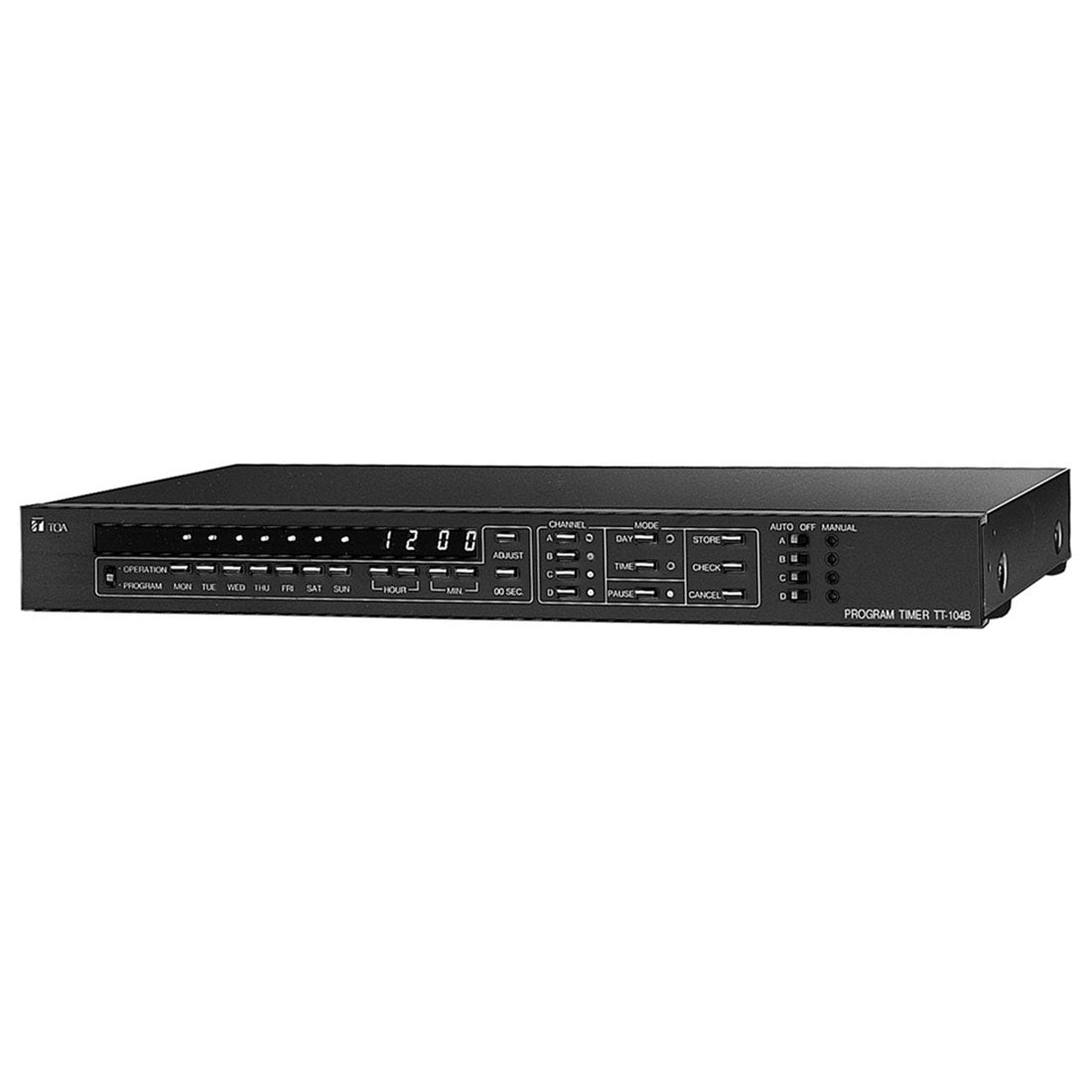

TOA TT-104B 304 L Program Timer
A program timer named the TT-104B manages four distinct transmissions and has four outputs. It can be mounted in an item that complies with EIA Standards by using an optional rack-mounting bracket (occupying 1 unit size).
Specifications
- Power Source: 110 - 120 V AC, 50/60 Hz
- Power Consumption: 3 W
- Displayed Contents: Day of the week, hour and minute
- Programmable Item: Day of the week, hour, minute, output channel
- Number of Channels: 4 channels (A,B,C,D)
- Output System: No-voltage (DRY) make contact (5-second pulse make output)
- Output Capacity: 24 V DC, 0.5 A
- Output Terminal: M4 screw terminal, distance between barriers: 9 mm (0.35)"
- Program Capacity: 30 steps per channel
- Clock Accuracy: ±5 seconds per month (25 ? (77 ?F))
- Power Outage Protection Period: 100 hours
- Operating Temperature: 0 ? to +50 ? (32 ?F to 122 ?F)
- Finish: Panel: Aluminum, black, 30 % gloss, paint, Case: Pre-coated steel plate, black
- Dimensions: 420 (W) × 47.5 (H) × 246.5 (D) mm (16.54 × 1.87" × 9.7")"
- Weight: 2.5 kg (5.51 lb)
- Option: Rack-mounting bracket: MB-15B
