Blustream SW41AB-V2 4-Way 4K HDMI Switch (SW41ABV2)
Product Description
Product Description
Blustream SW41AB-V2 4-Way 4K HDMI Switch (SW41ABV2)

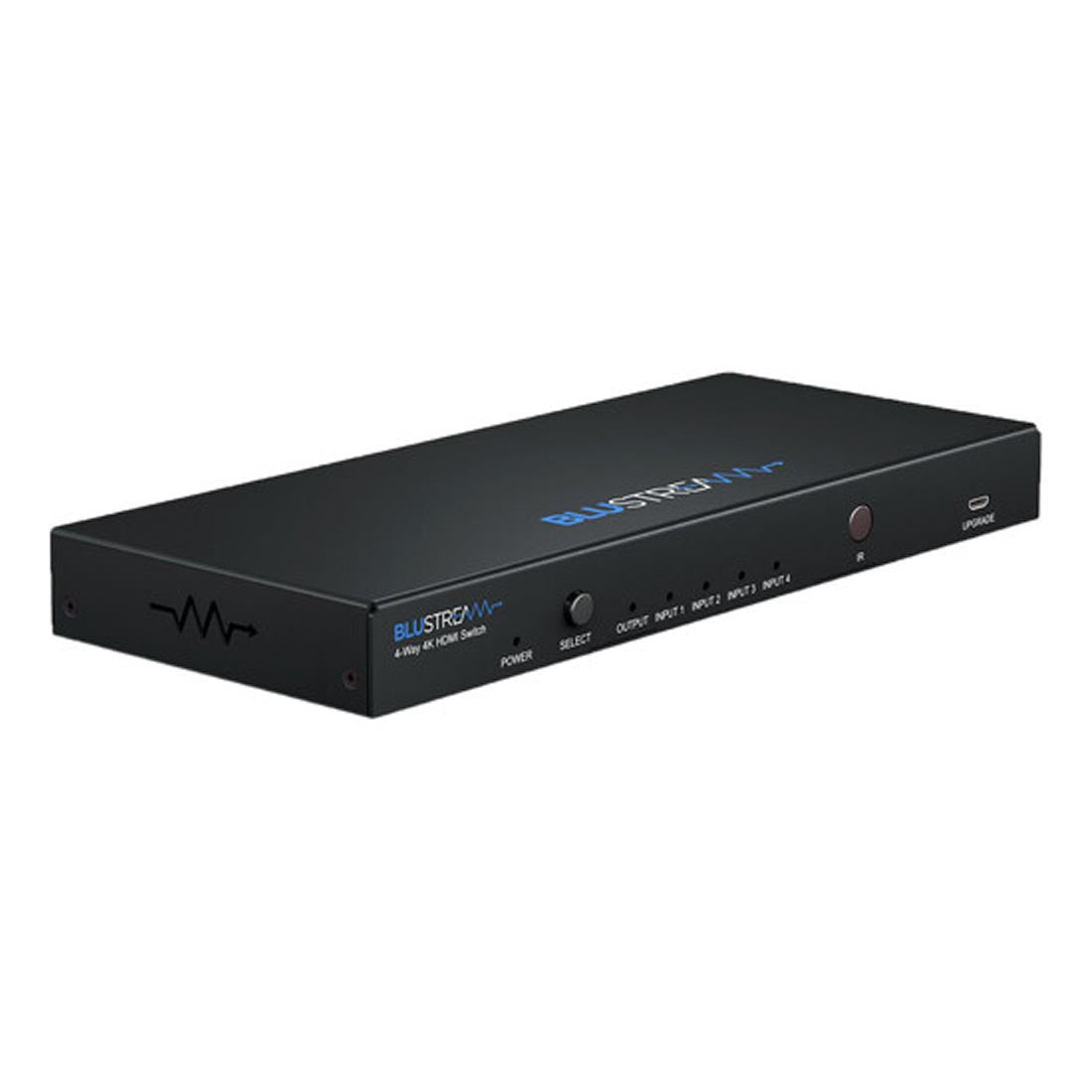

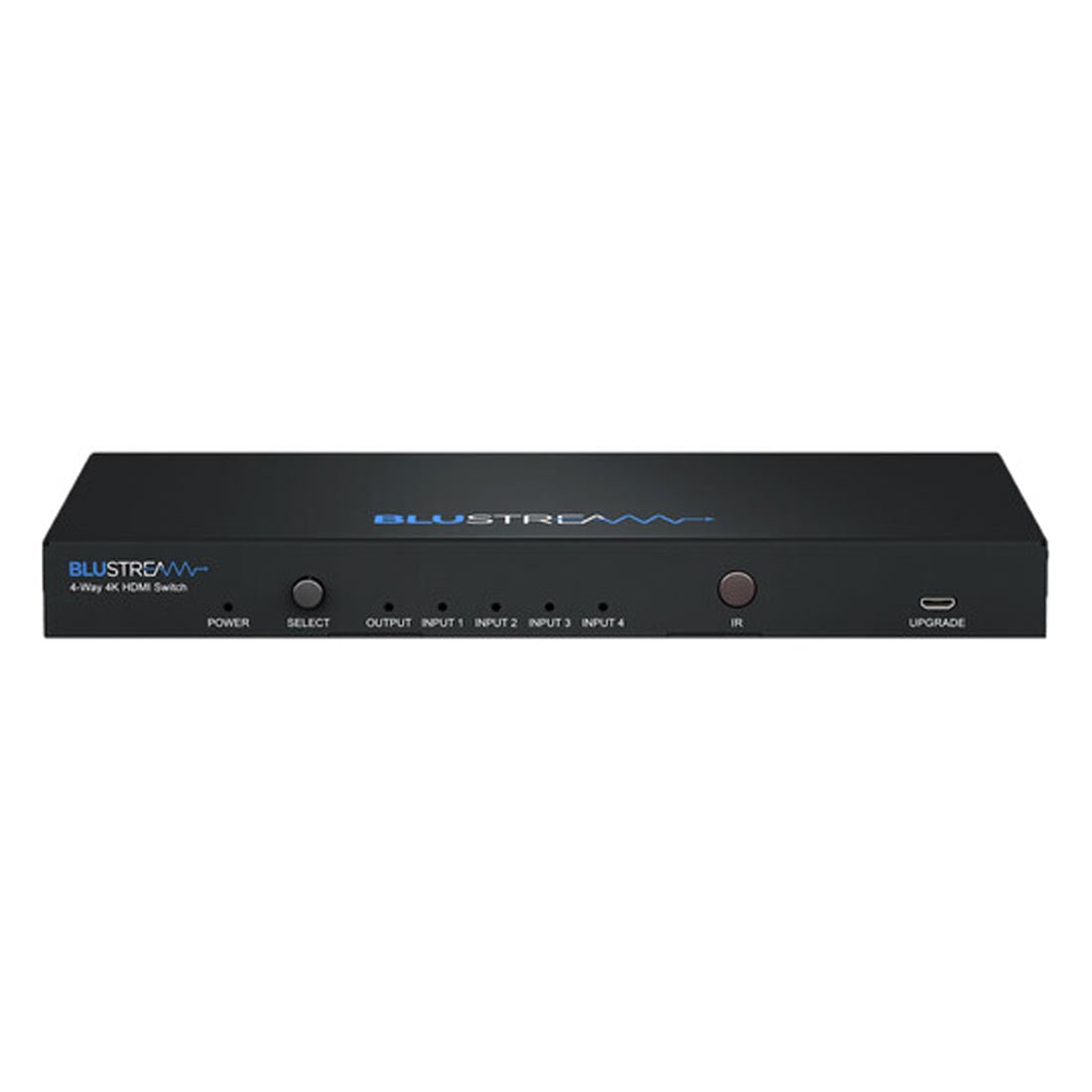

The Blustream SW41AB-V2 is a 4-way HDMI switch with integrated audio breakout and auto-switching, designed to route four HDMI sources to a single HDMI output. It supports full HDMI 2.0 with 4K @ 60Hz 4:4:4 and is HDCP 2.2 compliant.
4K UHD HDMI 2.0 Switching
Delivers 4K UHD video with support for full HDMI 2.0 (4K @ 60Hz 4:4:4) and HDCP 2.2 compliance.
- Supports 3D signal display
- Handles industry standard video resolutions from VGA–WUXGA and 480i–4K
- 4x HDMI inputs switched to a single HDMI output
- Auto-switching capability
Audio Breakout and Format Support
Extracts HDMI audio to analogue L/R and coaxial digital outputs concurrently.
- Supports Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
- Analogue L/R (3.5mm stereo jack) and RCA (SPDIF) outputs
Control and Integration
Integrates into a variety of control environments and manages device communication.
- Control via front panel, RS-232 and IR
- Advanced EDID management
- CEC is blocked from the inputs to the end sink/display
Connections and Included Accessories
Provides practical connectivity and essential accessories.

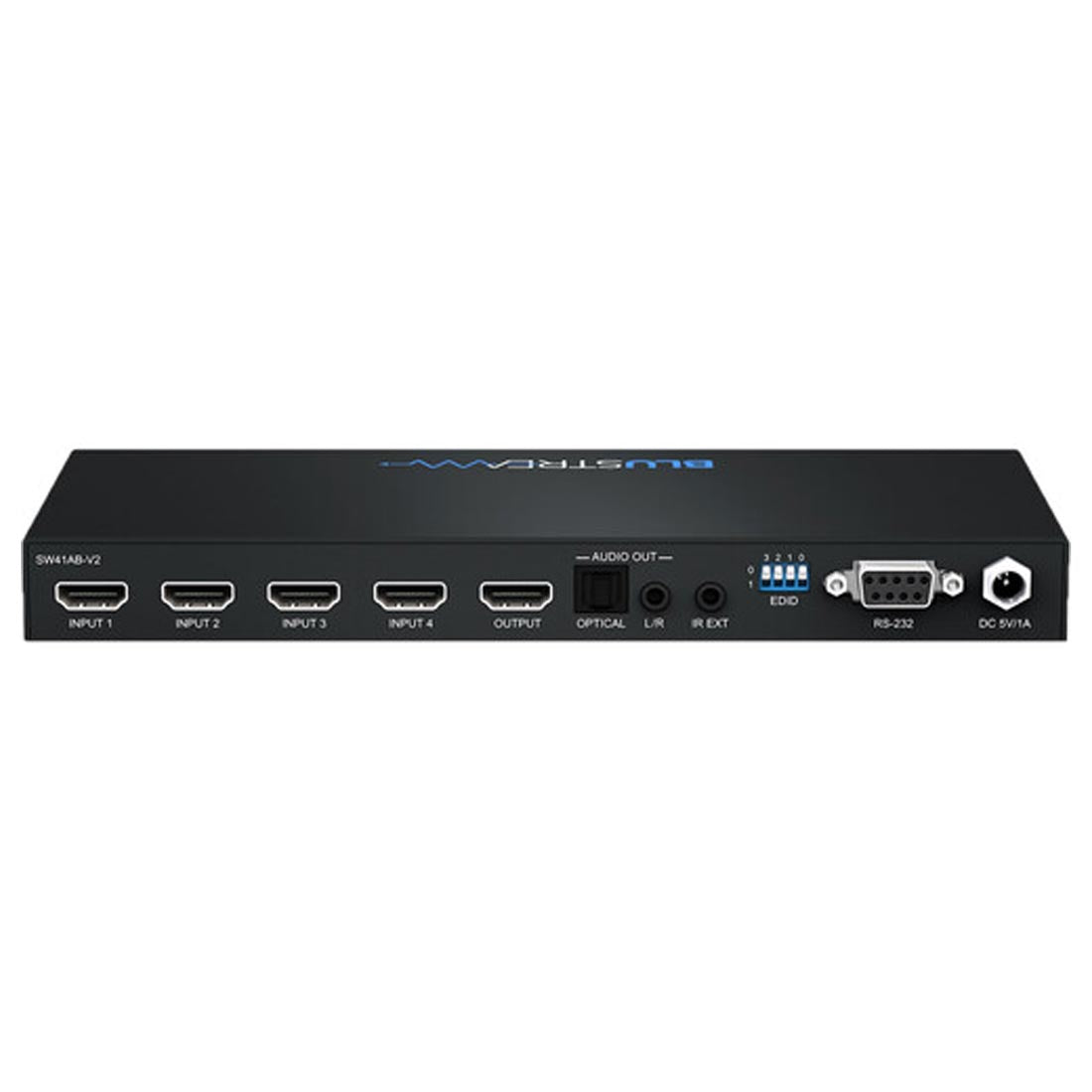

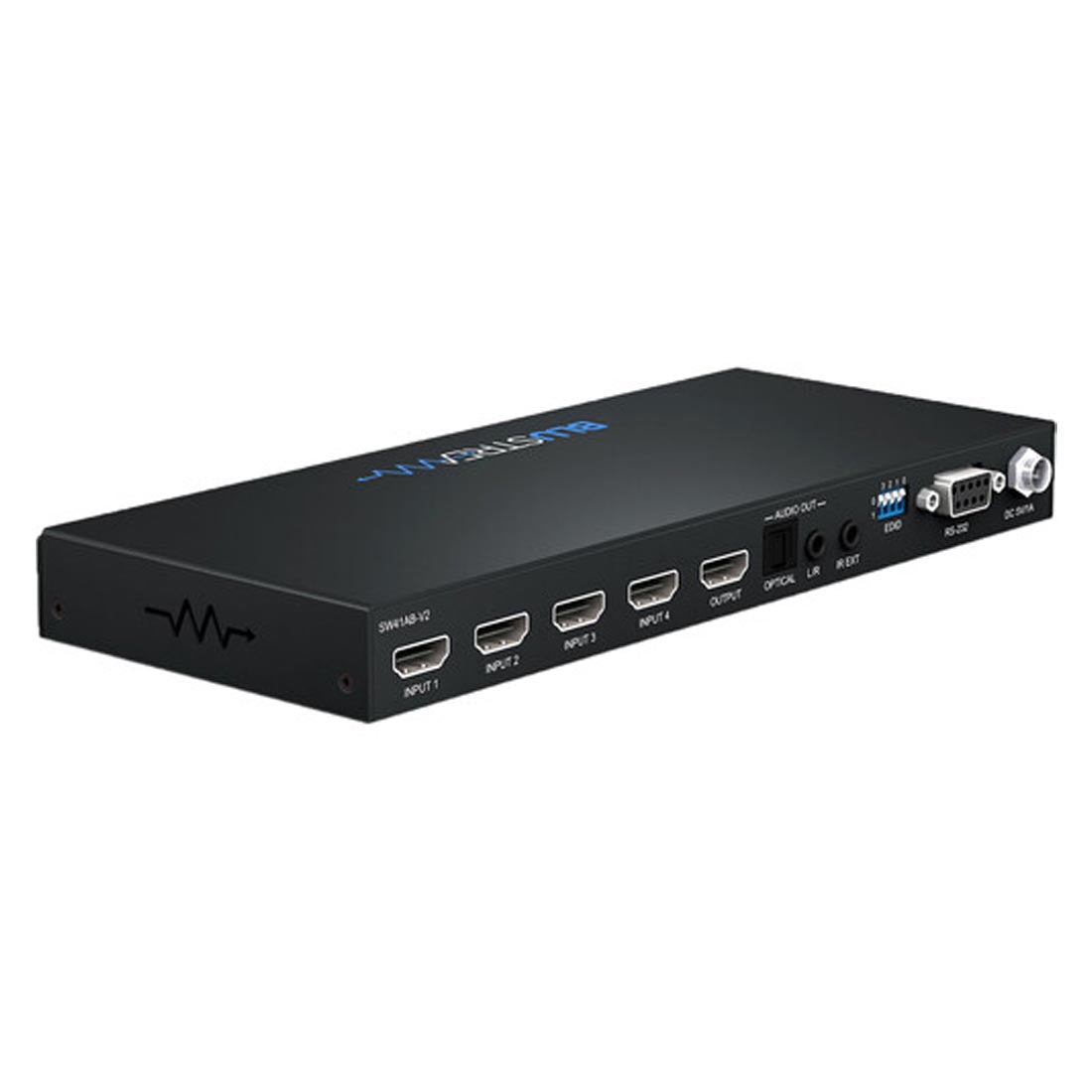

- Video I/O: 4x HDMI Type-A inputs, 1x HDMI Type-A output
- Control I/O: 1x 3.5mm IR input; 1x DB-9 RS-232 serial port
- Includes remote control, 5V/2A DC power supply, IR receiver and user manual
Frequently Asked Questions
-
How many sources can the SW41AB-V2 switch?
It provides 4x HDMI inputs that can be switched to a single HDMI output.
-
Does it support 4K @ 60Hz 4:4:4 and HDCP 2.2?
Yes. It supports full HDMI 2.0 with 4K @ 60Hz 4:4:4 and is HDCP 2.2 compliant.
-
What audio outputs are available?
HDMI audio can be broken out concurrently to analogue L/R (3.5mm stereo jack) and coaxial digital via RCA (SPDIF).
-
How can the unit be controlled?
Control options include the front panel, RS-232 and IR. It also offers advanced EDID management, and CEC is blocked from the inputs to the end sink/display.
Add to Cart to integrate the Blustream SW41AB-V2 4-Way 4K HDMI Switch into your system, and contact Gibbys Electronic Supermarket for expert product-matching and setup advice tailored to your installation.
