Blustream DA22DIG 2x2 Digital And Analogue Dante Converter (DA22DIG)
Product Description
Product Description

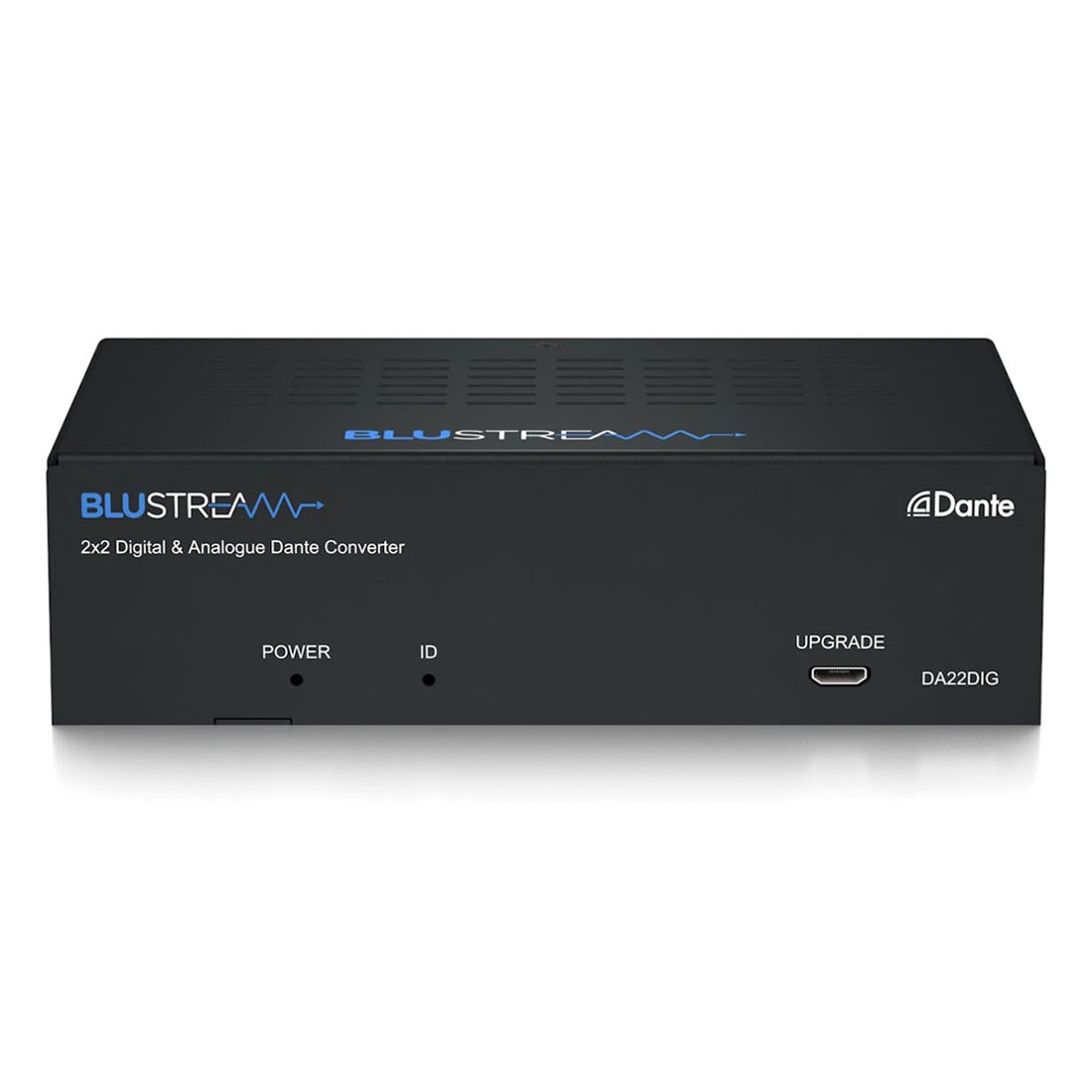

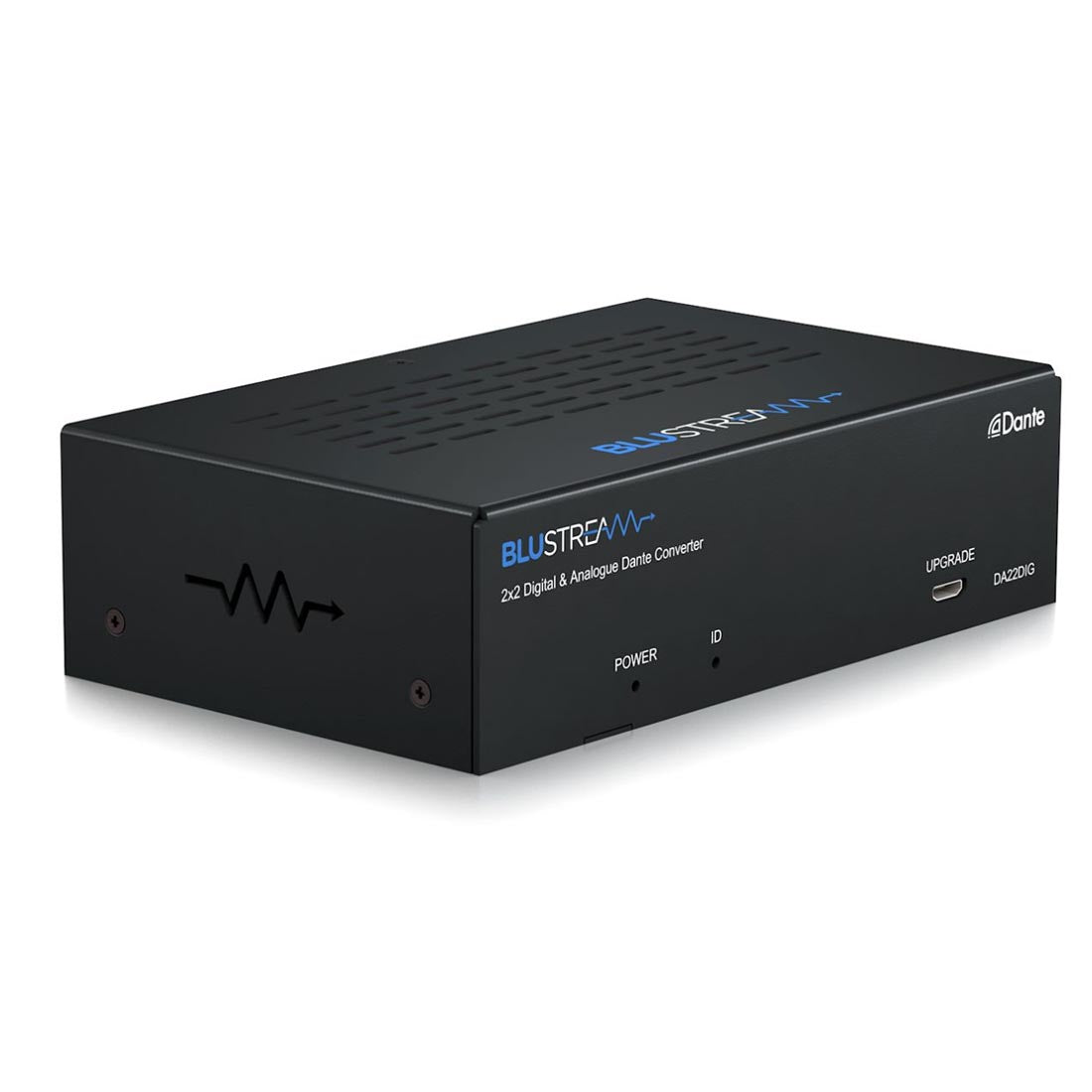

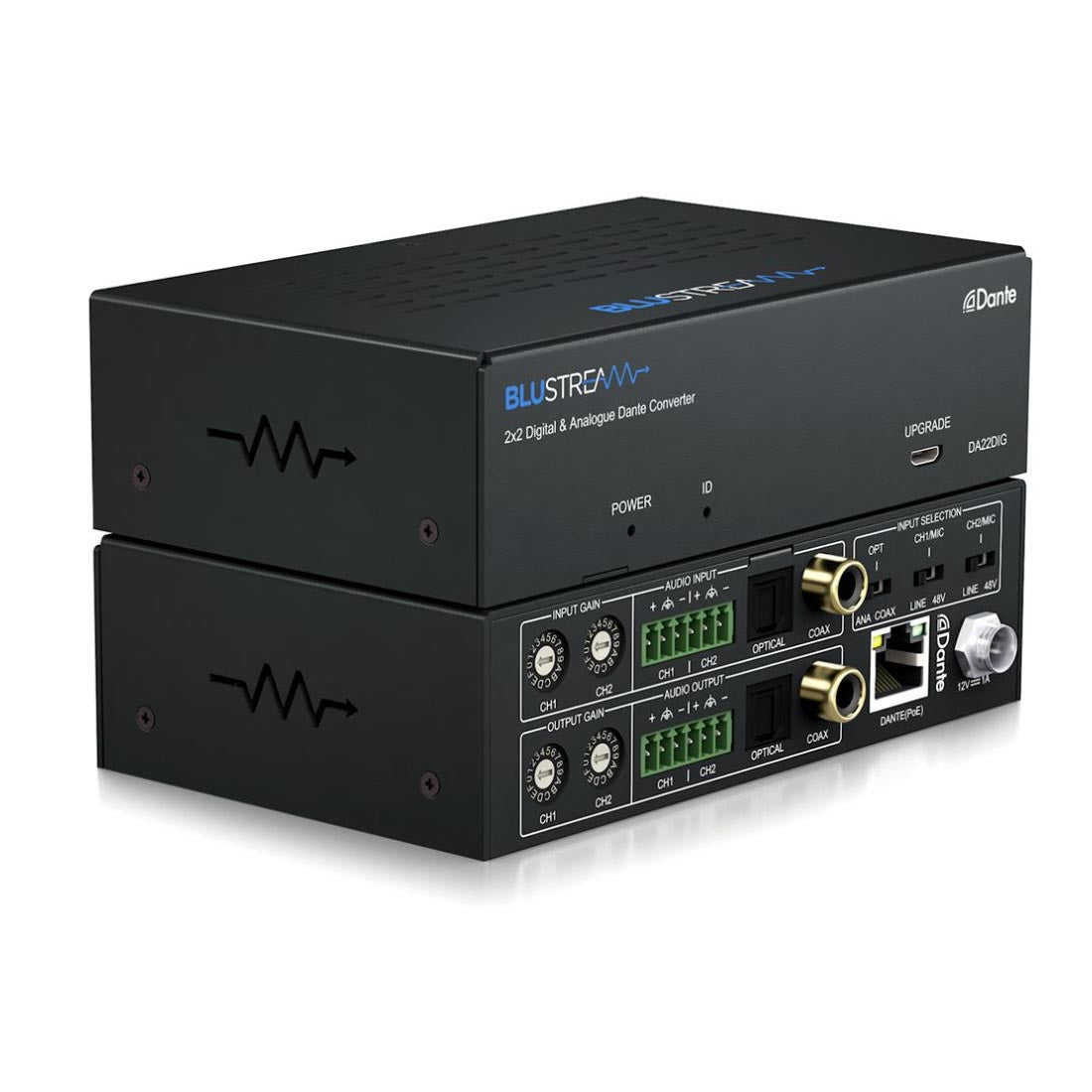

Blustream DA22DIG 2x2 Digital And Analogue Dante Converter
The Blustream DA22DIG converts between 2-channel analogue or digital audio and a Dante digital signal, handling both encoding and decoding. It is a plug & play device that can be powered via PoE or the supplied 12V power supply.
2x2 Dante Audio Conversion
The Blustream DA22DIG provides straightforward conversion for Dante-enabled systems.
- Encodes 2ch analogue audio or digital audio to a Dante digital signal
- Decodes a Dante digital signal to 2ch analogue audio and digital audio
- Selectable digital audio between optical Toslink and coaxial RCA inputs
Plug & Play Setup and Power Options
Installation is simplified with plug & play operation and flexible power.
- Features Class 3 IEEE 802.3af PoE for powering from a PoE switch
- Supports power via 12V DC adapter (supplied)
Microphone Support and Level Control
The unit supports microphones and provides channel-level adjustments.
- Configurable MIC audio input with 48V phantom power
- Independent sensitivity control for input channels
- Gain control for output channels
Formats, Latency, and Transport
The Blustream DA22DIG supports multiple sample rates and transport options, with adjustable latency.
- Supports 44.1, 48, and 96 kHz sample rates at 24-bit
- Configurable Dante device latency (1, 2, or 5 ms) using Dante Controller
- Supports AES67 RTP audio transport

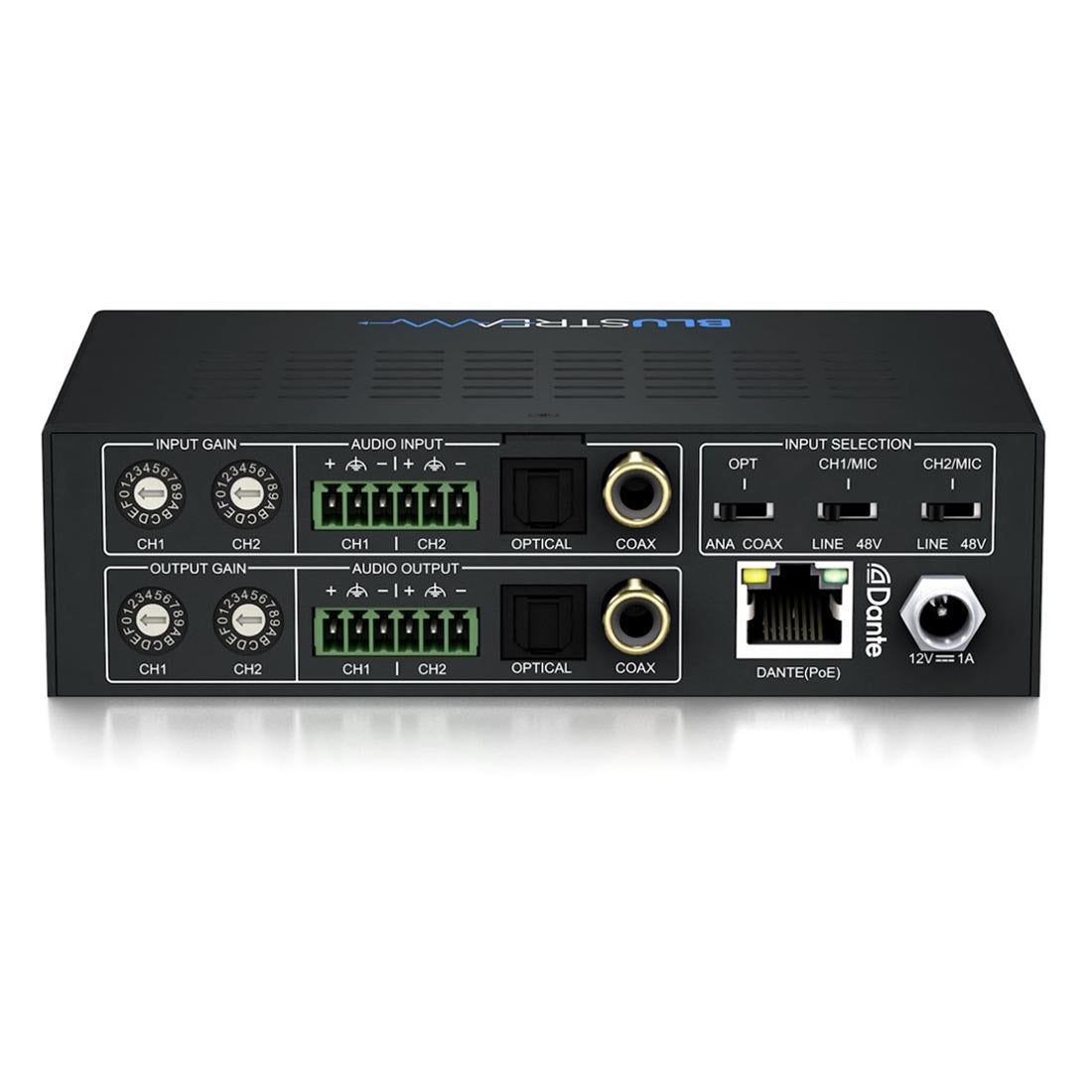

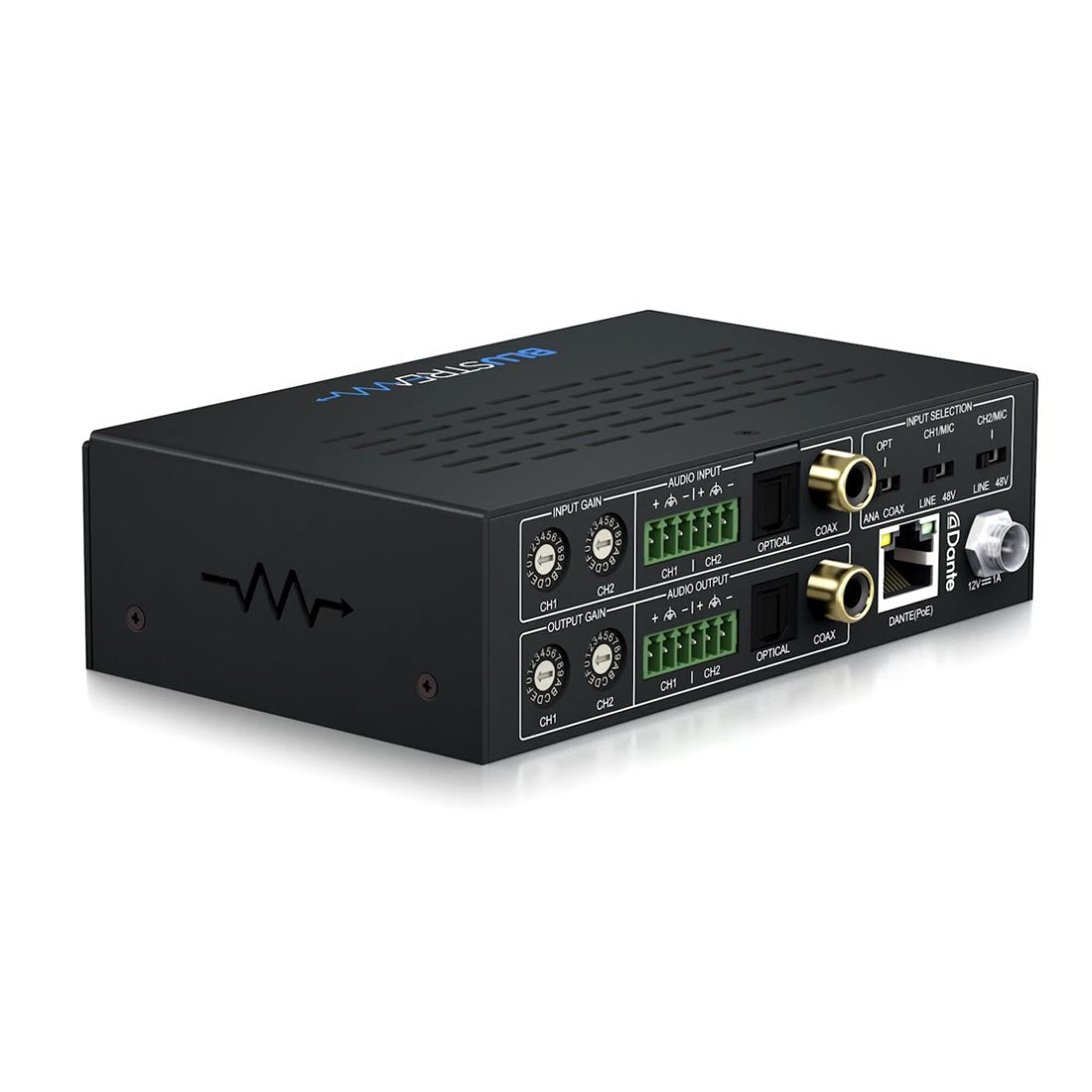

Selectable I/O and Network Connections
Multiple analogue, digital, and network connections are available.
- 2 x analogue balanced/unbalanced I/O via 6-pin Phoenix connectors
- 1 x optical (S/PDIF) and 1 x coaxial (RCA) digital I/O
- 1 x PoE Dante Ethernet connection (RJ45)
Frequently Asked Questions
-
What does the DA22DIG convert?
It encodes 2-channel analogue or digital audio to a Dante digital signal and decodes a Dante digital signal to 2-channel analogue and digital audio.
-
Which digital inputs are supported?
Digital audio is selectable between optical (S/PDIF) and coaxial (RCA) inputs.
-
Does it support microphones?
Yes. It includes a configurable MIC audio input with 48V phantom power.
-
How is the unit powered?
It features Class 3 IEEE 802.3af PoE and also supports power via a supplied 12V DC adapter.
-
What sample rates and latency options are available?
It supports 44.1, 48, and 96 kHz at 24-bit and offers configurable Dante device latency of 1, 2, or 5 ms using Dante Controller.
-
Does it support AES67?
Yes. It supports AES67 RTP audio transport.
