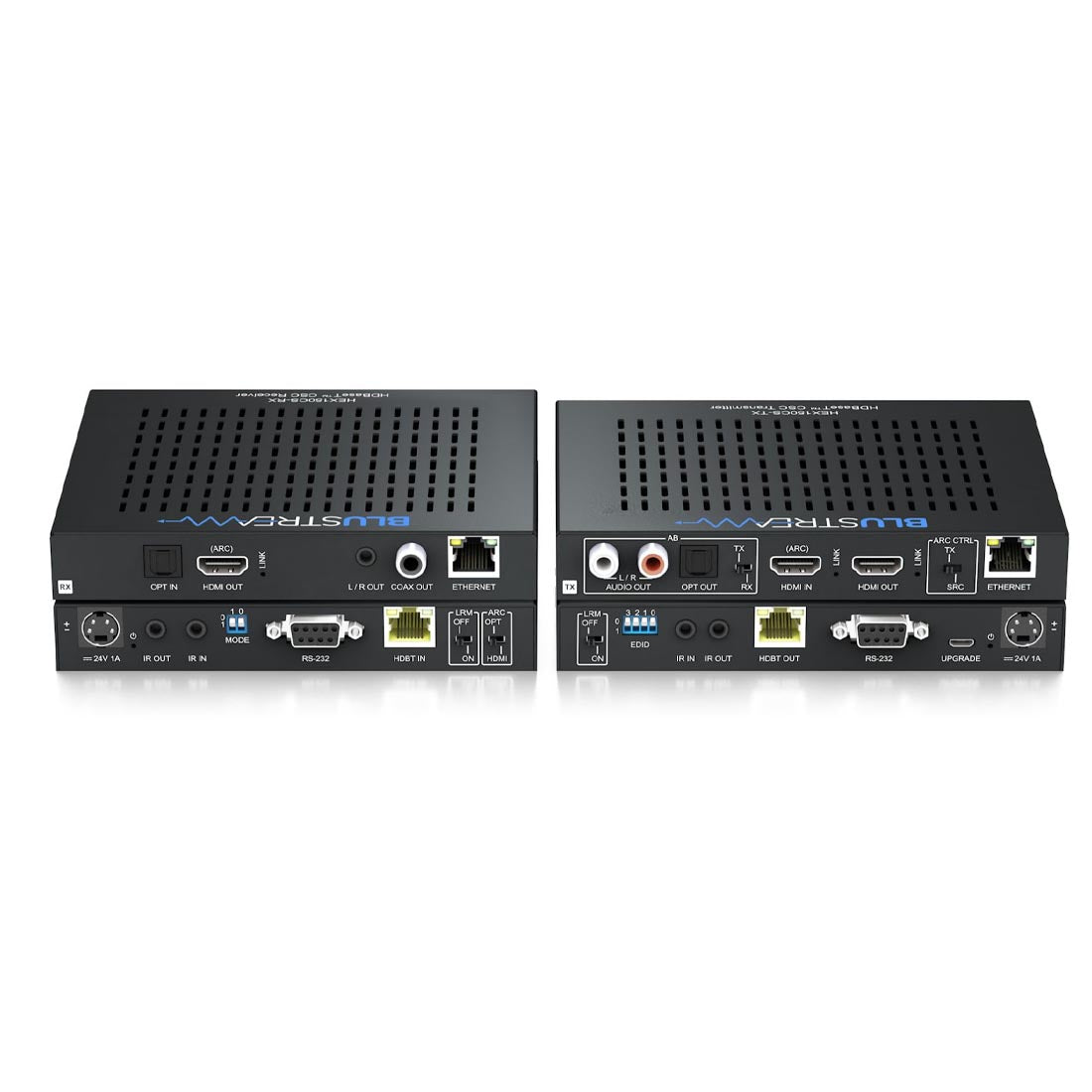

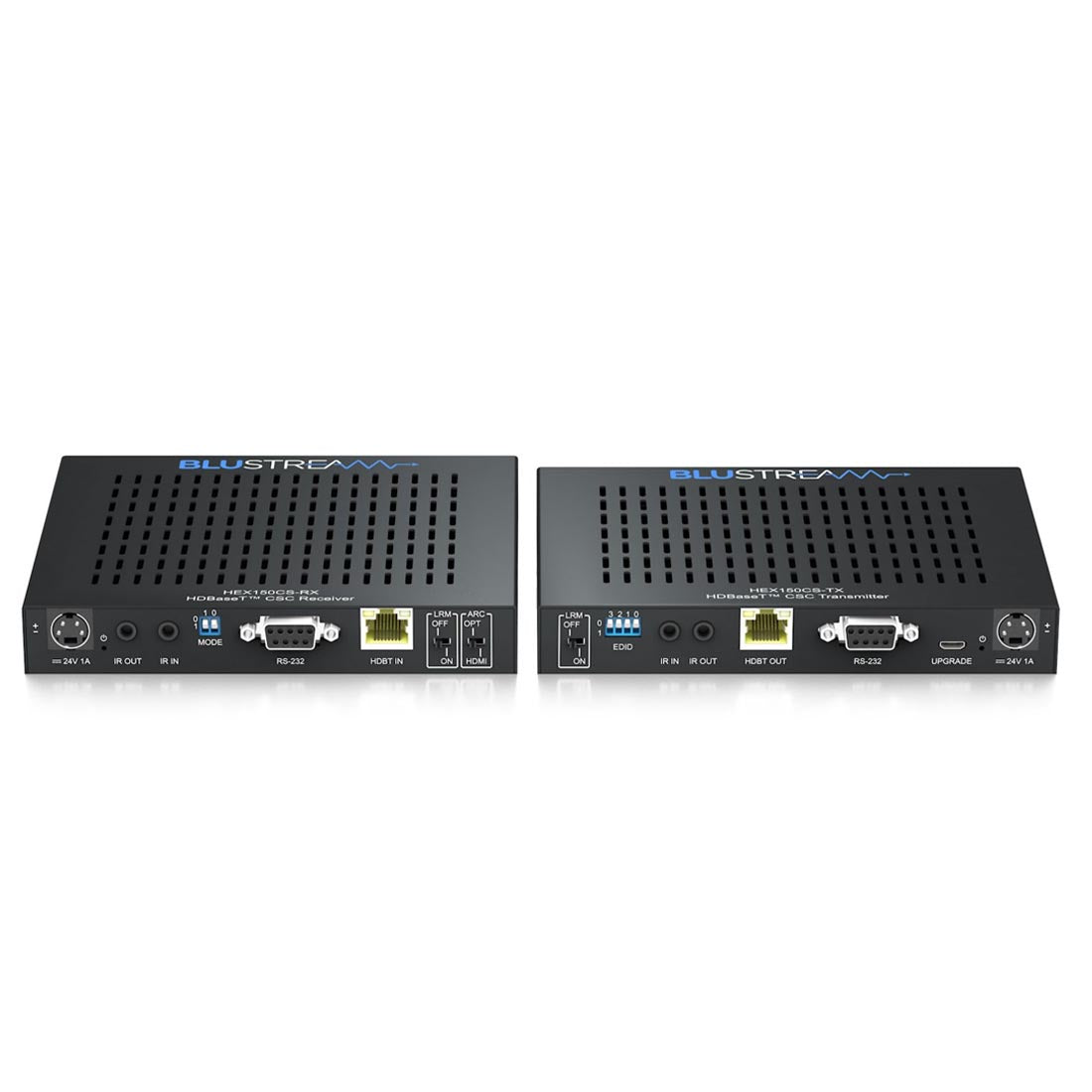

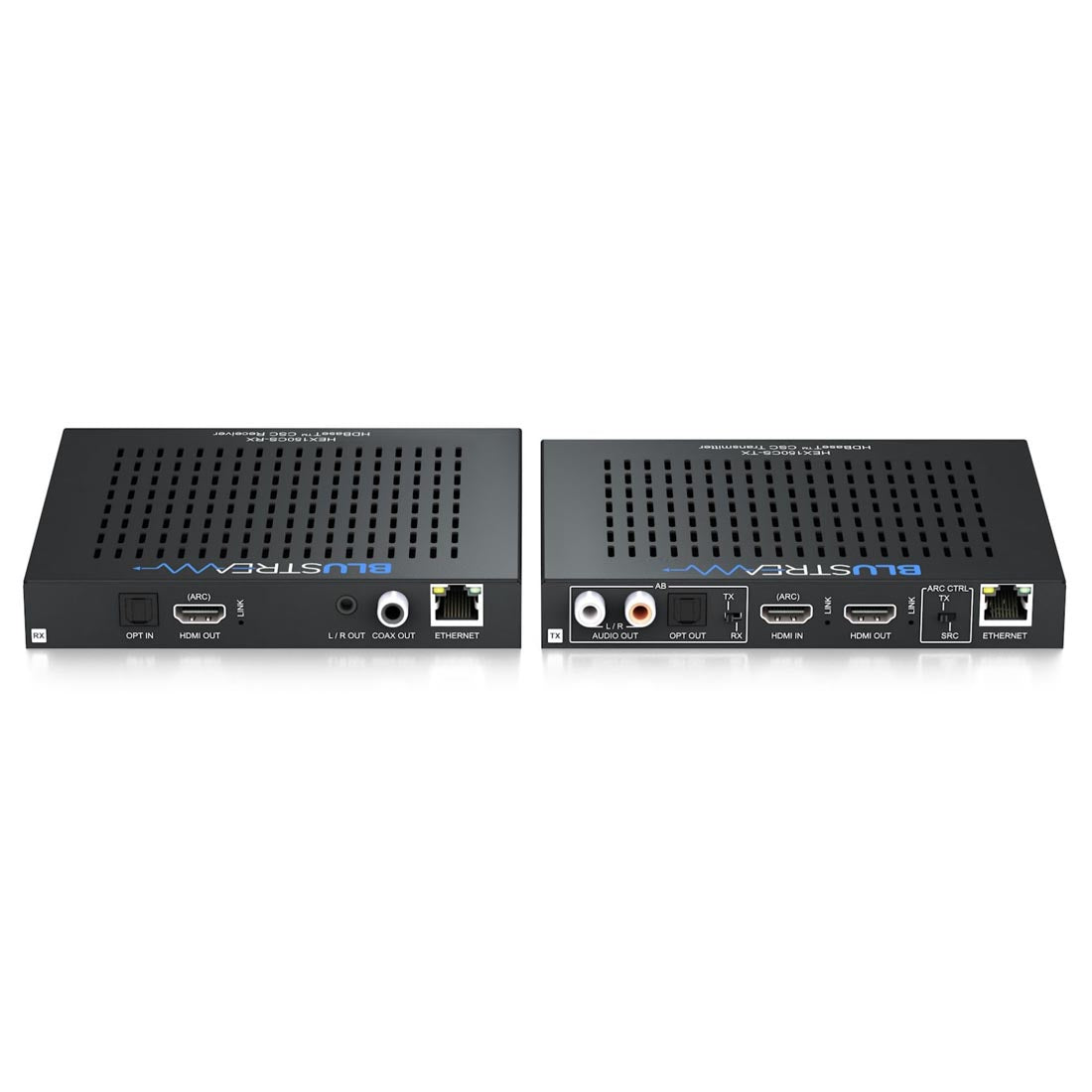

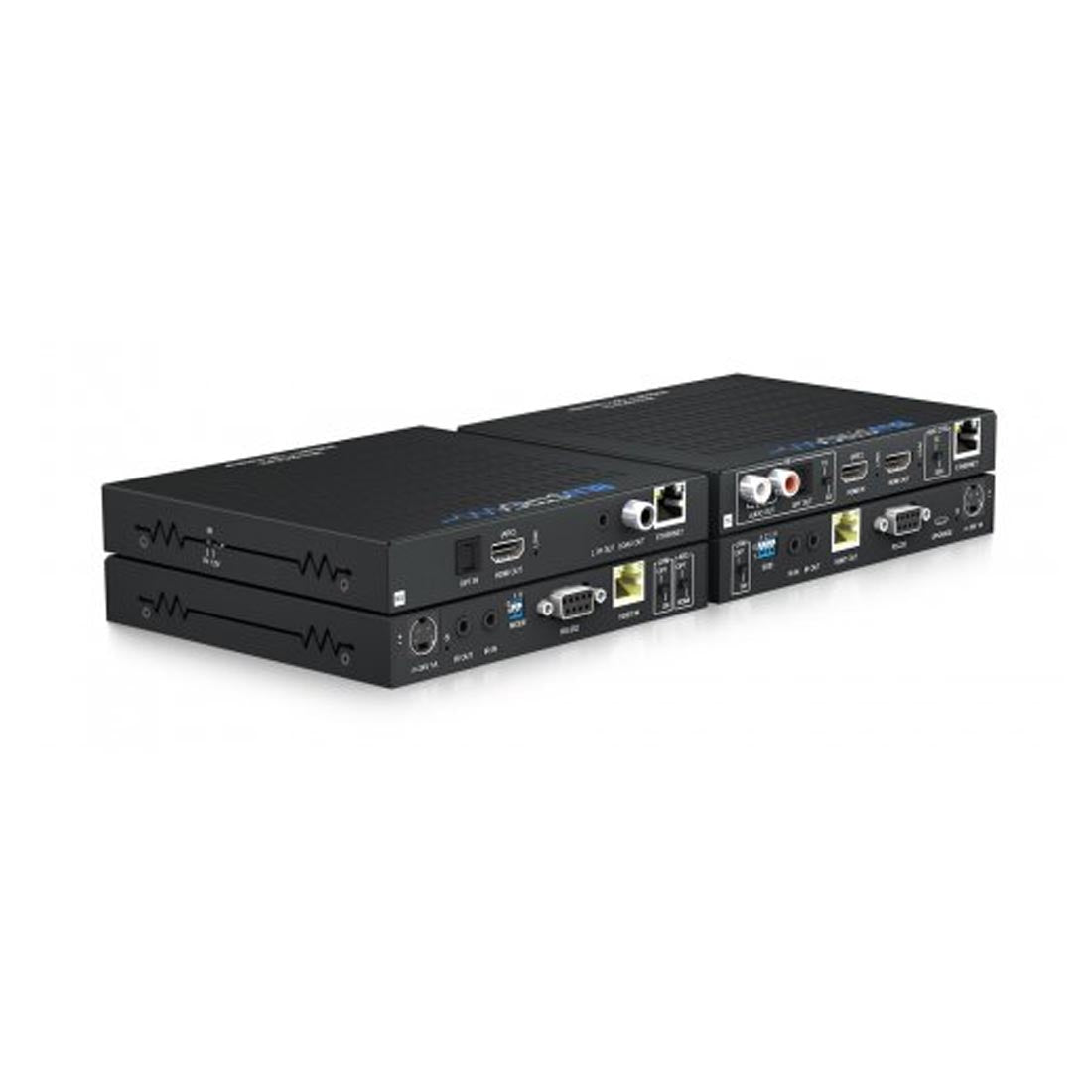

Blustream HEX150CS-KIT HDBaseT CSC Extender Set 150m

Blustream HEX150CS-KIT HDBaseT CSC Extender Set 150m

The Blustream HEX150CS-KIT is an HDMI 2.0 4K @ 60Hz 4:4:4 HDCP 2.2 HDBaseT extender set utilizing CSC technology with video down-conversion to distribute HDMI, bi-directional IR, RS-232, and PoC over a single CAT cable. It also provides ARC via HDMI or optical (S/PDIF) and 10/100BaseT Ethernet pass through.

Single-cable 4K UHD distribution

Advanced HDBaseT™ technology enables distribution of video and audio over one CAT cable with support for long-distance runs.

• Supports 4K @ 60Hz 4:4:4 UHD video up to 100m
• Extends HDMI 1080p video up to 150m (HDBaseT™ long-reach mode)
• HDMI loop out on the transmitter
• Supports all industry-standard video resolutions including VGA–WUXGA and 480i–4K

Flexible resolution handling with CSC and down-conversion

Advanced Color Space Conversion (CSC) supports the HDMI 2.0 18Gbps specification, including HDR. Video down-conversion on outputs allows a display that supports only lower resolutions (4K @ 60Hz 4:2:0 or 1080p) to receive 4K content while remaining outputs show the maximum original 4K UHD resolution.

Audio return and format support

The extender set supports audio return and a wide range of HDMI audio formats for system flexibility.

• ARC (Audio Return Channel) from display via HDMI and optical digital inputs
• Audio return to HDMI, optical digital, and analog L/R outputs (analog output supports 2ch PCM only)
• Supports HDMI audio formats including Dolby TrueHD, Atmos, and DTS-HD Master Audio transmission

Control, networking, and power made simple

Integrated control and connectivity features streamline installation and operation.

• Bi-directional 10/100BaseT Ethernet pass through
• Bi-directional IR and RS-232 pass-through
• Bi-directional PoC (Power over Cable) to power extenders from either the transmitter or receiver end

Compatibility and setup tools

The HEX150CS-KIT includes features designed to address signal and device compatibility.

• HDMI re-clocking on the HDBaseT™ receiver to help solve HDMI, HDCP, compatibility, and handshaking issues
• Advanced EDID management
• HDCP 2.2 support
• Supplied with a Blustream 5V IR receiver and emitter; mounting kits included

Frequently Asked Questions

• What video resolutions and distances does the HEX150CS-KIT support?

  It supports 4K @ 60Hz 4:4:4 UHD up to 100m and extends HDMI 1080p up to 150m (HDBaseT™ long-reach mode). It also supports industry-standard resolutions from VGA–WUXGA and 480i–4K.

• How does the video down-conversion feature work?

  Video down-conversion on outputs allows a display that can only support lower resolutions (4K @ 60Hz 4:2:0 or 1080p) to receive 4K content while other outputs continue to show the maximum original 4K UHD resolution.

• Does it support ARC and which audio formats are compatible?

  Yes. It supports ARC from the display via HDMI and optical digital inputs, and can return audio to HDMI, optical digital, and analog L/R outputs (analog output supports 2ch PCM only). It supports HDMI audio formats including Dolby TrueHD, Atmos, and DTS-HD Master Audio transmission.

• What control and connectivity features are included?

  The kit provides bi-directional IR and RS-232 pass-through, bi-directional 10/100BaseT Ethernet pass through, and bi-directional PoC so the system can be powered from either end. An HDMI loop out is available on the transmitter.

• What’s included in the box?

  1 x HEX150CS-TX, 1 x HEX150CS-RX, 1 x 24V/1A DC power supply, 1 x IR receiver, 1 x IR emitter, 2 x mounting brackets, and 1 x Quick Reference Guide.

• What tools help with compatibility and setup?

  HDMI re-clocking on the receiver helps address HDMI, HDCP, compatibility, and handshaking issues. The system also includes advanced EDID management and HDCP 2.2 support.
