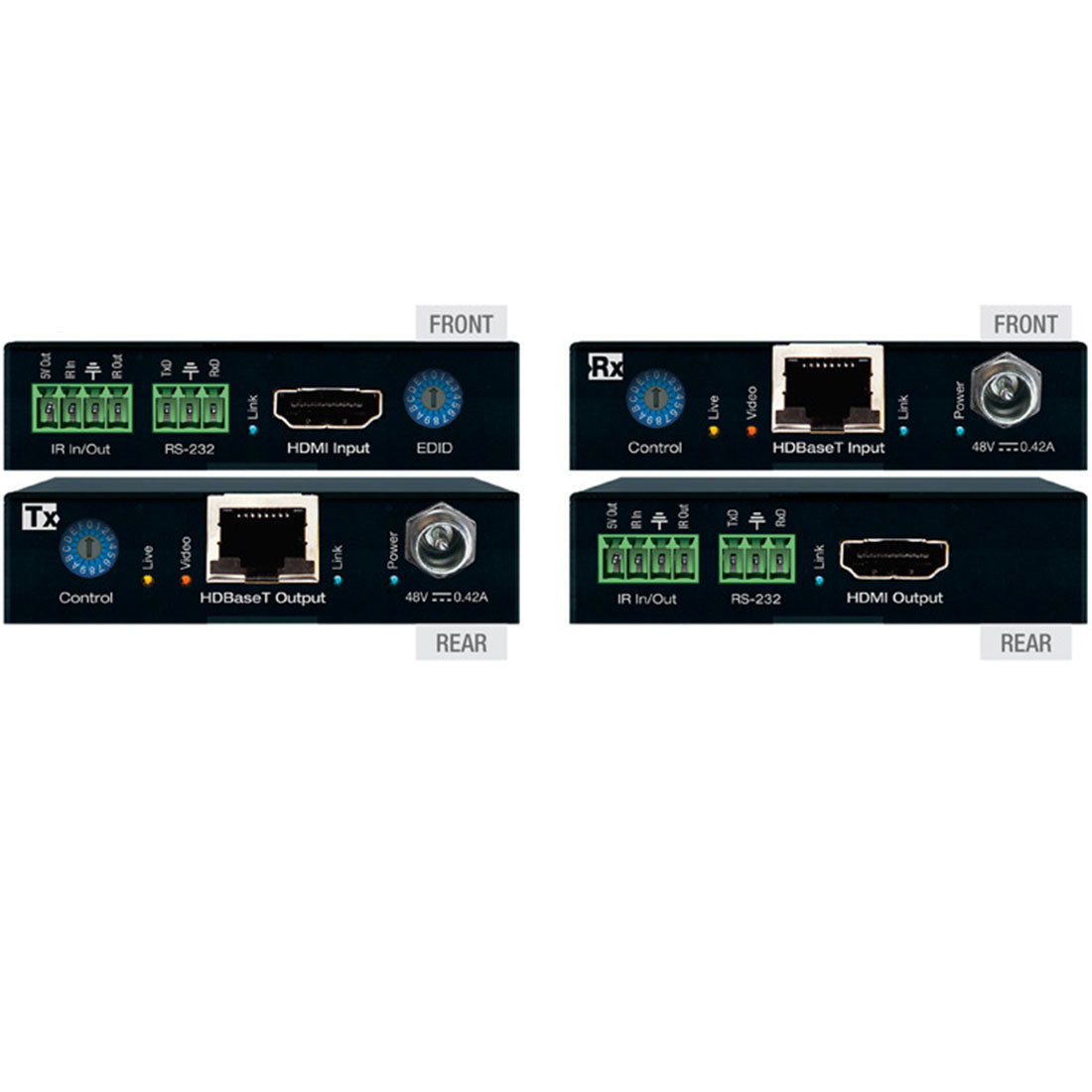

Key Digital KDX444L 4K 18G POH/HDBT/HDMI Extender Kit
Loading...
Product Description
Product Description
Key Digital KDX444L 4K 18G POH/HDBT/HDMI Extender Kit
4K/18G POH HDBaseT HDMI Extenders (Includes KIT TX/RX 4K/70Meters 1080P/100Meters)
Features
- HDBaseT over a single KDX444L CAT5e/6 UTP/STP Extension features fully automatic feedback, equalization, and amplification adjustments based on the length of the cable
- 4096×2160 or 3840×2160 at 24/25/30/60hz and 4:4:4 are supported in 4K. (signals up to 18Gbps bandwidth)
- Only one power connection is required for flexible power via HDBaseT. Rx or Tx may power each other
- KDX444L features a super slender chassis design for a low profile
- Long Range Mode: Uses CAT5e/6 to extend 1080p transmissions up to 500 feet (152 meters); UHD/4K is not supported
- Uncompressed 10.2Gbps signal extension is made possible by the 10G Pass-thru mode.
- High Dynamic Range 10 (HDR10): More realistic images with a wider range of luminance levels
- HDCP 2.2: Backward compatibility and compliance with KDX444L HDCP 2.2
- Support for Deep Color: Up to UHD/4K 30Hz 60Hz or 4:4:4/12 bits. 4:4:4/8 bit
- EDID Control: Internal library with 15 EDID handshakes, including native EDID data from the output/display device linked to the Rx and 4K with HDR
- Allows integrator to decide whether active signal voltage is forced to connected input and output devices through hot plug detection control
- Full Buffer System™: Controls EDID Control handshake, TMDS re-clocking and signal re-generation, HDCP authentication with source and display, and Hot Plug Detection
- 3D Pass-thru: 3D support is enabled by default in the EDID handshake library or is copied from a display that supports 3D
- IR Sensor: Without the need of an external IR connection block, the sensor is powered by +5V on the IR In ports and captures line-of-sight IR from the KDX444L remote
- Two IR channels allow for up-and-down control of objects or control systems that are attached to the Tx and Rx units
- Bi-Directional control from/to the Tx and Rx unit on the Phoenix connector for RS-232
- Support for Dolby TrueHD, Dolby Digital Plus, Dolby Atmos®, and DTS-HD Master Audio™ lossless compressed digital audio formats
- For inter-device control between input and output HDMI channels, use CEC pass-through
Extension of the KDX444L signal for improved cable and resolution:
- Up to 230 feet (70 meters) in 4K/UHD utilizing CAT5e/6 328 feet (100 meters) utilizing CAT6A STP or CAT7
- Up to 328 feet (100 meters) in 1080p
Features & Specs
Features & Specs
Documents
Documents
Warranty
Warranty
SKU:
KDX444L
$965.00
