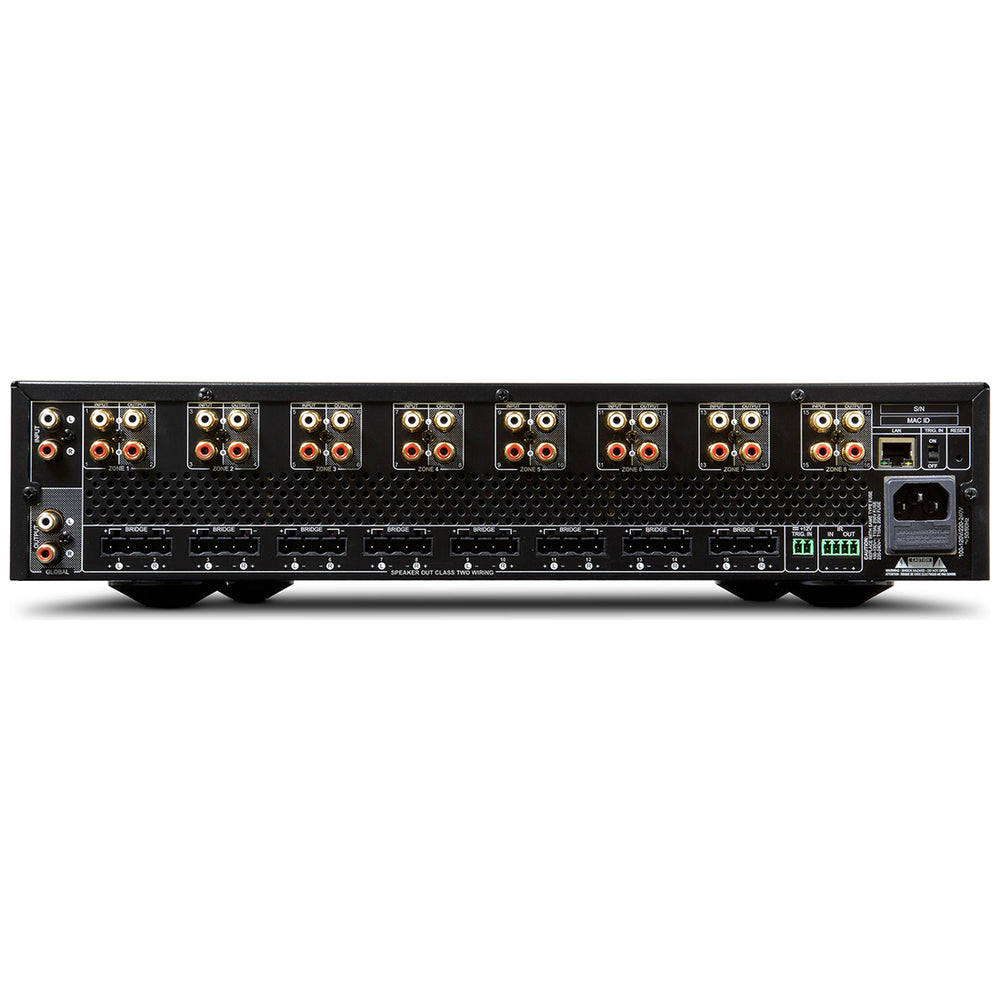

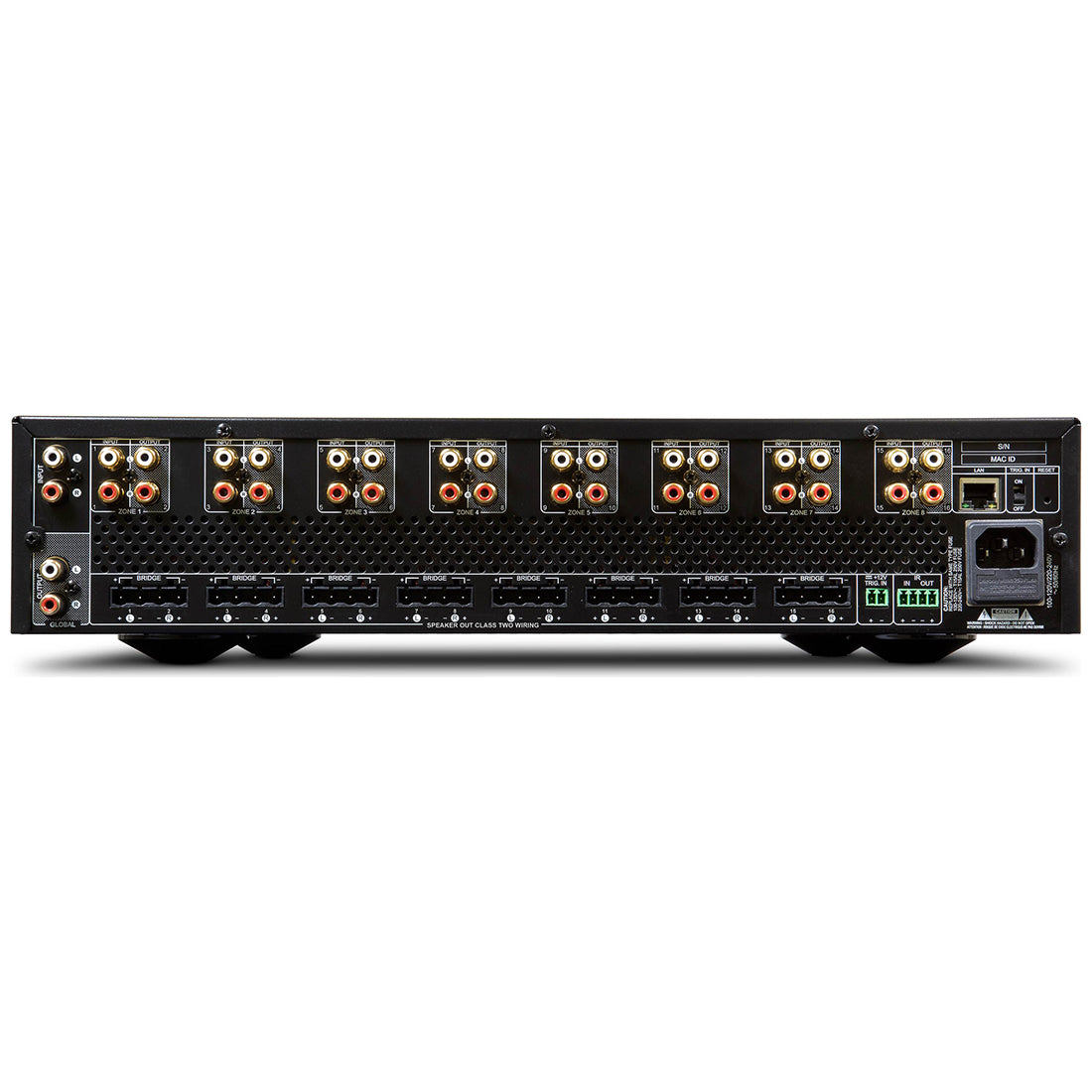

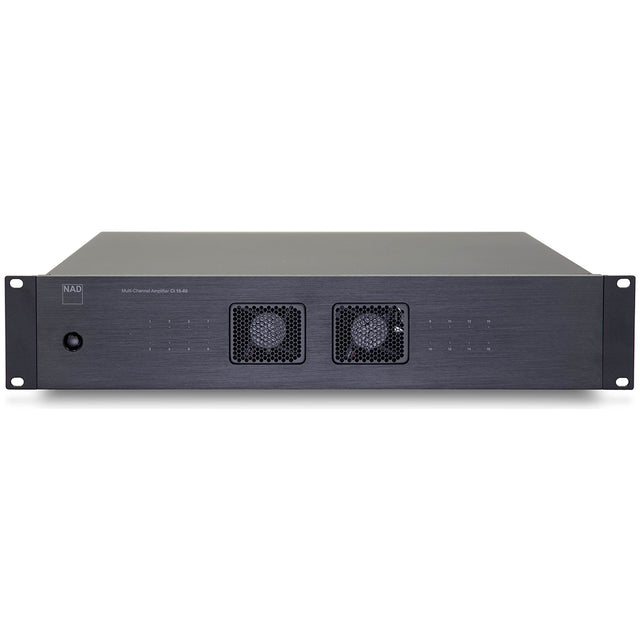

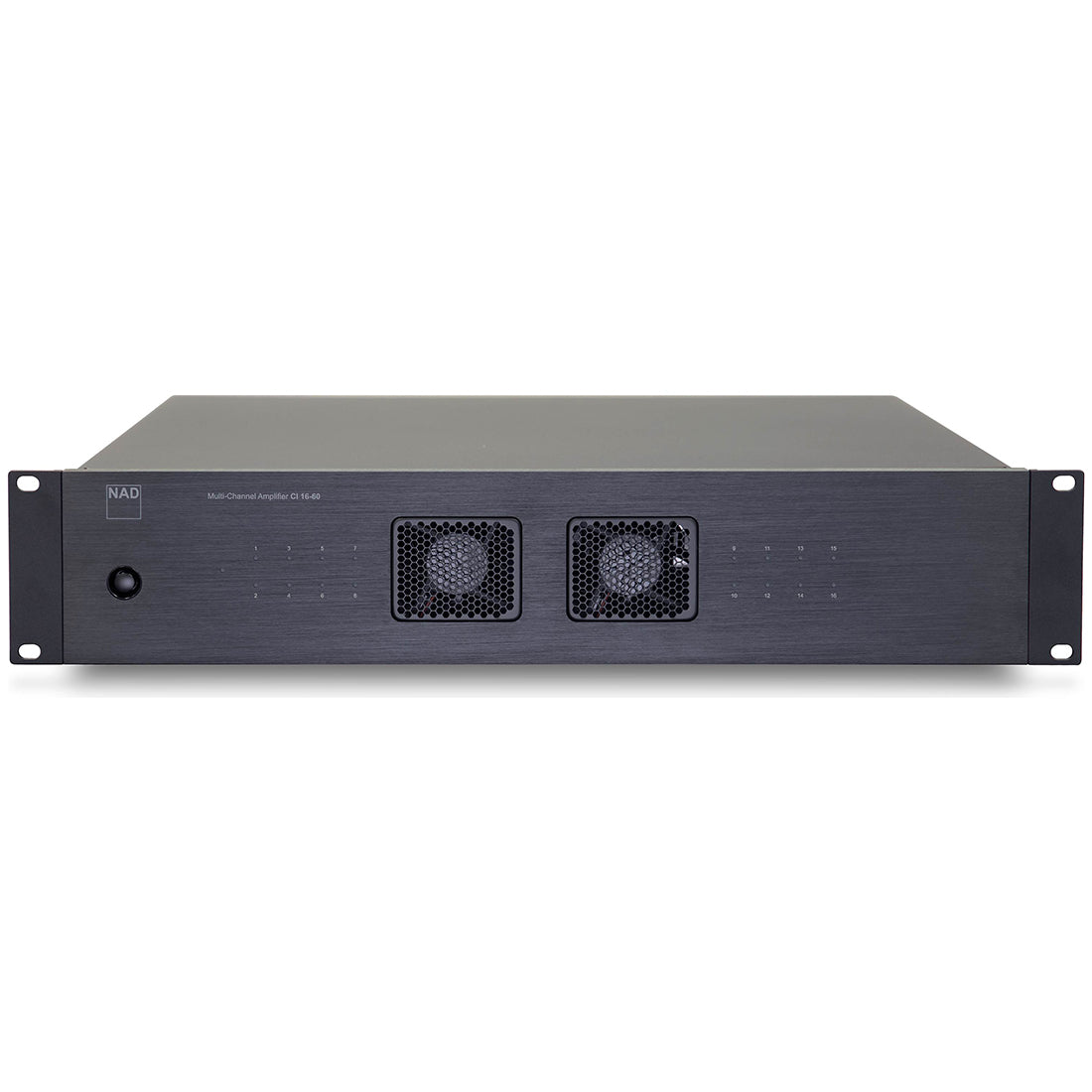

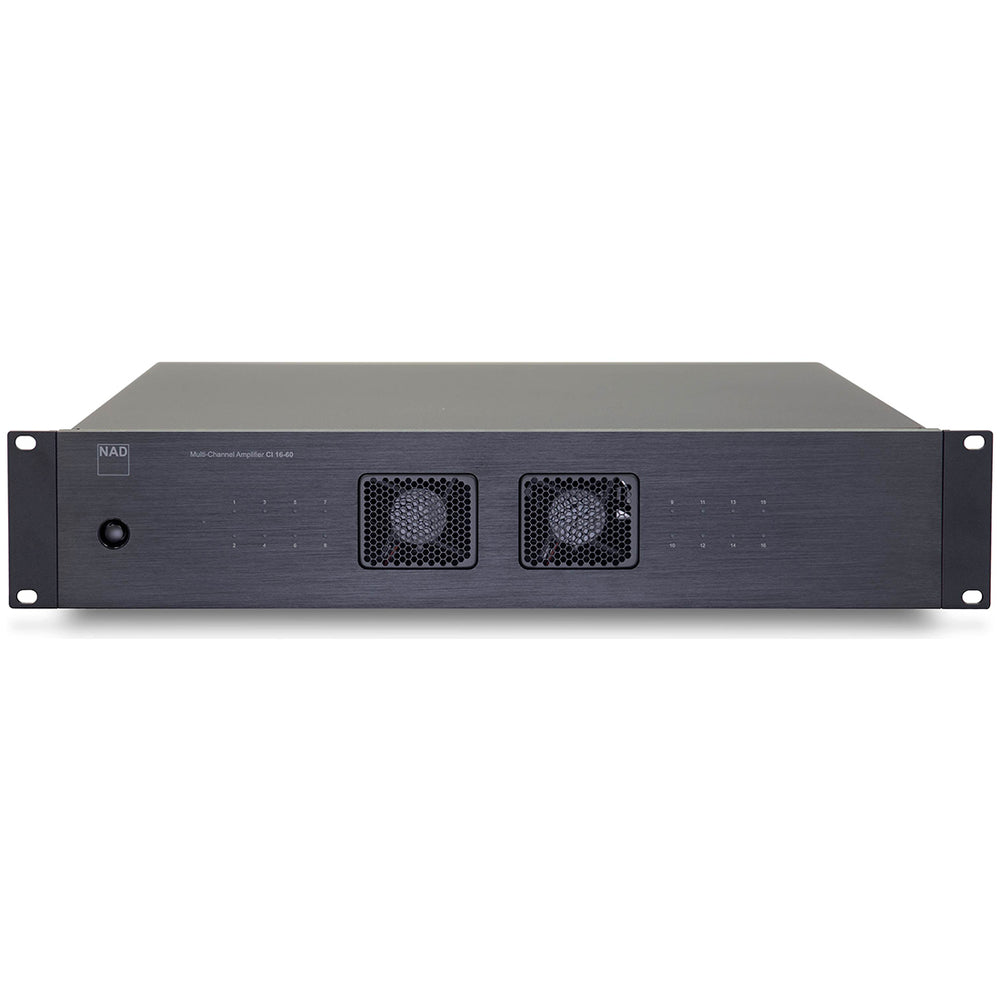

NAD CI 16-60 DSP 16-Channel Multi-Zone Power Amplifier

New Store Special Discount
Give us feedback and save $10

Product Descriptions

NAD CI 16-60 DSP 16-Channel Multi-Zone Power Amplifier

The NAD CI 16-60 DSP is for the demands of professional installations. This amplifier delivers a conservative 60 watts per channel at 8 ohms into all of its 16 channels. Each pair of channels bridgeable to 140 watts per channel. Lastly, the hybrid digital amplifier platform delivers stable and efficient power with high current capability all in a compact 2U rack space.

The NAD CI 16-60 DSP uses a customized version of the proven Hypex UcD output stage to deliver great load invariant power. Extremely low distortion and noise in the audible range for true clarity. Every detail of this design is meticulously crafted to bring out the best possible performance. Meticulously designed and also built to deal with the demands of the custom installation market. The CI 16-60 can effortlessly handle long cable runs and difficult speaker loads.

NAD is keenly aware that reliability is paramount for a professional installer so all models will be based on tried and true amplification platforms delivering stable and reliable performance. The CI 16-60 DSP amplifier is stable at 4 ohm impedance. A variety of power on methods are available as well as an Eco mode setting for minimal power consumption.

Features & Specs

Specifications

– Continuous output power into 8 ohms: 60 W (all channels driven, 1kHz 0.05% THD, 65 W (two channels driven, 1kHz 0.05% THD

– Into 4 ohms: 65 W (all channels driven, 1kHz 0.05% THD, 105 W (two channels driven, 1kHz 0.05% THD

– Continuous output power into 8 ohms at Bridged mode: 140 W (all channels driven, 1kHz 0.05% THD, 240 W (two channels driven, 1kHz 0.05% THD

– THD (1 W to 50 W, 8 ohms and 4 ohms): 0.05 % (20 Hz – 3 kHz), 0.2 % (3kHz – 20 kHz)

– Signal-to-Noise Ratio: 80 dB (A-weighted, 500 mV input, ref. 1 W out in 8 ohms)

– Clipping power (all channels driven): 60 W (1 kHz 8 ohms 1 % THD), 80 W (1 kHz 4 ohms 1 % THD)

– Clipping power into 8 ohms at Bridged mode: 150 W (1 kHz 1 % THD – all channels driven), 250 W (1 kHz 1 % THD – two channels driven)

– IHF Dynamic Power (all channels driven): 8 ohms: 65 W, 4 ohms: 125 W

– IHF Dynamic Power (two channels driven)8 ohms: 70 W, 4 ohms: 125 W

– IHF dynamic power (Bridged mode, all channels driven): 8 ohms: 270 W

– IHF Dynamic Power (two channels driven): 8 ohms: 280 W

– Peak output current: 15 A (1 ohm, 1 ms)

– Damping factor: 110 (20 Hz to 1 kHz 8 ohms)

– Frequency response: ±1dB (20 Hz – 20 kHz)

– Channel separation: 60 dB (1 kHz), 55 dB (10 kHz)

– Maximum undistorted input level: 2900 mV

– Input sensitivity (for 50 W in 8 ohms, maximum volume): 760 mV

– Input impedance: 20 kohms//220pF

– Analog input audio sense threshold (one channel with signal): 3 ± 0.5 mVrms (ref. 100 Hz – 10 kHz)

– Trigger IN level: 3 – 30 Vdc

– Standby power: 0.5W

Dimensions

– Gross dimensions (W x H x D): 483x100x435mm (19 1/16 x 3 15/16 x 17 3/16 inches)

– Net Weight: 10.3 kg (22.7 lbs)

– Shipping Weight: 12.8 kg (28.2 lbs)

Color

Black

Amplifier Channels

16

Watts Per Channel

51 to 150w

Amplifier - DAC

No

RMS Power

401 to 800 Watts

Documents

Warranty

NAD Canada 2 Years Limited Manufacturers Warranty.
SKU: CI 16-60 DSP
$3,899.00
or

Payment as low as

$324.91/mo
Info icon

This monthly payment does not include any applicable tax or interest

Free ShippingFree Shipping |

Lowest Price GuaranteeLowest Price Guarantee

  • 2U Rack Height- saves valuable rack space
  • 5W Standby Mode, 3W Network Standby
  • 16 Channels X 60 Watts @ 8 Ohms
  • 12V Trigger In; IR In/Out

This product is backordered and will ship as soon as it is back in stock.
