Blustream DA22DIG 2x2 Digital And Analogue Dante Converter
Product Description
Product Description
Blustream DA22DIG 2x2 Digital And Analogue Dante Converter
The Blustream DA22DIG converts between 2-channel analogue or digital audio and a Dante digital signal, handling both encoding and decoding. It is a plug & play device that can be powered via PoE or the supplied 12V power supply.
2x2 Dante Audio Conversion
The Blustream DA22DIG provides straightforward conversion for Dante-enabled systems.
- Encodes 2ch analogue audio or digital audio to a Dante digital signal
- Decodes a Dante digital signal to 2ch analogue audio and digital audio
- Selectable digital audio between optical Toslink and coaxial RCA inputs
Plug & Play Setup and Power Options
Installation is simplified with plug & play operation and flexible power.
- Features Class 3 IEEE 802.3af PoE for powering from a PoE switch
- Supports power via 12V DC adapter (supplied)
Microphone Support and Level Control
The unit supports microphones and provides channel-level adjustments.
- Configurable MIC audio input with 48V phantom power
- Independent sensitivity control for input channels
- Gain control for output channels
Formats, Latency, and Transport
The Blustream DA22DIG supports multiple sample rates and transport options, with adjustable latency.
- Supports 44.1, 48, and 96 kHz sample rates at 24-bit
- Configurable Dante device latency (1, 2, or 5 ms) using Dante Controller
- Supports AES67 RTP audio transport

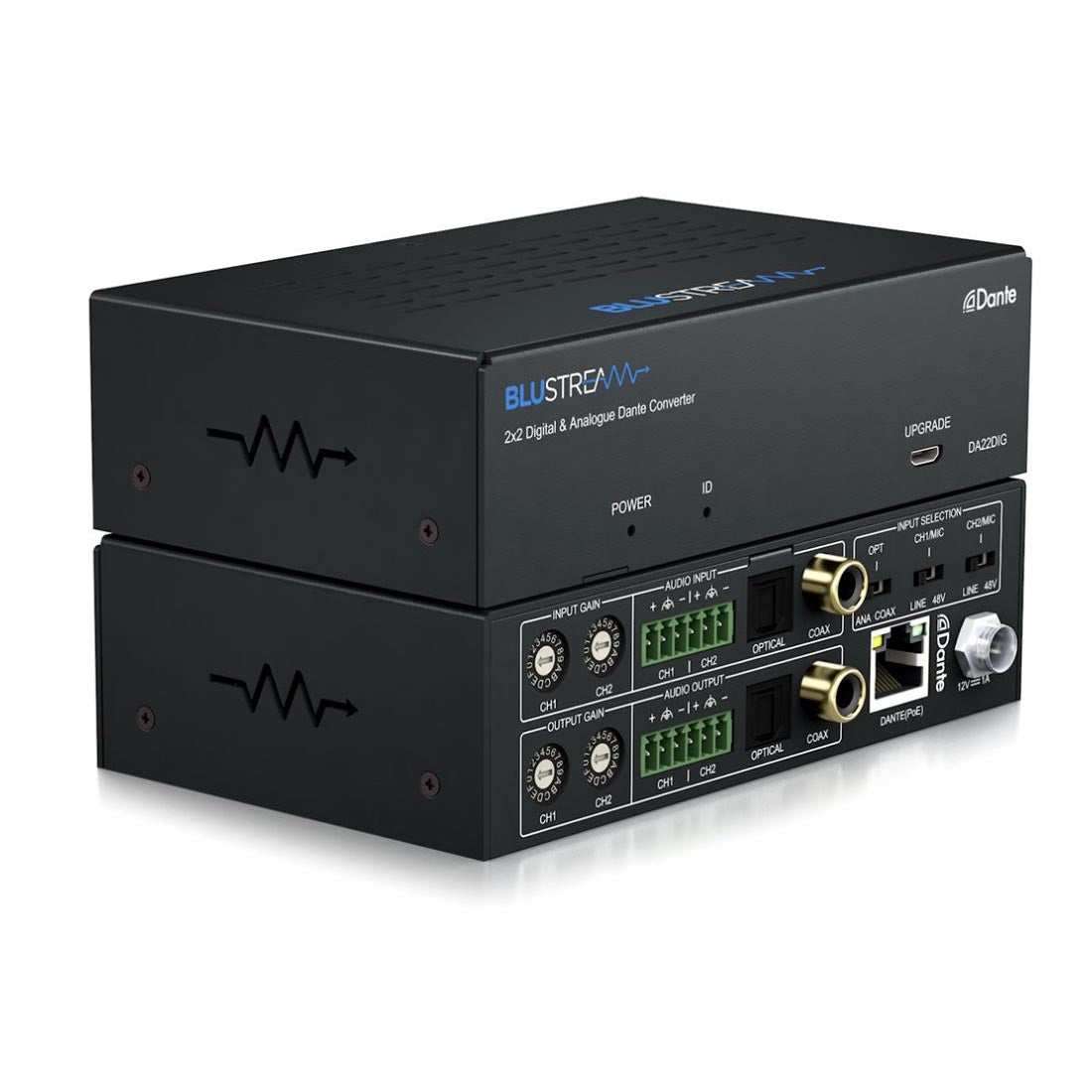

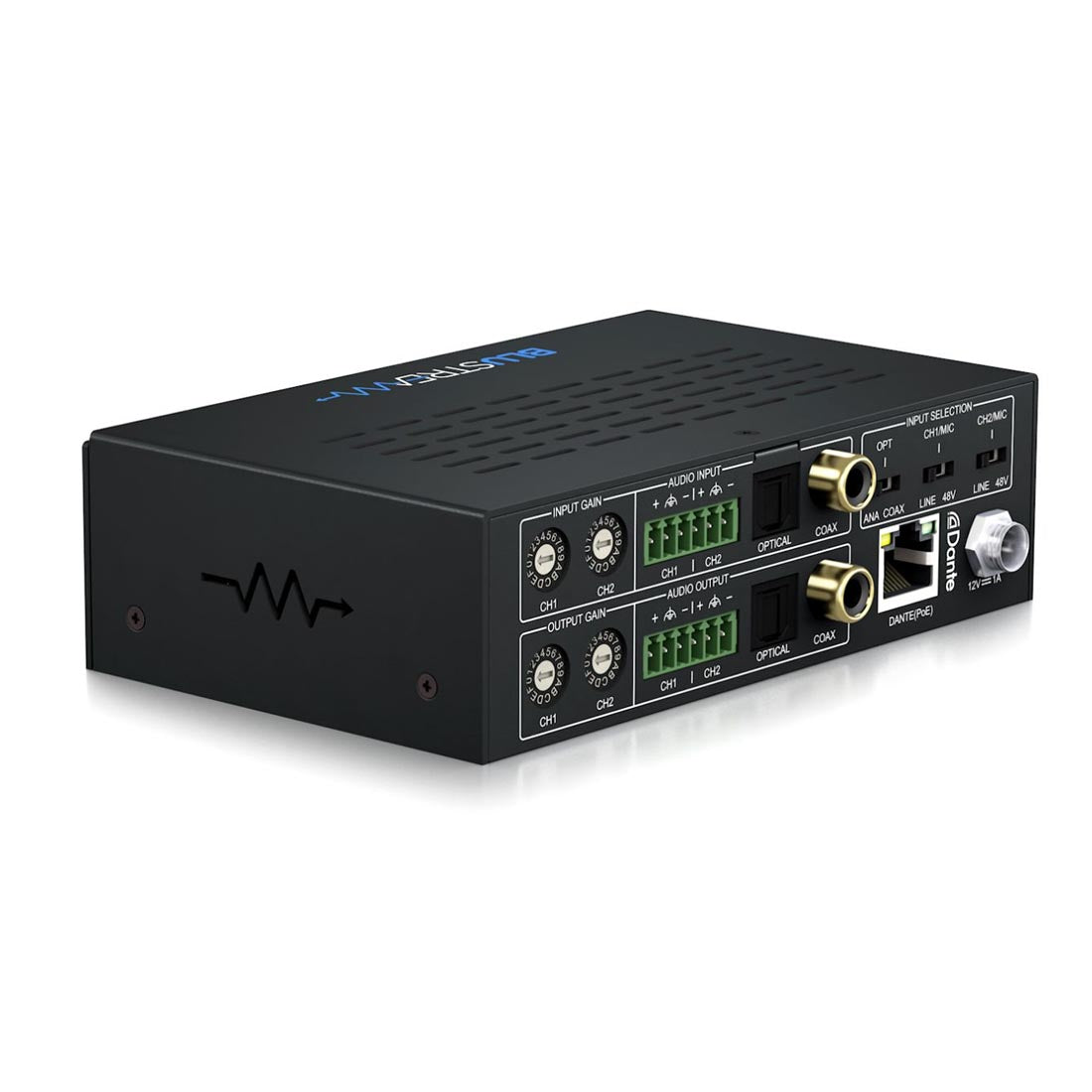

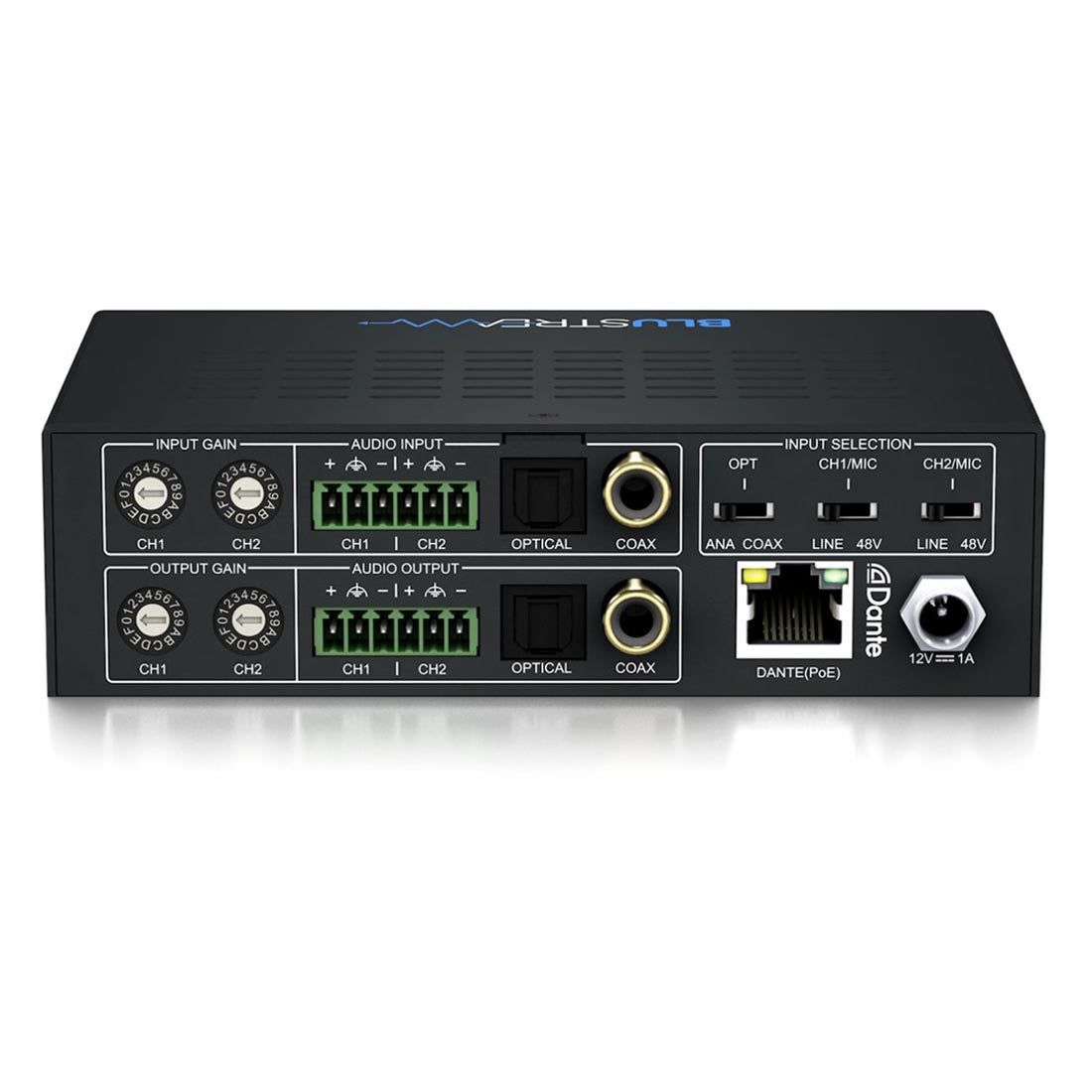

Selectable I/O and Network Connections
Multiple analogue, digital, and network connections are available.
- 2 x analogue balanced/unbalanced I/O via 6-pin Phoenix connectors
- 1 x optical (S/PDIF) and 1 x coaxial (RCA) digital I/O
- 1 x PoE Dante Ethernet connection (RJ45)
Frequently Asked Questions
-
What does the DA22DIG convert?
It encodes 2-channel analogue or digital audio to a Dante digital signal and decodes a Dante digital signal to 2-channel analogue and digital audio.
-
Which digital inputs are supported?
Digital audio is selectable between optical (S/PDIF) and coaxial (RCA) inputs.
-
Does it support microphones?
Yes. It includes a configurable MIC audio input with 48V phantom power.
-
How is the unit powered?
It features Class 3 IEEE 802.3af PoE and also supports power via a supplied 12V DC adapter.
-
What sample rates and latency options are available?
It supports 44.1, 48, and 96 kHz at 24-bit and offers configurable Dante device latency of 1, 2, or 5 ms using Dante Controller.
-
Does it support AES67?
Yes. It supports AES67 RTP audio transport.
Add to Cart to get the DA22DIG for your Dante setup, and contact or visit Gibbys for expert advice on system matching and setup.
