Blustream DAC13DB Digital Audio Converter
Product Description
Product Description

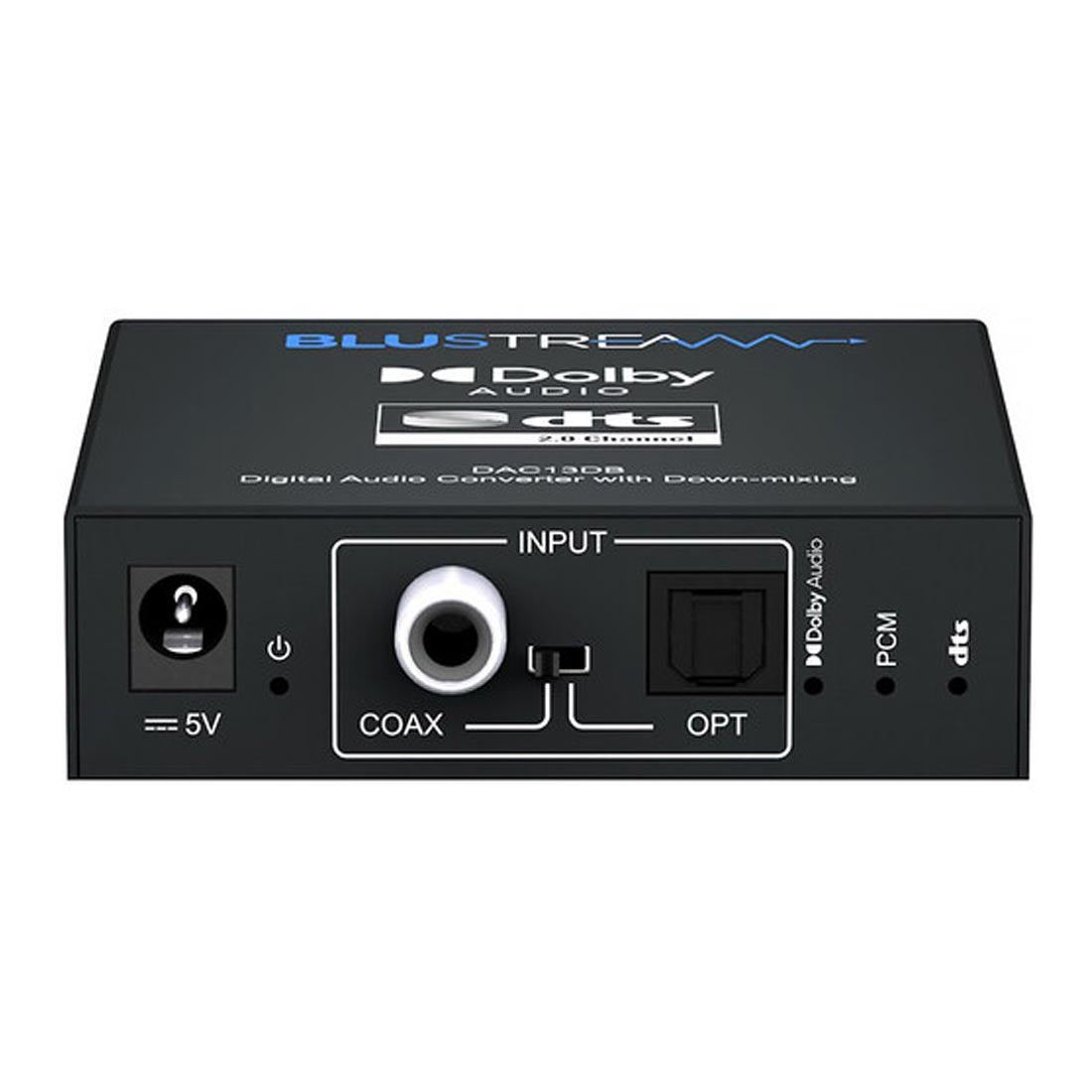

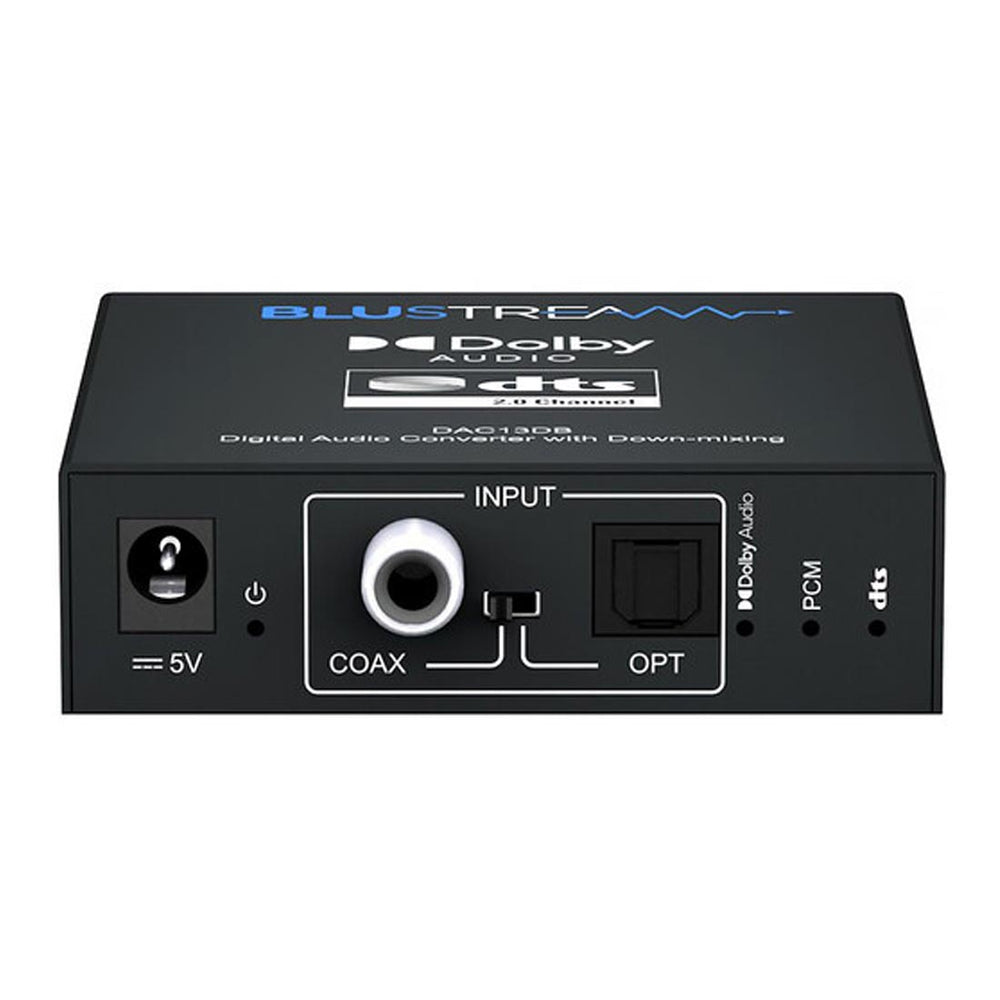

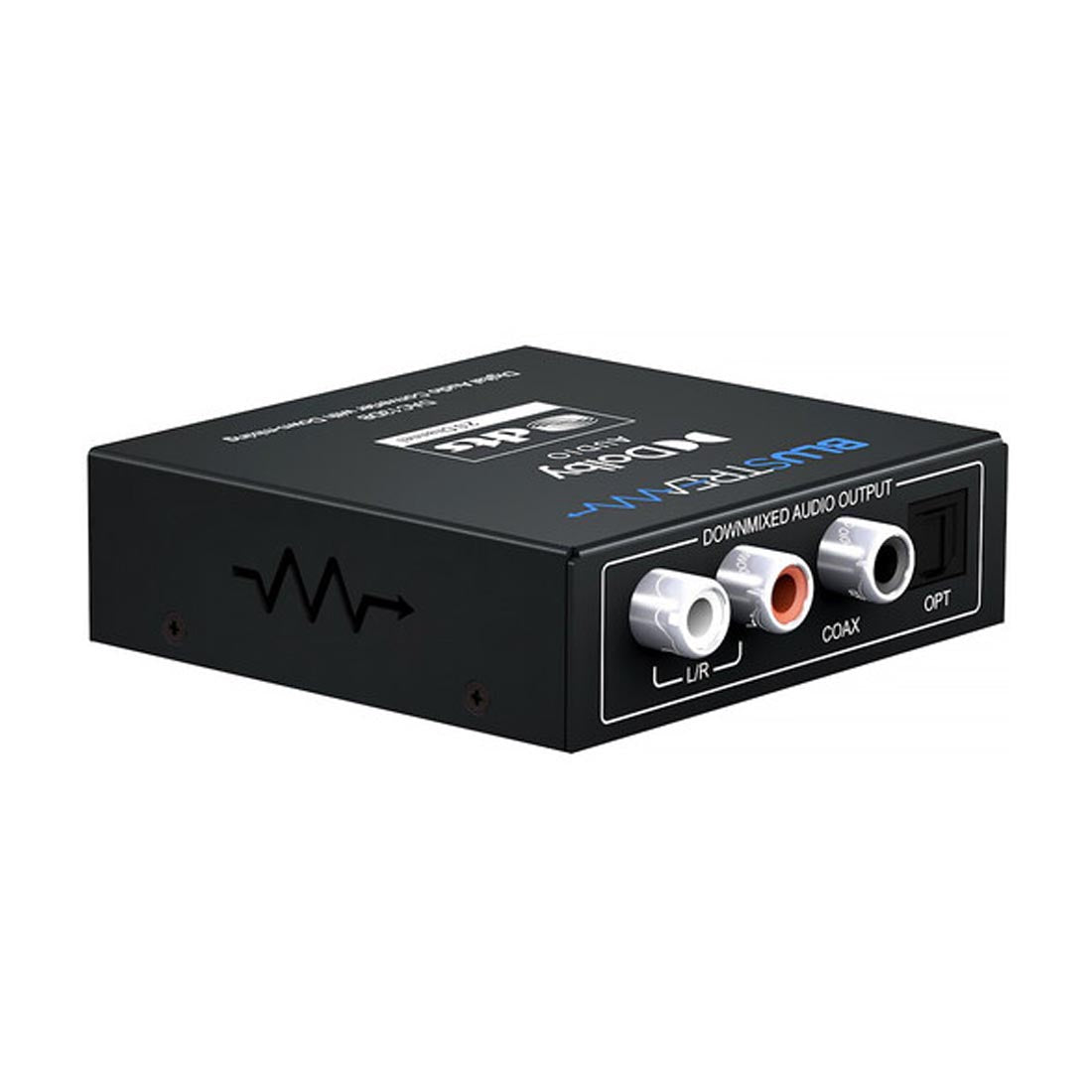

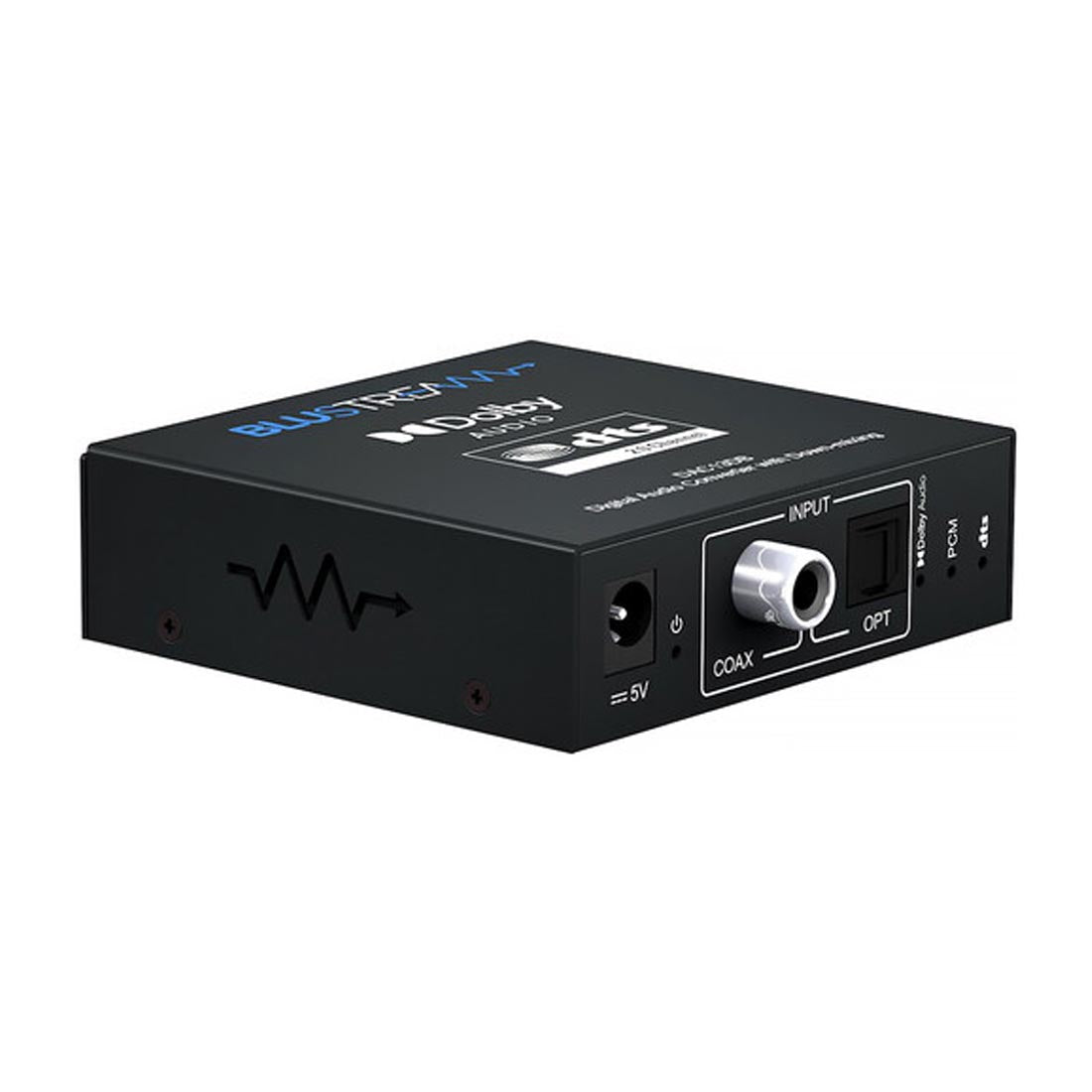

Blustream DAC13DB Digital Audio Converter
The Blustream DAC13DB converts and down-mixes embedded 5.1ch Dolby Audio or DTS Audio from an optical or coaxial digital audio signal into a stereo 2ch signal. It then makes the 2ch output available on analogue, optical, and coaxial connections.
Down-mixing from Dolby Audio and DTS Audio
The DAC13DB is designed to convert and down-mix multichannel audio within a digital input into a stereo 2ch signal.
- Down-mixes 5.1ch Dolby Audio and DTS Audio from optical Toslink or coaxial digital inputs from a compatible source device
- Outputs a stereo 2ch signal after down-mixing
Simultaneous Stereo Outputs
After down-mixing, the unit provides the 2ch signal across multiple connection types at the same time.

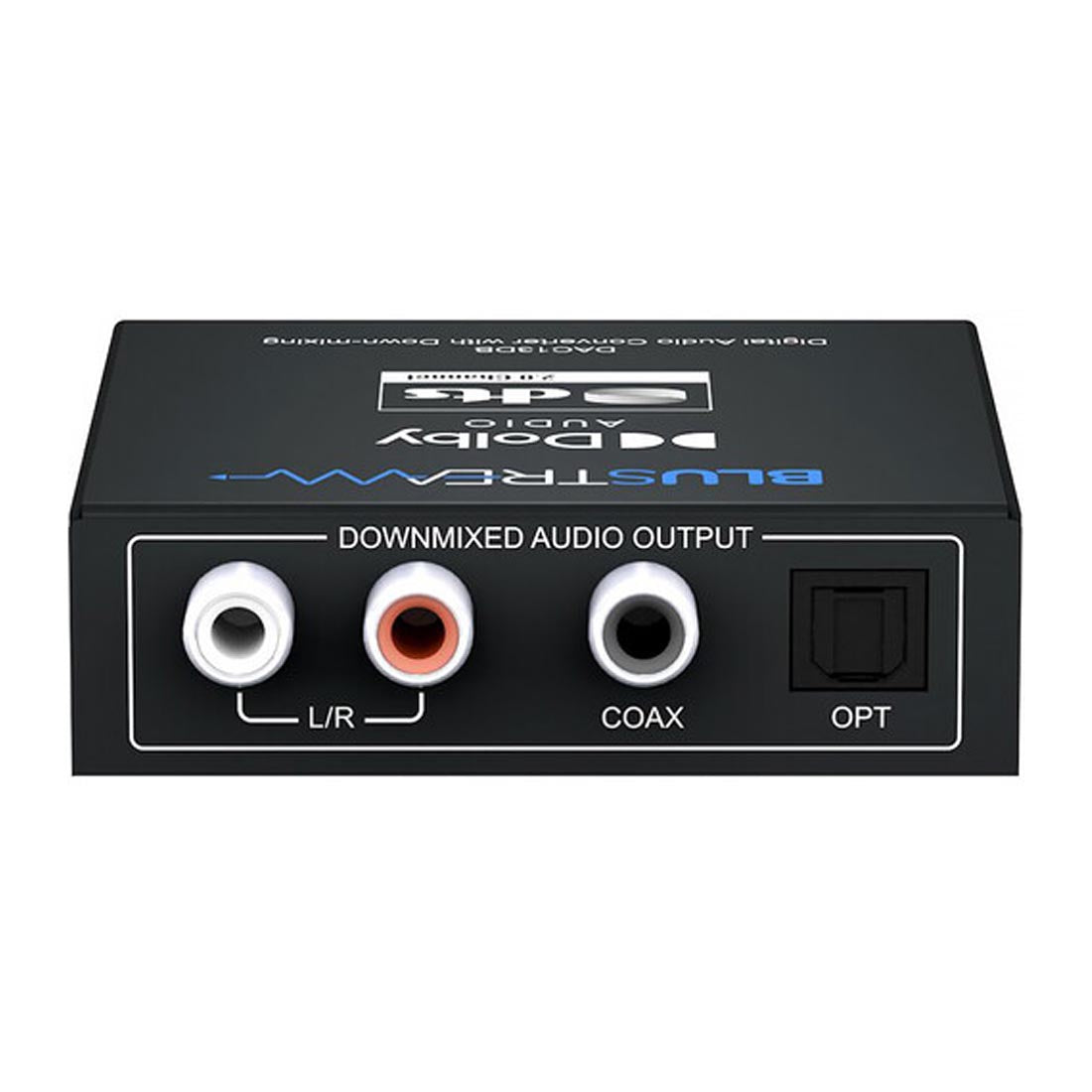

- Analogue 2 x RCA stereo (L/R)
- Optical S/PDIF Toslink
- Coaxial S/PDIF RCA
Format and Signal Support
Supports widely used Dolby Audio, DTS Audio, and PCM formats, with high-quality signal handling.
- PCM 2ch
- Dolby Digital 2ch
- Dolby Digital 5.1ch
- DTS 2ch
- DTS 5.1ch
- Audio signals up to 24-bit with sampling rates up to 96kHz
Connectivity
Flexible digital and analogue I/O allows straightforward integration.
- Audio inputs: 1 x S/PDIF Coaxial RCA Digital, 1 x S/PDIF Optical Toslink Digital
- Audio outputs: 1 x S/PDIF Coaxial RCA Digital, 1 x S/PDIF Optical Toslink Digital, 2 x RCA Stereo Analogue (L/R)
- Power supply: 5V/1A DC
Frequently Asked Questions
-
What does the DAC13DB do?
It converts and down-mixes embedded 5.1ch Dolby Audio or DTS Audio from an optical or coaxial digital input into a stereo 2ch signal, and outputs it via analogue, optical, and coaxial connections.
-
Which audio formats are supported?
Supported formats include PCM 2ch, Dolby Digital 2ch, Dolby Digital 5.1ch, DTS 2ch, and DTS 5.1ch.
-
What bit depth and sampling rate are supported?
It supports audio signals up to 24-bit with sampling rates up to 96kHz.
-
What inputs and outputs are available?
Inputs: 1 x S/PDIF Coaxial RCA Digital and 1 x S/PDIF Optical Toslink Digital. Outputs: 1 x S/PDIF Coaxial RCA Digital, 1 x S/PDIF Optical Toslink Digital, and 2 x RCA Stereo Analogue (L/R).
-
Does it output on multiple connections simultaneously?
Yes. It simultaneously outputs the down-mixed 2ch stereo audio via analogue, optical Toslink, and coaxial digital outputs.
-
What is included in the box?
1 x DAC13DB, 1 x Mounting Kit, 1 x 5V/1A DC Power Supply, and 1 x Quick Reference Guide.
Add the Blustream DAC13DB to your cart today. For personalized system-matching and setup advice, contact or visit Gibbys Electronic Supermarket to speak with our product specialists.
