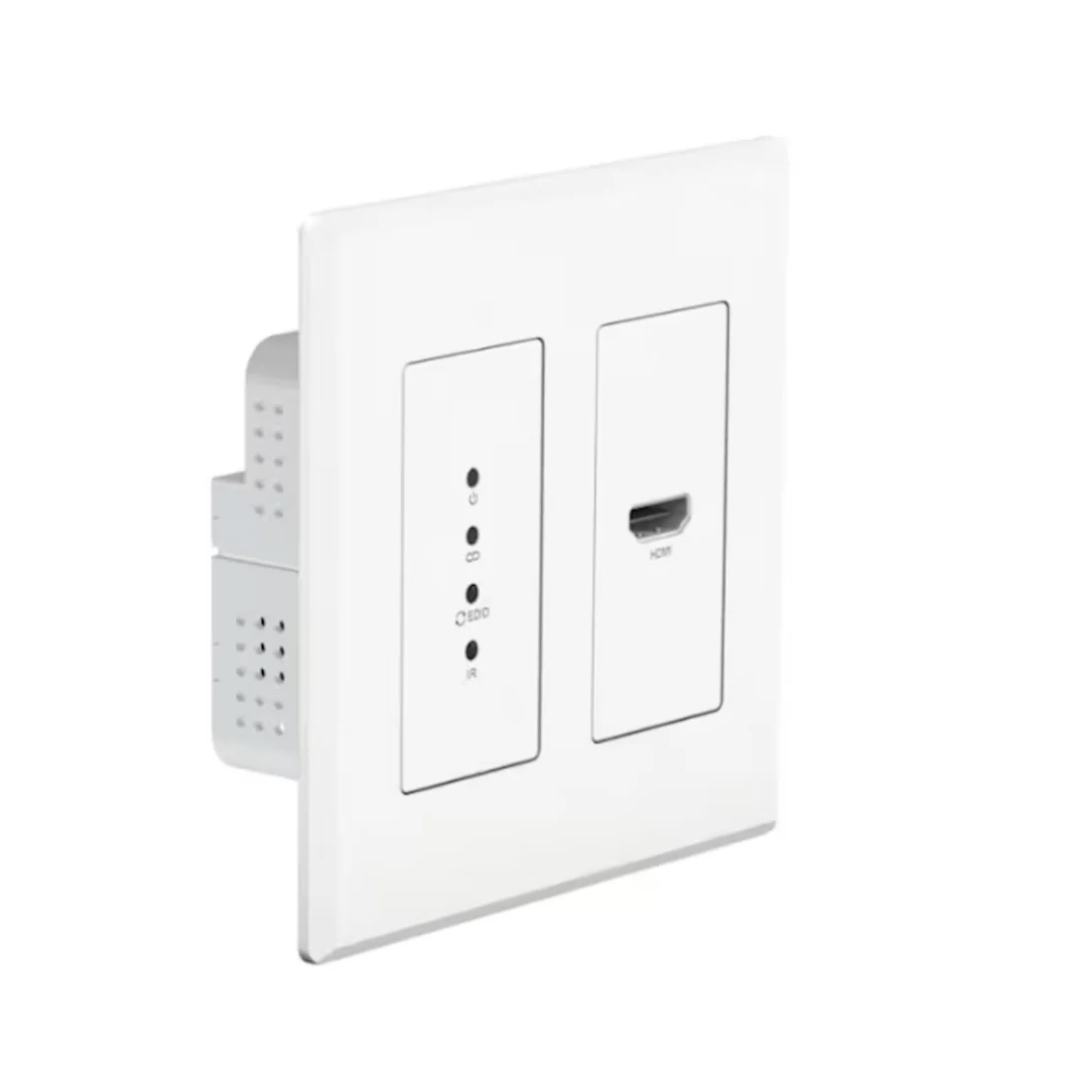

Blustream HEX11WP-TX-US HDMI Wall Plate HDBaseT Transmitter
Product Description
Product Description
Blustream HEX11WP-TX-US HDMI Wall Plate HDBaseT Transmitter
The Blustream HEX11WP-TX-US is a 4K HDMI wall plate HDBaseT transmitter that distributes video and audio over a single CAT cable, extending HDMI up to 70m at 1080p and up to 40m at 4K. It is designed for US Decora style backboxes and integrates with Blustream HDBaseT receiver and matrix solutions.
4K HDMI extension over a single CAT cable
Advanced HDBaseT technology enables reliable distribution of video and audio using one CAT cable.
- Supports 4K UHD up to 40m (3840 x 2160 @ 30Hz 4:4:4, 4096 x 2160 @ 24Hz 4:4:4, and 4K @ 60Hz 4:2:0)
- Extends HDMI at 1080p up to 70m
- HDCP 2.2 support
Installation-ready US wall plate design
The transmitter is designed for US Decora style backboxes and includes a magnetic faceplate surround; backbox requirement is a US double gang junction box.
- Compatible with all Blustream HDBaseT receiver and matrix products*
- Can be powered locally or via 12V–48V PoC from compatible Blustream HDBaseT receiver/matrix products
*Technical performance is subject to the features supported on the connected HDBaseT device.
System compatibility and control
Smart EDID automatically limits EDID to within HDBaseT specification to improve compatibility. The HEX11WP-TX-US supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications, and provides control signal passthrough.
- Smart EDID for compatibility within HDBaseT specification
- Bitstream passthrough of multichannel surround sound (including object-based formats) in line with HDMI specifications
- Bi-directional RS-232 pass-through
- IR pass-through to the HDBaseT device
Frequently Asked Questions
-
What video resolutions and distances does the HEX11WP-TX-US support?
It supports 4K UHD up to 40m (3840 x 2160 @ 30Hz 4:4:4, 4096 x 2160 @ 24Hz 4:4:4, and 4K @ 60Hz 4:2:0) and extends HDMI at 1080p up to 70m.
-
How can the transmitter be powered?
It can be powered locally or via 12V–48V PoC from compatible Blustream HDBaseT receiver/matrix products.
-
Is it compatible with Blustream receivers and matrices?
Yes. It is compatible with all Blustream HDBaseT receiver and matrix products. Technical performance depends on the features supported by the connected HDBaseT device.
-
What control and audio features are supported?
It supports bi-directional RS-232 pass-through, IR pass-through, and bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications.
-
Will it fit standard US wall plate formats?
Yes. It is designed for US Decora style backboxes, includes a magnetic faceplate surround, and requires a US double gang junction box.
-
What is included in the box?
1 x HEX11WP-TX-US, 1 x 12V/1A DC Power Supply, 1 x Magnetic Faceplate, and 1 x Quick Reference Guide.
Add to Cart to integrate this HDMI wall plate HDBaseT transmitter into your system, or contact/visit Gibbys Electronic Supermarket for personalized system-matching and setup advice from our product specialists.
