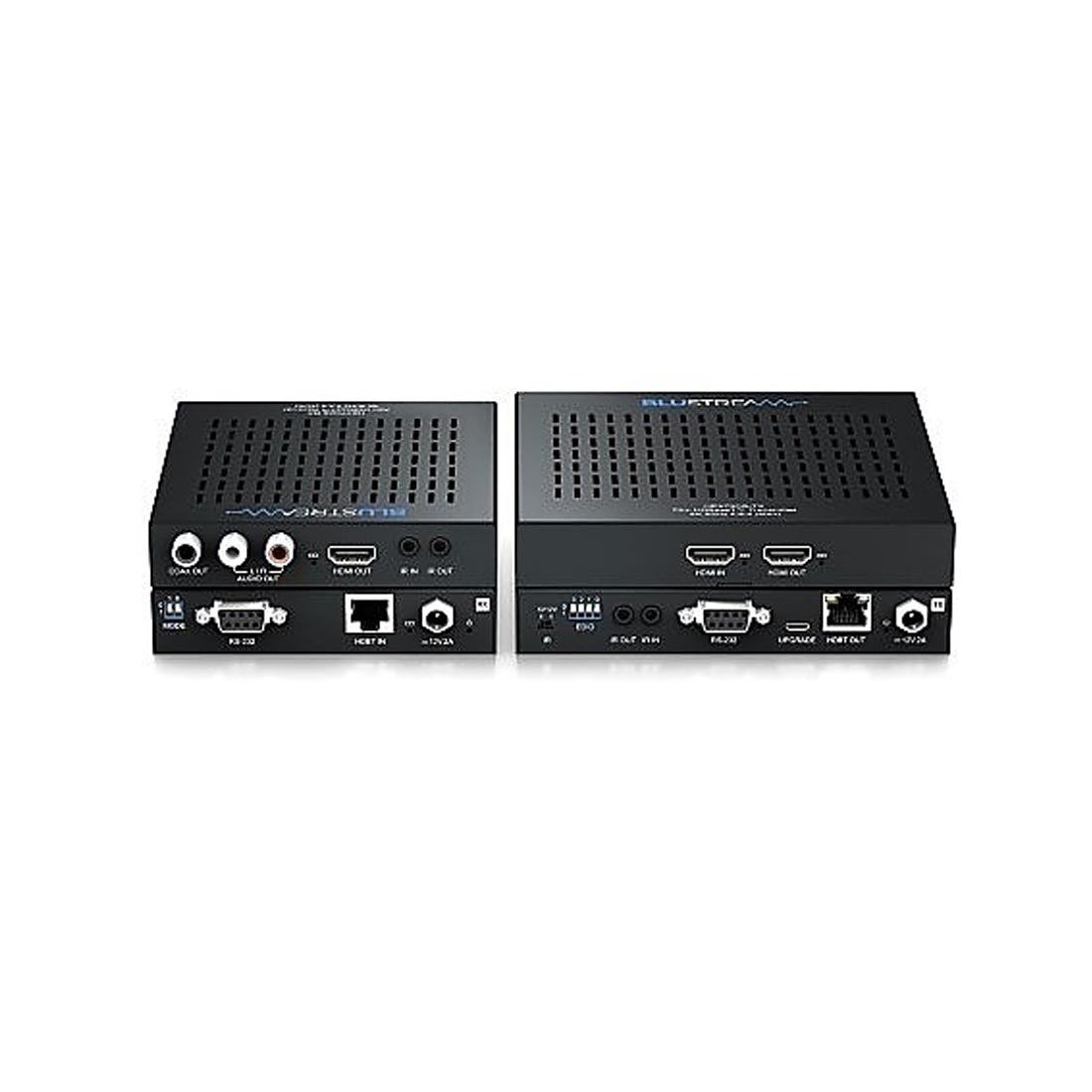

Blustream HEX70CS-KIT HDBaseT CSC Extender Set - 70m

Blustream HEX70CS-KIT HDBaseT CSC Extender Set - 70m

The Blustream HEX70CS-KIT is an HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) HDBaseT CSC extender set that distributes video and audio over a single CAT cable. It extends HDMI, bi-directional IR and RS-232, and bi-directional PoC up to 70m (4K up to 40m), with video down-conversion to integrate lower-resolution displays while maintaining maximum original 4K UHD on the transmitter HDMI loop-out.

4K HDMI 2.0 over a single CAT cable

Advanced HDBaseT and Colour Space Conversion (CSC) deliver compatibility with the HDMI 2.0 18Gbps specification, including HDR, over a single CAT run.

• Advanced HDBaseT technology for distribution of video and audio over a single CAT cable
• Advanced CSC supports HDMI 2.0 18Gbps specification including HDR
• Video down-conversion on the receiver output allows a display that supports 4K 60Hz 4:2:0 or 1080p to receive native 4K 60Hz 4:4:4 or 4K 60Hz 4:2:0 content, while the transmitter HDMI loop-out shows maximum original 4K UHD

Long-distance HDBaseT performance

Engineered for extended runs while supporting a wide range of formats.

• Supports 4K 60Hz 4:4:4 UHD video up to 40m
• Extends HDMI 1080p video up to 70m
• Supports industry-standard video resolutions including VGA–WUXGA and 480i–4K

Compatibility, control, and compliance

Integration features help address signal handshakes and system control needs.

• HDMI re-clocking on the receiver to help solve HDMI HDCP, compatibility, and handshaking issues

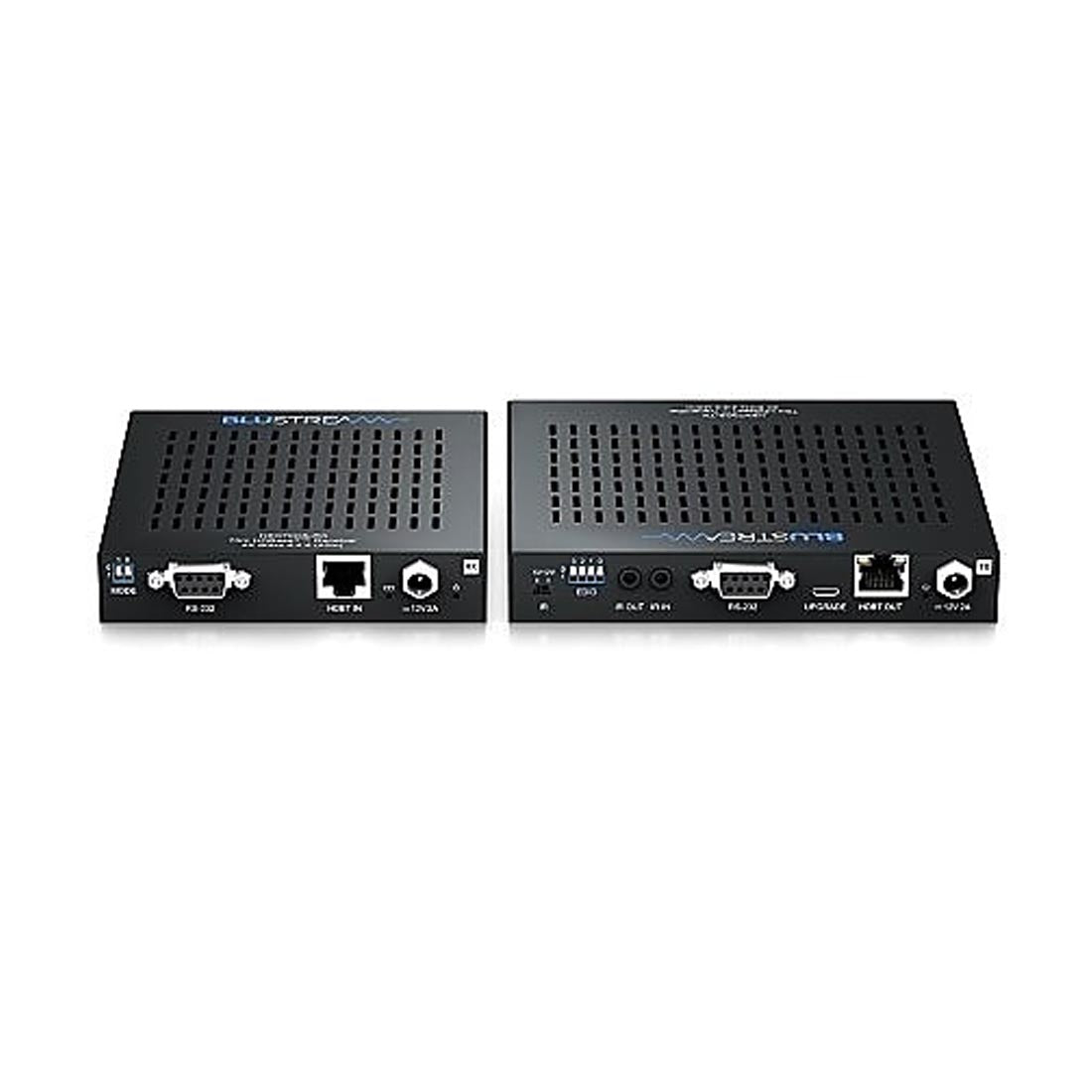

• Bi-directional RS-232 pass-through
• Bi-directional IR pass-through
• Advanced EDID management
• HDCP 2.2 compliant

Audio format support and breakout

The receiver provides simultaneous audio de-embedding for flexible connection to external audio devices.

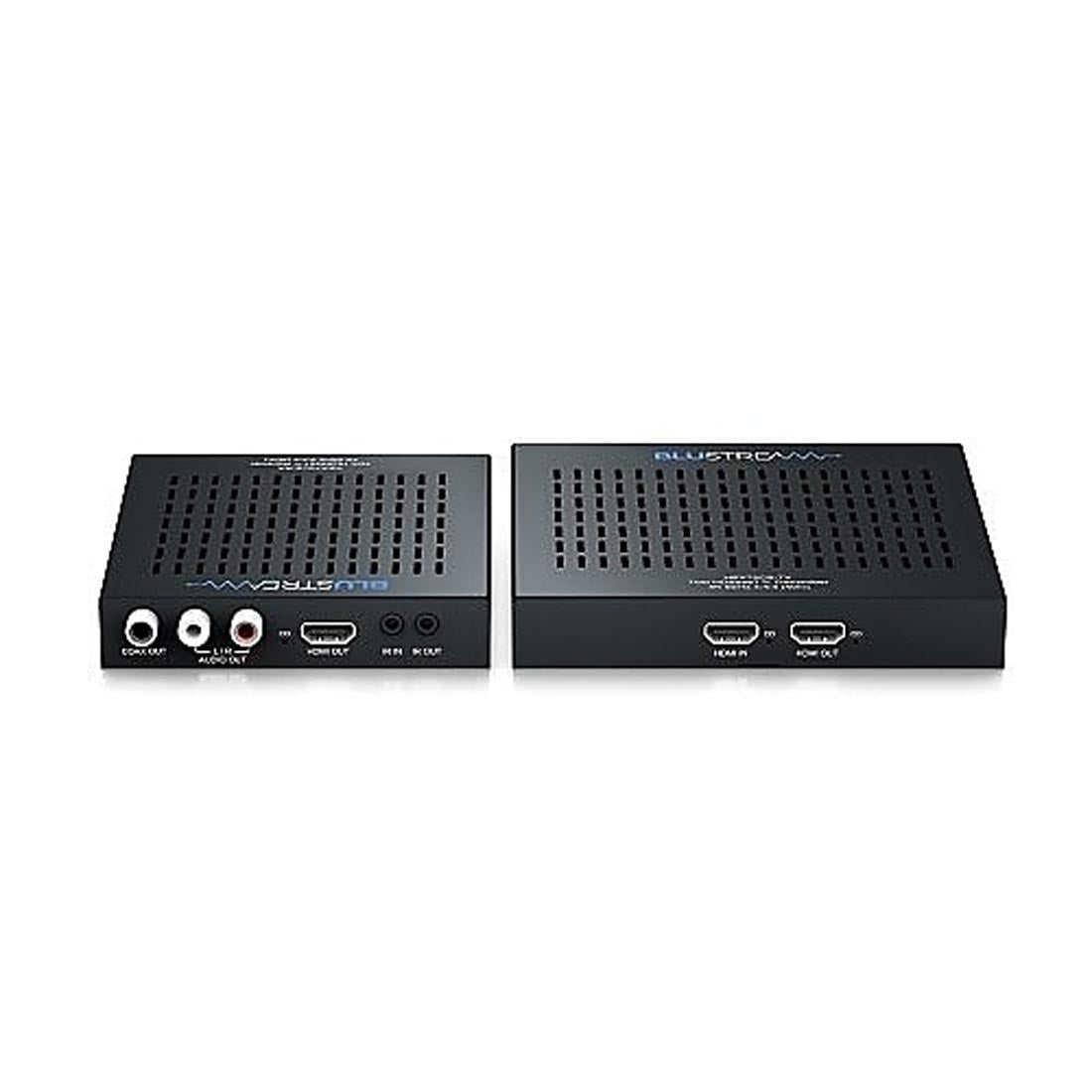

• HDMI audio breakout to analogue L/R and coaxial digital outputs concurrently
• Supports digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio, and DTS:X transmissions

Flexible installation and expansion

Built-in connectivity options support local monitoring and system growth.

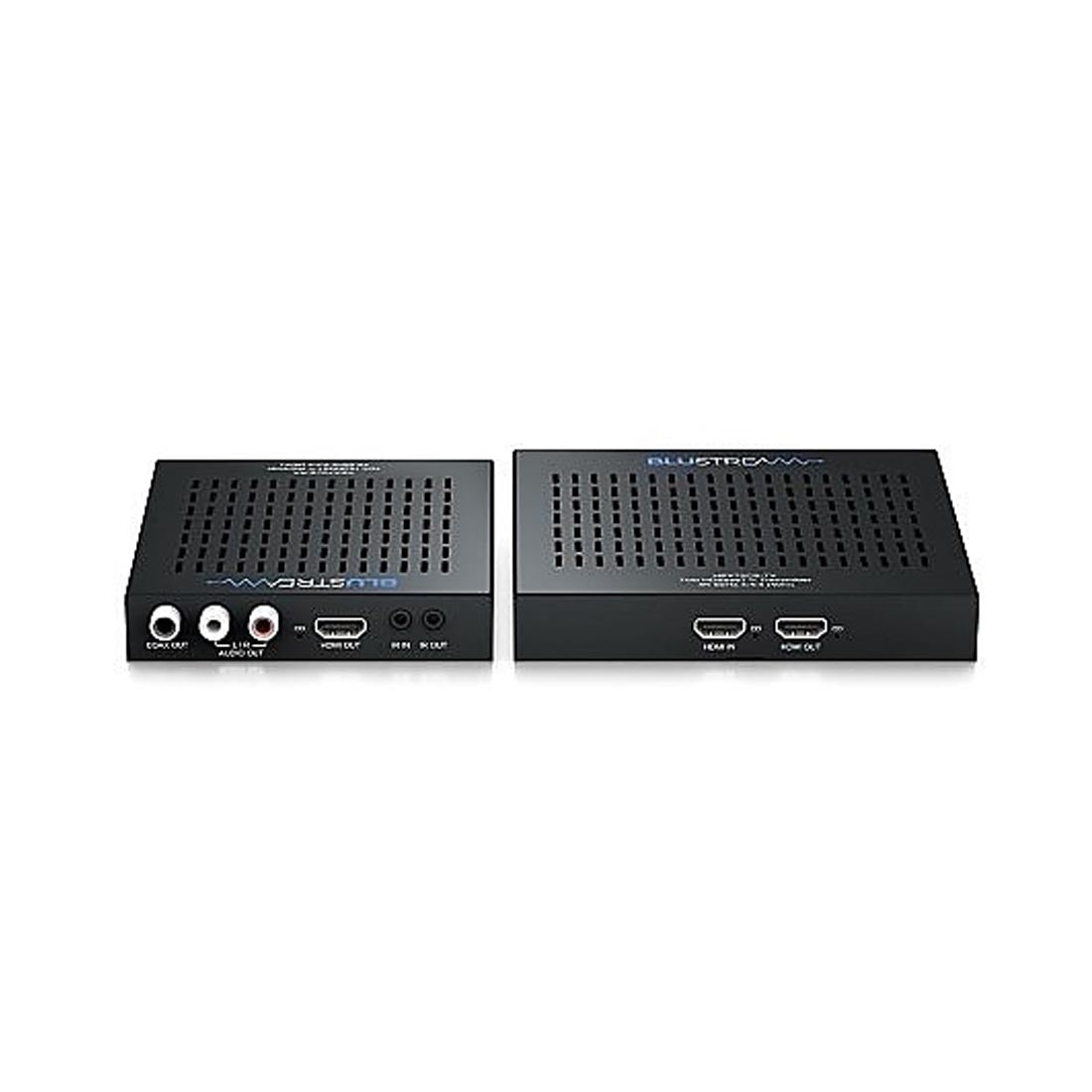

• 1 x HDMI loop-out on HEX70CS-TX for integrating local displays or cascading to multiple devices
• Extends HDMI, bi-directional IR & RS-232, and bi-directional PoC up to 70m (4K to 40m)
• Supplied with Blustream 5V IR receiver and emitter
• Mounting kits included

Frequently Asked Questions

• What distances and resolutions does the HEX70CS-KIT support?

  It supports 4K 60Hz 4:4:4 UHD up to 40m and extends HDMI 1080p up to 70m. It also supports industry-standard video resolutions from VGA–WUXGA and 480i–4K.

• How does the video down-conversion feature work?

  The receiver can down-convert the HDMI output so a display that only supports 4K 60Hz 4:2:0 or 1080p can receive native 4K content, while the transmitter’s HDMI loop-out still shows the maximum original 4K UHD resolution.

• What audio capabilities are available?

  The receiver breaks out HDMI audio to analogue L/R and coaxial digital outputs concurrently and supports Dolby TrueHD, Atmos; DTS-HD Master Audio, and DTS:X transmissions.

• What integration and control features are included?

  It offers HDMI re-clocking to help solve HDMI HDCP, compatibility, and handshaking issues, plus bi-directional RS-232 and IR pass-through, Advanced EDID management, and HDCP 2.2 compliance.

• Does the transmitter include an HDMI loop-out?

  Yes. The HEX70CS-TX features 1 x HDMI loop-out for integrating a local display or cascading to multiple devices.

• What’s in the box?

  1 x HEX70CS-TX, 1 x HEX70CS-RX, 2 x mounting brackets, 1 x 12V/2A power supply, 1 x IR emitter, 1 x IR receiver, and 1 x quick reference guide.
