Blustream HEX70CS-RX HDBaseT CSC Receiver - 70m
Product Description
Product Description

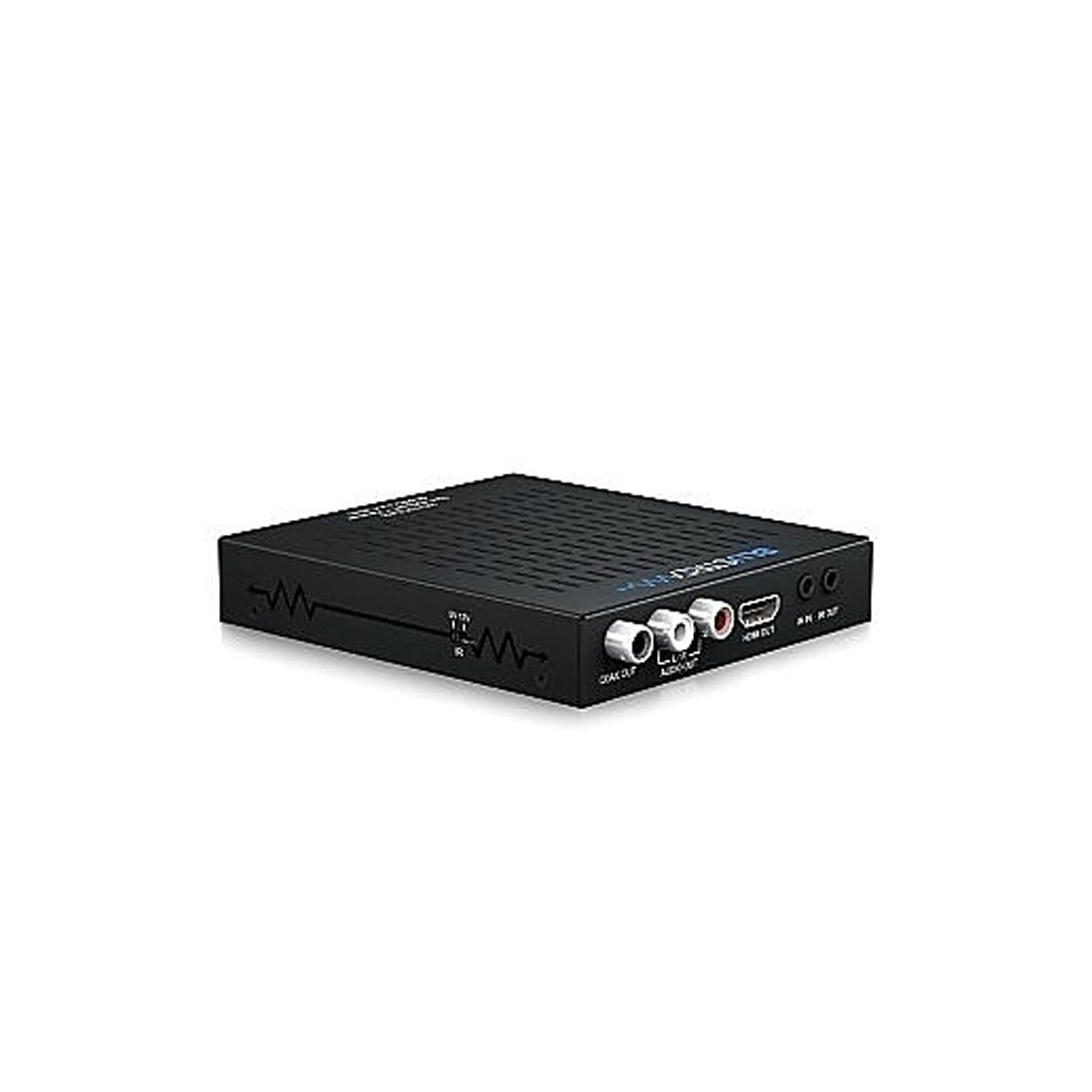

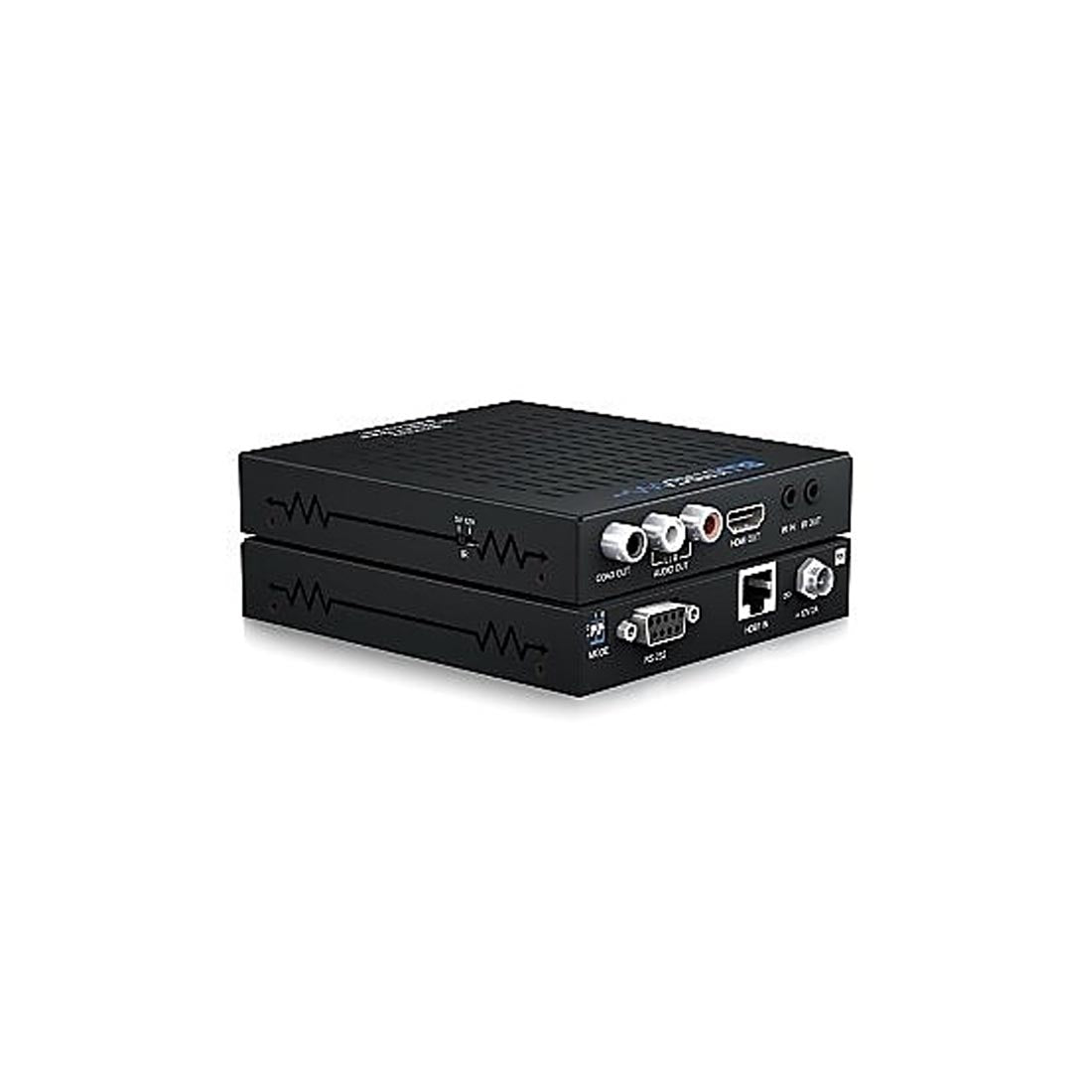

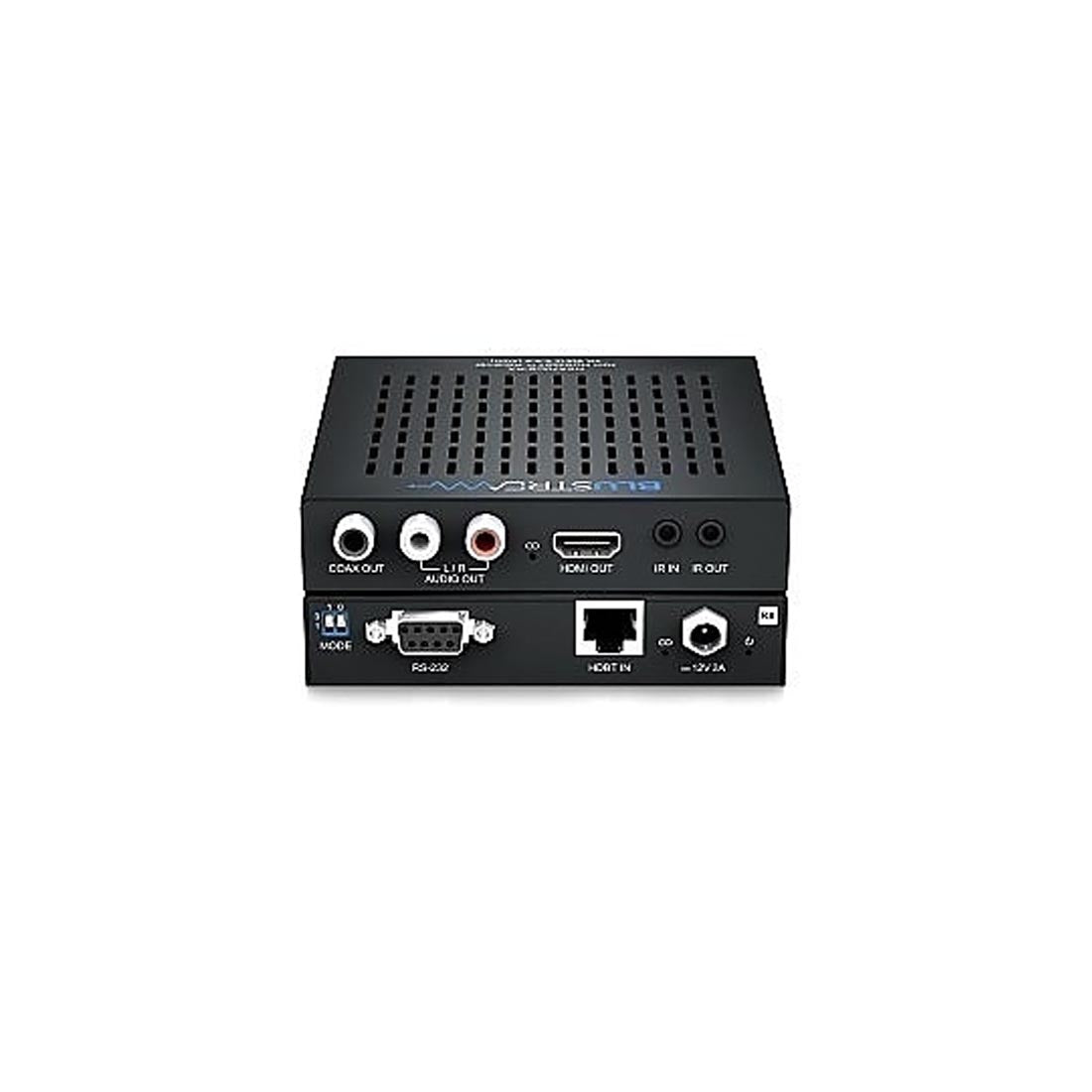

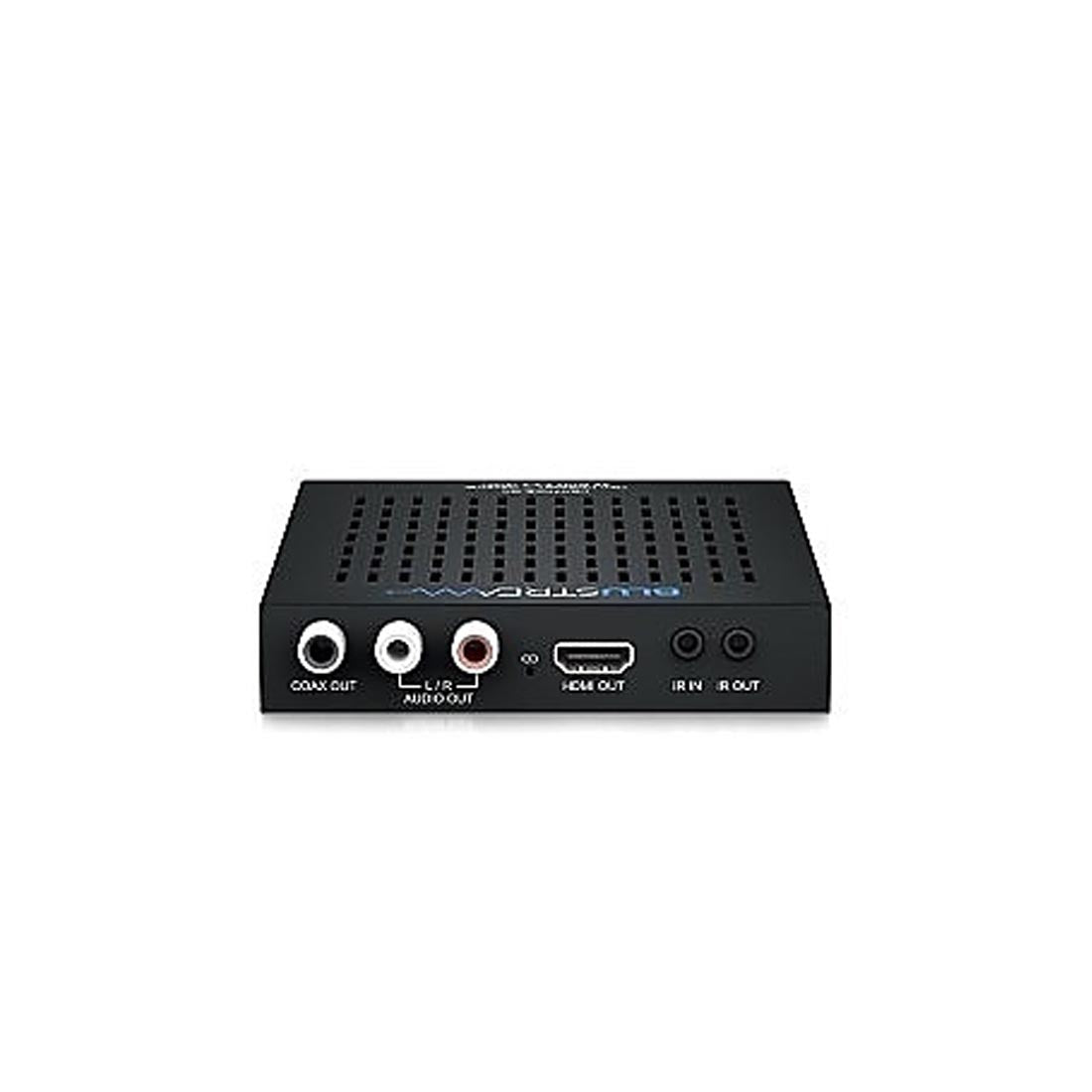

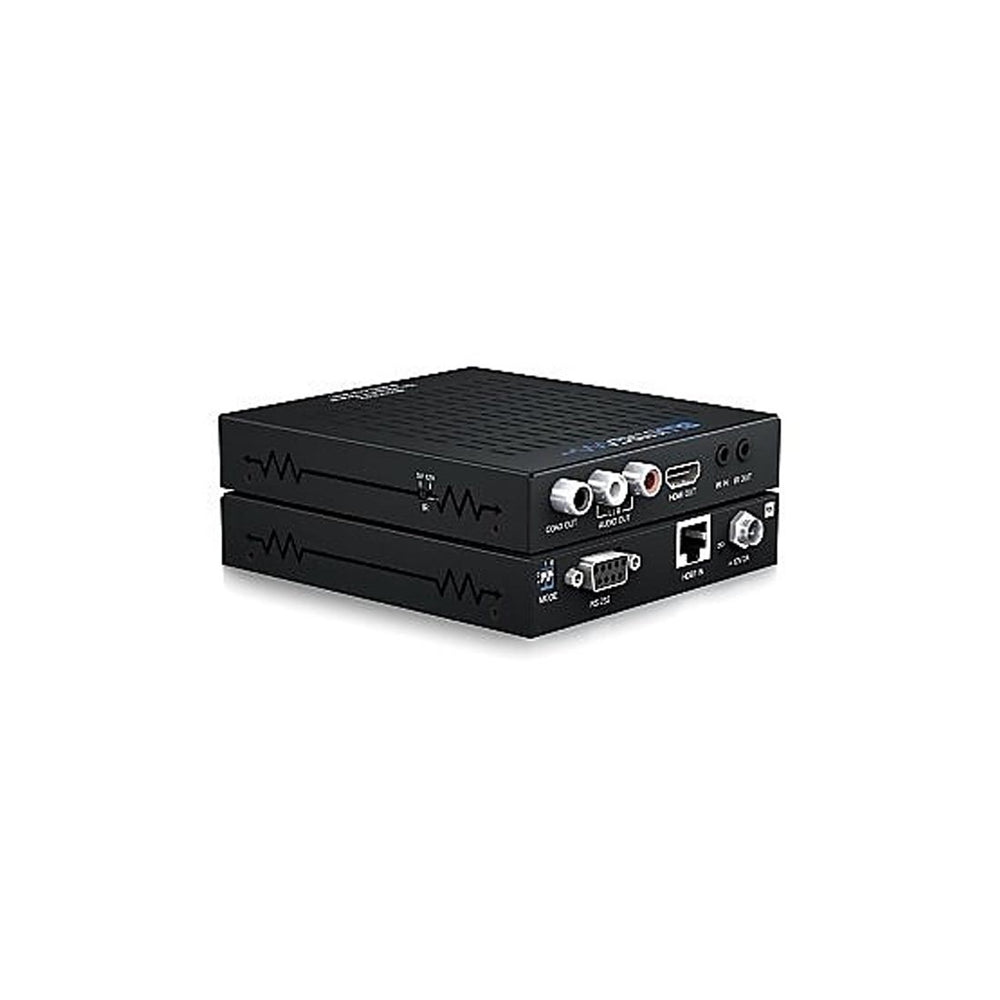

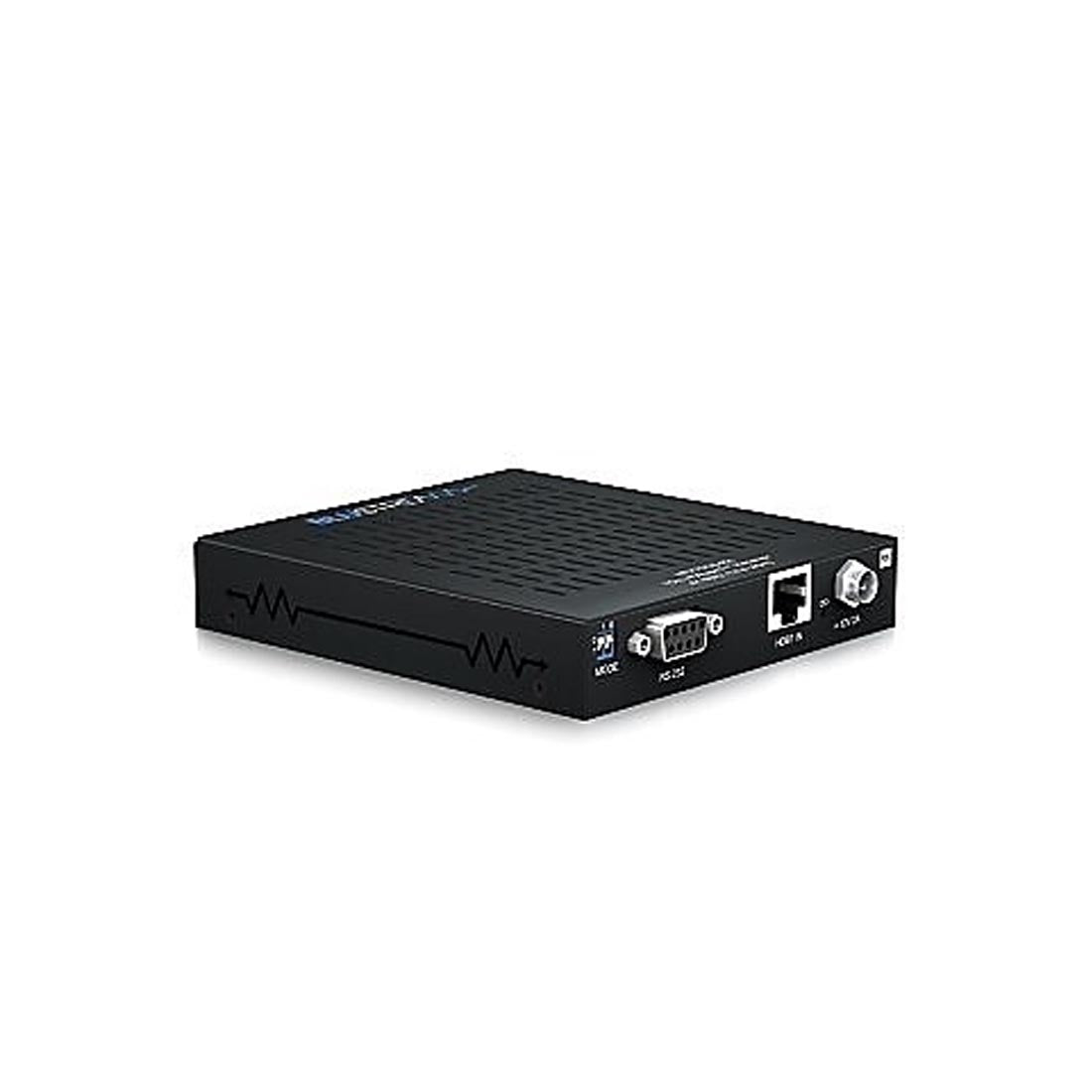

Blustream HEX70CS-RX HDBaseT CSC Receiver - 70m
The Blustream HEX70CS-RX is an HDMI 2.0 HDBaseT receiver that extends 4K @ 60Hz 4:4:4 (18Gbps) and 1080p video over a single CAT cable, with bi-directional IR, RS-232, and PoC. It also provides simultaneous analog stereo and digital coax audio breakout for straightforward integration.
4K UHD transport with HDR support
Advanced Color Space Conversion (CSC) supports the HDMI 2.0 18Gbps specification, including HDR. The receiver supports 4K @ 60Hz 4:4:4 up to 40m and extends 1080p up to 70m, covering all industry-standard video resolutions from VGA–WUXGA and 480i–4K.
- Supports 4K @ 60Hz 4:4:4 up to 40m; 1080p up to 70m
- HDMI 2.0 (18Gbps) with HDR via CSC
- HDCP 2.2 compliant
Control and power passthrough
The HEX70CS-RX extends control alongside video and audio with bi-directional IR and RS-232 pass-through, and supports bi-directional PoC.
- Bi-directional IR pass-through
- Bi-directional RS-232 pass-through
- Bi-directional PoC
Audio breakout for system integration
The receiver delivers concurrent HDMI audio breakout to analog L/R and coaxial digital outputs. It supports known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X transmissions.
- Simultaneous analog L/R and coaxial digital audio outputs
- Supports Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X
Installation and compatibility tools
HDMI re-clocking is included to help solve HDMI, HDCP, compatibility, and handshaking issues, and advanced EDID management is provided. A mounting kit is included.
- HDMI re-clocking to help solve compatibility and handshaking issues
- Advanced EDID management
- Mounting kit included
Frequently Asked Questions
-
What cable distances does the HEX70CS-RX support?
It supports 4K @ 60Hz 4:4:4 up to 40m and 1080p up to 70m over a single CAT cable.
-
Does it support HDR and HDCP 2.2?
Yes. CSC supports the HDMI 2.0 18Gbps specification including HDR, and the unit is HDCP 2.2 compliant.
-
What control signals are extended?
Bi-directional IR and RS-232 pass-through are supported.
-
Is Power over Cable (PoC) supported?
Yes, the receiver supports bi-directional PoC.
-
What audio formats and outputs are supported?
It supports known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X, with simultaneous analog L/R and coaxial digital audio breakout.
-
Are there tools to address HDMI compatibility issues?
Yes. HDMI re-clocking helps solve HDMI, HDCP, compatibility, and handshaking issues, and advanced EDID management is included.
Ready to integrate the Blustream HEX70CS-RX into your setup? Add to Cart, or contact Gibbys Electronic Supermarket for expert, personalized system-matching and setup advice.
