Blustream HEX70HDUK-KIT Multi-Format HDBaseT Extender Set

Blustream HEX70HDUK-KIT Multi-Format HDBaseT Extender Set

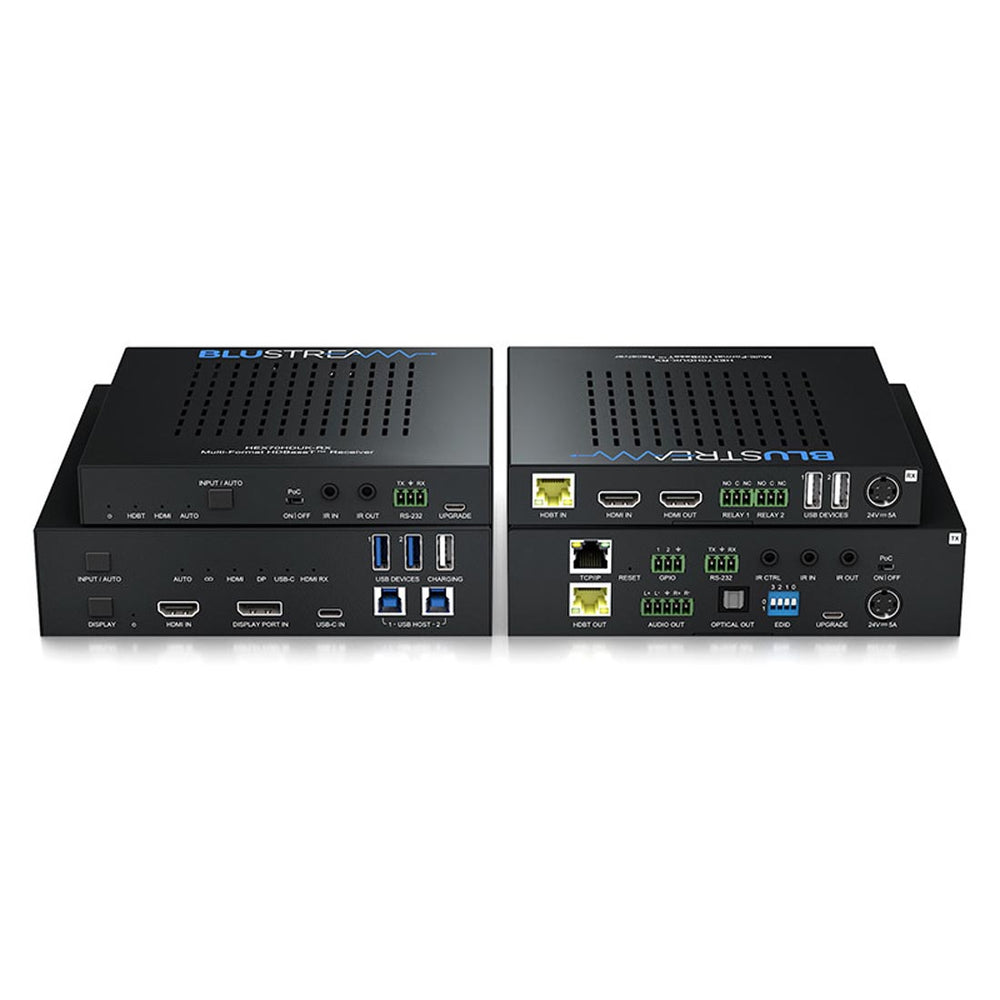

The Blusteram HEX70HDUK-KIT is a multi-format HDBaseT CSC extender set that delivers HDMI, USB‑C, and DisplayPort up to 40m (70m at 1080p) over a single CAT cable with HDMI2.0 4K 60Hz 4:4:4 (18Gbps) and HDCP2.2 support. It integrates USB 2.0 extension, a local HDMI input on the receiver, web-GUI control, auto display control, audio breakout, bi-directional IR pass-through, PoC, and advanced EDID/HDCP management.

Multi-format 4K UHD over a single CAT cable

This HDBaseT solution uses Advanced Color Space Conversion (CSC) to support the HDMI2.0 18Gbps specification, including HDR, while extending high-resolution video over distance.

• Distribution of video and audio over a single CAT cable
• Supports 4K 60Hz 4:4:4 UHD up to 40m; extends 1080p up to 70m
• HDCP2.2 compliant
• CSC supports HDMI2.0 18Gbps including HDR

Flexible connectivity and source selection

The extender set accommodates multiple source types and offers switching at the transmitter, plus a convenient local input at the display end.

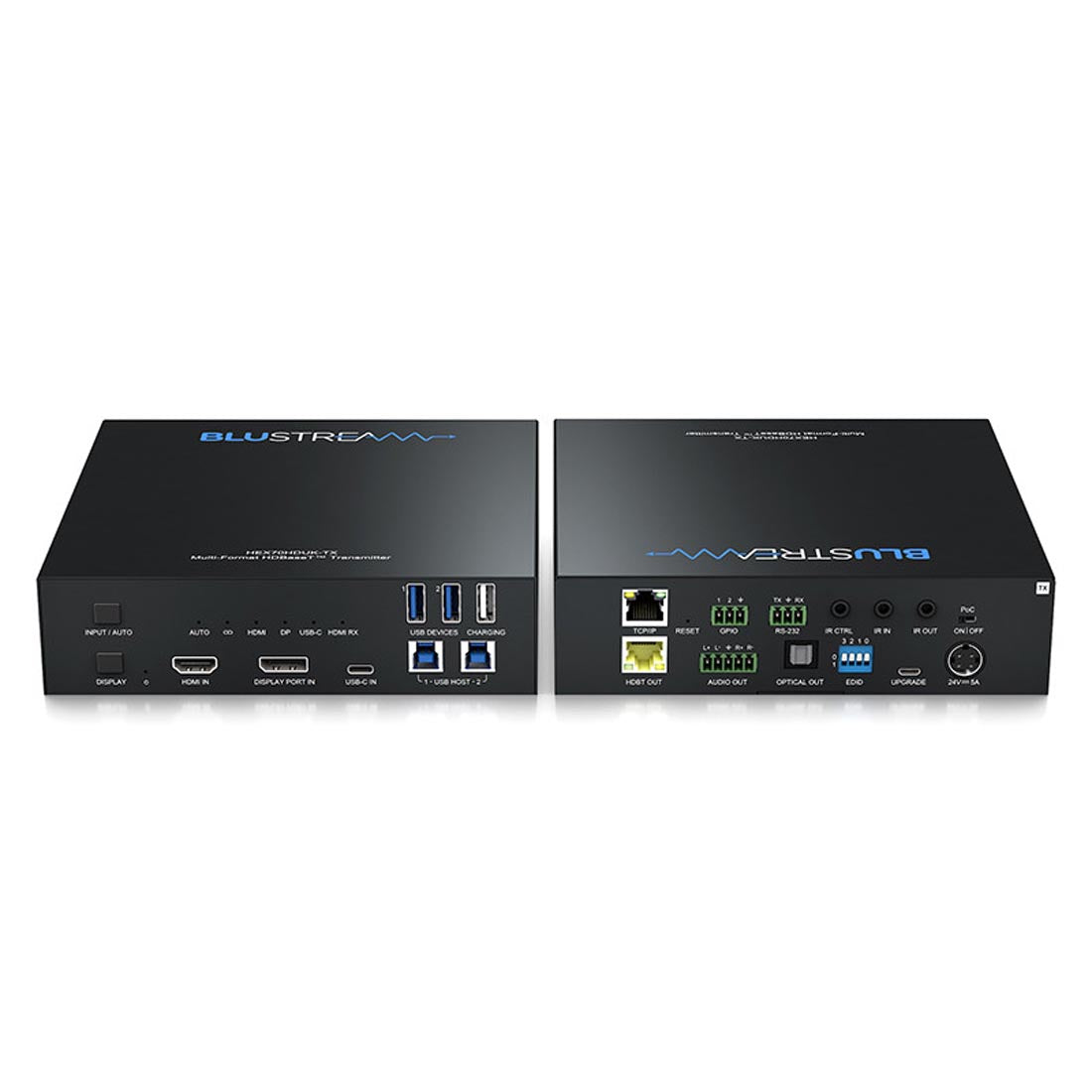

• Transmitter inputs: 1 x HDMI, 1 x USB‑C, 1 x DisplayPort™ with manual or auto source selection

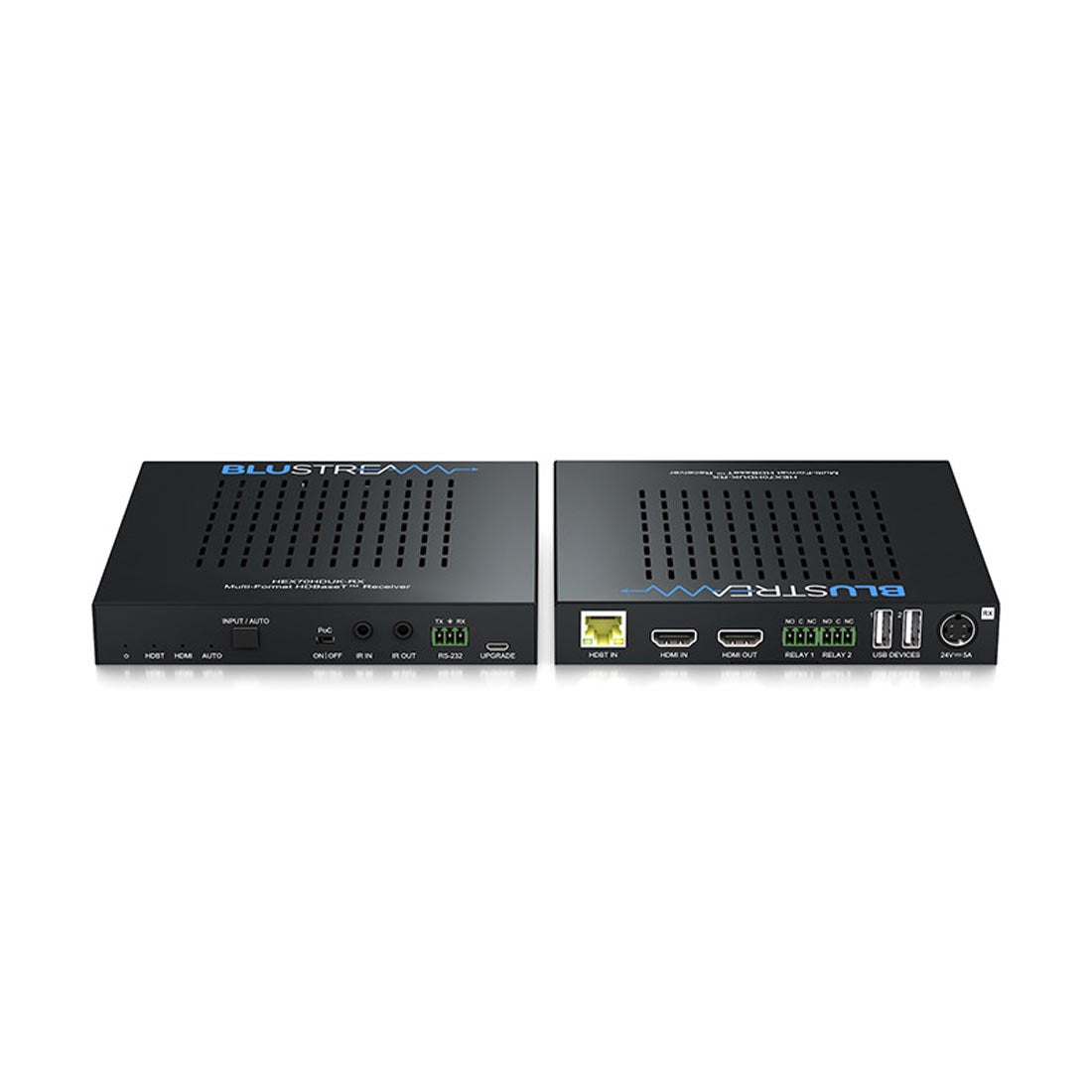

• Receiver includes 1 x local HDMI input for a source at the display

USB 2.0 extension and device charging

Built-in USB 2.0 extension supports peripherals and hosts with defined bandwidth and charging capabilities.

• Up to 480 Mbps combined USB 2.0 data throughput
• Receiver: 2 x USB Type‑A (peripherals)
• Transmitter: 2 x USB Type‑A (peripherals) and 2 x USB Type‑B (host, source specific)
• USB Type‑A ports support charging up to 500 mA when connected to a host
• Independent USB Type‑A charging-only port up to 5V 2A
• USB‑C video up to 4K 60Hz 4:4:4 DP1.2 with 60W charging; when charging is activated by the source device, video is limited to 4K 60Hz 4:2:0

Audio format support and breakout

The HEX70HDUK-KIT supports a wide range of HDMI audio formats and provides simultaneous breakout for external devices.

• Supports HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio transmission
• Audio breakout to analog L/R and optical digital (S/PDIF) outputs concurrently
• Analog audio breakout supports 2ch PCM only

Control, automation, and management

Comprehensive control pathways and integrated management tools streamline configuration and operation at both ends of the link.

• Web interface module for control and configuration
• Control via front panel, IR, RS‑232, and TCP/IP
• Auto display on/off at the receiver via CEC or RS‑232
• Bi-directional IR pass-through
• Bi-directional PoC (Power over Cable) to power extenders from either end
• Advanced EDID and HDCP management

Frequently Asked Questions

• What video performance and distances does the HEX70HDUK-KIT support?

  It supports HDMI2.0 4K 60Hz 4:4:4 (18Gbps) with HDR and HDCP2.2 up to 40m, and extends HDMI 1080p up to 70m over a single CAT cable.

• Which inputs are available on the transmitter and receiver?

  The transmitter provides 1 x HDMI, 1 x USB‑C, and 1 x DisplayPort™ with manual or auto source selection. The receiver includes 1 x local HDMI input for a source at the display.

• How is USB 2.0 handled?

  USB 2.0 extension supports up to 480 Mbps combined data, with 2 x USB Type‑A device ports on the receiver and 2 x USB Type‑A plus 2 x USB Type‑B (host, source specific) on the transmitter.

• Does it provide device charging?

  USB Type‑A ports support charging up to 500 mA when connected to a host, and an independent USB Type‑A port supports charging only up to 5V 2A. USB‑C supports video up to 4K 60Hz 4:4:4 DP1.2 with 60W charging; when charging is activated by the source, video is limited to 4K 60Hz 4:2:0.

• What audio features are included?

  It supports HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, and DTS‑HD Master Audio, and provides concurrent audio breakout to analog L/R and optical digital (S/PDIF). Analog breakout supports 2ch PCM only.

• What control and automation options are available?

  Control is available via front panel, IR, RS‑232, and TCP/IP, with a web interface for configuration, auto display on/off via CEC or RS‑232 at the receiver, and bi-directional IR pass-through.

• Is Power over Cable (PoC) supported?

  Yes. The system supports bi-directional PoC to power the extenders from either the transmitter or receiver end.
