Blustream HEX70SL-RX Slimline HDBaseT Receiver - 70m
Product Description
Product Description

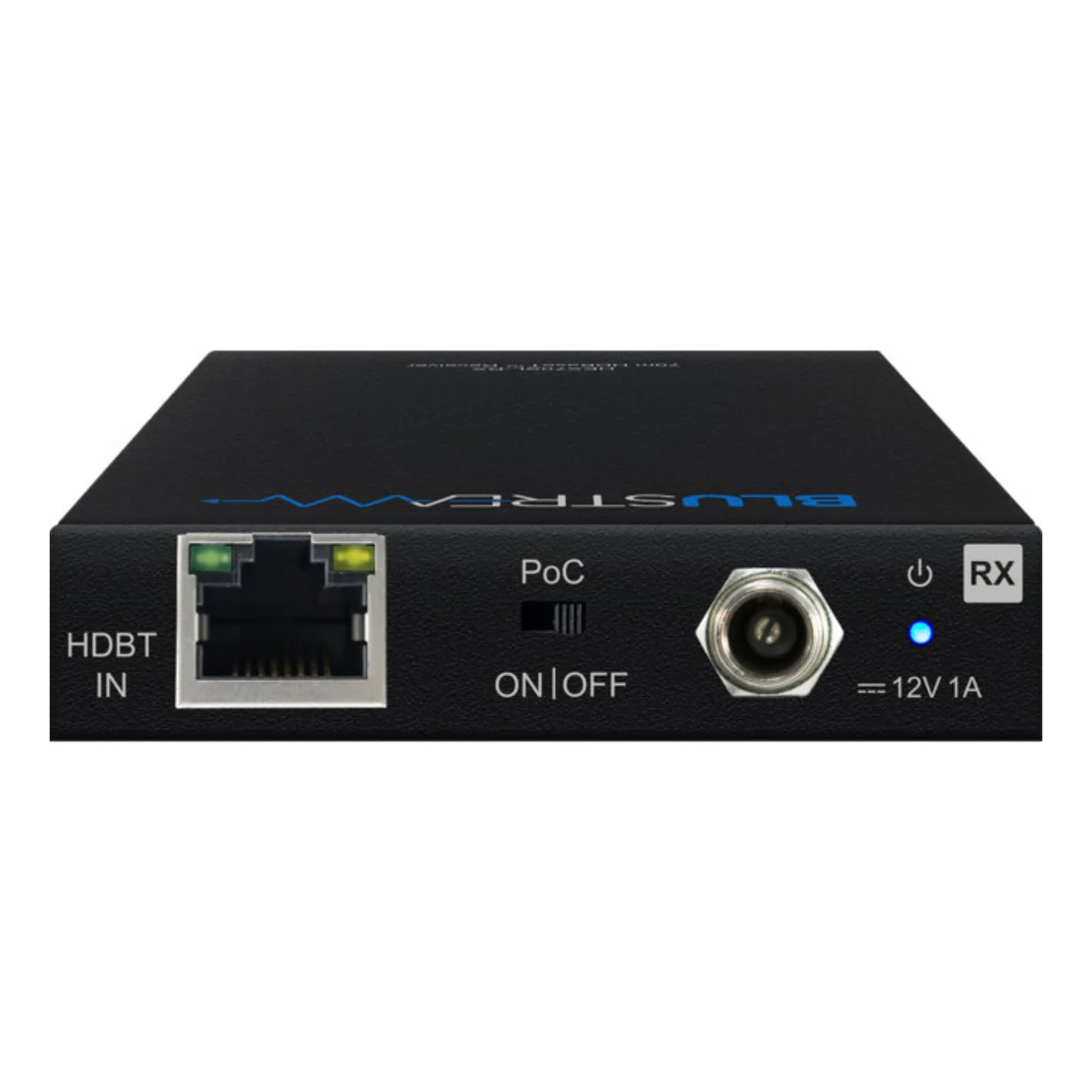

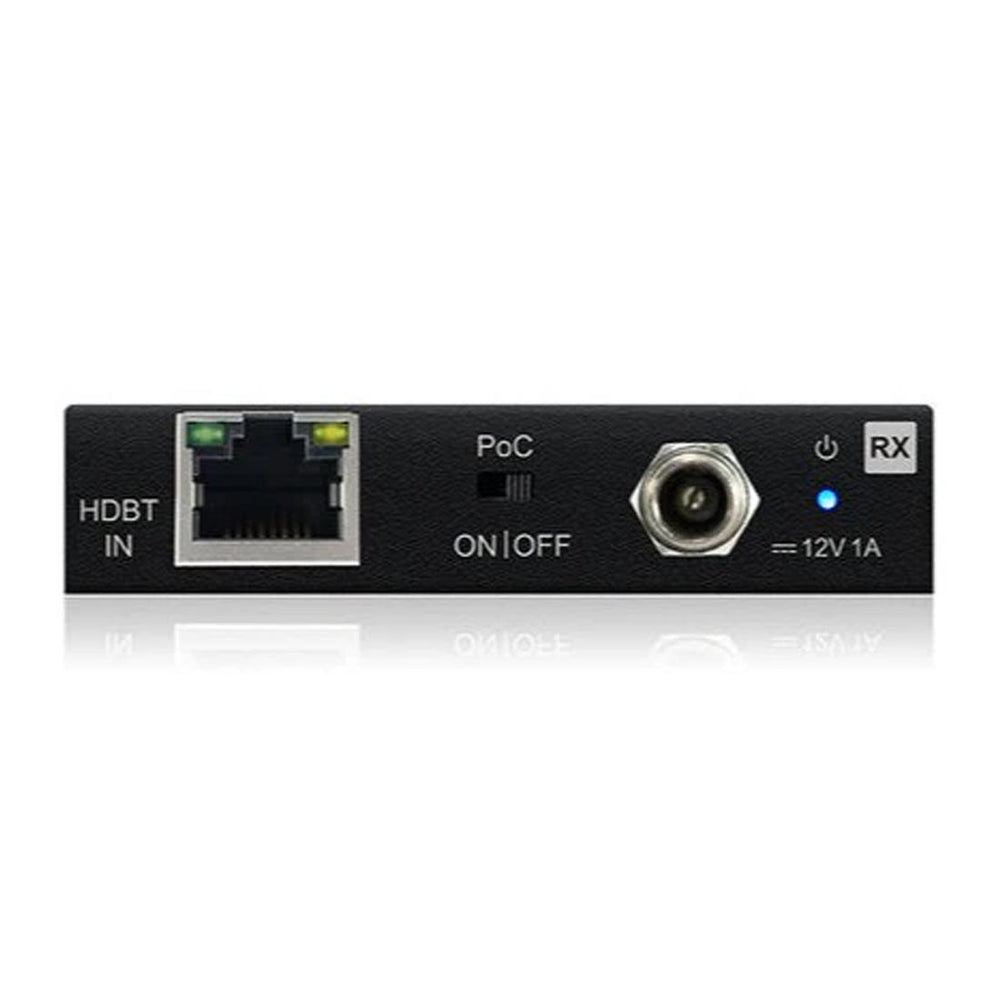

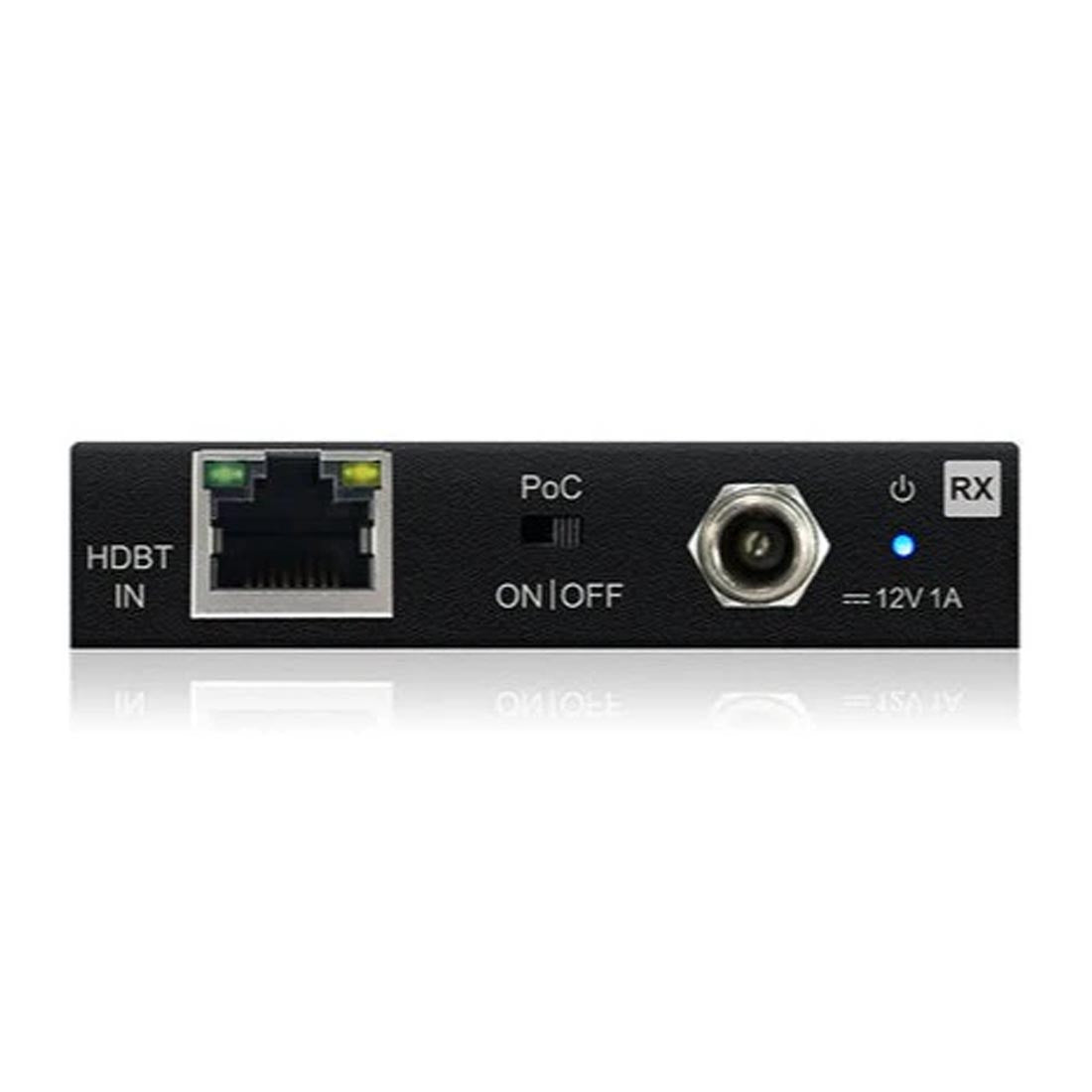

Blustream HEX70SL-RX Slimline HDBaseT Receiver - 70m
The Blustream HEX70SL-RX is a 4K HDBaseT Receiver in a slimline chassis that delivers HDMI, bi-directional IR, and bi-directional PoC over a single CAT cable up to 70m with uncompressed video and audio and zero latency. It supports 4K UHD up to 40m and is HDCP 2.2 compliant.
Uncompressed Video and Audio with Zero Latency
Advanced HDBaseT technology offers uncompressed video and audio with zero latency for real-time signal extension.
70m HDMI Extension and 4K UHD Support
The receiver extends HDMI over a single CAT cable and supports 4K UHD within specified distances for reliable distribution.
- Extends HDMI 1080p up to 70m over a single CAT cable
- Supports 4K UHD up to 40m (3840 x 2160 @ 30Hz 4:4:4, 4096 x 2160 @ 24Hz 4:4:4, and 4K @ 60Hz 4:2:0)
- Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
Audio Format Compatibility
Supports all known HDMI audio formats for versatile system integration.
- Dolby TrueHD
- Dolby Atmos
- Dolby Digital Plus
- DTS-HD Master Audio transmission
Bi-directional IR and Power Over Cable (PoC)
Delivers HDMI, bi-directional IR, and bi-directional PoC up to 70m. Supports bi-directional PoC to power, or be powered from, a compatible transmitter point (power supply not included).
Slimline Design, Compliance, and Connections
An enhanced slimline chassis combines with HDCP 2.2 compliance and essential I/O for straightforward integration.
- Video input: 1 x HDBaseT RJ45 connector
- Video output: 1 x HDMI Type A, 19-pin, female
- IR input: 1 x 3.5mm stereo jack
- IR output: 1 x 3.5mm mono jack
Frequently Asked Questions
-
How far can HEX70SL-RX extend HDMI signals?
It extends HDMI 1080p up to 70m and supports 4K UHD up to 40m.
-
What 4K formats are supported?
3840 x 2160 @ 30Hz 4:4:4, 4096 x 2160 @ 24Hz 4:4:4, and 4K @ 60Hz 4:2:0.
-
Does it support Dolby Atmos and other HDMI audio formats?
Yes. It supports Dolby TrueHD, Dolby Atmos, Dolby Digital Plus, and DTS-HD Master Audio transmission.
-
Is bi-directional IR supported?
Yes. Bi-directional IR pass-through is supported.
-
Can it be powered via PoC, and is a power supply included?
It supports bi-directional PoC to power, or be powered from, a compatible transmitter point. A power supply is not included.
-
What connectors are on the receiver?
1 x HDBaseT RJ45 input, 1 x HDMI Type A output, 1 x 3.5mm stereo IR input, and 1 x 3.5mm mono IR output.
-
What are the dimensions?
106mm x 73mm x 16mm.
-
Is it HDCP 2.2 compliant?
Yes, it is HDCP 2.2 compliant.
Add the Blustream HEX70SL-RX Slimline HDBaseT Receiver to your cart today, and contact Gibbys Electronic Supermarket for personalized system-matching and setup advice from our product specialists.
