Blustream HMXL44ARC-KIT 4x4 HDBaseT Matrix Kit
Product Description
Product Description

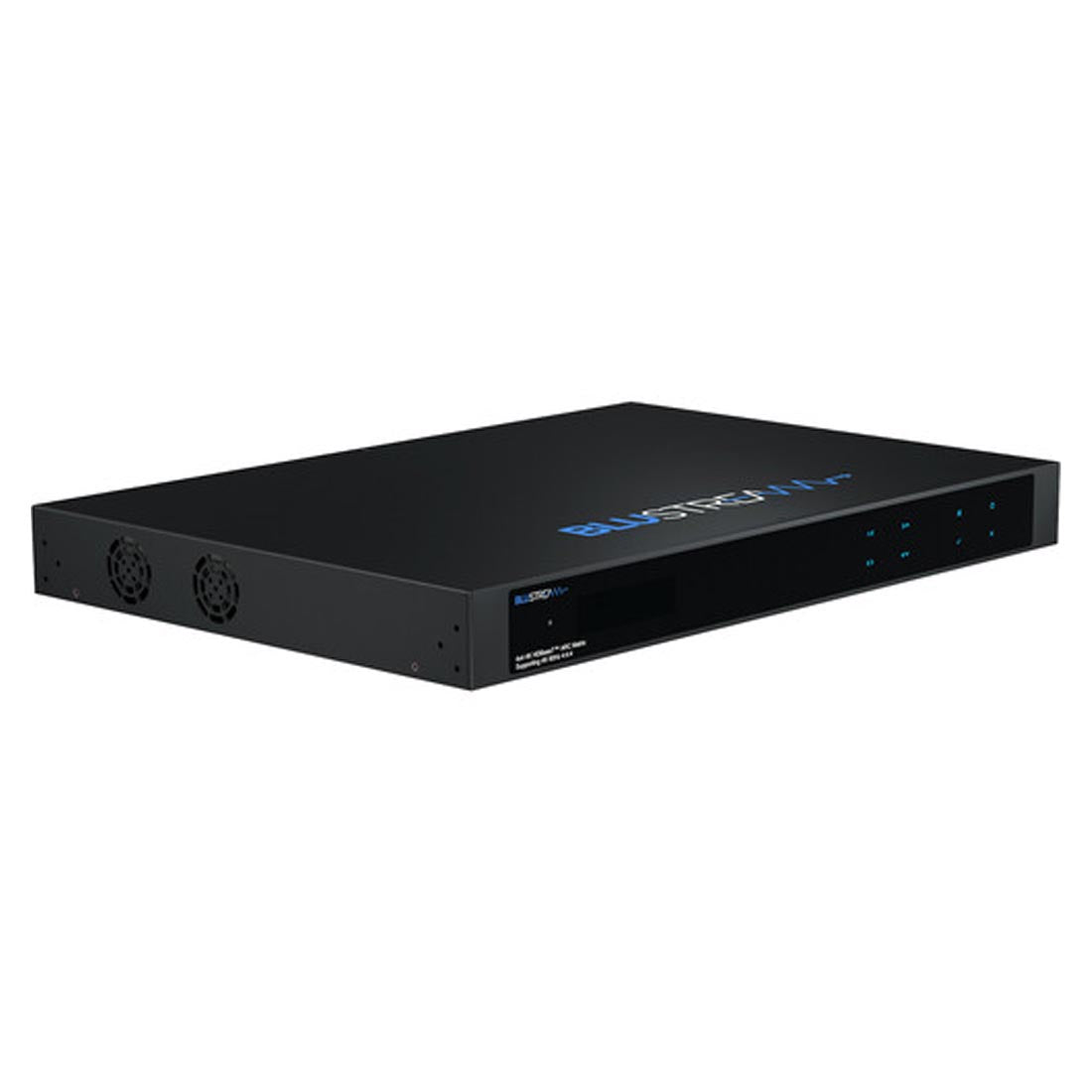

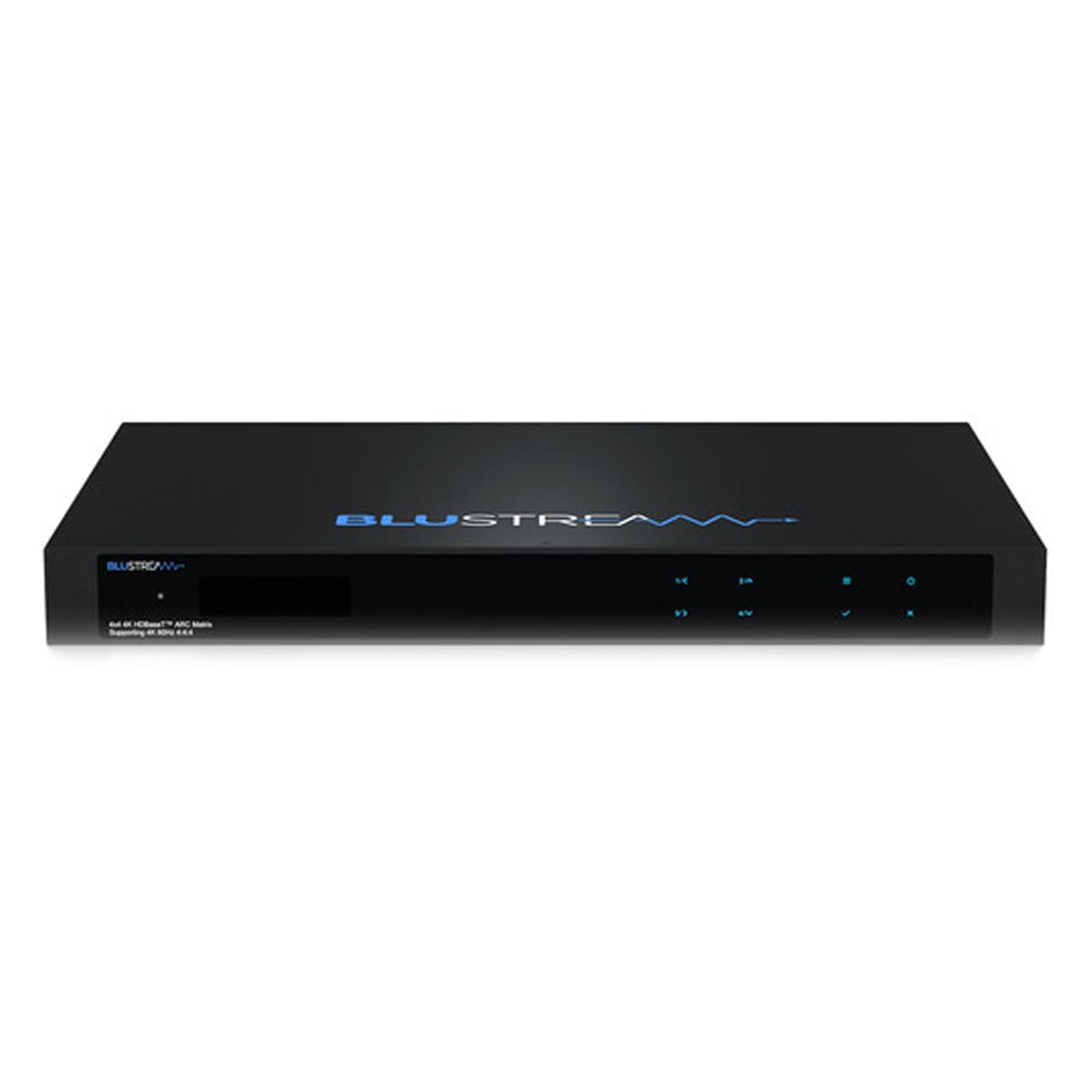

Blustream HMXL44ARC-KIT 4x4 HDBaseT Matrix Kit
The Blustream HMXL44ARC-KIT is a HDMI 2.0 4K60Hz 4:4:4 HDCP 2.2 4x4 HDBaseT™ matrix package utilising CSC technology to deliver HDMI, bi-directional IR and PoC up to 70m (at 1080p) over a single CAT cable. It includes simultaneous HDMI/HDBaseT on output 1, video Smart Scaling on HDBaseT™ outputs, and an independent 14x4 audio matrix including ARC.
4x4 HDBaseT™ distribution with HDMI 2.0 18Gbps support
- Advanced HDBaseT™ technology distributes video and audio over a single CAT cable.
- Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR.
- 4 x HDMI inputs can be independently routed to 4 x HDBaseT™ outputs.
- Supports 4K 60Hz 4:4:4 UHD video up to 40m and 1080p video up to 70m.
- Output 1 features simultaneous HDMI and HDBaseT™ output.
- HDCP 2.2 compliant with advanced EDID management.
- Supports PoC (Power over Cable) to power compatible HDBaseT™ receivers.
Video Smart Scaling for mixed-resolution displays
Video Smart Scaling on HDBaseT™ outputs allows a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs.
Independent 14x4 audio matrix including ARC
- 14x4 Audio Matrix is independently controllable from video.
- Audio source inputs include: 4x audio breakout from HDMI source inputs, 4x audio breakout from zone outputs, 4x ARC from zone outputs, 1x Optical and 1x Analogue audio input
- Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission.
*ARC feature supports HDMI ARC or Optical ARC. *CSC and ARC Feature compatible with RX70CS only.
Flexible control, pass-through, and third-party integration
- In-built web browser interface module for control and configuration of the Matrix.
- RS-232 and IR pass through to enable seamless 3rd party control integration.
- Control via front panel, IR, iOS / Android App, RS-232 and TCP/IP.
- Supports bi-directional IR and RS-232 on all HDBaseT™ outputs.
- Supplied with Blustream IR receivers and emitters.
- Control Drivers listed: Control4, ELAN, Savant, Crestron Home, Crestron, DemoPad, Extron, Loxone, Push Controls, RTI, URC.

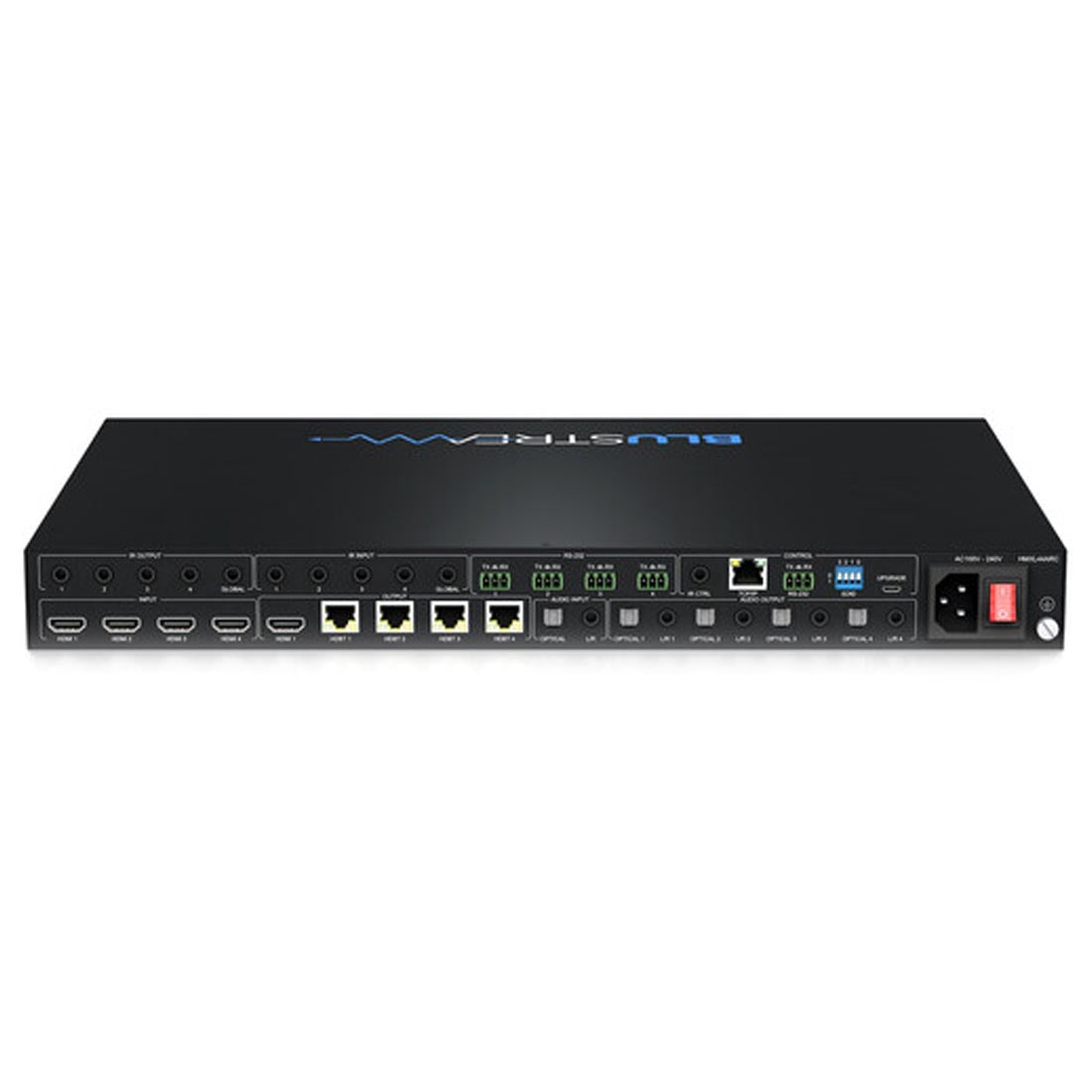

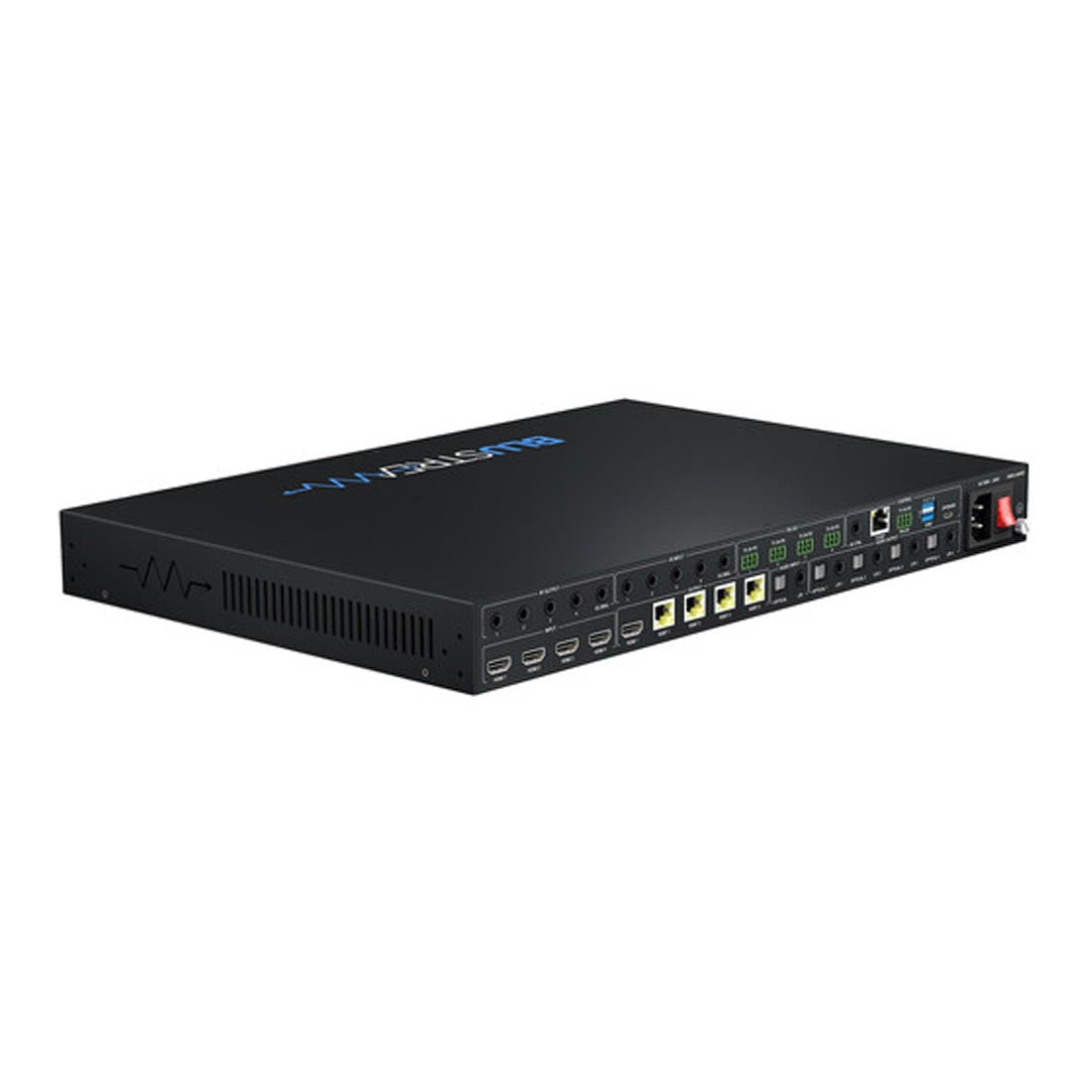

Professional connectivity and hardware
- Video Input Connectors: 4x HDMI Type A, 19‑pin, female
- Video Output Connectors: 1x HDMI Type A, 19‑pin, female; 4x HDBaseT™ RJ45
- Audio Output Connectors: 1x Analogue audio L/R (3.5mm stereo jack), 1x Optical (SPDIF)
- Audio Output Connectors: 4x Analogue audio L/R (3.5mm stereo jack), 4x Optical (SPDIF)
- RS-232 serial ports: 5x 3‑pin phoenix connector
- TCP/IP Control: 1x RJ45, female
- IR Input ports: 5x 3.5mm stereo jack; IR Output ports: 4x 3.5mm mono jack
- Rack-Mountable: 1U rack height; rack ears included
- Casing Dimensions (WxDxH): 436 x 300 x 44 mm
- Operating Temperature: 32°F to 104°F (-5°C to +55°C)
- Storage Temperature: -4°F to 140°F (-25°C to +70°C)
- Power Supply: Internal 100–240V AC
Integrate the HMXL44ARC-KIT 4x4 HDBaseT™ AV Matrix Kit into your next custom installation. Add to Cart now, and contact or visit Gibbys for expert advice on system design and setup.
