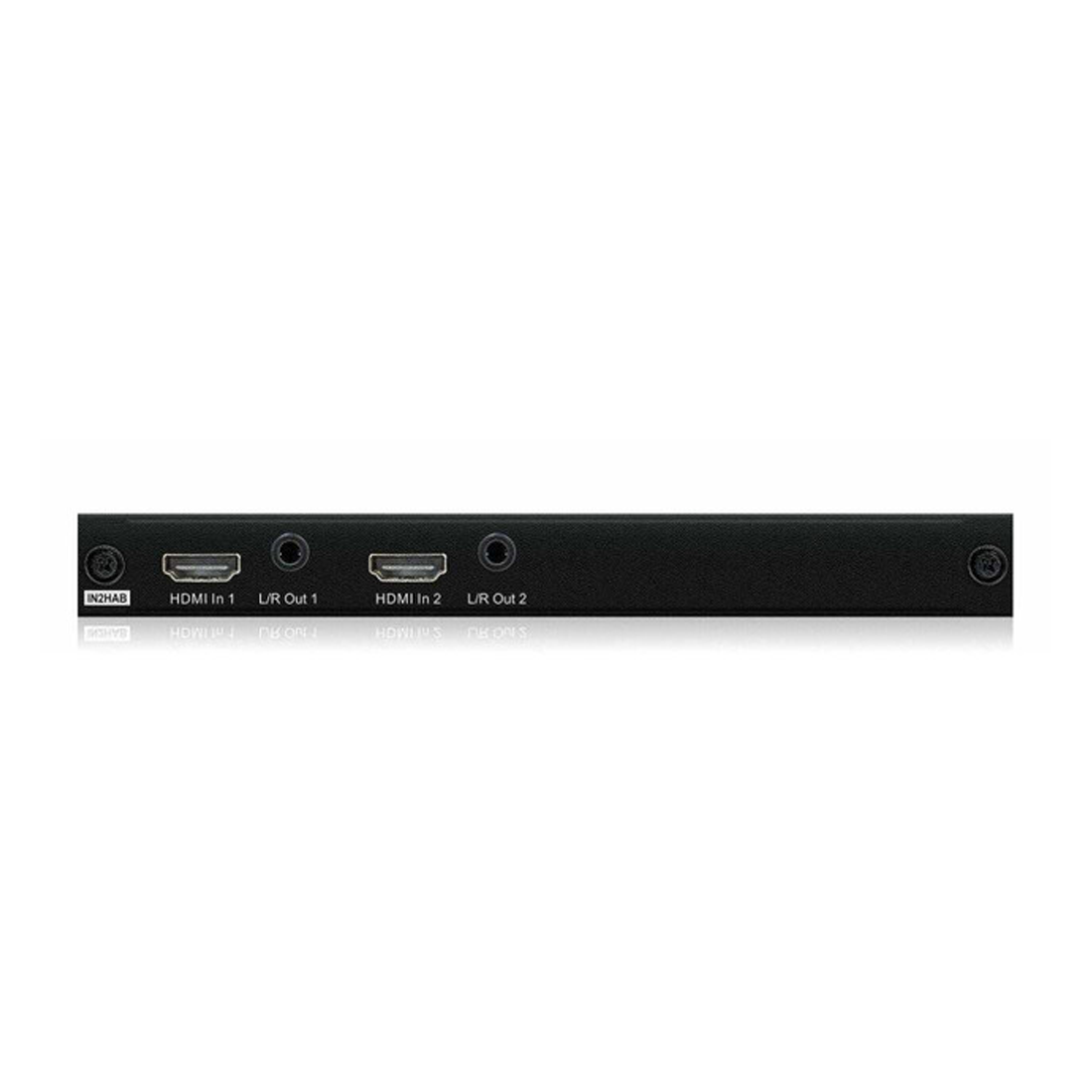

Blustream PRO-IN2HAB 2-Way HDMI 2.0 Input Board With Audio Breakout
Product Description
Product Description
Blustream PRO-IN2HAB 2-Way HDMI 2.0 Board with Audio Breakout
The Blustream PRO-IN2HAB is a 2-way HDMI 2.0 input board for the Custom Pro Matrix hub, providing two HDMI inputs that support up to 4K UHD 60Hz 4:4:4 and can be independently routed to any HDMI or HDBaseT output board. Each input includes a fixed-level 2-channel analog audio breakout, and quick release card module fittings allow simple installation.
Independent HDMI 2.0 Inputs for 4K 60Hz 4:4:4
This board adds two fully featured HDMI 2.0 inputs to a Custom Pro Matrix system with robust format support.
- 2 x HDMI 2.0 inputs
- Up to 4K UHD 60Hz 4:4:4
- HDMI 2.0 18Gbps, including HDR support
- Independently routed to any HDMI / HDBaseT output board
- HDCP 2.2 support
Integrated 2-Channel Analog Audio Breakout
Each HDMI input includes an independent fixed-level 2ch analog audio breakout for connection to a local third-party audio solution (supports 2ch PCM). Each input provides a dedicated 3.5mm stereo Left/Right output.
Simple Installation in the Custom Pro Matrix Hub
Quick release card module fittings allow simple population of input and output cards within the Custom Pro Matrix hub.
HDMI Audio Format Support
The PRO-IN2HAB supports all known HDMI audio formats, including Dolby TrueHD, Atmos, and DTS-HD Master Audio transmission.
18Gbps Distribution Requirement
For HDMI 2.0 18Gbps video distribution, the PRO-IN2HAB must be used with a HDMI 2.0 18Gbps Custom Pro output board.
Frequently Asked Questions
-
How many HDMI inputs does the PRO-IN2HAB provide?
It provides 2 x HDMI 2.0 inputs that can be independently routed to any HDMI or HDBaseT output board.
-
Does it support 4K 60Hz 4:4:4 and HDR?
Yes. It supports up to 4K UHD 60Hz 4:4:4 and the HDMI 2.0 18Gbps specification, including HDR.
-
What audio formats are supported?
It supports all known HDMI audio formats, including Dolby TrueHD, Atmos, and DTS-HD Master Audio transmission. The analog breakout supports 2ch PCM.
-
Is HDCP supported?
Yes. The board supports HDCP 2.2.
-
What connectors are available?
There are 2 x HDMI Type A (19-pin) inputs and 2 x analog Left/Right audio outputs via 3.5mm stereo jacks (one per input).
-
What is required for full 18Gbps HDMI 2.0 distribution?
Use the PRO-IN2HAB with a HDMI 2.0 18Gbps Custom Pro output board.
-
How is it installed in the Custom Pro Matrix hub?
Quick release card module fittings enable simple installation and population of input and output cards.
Add to Cart to integrate 4K HDMI 2.0 inputs and analog audio breakout into your Custom Pro Matrix system. For personalized system-matching or setup advice, contact Gibbys Electronic Supermarket or visit Gibbys for expert guidance.
