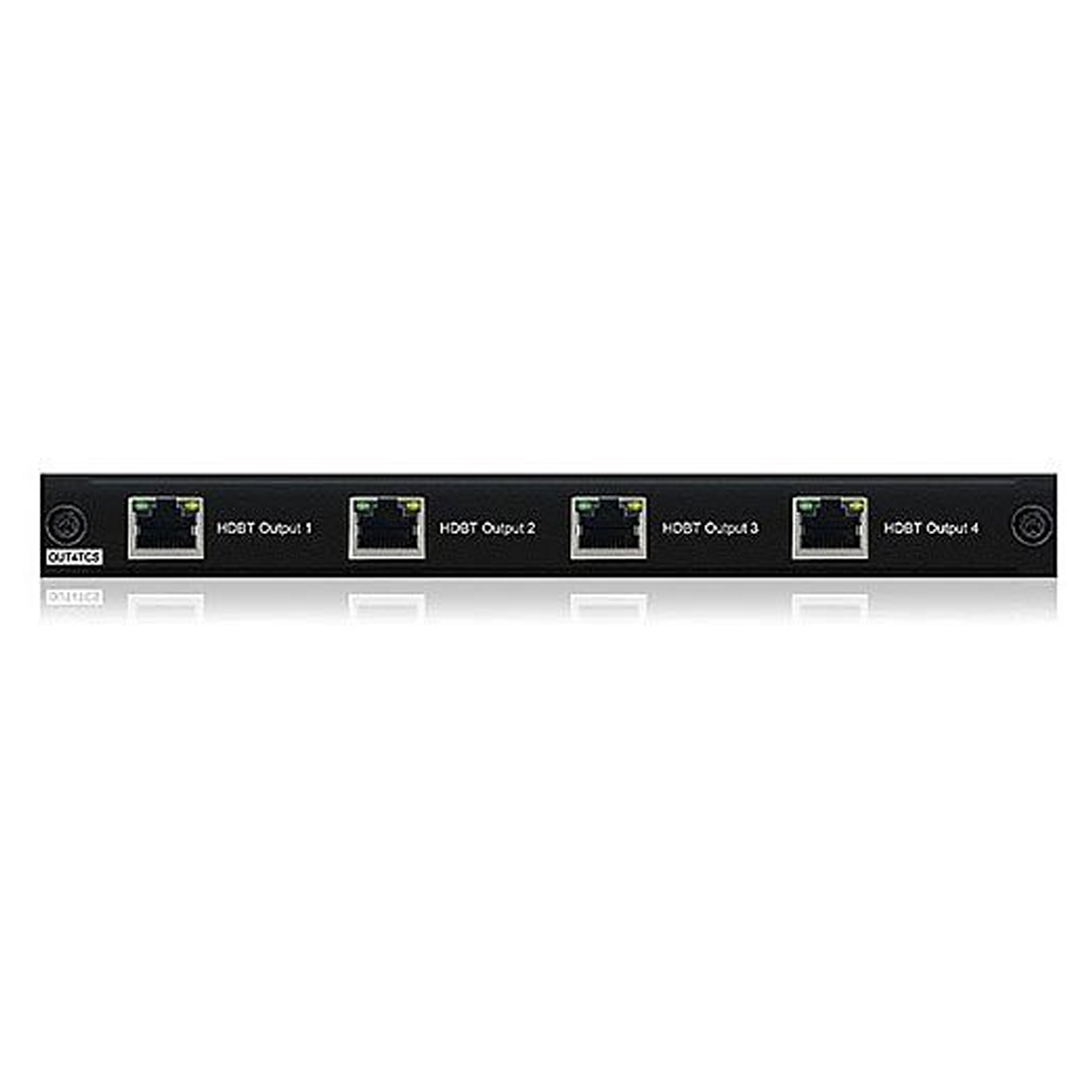

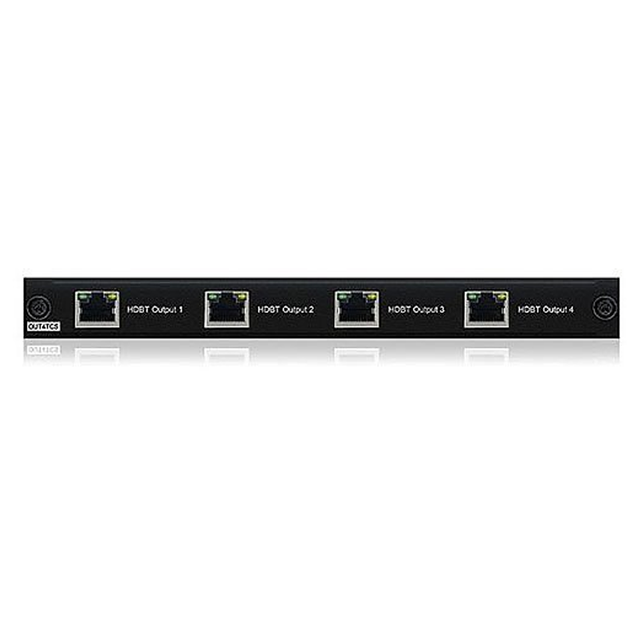

Blustream PRO-OUT4TCS 4-Way HDBaseT CSC Output Board 4K HDR

Blustream PRO-OUT4TCS 4-Way HDBaseT CSC Output Board 4K HDR

The Blustream PRO-OUT4TCS is a 4-way HDBaseT™ CSC output board for Custom Pro Matrix hubs, delivering HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) with HDR over a single CAT cable. Independent down-scaling on each output lets lower-resolution displays receive a compatible signal while higher-definition screens show the original 4K UHD.

4K HDR distribution over HDBaseT™ up to 70m

Engineered for reliable, high-bandwidth video and audio distribution, the PRO-OUT4TCS supports modern HDMI formats while maintaining signal integrity over long distances.

• 4 x independent HDBaseT™ outputs for connection to compatible HDBaseT™ receivers
• Advanced Colour Space Conversion (CSC) aligned with HDMI 2.0 18Gbps, including HDR support
• Delivers 4K 60Hz 4:4:4 UHD up to 70m; extends 1080p up to 100m
• HDCP 2.2 support
• Video and audio transported over a single CAT cable

Flexible resolution management for mixed displays

Each CSC-enabled HDBaseT™ output includes independent down-scaling of 4K inputs so every display receives a compatible format without sacrificing 4K on higher-definition screens.

• 1080p 60Hz for screens that do not support 4K
• 4K 60Hz 4:2:0 for screens that do not support full 4K 60Hz 4:4:4

Streamlined integration and installation

The modular design simplifies deployment in Custom Pro Matrix hubs and supports receiver power and connectivity requirements.

• Quick release card module fittings for simple population of input and output cards
• PoC support to power Blustream HDBaseT™ receivers
• Designed to be used with HEX100CS-RX receivers
• For HDMI 2.0 18Gbps distribution, pair with a HDMI 2.0 18Gbps Custom Pro input board

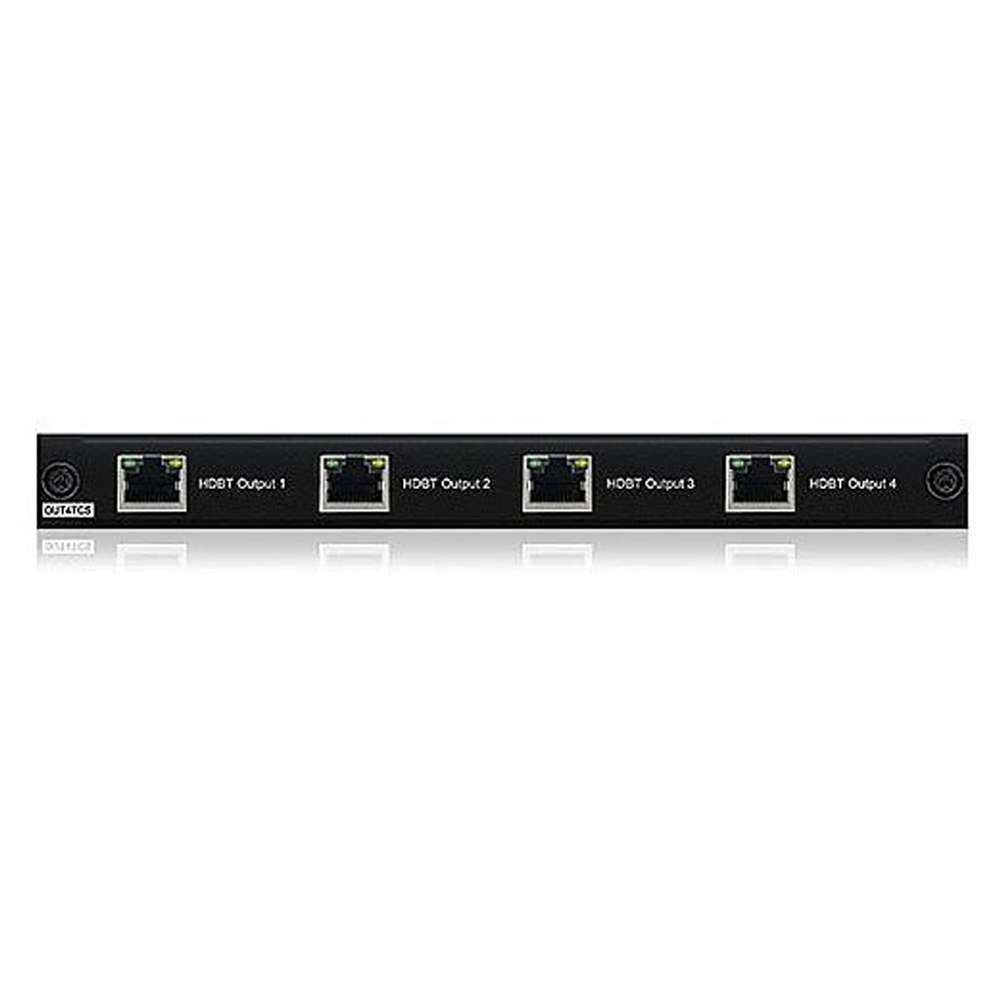

• Outputs presented on 4 x HDBaseT™ RJ45 connectors

Audio passthrough that aligns with HDMI specifications

The PRO-OUT4TCS maintains format compatibility across the system.

• Bitstream passthrough of multichannel surround sound, including object-based audio formats, in line with HDMI specifications

Frequently Asked Questions

• How far can the PRO-OUT4TCS transmit video?

  It supports 4K 60Hz 4:4:4 up to 70m and extends HDMI 1080p up to 100m.

• Can it down-scale 4K inputs for non-4K displays?

  Yes. Each output can independently down-scale to 1080p 60Hz or to 4K 60Hz 4:2:0, depending on the display’s capabilities.

• Which receivers is it designed to work with?

  It is to be used with HEX100CS-RX receivers.

• Does the board provide power to receivers?

  It supports PoC to power Blustream HDBaseT™ receivers.

• What is required for full HDMI 2.0 18Gbps distribution?

  Use the PRO-OUT4TCS with a HDMI 2.0 18Gbps Custom Pro input board.

• What connectors are on the outputs?

  There are 4 x HDBaseT™ RJ45 output connectors.

• Does it support HDR and HDCP 2.2?

  Yes. It includes HDR support within HDMI 2.0 18Gbps and supports HDCP 2.2.
