Blustream PRO16HBT70CS Custom Pro 16x16 HDBaseT CSC Matrix - 70m

Blustream PRO16HBT70CS Custom Pro 16x16 HDBaseT CSC Matrix – 70 m

This Blustream PRO16HBT70CS 16 × 16 HDBaseT matrix routes up to sixteen 4K @ 60 Hz sources to sixteen zones while simultaneously supplying local HDMI monitoring and full-bandwidth audio management. It is the backbone a modern commercial or luxury residential installation needs when every room demands rock-solid video and synchronized control.

Why Choose a 16 × 16 HDBaseT Matrix?

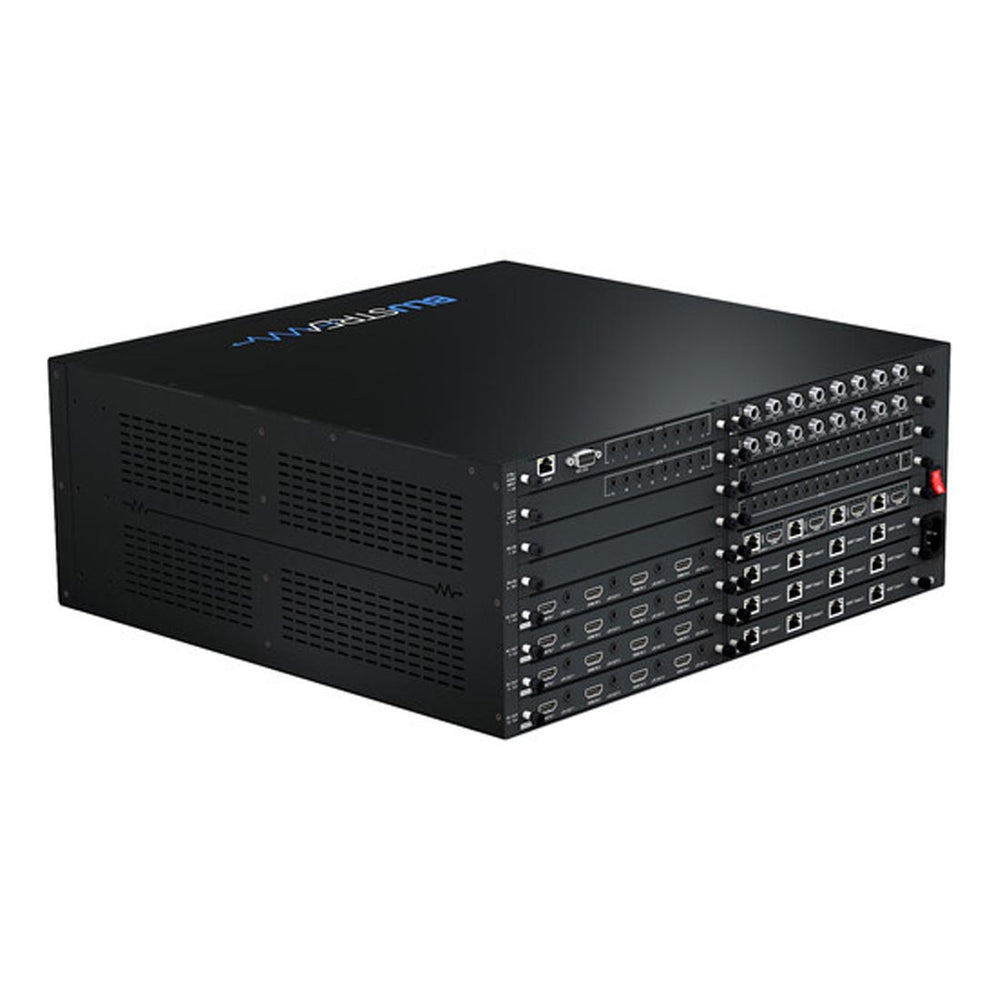

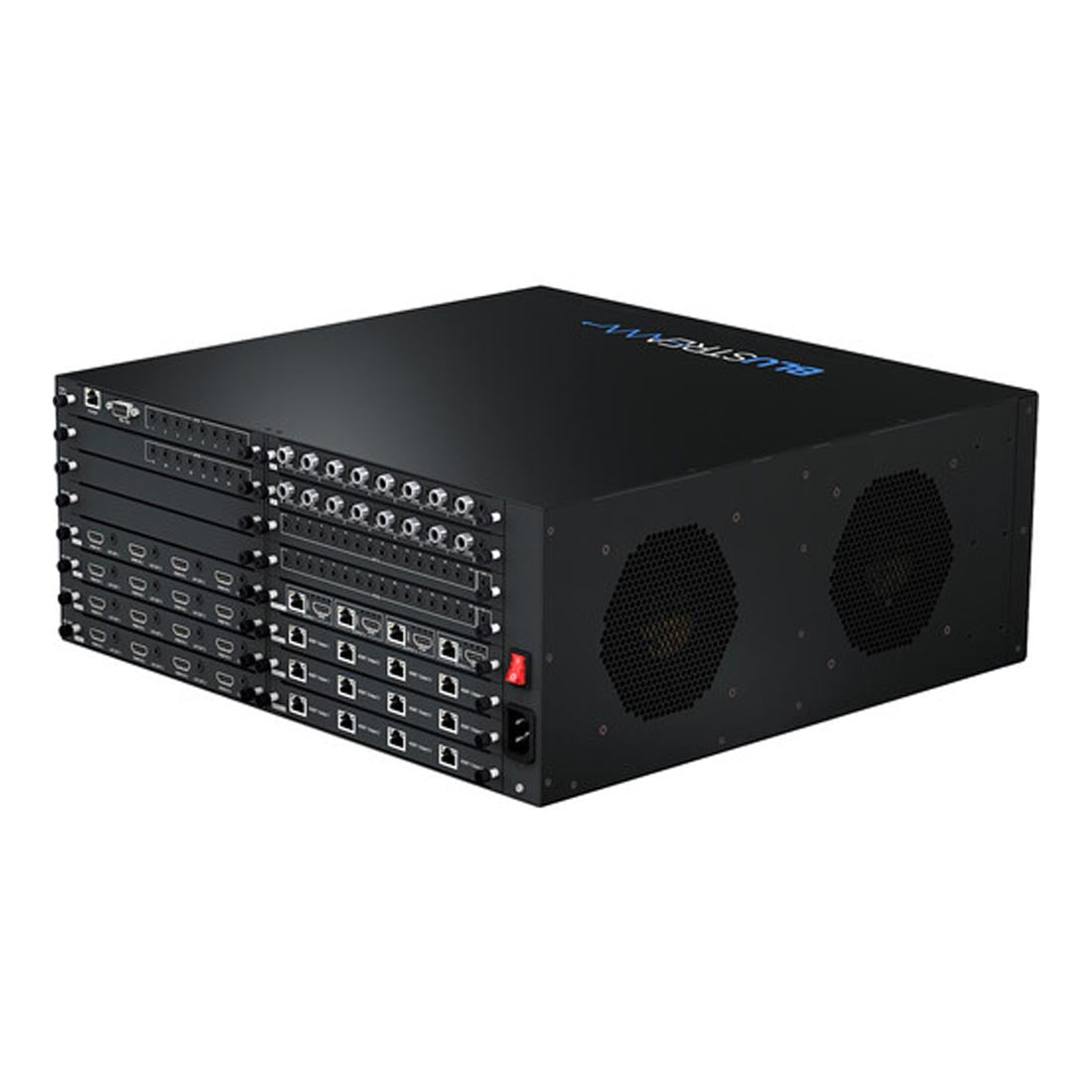

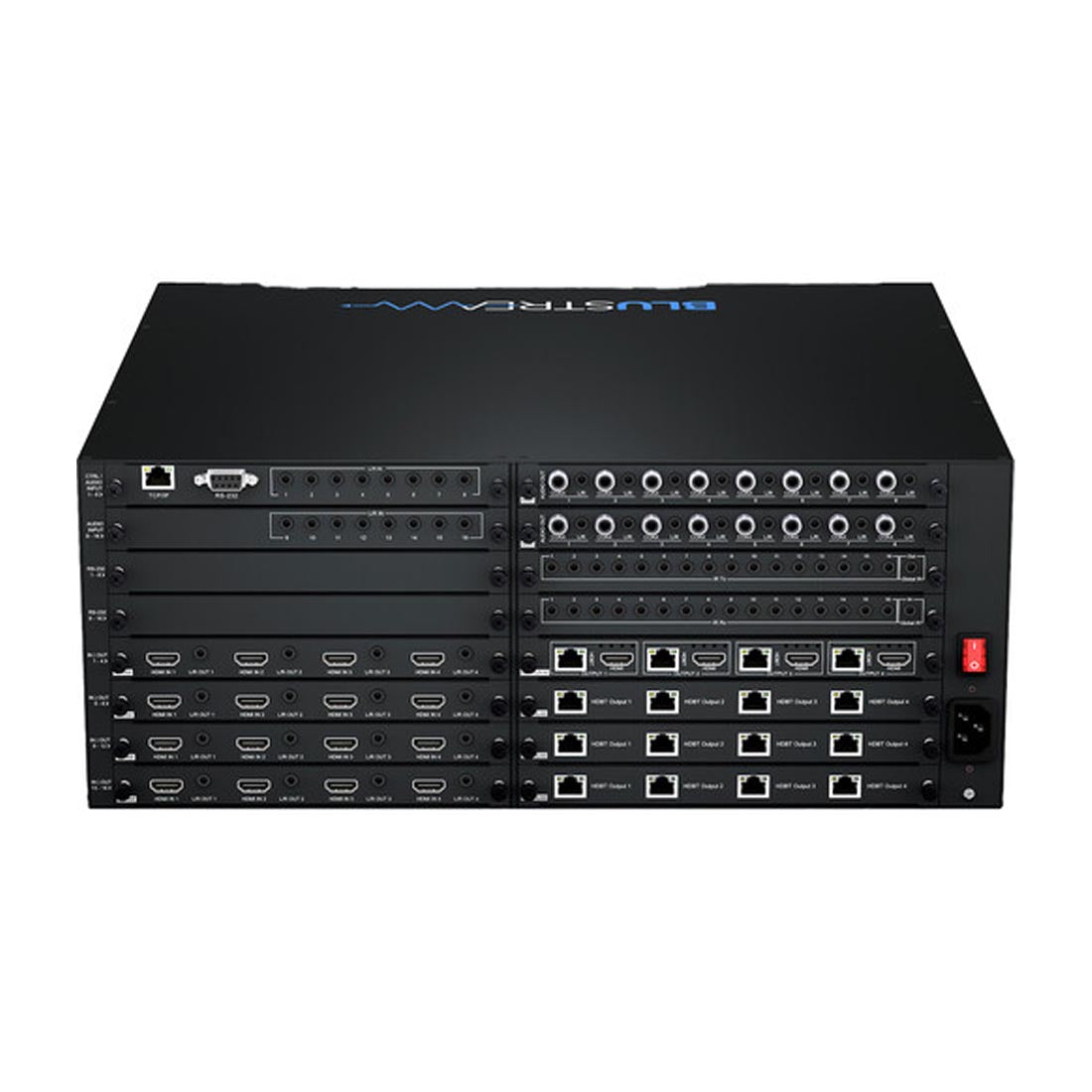

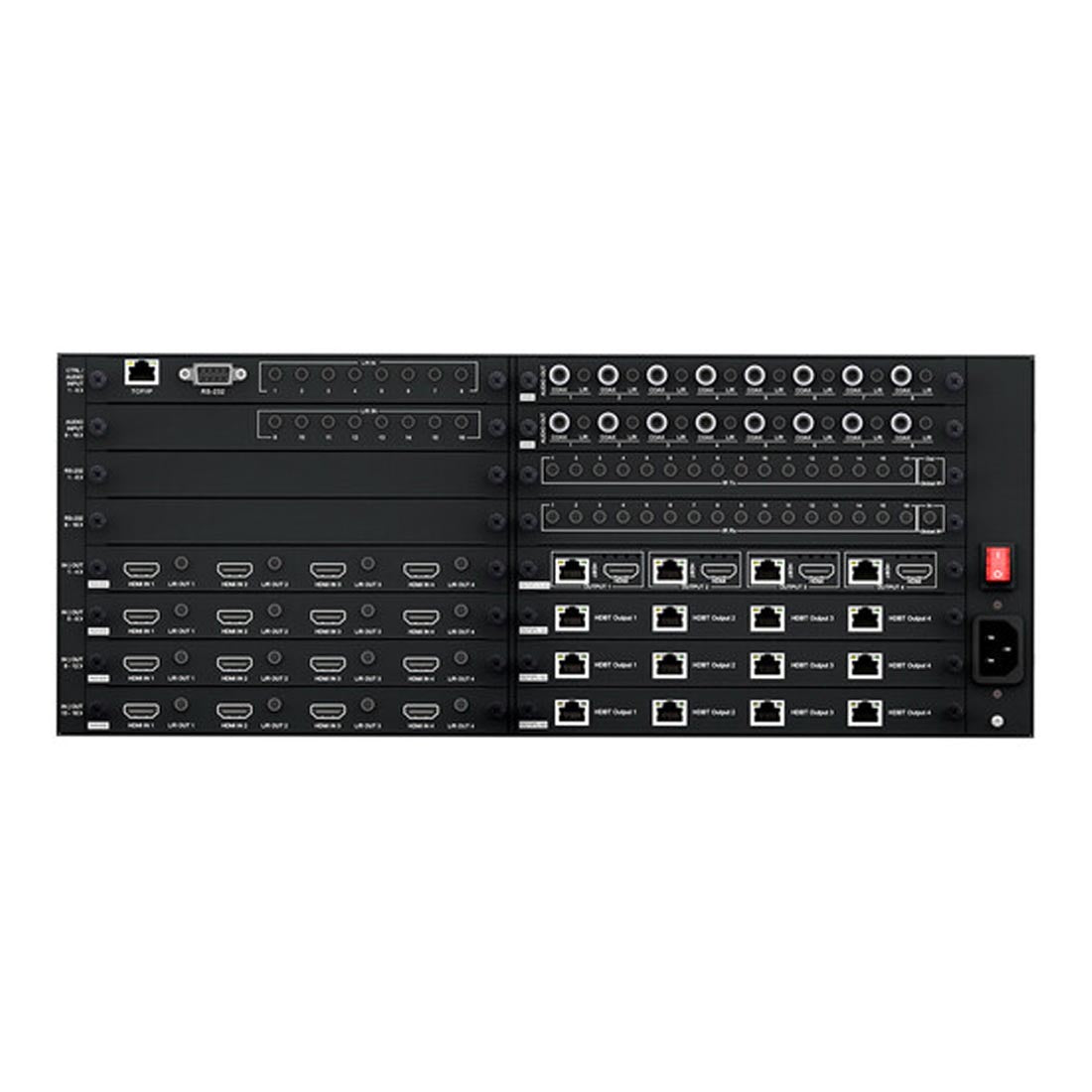

The PRO16HBT70CS consolidates sixteen HDMI sources—streamers, signage players, even legacy set-top boxes—and feeds them to sixteen displays or projectors through a single rack-mountable chassis. Because each HDBaseT output travels over category cable, cabling remains tidy and cost-effective, even when zones sit 70 m away. Four additional local HDMI outputs on the rear panel make on-site monitoring or confidence feeds just as straightforward.

4K 60 Hz 4:4:4 over a Single Cable

Running a native 18 Gbps signal through copper usually means distance compromises. This matrix takes a different route by applying Color Space Conversion (CSC). Full 4K @ 60 Hz 4:4:4 is preserved up to 40 m, and 1080p extends to 70 m—without visible latency or handshake issues. When the job calls for lush detail on an LED videowall at the front of house and dependable 1080p in ancillary rooms, the matrix keeps both happy.

Automatic Downscaling Solves Mixed-Display Headaches

Older screens can derail a system when they cannot accept the same bandwidth as newer models. Each HDBaseT output board in the PRO16HBT70CS evaluates the sink capabilities and, if required, downscales 4K @ 60 Hz 4:4:4 to either 4K @ 60 Hz 4:2:0 or 1080p @ 60 Hz. No separate scalers, no installer intervention—just seamless playback that protects signal integrity across the full matrix.

Audio Embedding, Breakout, and Volume Control in One Chassis

Sixteen analog L/R inputs allow background-music feeds or paging microphones to be embedded with any video source. On the return side, every zone offers analog and coaxial S/PDIF outputs with independent line-level volume control. Whether the project uses distributed amplifiers in a retail floor or soundbars in hotel suites, audio stays perfectly aligned with the video path.

Control Flexibility for Integrators

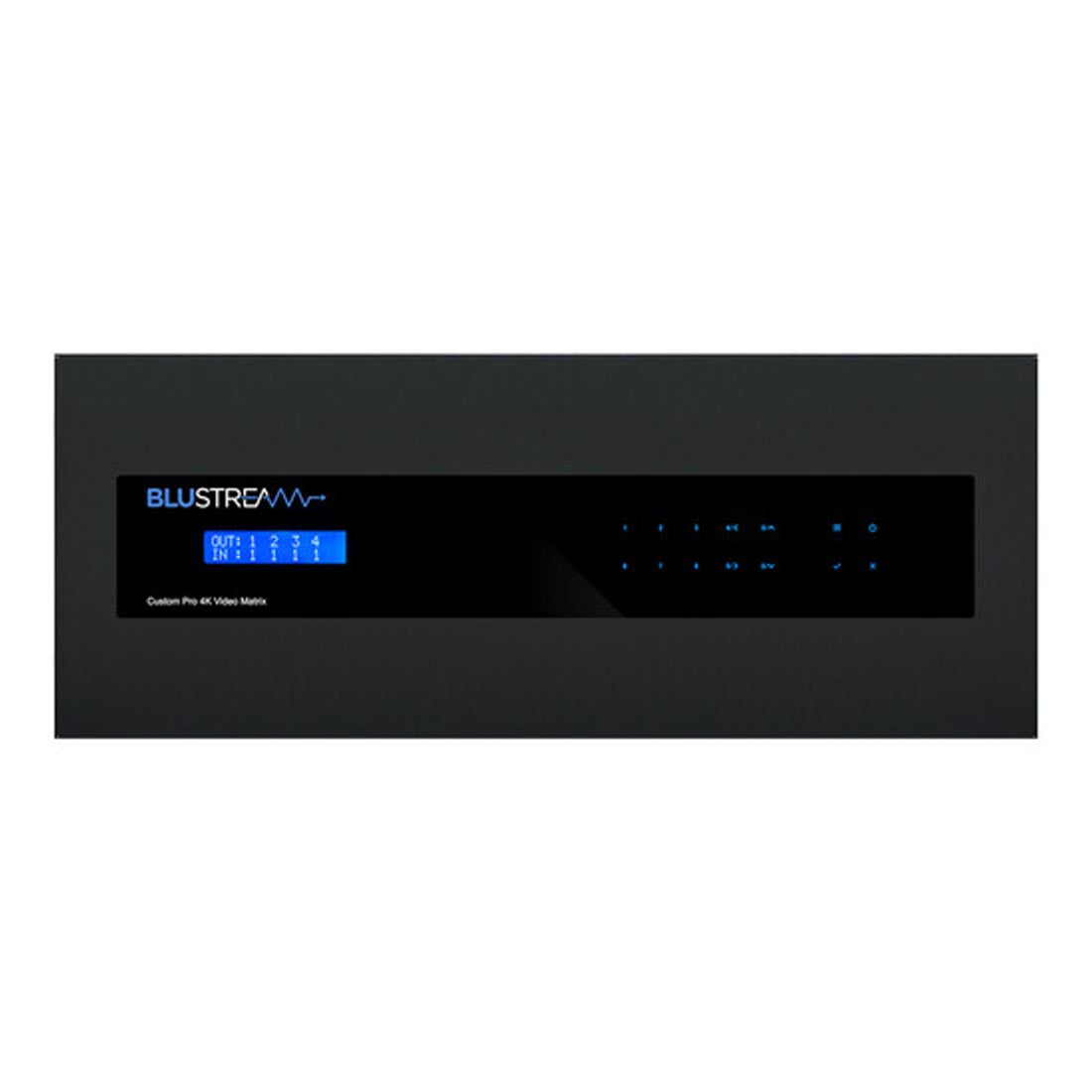

• Front-panel, RS-232, TCP/IP, or Web GUI: Choose the interface that best fits the workflow—on-site or remote.
• Two-way IR routing: Sixteen IR inputs and outputs let installers deliver discreet source control without extra cabling.
• Optional RS-232 cards: Add bidirectional serial control to displays via HDBaseT receivers when the project calls for it.
• Power over Cable (PoC): Compatible Blustream HEX70CS-RX receivers draw power directly from the matrix, trimming the power-brick clutter behind screens.
• Driver library: Control4, Crestron, Savant, RTI, ELAN, URC, Loxone—pre-tested drivers accelerate commissioning on the most common platforms.

Frequently Asked Questions

• Can the matrix send 4K @ 60 Hz to some zones while sending 1080p to others?

  Yes. Each HDBaseT output has built-in downscaling, so the matrix can deliver full 4K 4:4:4 where displays allow and automatically scale to 1080p or 4K 4:2:0 for legacy screens. The installer does not need to create separate video paths.

• What receivers should be paired with the PRO16HBT70CS?

  Blustream recommends the HEX70CS-RX models. They support PoC, two-way IR pass-through, and the same Color Space Conversion technology, ensuring consistent performance across all zones.

• How is the matrix configured and updated?

  A built-in web interface accessible over TCP/IP handles source-to-zone mapping, EDID presets, and firmware updates. Many installers keep a laptop on the same network, open a browser, and complete configuration without additional software.

• Is there an audible fan, and can it be rack-mounted?

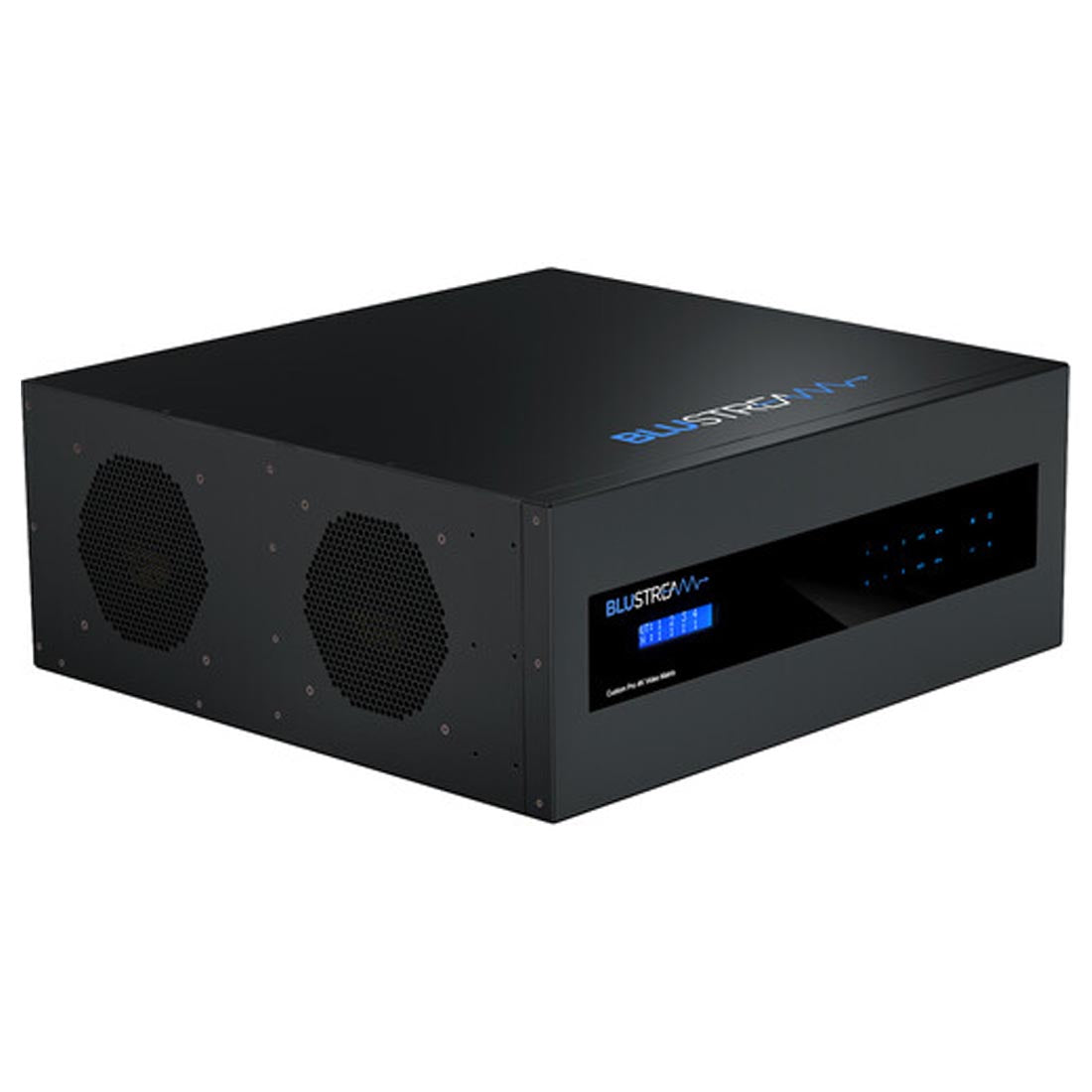

  The chassis occupies 4U and ships with rack ears. Internal cooling fans are temperature-regulated and remain quiet in most climate-controlled racks, so the unit can live in boardrooms or residential media closets without distracting noise.

The foundation of a multi-zone distribution system begins here. Add the Blustream PRO16HBT70CS to your cart and deliver synchronized 4K video, flexible audio routing, and installer-friendly control across every room. Looking to fine-tune a larger AV design? Call or visit Gibbys Electronic Supermarket to speak with an expert who can help map the perfect signal path for your project.
