Blustream PRO88HDMI-V2 Custom Pro 8x8 HDMI Matrix

Blustream PRO88HDMI-V2 Custom Pro 8x8 HDMI Matrix

The Blustream PRO88HDMI-V2 Custom Pro is an HDMI 2.0 8x8 HDMI Matrix that routes eight HDMI sources to eight HDMI displays with true 18Gbps 4K 60Hz 4:4:4 video. It passes HDR formats including HDR10+ and Dolby Vision and is built for reliable custom installations with flexible control.

4K 60Hz 4:4:4 and HDR pass-through for accurate picture quality

Because the matrix supports 18Gbps HDMI 2.0 signals, it passes 4K 60Hz 4:4:4 without chroma subsampling. That means source devices deliver full detail and smooth motion to capable displays. HDR, HDR10+, and Dolby Vision are supported, so wide color and dynamic range make it to the screen without conversion.

Route 8 sources to 8 displays with consistent compatibility

With 8 HDMI inputs independently routable to 8 HDMI outputs, multi-room and multi-display setups are straightforward. Advanced EDID management helps each source “see” the right capabilities of the connected displays, reducing handshaking issues and helping avoid format mismatches in mixed 1080p/4K systems.

HDCP 2.2 compliance for modern 4K content

Because the matrix is HDCP 2.2 compliant, copy-protected 4K content from streaming devices and UHD players is passed to compatible displays without dropouts caused by encryption handshakes.

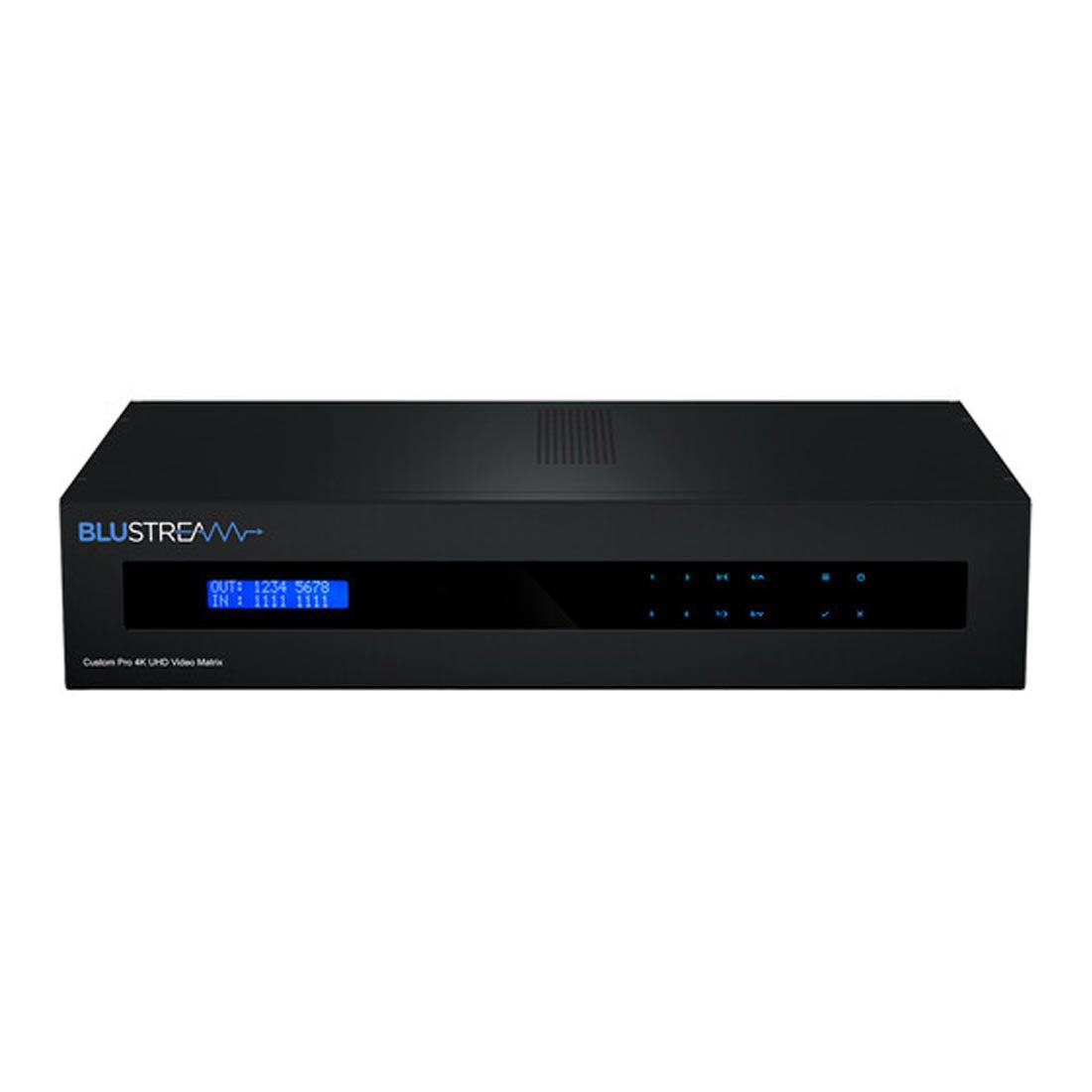

Flexible control: front panel, IR, RS-232, TCP/IP, and Web UI

Setup and daily control stay practical. Use the front panel onsite, bi-directional IR for room-to-rack control, RS-232 for reliable automation, or TCP/IP for network-based control. A built-in web browser interface streamlines configuration, routing, and preset management. Third-party control drivers are available for major platforms including Control4, Crestron, ELAN, Extron, Loxone, DemoPad, Push Controls, RTI, Savant, and URC.

Pass-through for premium HDMI audio formats

Because the PRO88HDMI-V2 supports all known HDMI audio formats, it passes Dolby TrueHD, Dolby Atmos, Dolby Digital Plus, and DTS-HD Master Audio to compatible AVRs and processors. This keeps immersive soundtracks intact when you route video throughout the system.

Installer-focused connectivity and rack fit

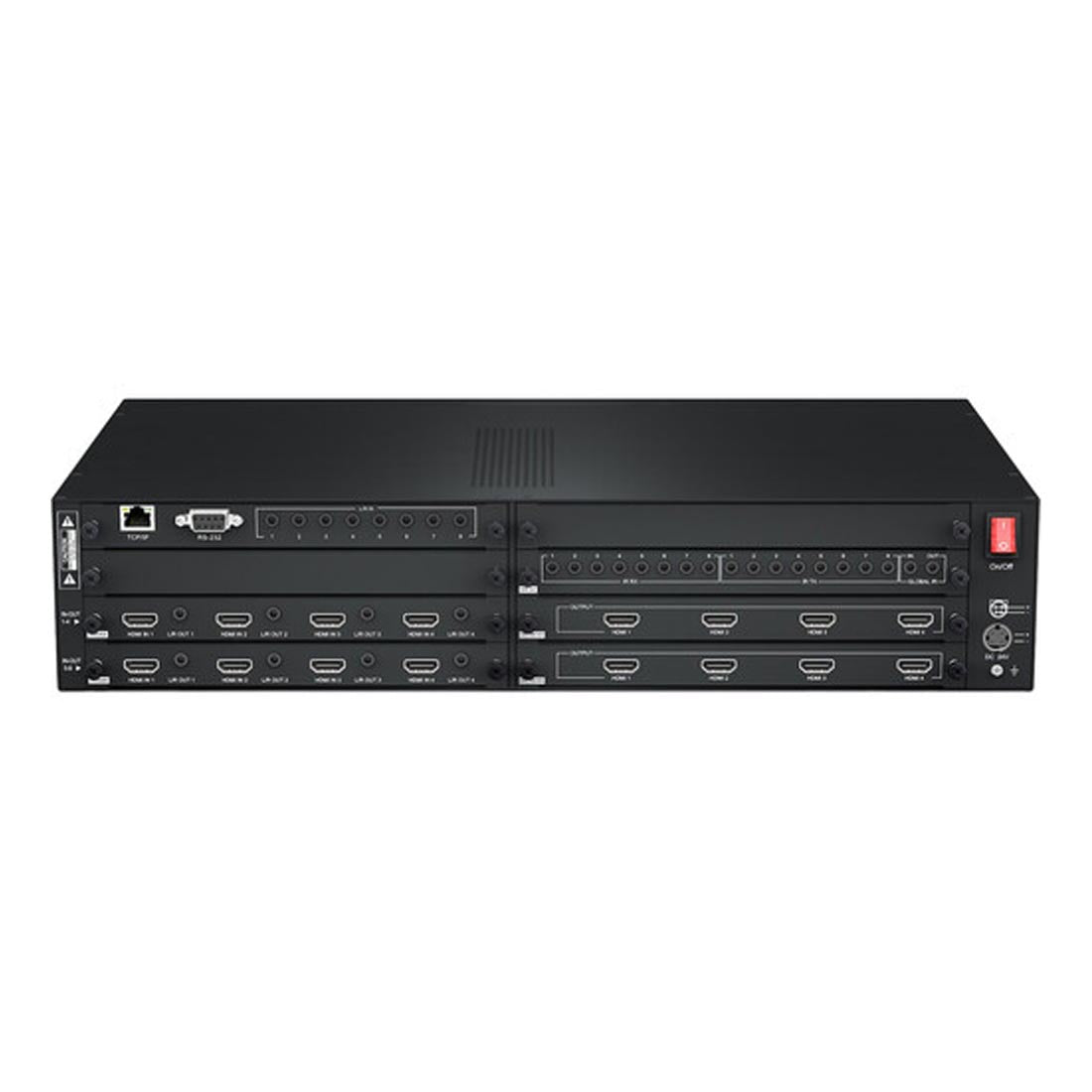

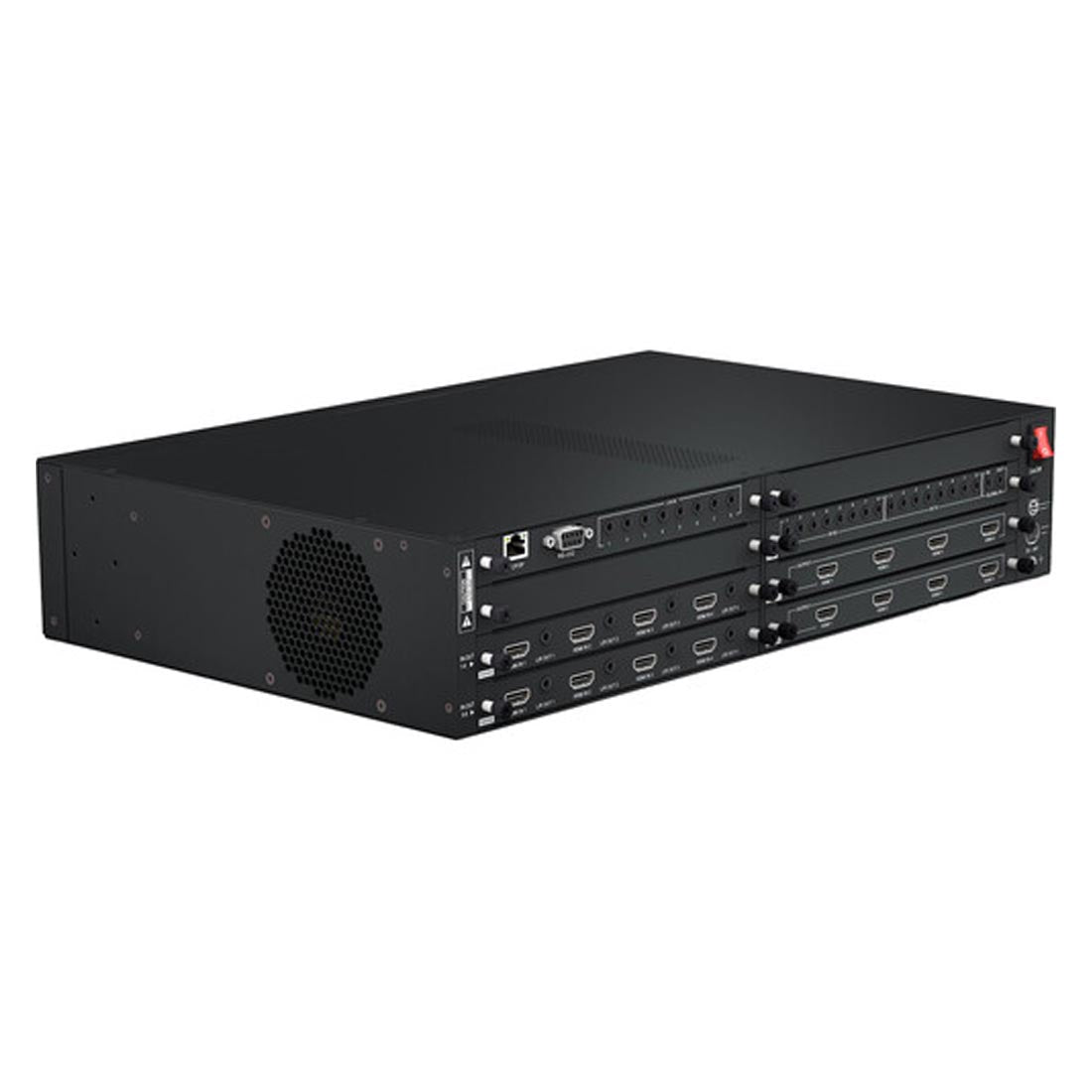

The hardware is designed to drop into standard racks and integrate cleanly with control and networking gear. It occupies 2U of rack space and includes rack ears, with clearly labeled connections for video, control, and network.

• Video inputs: 8 x HDMI Type A (female)
• Video outputs: 8 x HDMI Type A (female)
• Audio input connectors: 8 x 3.5mm stereo jack (L/R)
• Control: Front panel, IR (bi-directional), RS-232 (DB-9 female), TCP/IP (RJ45)
• Network: RJ45 Ethernet
• Rack mountable: 2U; rack ears included
• Dimensions (W x H x D) without feet: 440 x 87 x 282 mm
• Dimensions including connections with feet: 440 x 94 x 288 mm
• Power supply: 24V/8A DC
• Operating temperature: 0°C to 40°C (32°F to 104°F)
• Storage temperature: -20°C to 60°C (-4°F to 140°F)

Wide format support for new and legacy sources

The matrix supports industry-standard video resolutions from VGA–WUXGA and 480i up to 4K. This helps when mixing legacy PCs or signage players with modern 4K sources in the same system.

What’s in the box

• Custom Pro Hub Matrix chassis
• PRO-IN4HAB input boards (x2)
• PRO-OUT4H-V2 output boards (x2)
• PRO-8IR-V2
• 24V/8A power supply
• Remote control
• Rack mounting kit
• Quick Reference Guide

*Individual boards are dispatched separately for assembly by the installer.

FAQs

• Does the PRO88HDMI-V2 pass 4K 60Hz 4:4:4 with HDR10+ and Dolby Vision?

  Yes. It supports 18Gbps HDMI 2.0, so 4K 60Hz 4:4:4 video and HDR formats including HDR, HDR10+, and Dolby Vision are passed to compatible displays.

• Is it HDCP 2.2 compliant?

  Yes. HDCP 2.2 compliance helps ensure protected 4K content plays correctly across the system.

• How can it be controlled?

  You can control it via the front panel, IR (bi-directional), RS-232, or TCP/IP. A web browser interface is included for configuration and routing, and drivers are available for major control systems.

• What video resolutions are supported?

  It supports industry-standard resolutions from VGA–WUXGA and 480i up to 4K, which helps when combining legacy and modern sources.

• Does it support immersive audio formats like Dolby Atmos?

  Yes. The matrix supports pass-through of Dolby TrueHD, Dolby Atmos, Dolby Digital Plus, and DTS-HD Master Audio to compatible devices.

• Is it rack-mountable?

  Yes. It’s a 2U rack-mount design and includes rack ears for straightforward installation.

• What connectors are on the unit?

  There are 8 HDMI inputs, 8 HDMI outputs, 8 x 3.5mm stereo jack (L/R) audio inputs, RJ45 for TCP/IP and Ethernet, and a DB-9 RS-232 port.
