Blustream SM11 HDMI Signal Manager With Audio Embedder And De Embedder
Product Description
Product Description
Blustream SM11 HDMI Signal Manager With Audio Embedder And De Embedder
The Blustream SM11 is an advanced HDMI Signal Manager designed to help solve HDMI compatibility, HDCP 2.2, clock stretching, EDID, and handshaking issues, especially with 4K distribution. It supports HDMI 2.0 and HDCP 2.2 up to 4K @ 60Hz 4:4:4 and can embed or de-embed audio, allowing breakout of up to 7.1-channel signals.
Resolve HDMI compatibility and handshaking issues
Engineered to stabilize HDMI links in demanding systems, the SM11 addresses common integration challenges while maintaining full 4K performance.
- Helps solve most HDMI EDID, HDCP, compatibility, and handshaking issues
- Supports full HDMI 2.0 specification 4K UHD video (4K @ 60Hz 4:4:4)
- HDCP 2.2 compliant
- Supports CEC bypass (Consumer Electronics Control)
- Supports industry standard video resolutions including VGA–WUXGA and 480i–4K
Flexible audio embedding and de-embedding
The SM11 can be configured to work as either an HDMI audio de-embedder or an audio embedder, enabling straightforward integration of external audio sources or sinks. It allows breakout of up to 7.1-channel audio signals and provides simultaneous outputs where specified.
- Can be configured as either an HDMI audio de-embedder or audio embedder
- HDMI audio de-embedded to both analogue L/R and coaxial digital outputs concurrently (analogue audio supports 2CH PCM only)
- Embed analogue L/R 2ch audio input onto HDMI output
- Extract audio with or without a display connected to the output (SM11 acts as HDMI end-point)
4K video and format support
Maintain signal integrity and format compatibility in modern AV systems with full 4K throughput and pass-through of widely used HDMI audio formats.
- Video resolutions up to and including 4K @ 60Hz 4:4:4
- Pass-through of HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus, and DTS-HD Master
Installation-friendly connectivity
Connections provide straightforward integration in a variety of setups.

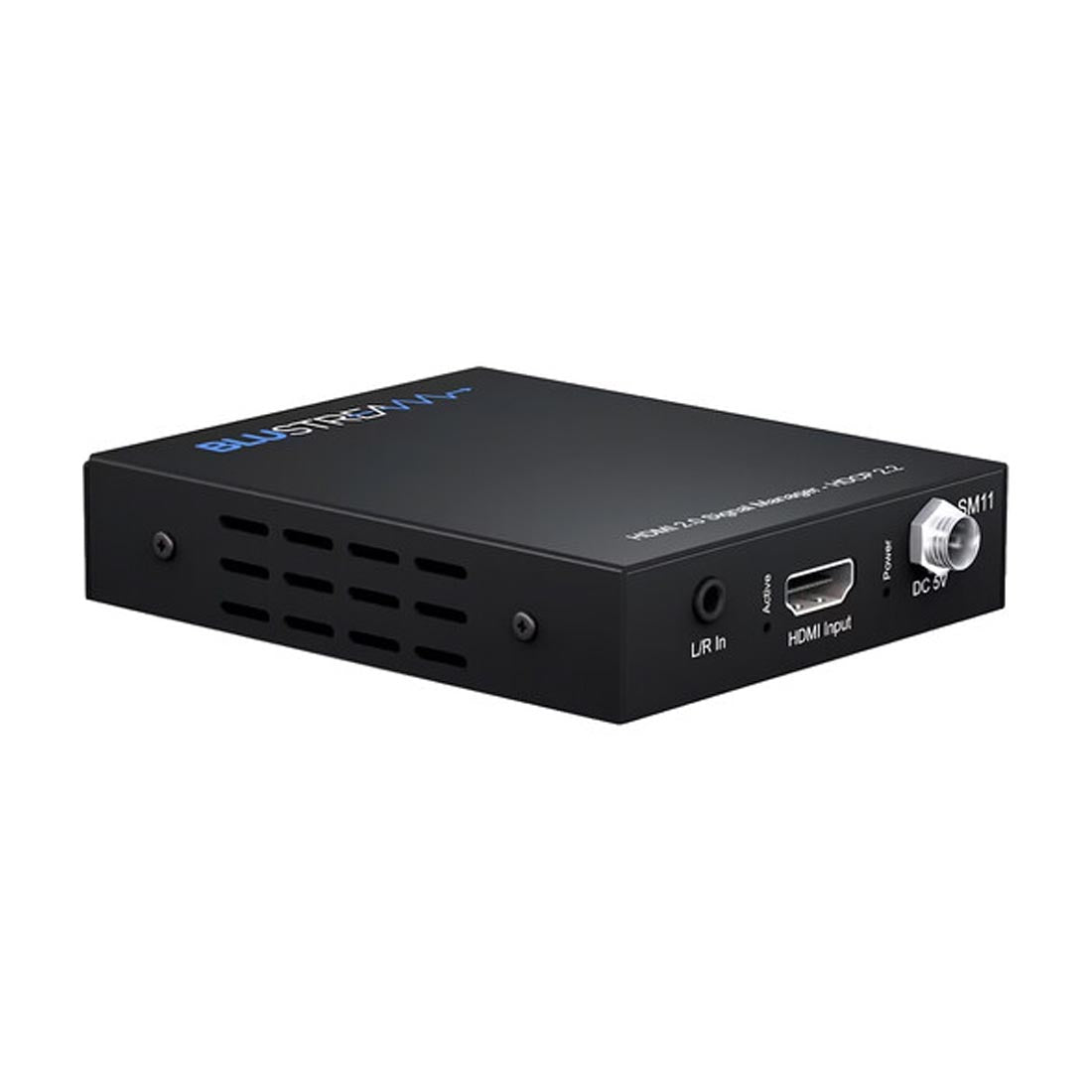

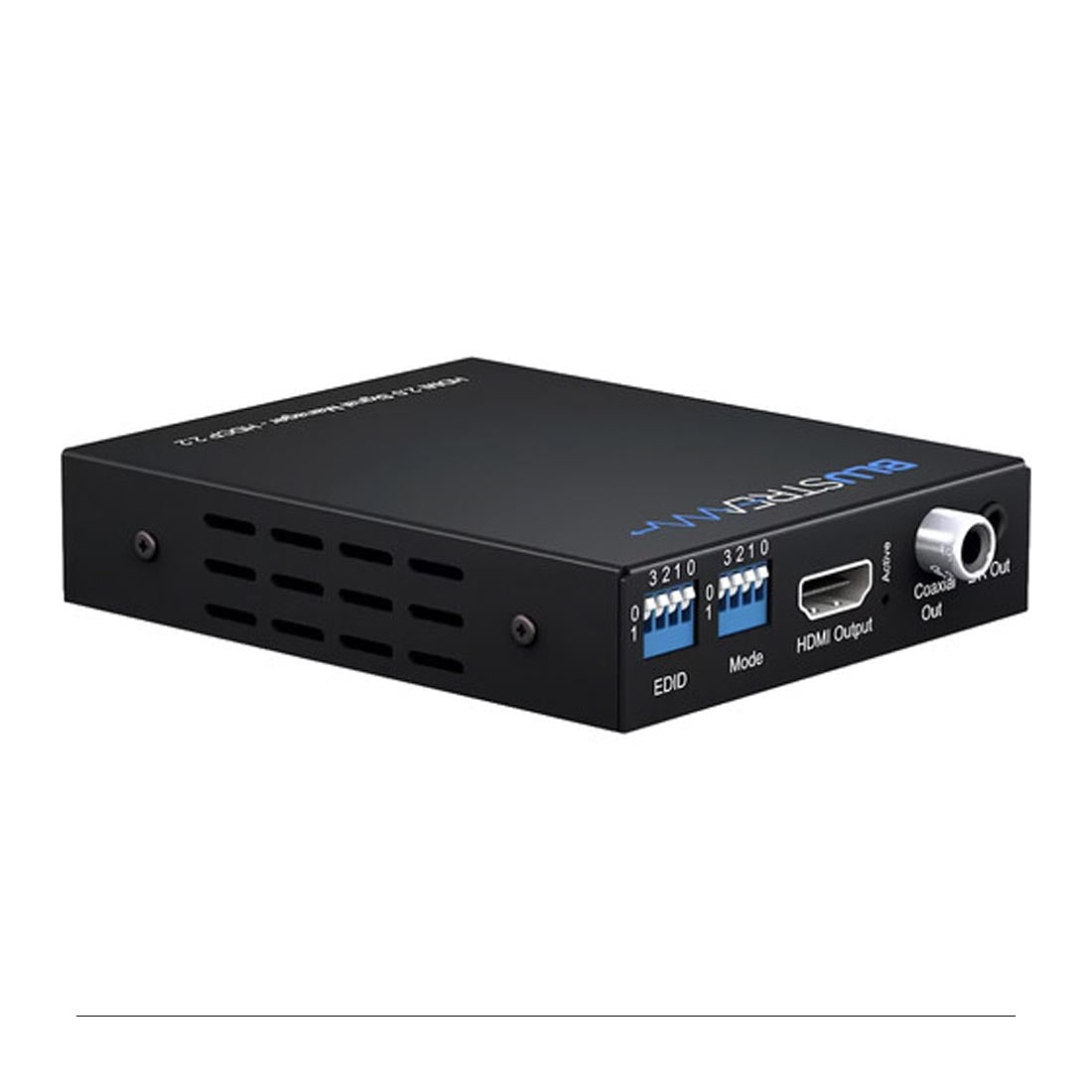

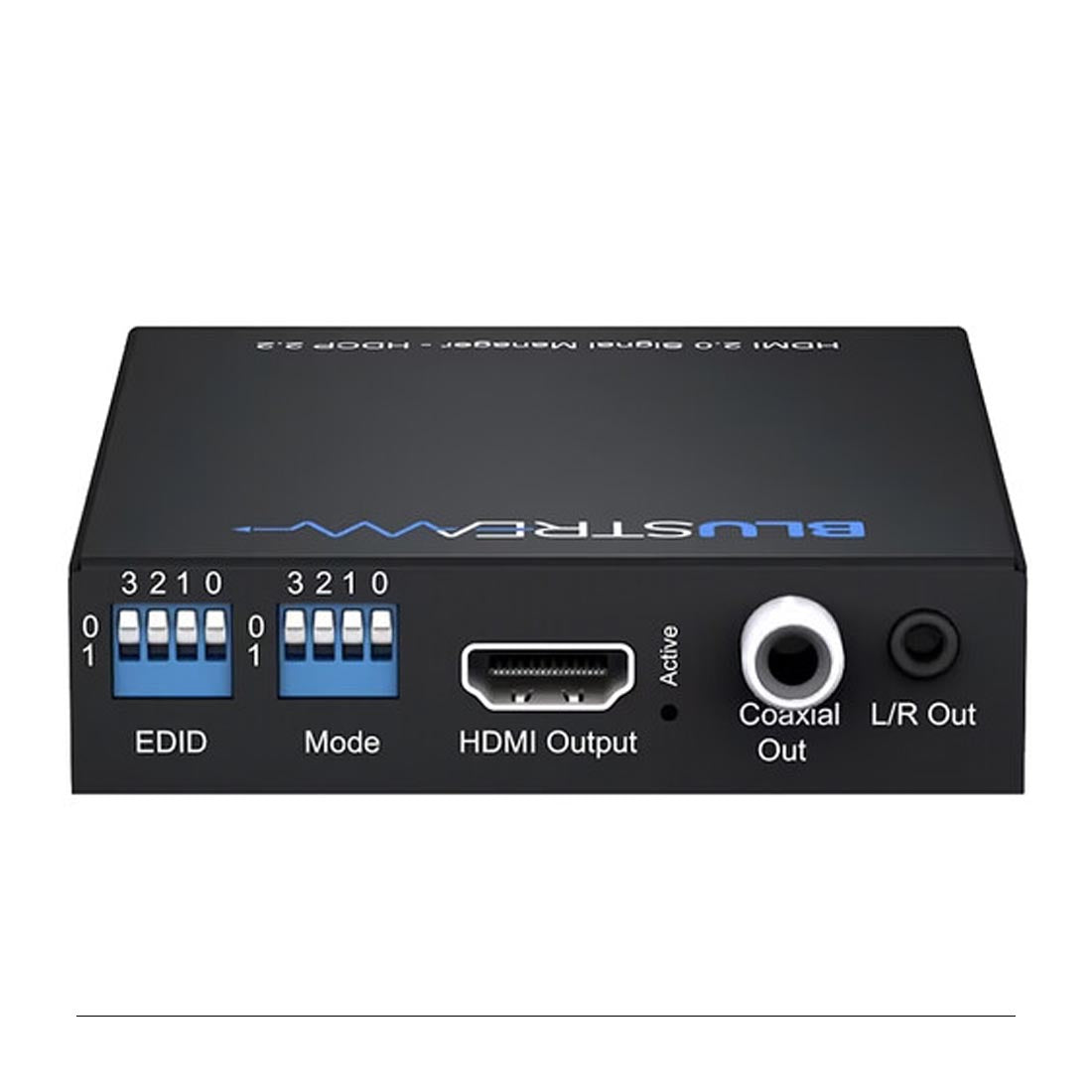

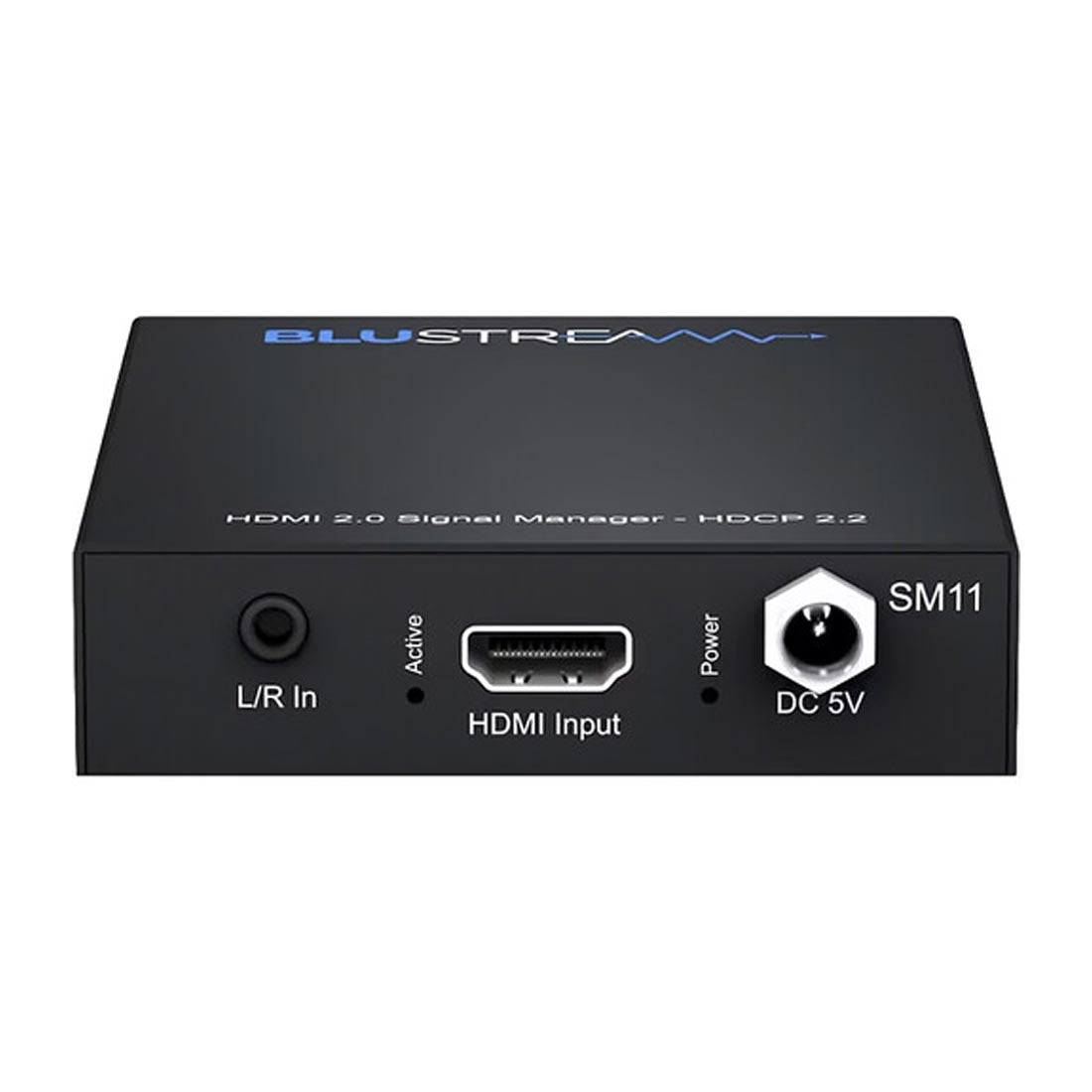

- Video: 1 x HDMI input and 1 x HDMI output (Type A, 19-pin, female)
- Audio: 1 x analogue L/R input (3.5mm), 1 x analogue L/R output (3.5mm), and 1 x RCA (SPDIF) digital output
Frequently Asked Questions
-
What HDMI and copy protection standards does the SM11 support?
It supports full HDMI 2.0 and is HDCP 2.2 compliant.
-
Can the SM11 embed and de-embed audio?
Yes. It can be configured as either an HDMI audio de-embedder or an audio embedder.
-
What audio formats can pass through the SM11?
It supports pass-through of Dolby TrueHD, Dolby Atmos, Dolby Digital Plus, and DTS-HD Master.
-
What video resolutions are supported?
It supports all industry standard resolutions including VGA–WUXGA and 480i–4K, up to 4K @ 60Hz 4:4:4.
-
Can it extract audio without a connected display?
Yes. It can extract audio with or without a display connected, acting as an HDMI end-point.
-
What audio outputs are available when de-embedding?
Audio is de-embedded to analogue L/R (2CH PCM only) and coaxial digital outputs concurrently.
-
Does the SM11 support CEC?
It supports CEC bypass (Consumer Electronics Control).
-
What connectors does the SM11 provide?
It offers 1 x HDMI input, 1 x HDMI output, 1 x analogue L/R input (3.5mm), 1 x analogue L/R output (3.5mm), and 1 x RCA (SPDIF) output.
Add the Blustream SM11 to your cart to stabilize HDMI links and manage audio embedding/de-embedding in your system. For personalized system-matching or setup advice, contact or visit Gibbys Electronic Supermarket for expert guidance.
