Blustream UEX3D USB 3.2 Gen1 HDBaseT Extender Device

Blustream UEX3D USB 3.2 Gen1 HDBaseT Extender Device

The Blustream UEX3D is a USB Device solution that utilises HDBaseT technology to enable remote connectivity to a USB 3.2 Gen1 Host at distances up to 100m over a single CAT6A cable. It supports up to four local USB devices with a combined data bandwidth of up to 5Gbps.

Long-distance USB 3.2 Gen1 extension over a single cable

Supports USB 3.2 signal extension up to 100m over HDBaseT using one CAT6A cable. Signal distribution bandwidth and distance are subject to the length of device and host USB cables and the CAT cable type; a minimum of CAT6A cabling is recommended.

This product is for USB 3.2 data transfer only and does not support DP Alt Mode video pass-through.

Connect up to four USB devices

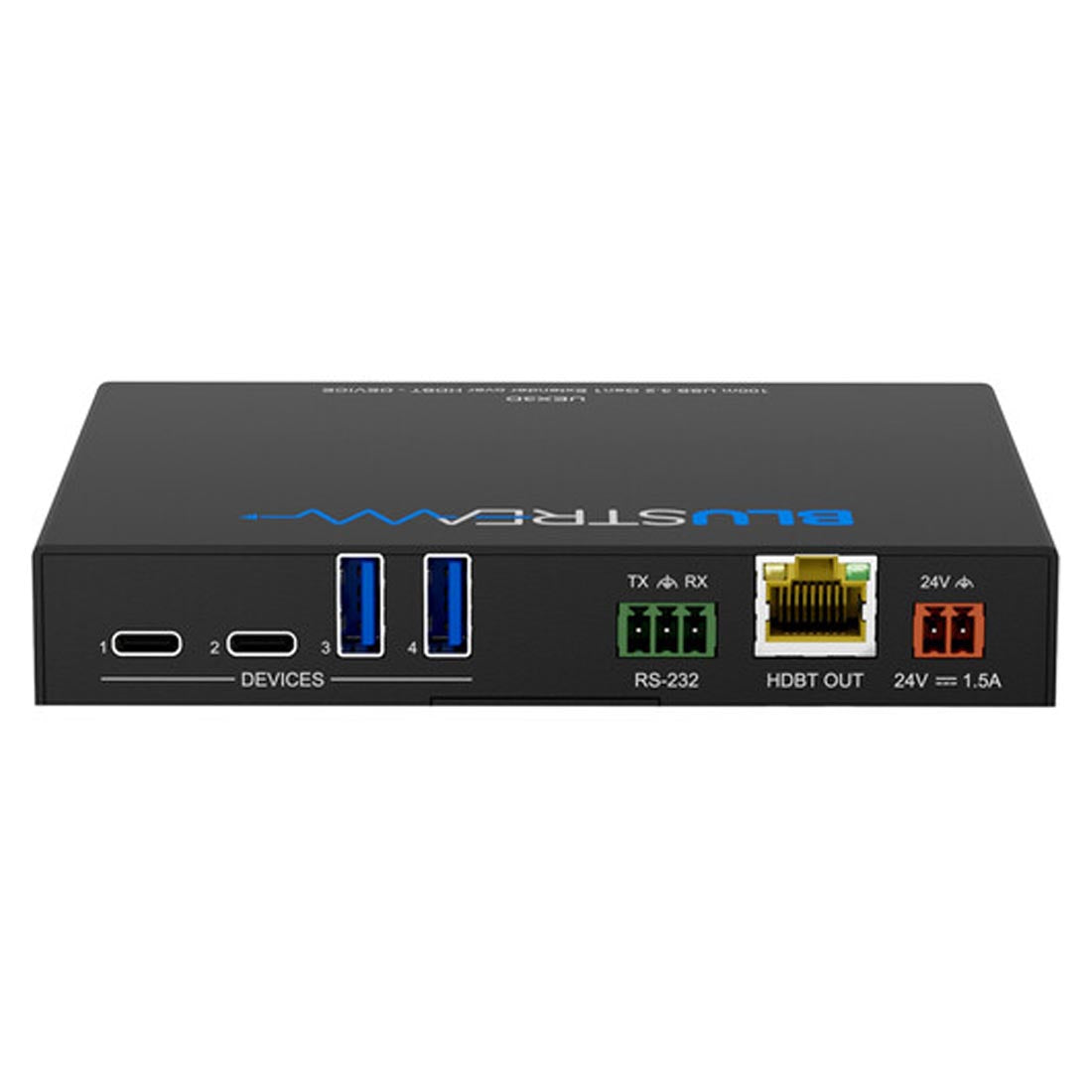

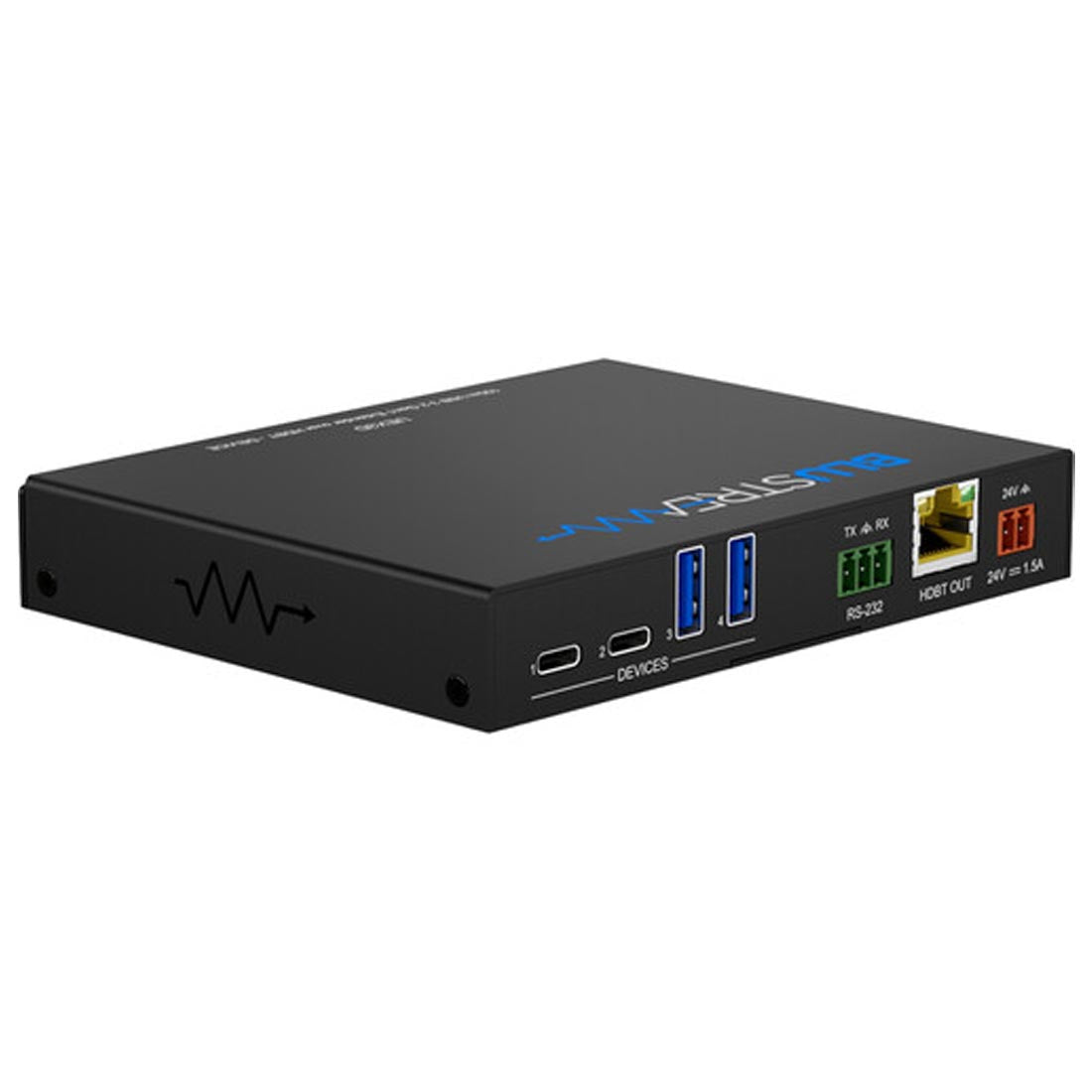

The UEX3D allows 4 x USB devices (2 x USB Type-A and 2 x USB-C) to be connected to a compatible Blustream USB HDBaseT Receiver (Host).

• Combined USB 3.2 Gen1 data transfer rate up to 5Gbps.
• Provides up to 3A combined power to USB devices (up to 1.7A per single USB port).
• Backwards compatible with USB 2.0 and 1.1 devices.

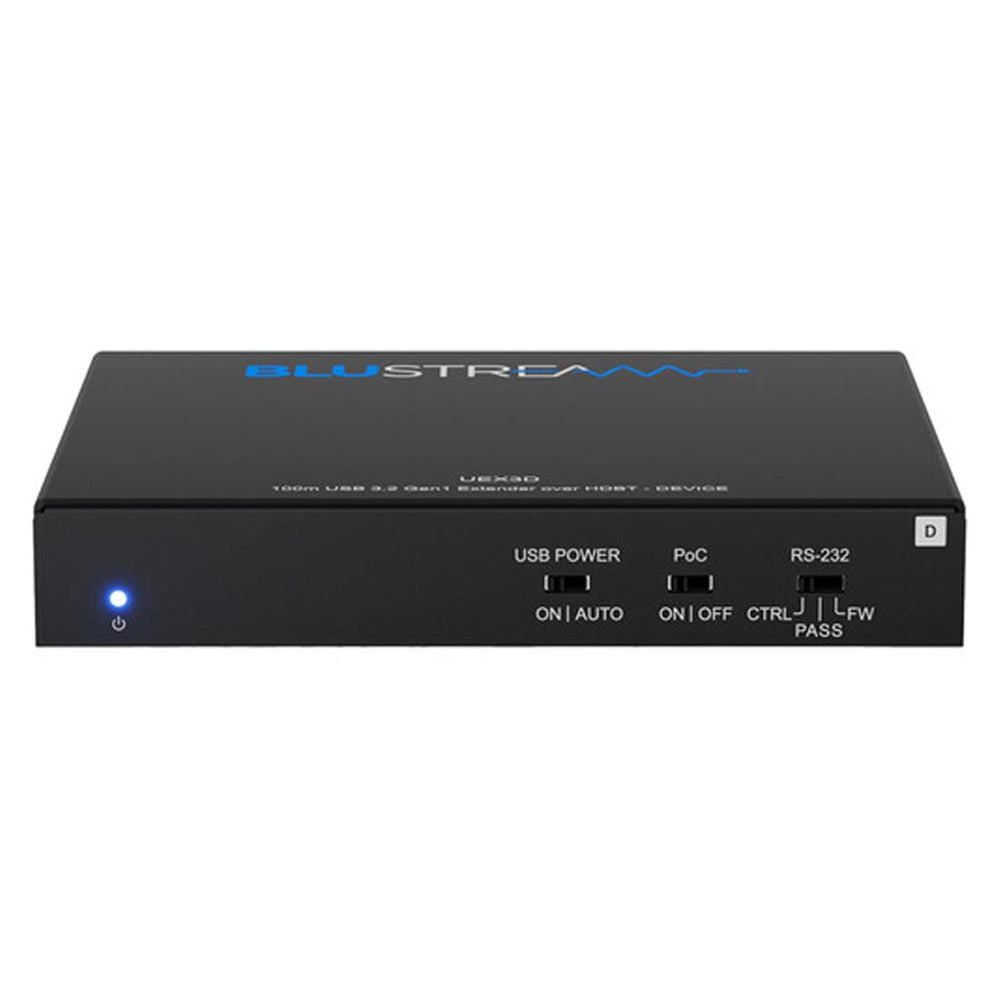

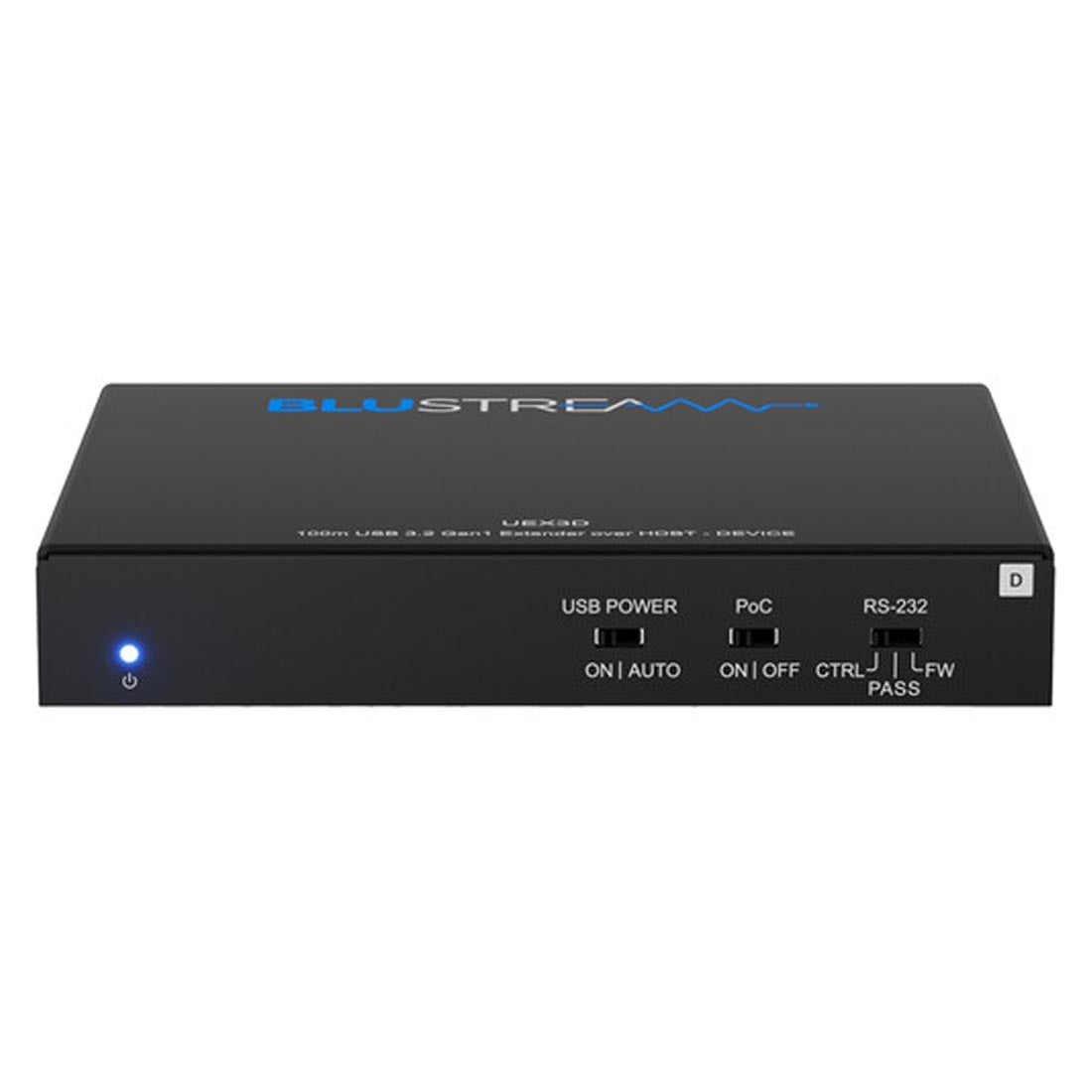

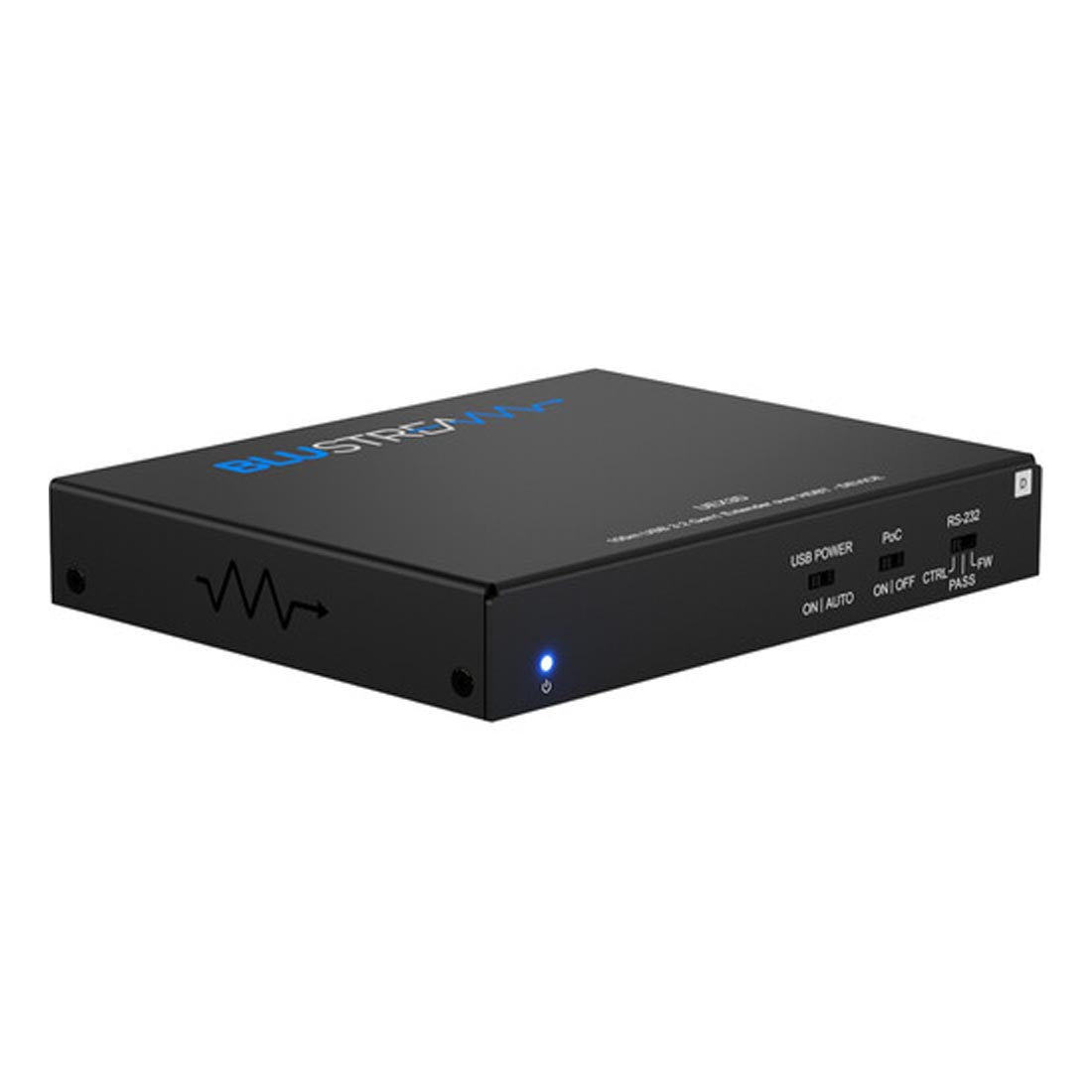

Simple installation and flexible power

• Plug-and-play operation with no driver installation or setup required.
• Bi-directional PoC (Power over Cable) to power extenders from either the host or device unit (supports 12–48V PoC).
• PoC function can be enabled or disabled via dipswitch.
• Power supply is supplied with the Device end of the link only.

Control and system compatibility

• Supports bi-directional RS-232 when used with compatible HDBaseT products.
• Configurable USB device power management via API commands.
• Compatible with Blustream UEX3H and UEX3H-WP (requires a compatible Blustream USB 3.2 HDBaseT Host product).

Use cases

Ideal for applications requiring extension of:

• USB 3.2 Gen1 conferencing cameras
• Video capture devices
• Flash/hard drives
• KVM devices
• Audio devices
• Other USB 3.2 Gen1 devices

Frequently Asked Questions

• What is the maximum extension distance and what cabling is recommended?

  Up to 100m over HDBaseT using a single CAT6A cable. Performance depends on the length of device and host USB cables and the CAT cable type; a minimum of CAT6A is recommended.

• How many and what types of USB ports does the UEX3D provide?

  Four local ports: 2 x USB-A and 2 x USB-C. It supports a combined USB 3.2 Gen1 data rate up to 5Gbps and provides up to 3A total power (up to 1.7A per single port).

• Is it compatible with older USB standards?

  Yes. It is backwards compatible with USB 2.0 and 1.1 devices.

• Does the UEX3D support video over USB-C (DP Alt Mode)?

  No. It is for USB 3.2 data transfer only and does not support DP Alt Mode video pass-through.

• How is power handled between the device and host ends?

  Bi-directional PoC allows powering from either end and supports 12–48V PoC. PoC can be enabled or disabled via dipswitch. The power supply is provided with the Device end of the link only.

• What control options are available?

  It supports bi-directional RS-232 when used with compatible HDBaseT products and offers configurable USB device power management via API commands.

• Which host products are compatible?

  It requires a compatible Blustream USB 3.2 HDBaseT Host product and is compatible with the Blustream UEX3H and UEX3H-WP.

• Is any software or driver installation required?

  No. The UEX3D offers simple plug-and-play setup with no driver installation required.
