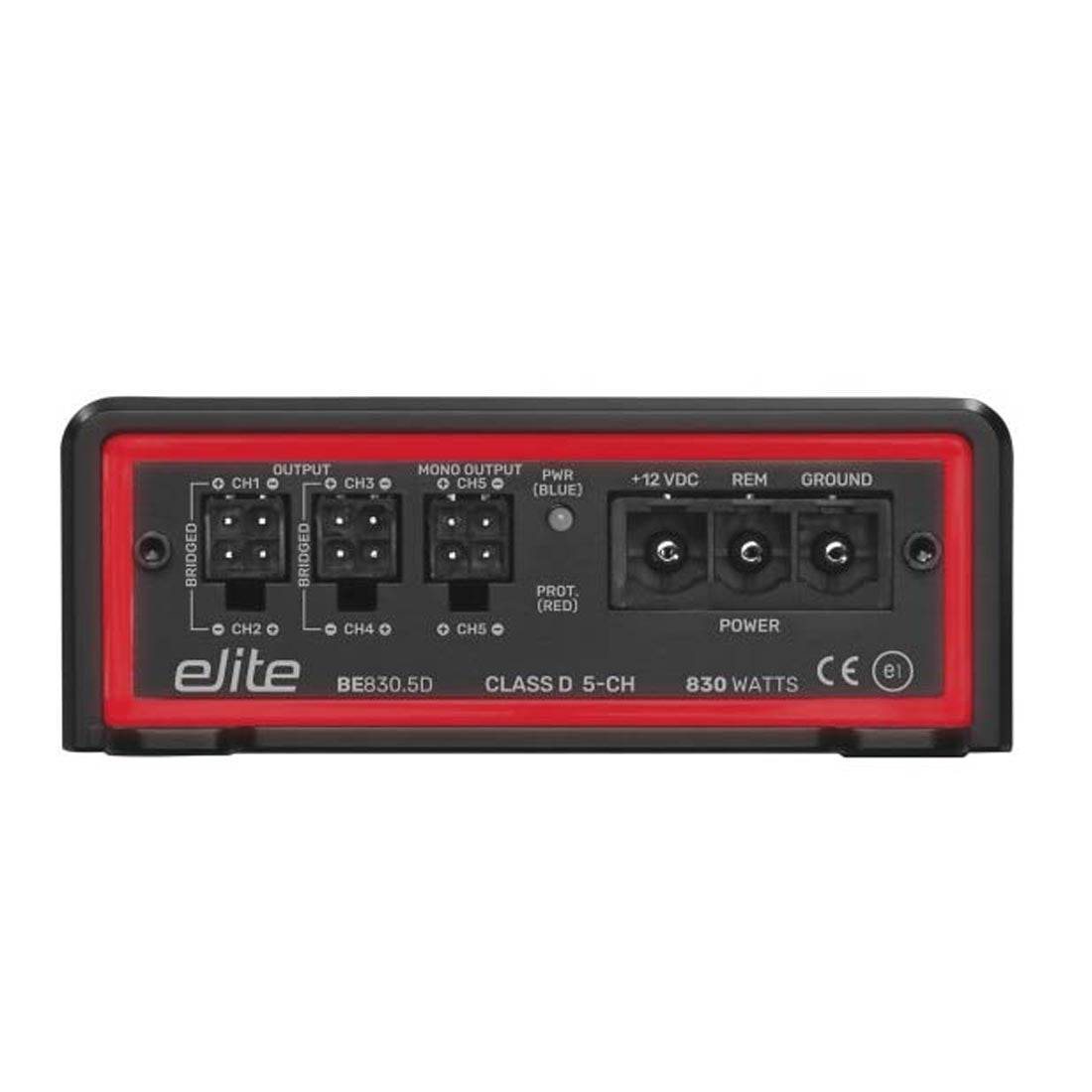

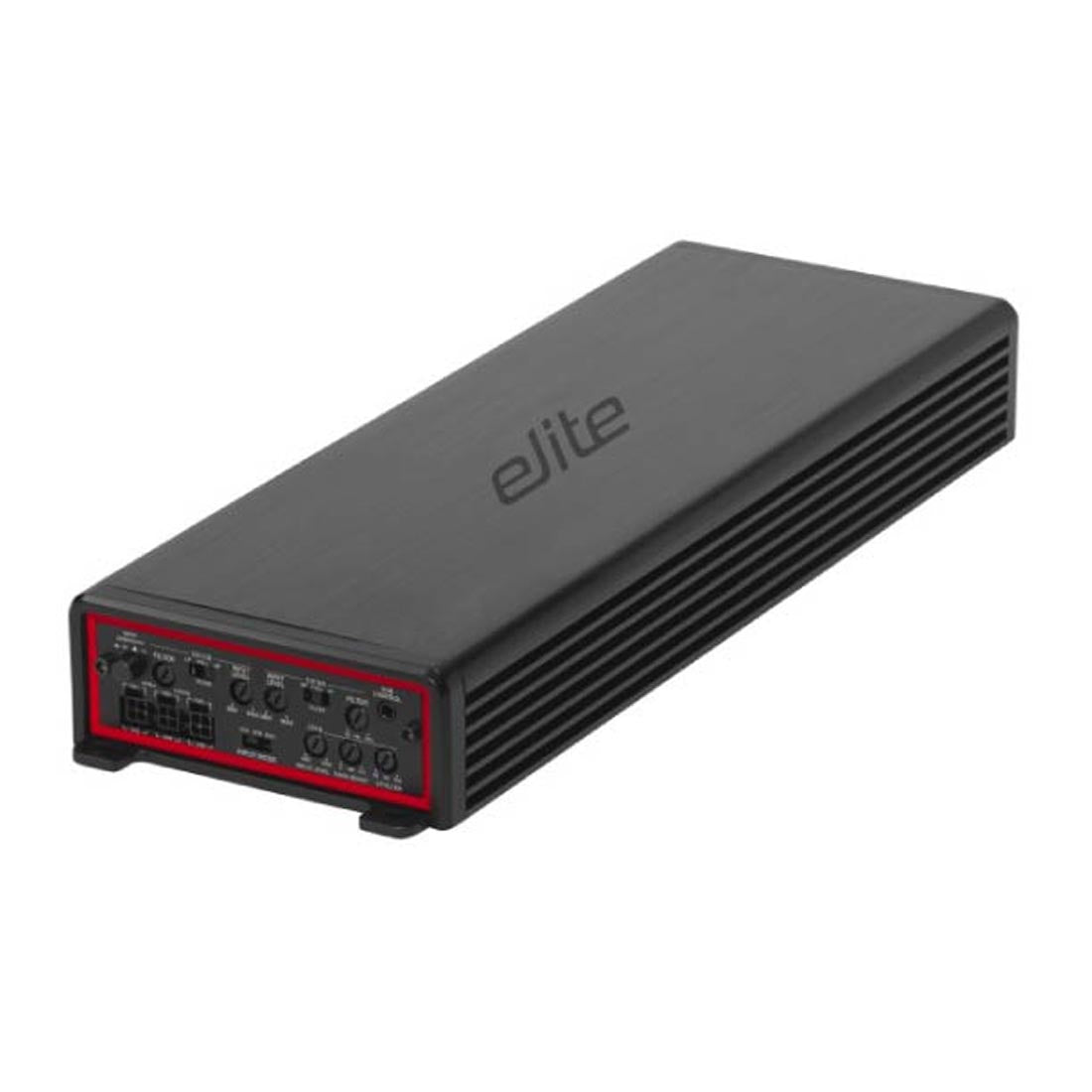

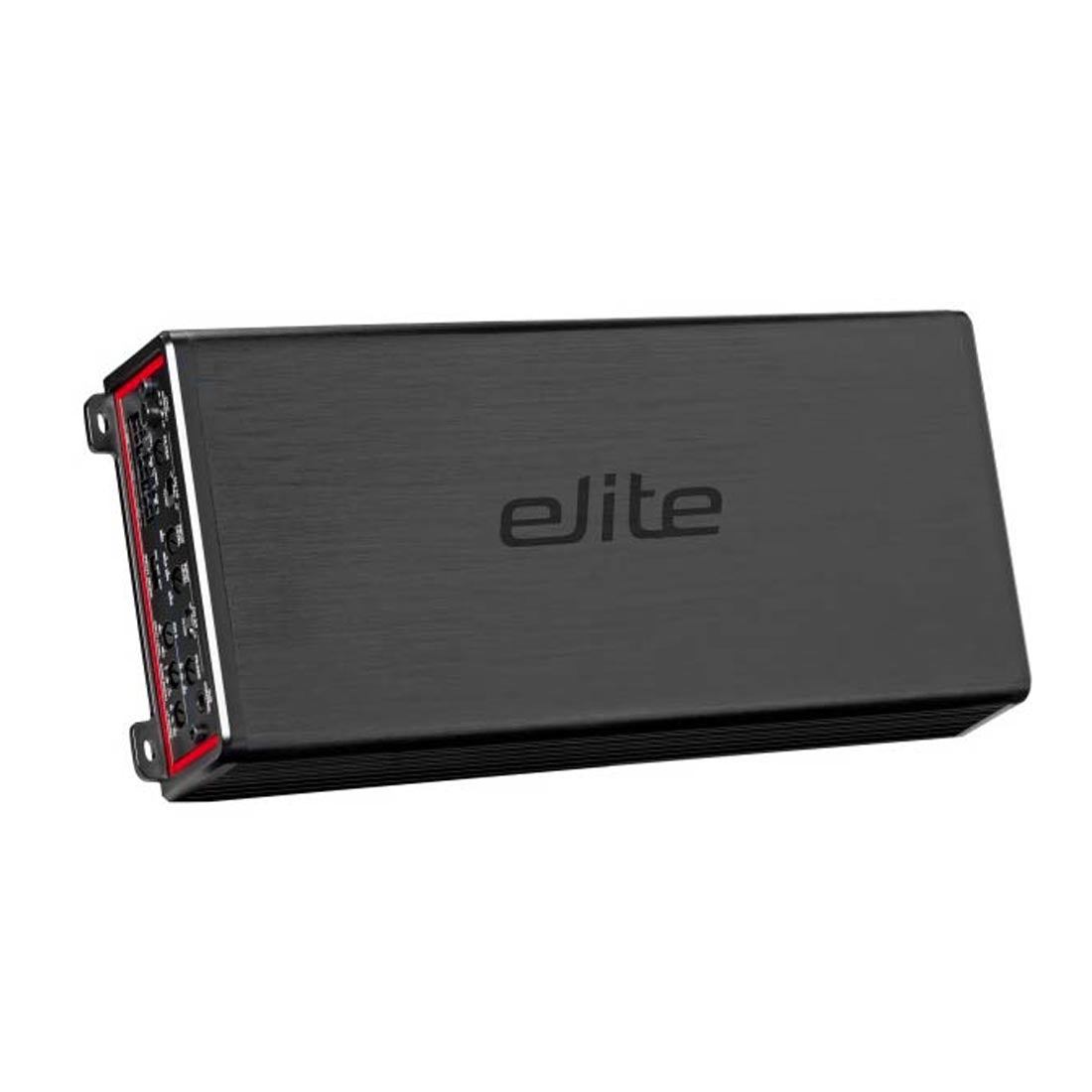

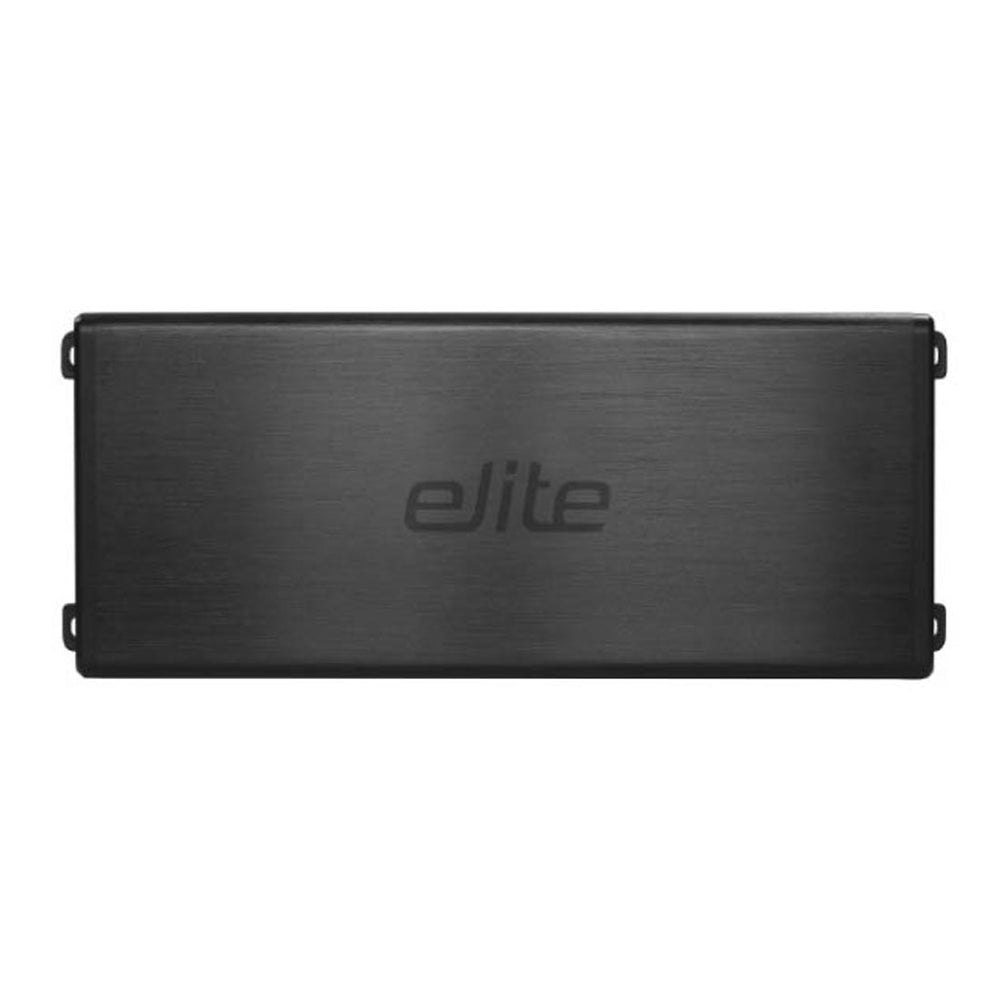

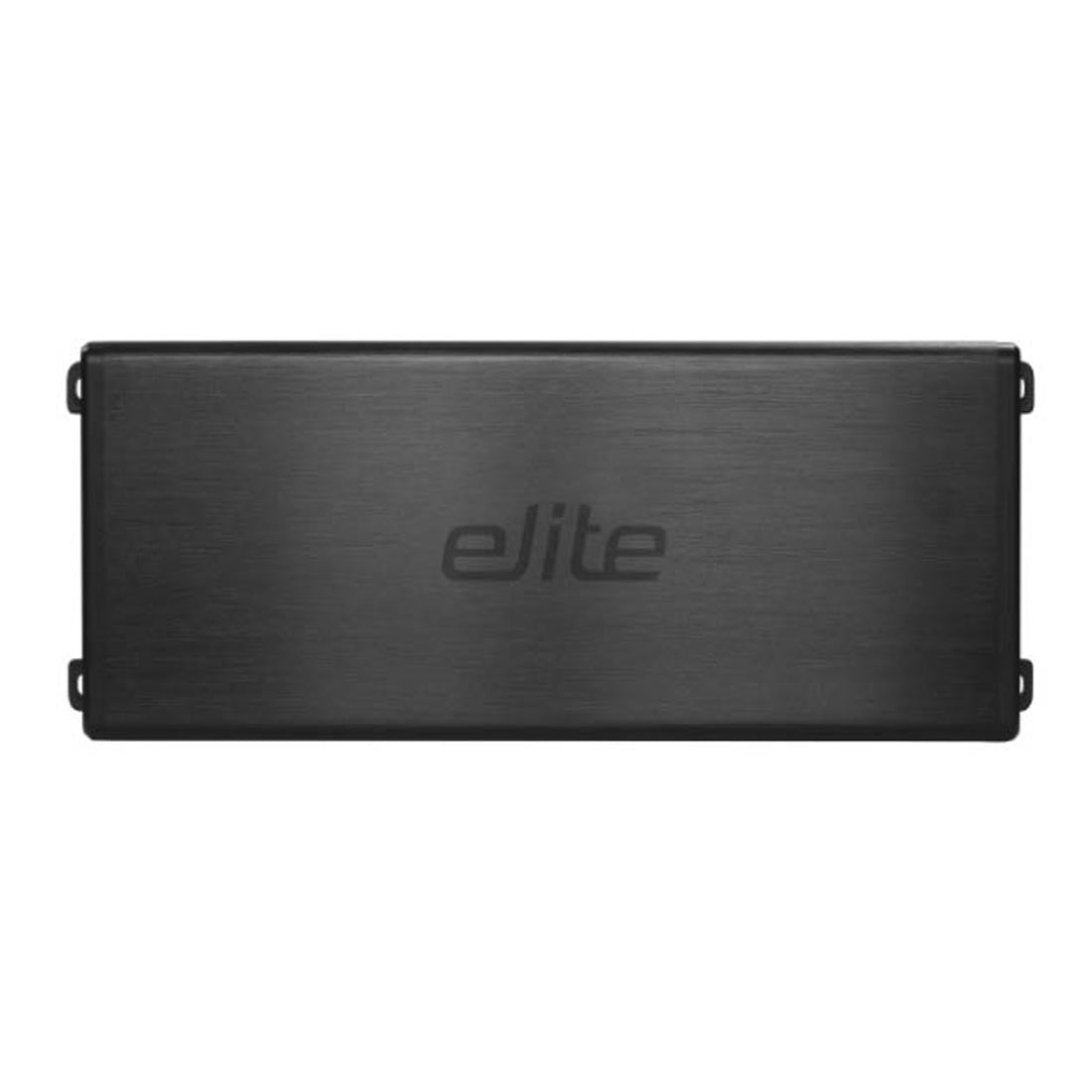

Boss Audio Elite BE830.5D 5 Channel Class D Full Range Amplifier - Each (BE8305D)

Boss Audio BE830.5D 5 Channel Class D Full Range Amplifier - Each (BE8305D)

The Boss Audio BE830.5D is a 5-channel Class D full range amplifier designed to crank up your audio game without taking up too much space. If you’re after a clean, punchy sound for every corner of your vehicle, this amp delivers with precision and style.

Compact Design, Big Performance

Don’t let its 11.33" x 4.56" x 1.71" frame fool you. The BE830.5D packs a massive 830W RMS output into a compact chassis. Whether it’s 95W x 4 channels at 2Ω for your speakers or up to 450W x 1 channel at 2Ω for your sub, this amp gives you power where you need it. The LED illuminated end panels add a sleek touch that’s both functional and eye-catching.

Customizable Sound With Filters and Bass Boost

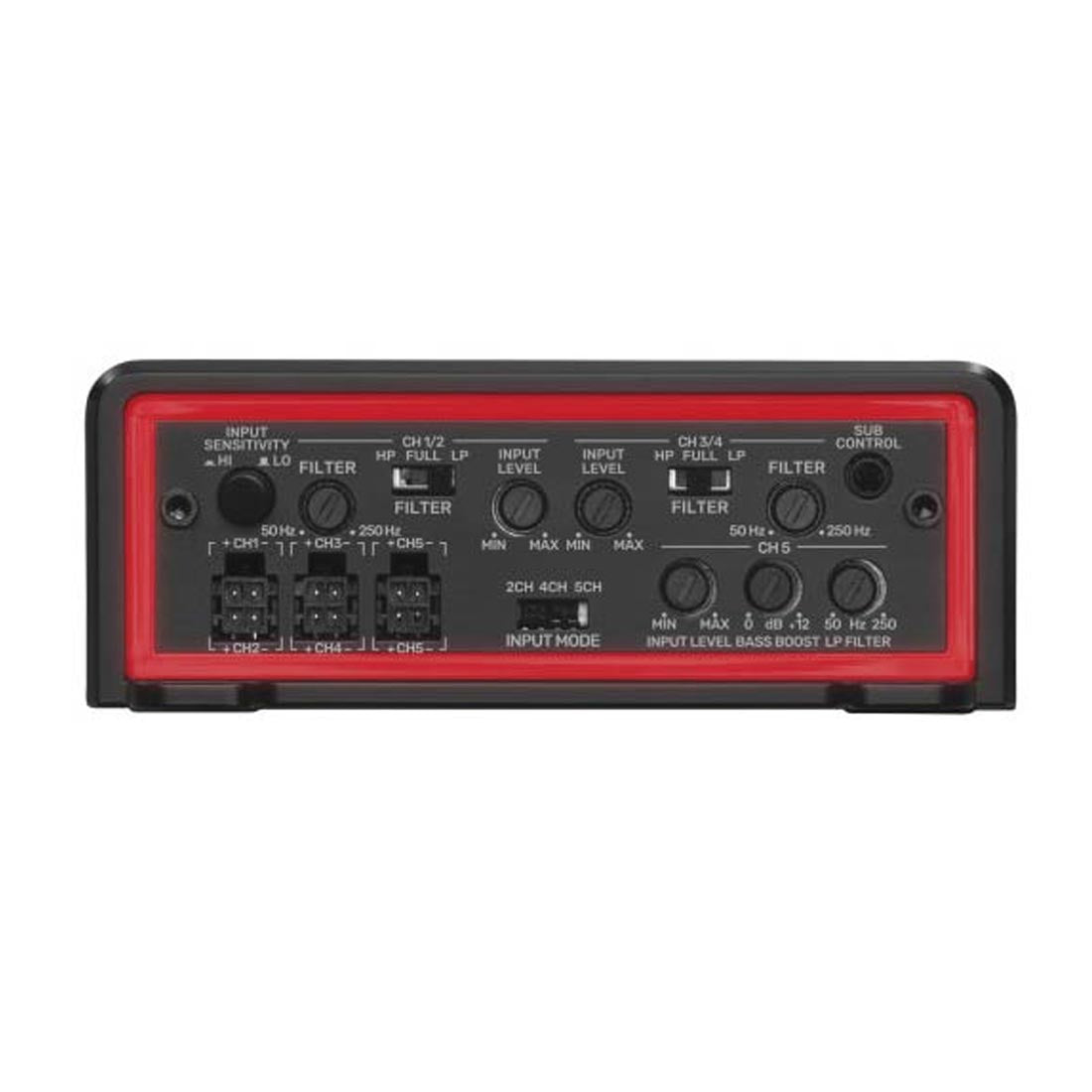

Ever wish you could fine-tune your sound without hassle? The Boss Audio BE830.5D comes with high-pass and low-pass filters, letting you shape your audio from 50Hz to 250Hz. Plus, its variable bass boost (0dB to +12dB) ensures your lows hit hard without distortion. Think of it like having a mini sound engineer in your car.

Versatile Connectivity Options

Worried about compatibility? Don’t be. The BE830.5D offers both RCA and speaker-level inputs, with input voltage ranges from 400mV–4V (low level) and 4V–40V (high level). Bridgeable channels make it easy to maximize output for subwoofers or main speakers, giving you the flexibility to build your perfect setup.

Remote Subwoofer Control

Want to adjust your bass without reaching for the amp? The BE830.5D includes a remote subwoofer control, so you can tweak your low-end from the driver’s seat. It’s like having a bass knob right where you need it—convenient, intuitive, and precise.

Built-In Protection for Peace of Mind

Amping up the volume doesn’t mean risking your system. The Boss Audio BE830.5D comes with thermal, short, and overload protection circuits. This means your amp stays safe, your sound stays clear, and you can push it hard without worrying about damage.

High-Efficiency MOSFET Power Supply

Thanks to its PWM MOSFET power supply, this amp delivers clean, efficient power while keeping heat and energy loss to a minimum. That’s smart engineering working behind the scenes to give you pure audio enjoyment.

Sound Quality That Commands Attention

With a T.H.D. of just 0.01% and channel separation of ≥90 dB, the BE830.5D ensures your music comes through crystal clear. From deep bass to crisp highs, every note feels alive, immersive, and exactly how the artist intended.

Elevate your car audio setup with the Boss Audio BE830.5D—it’s compact, powerful, and packed with features to make your music sound better than ever.

FAQs

1. What is the maximum RMS output of the Boss Audio BE830.5D? It delivers up to 830W RMS total, with 95W x 4 channels at 2Ω and up to 450W x 1 channel at 2Ω for the subwoofer.
2. Can the Boss Audio BE830.5D be bridged? The amp’s channels are bridgeable for higher power output.
3. Does it have bass control? It includes a variable bass boost from 0dB to +12dB and a remote subwoofer control.
4. What type of power supply does the Boss Audio BE830.5D use? It uses a PWM MOSFET power supply for efficient, clean power delivery.
5. Are there protection features on this amp? It includes thermal, short, and overload protection circuits to keep your system safe.
