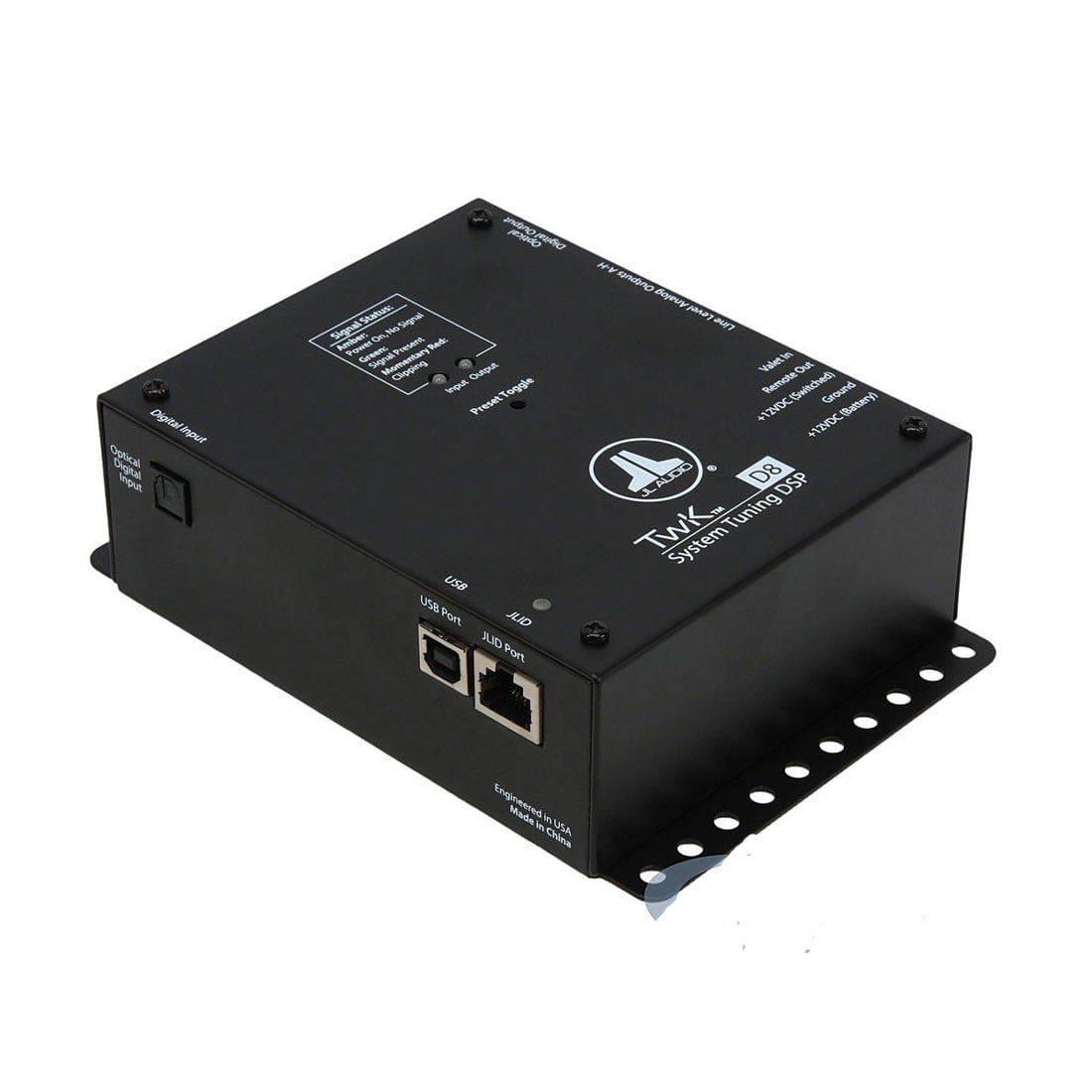

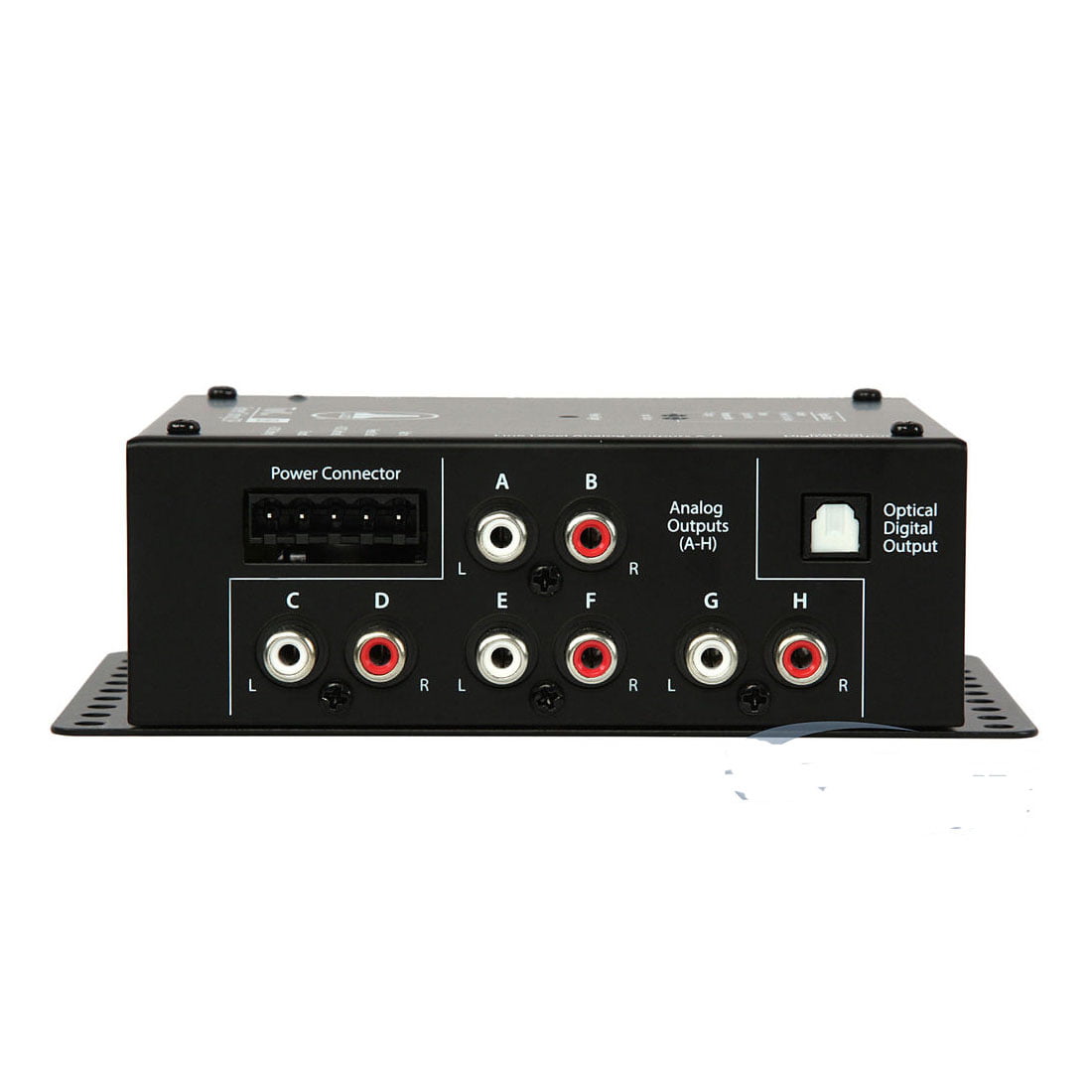

JL Audio TwK-D8 8 Ch. Digital Sound Processor – #98102
Product Descriptions
Product Descriptions
JL Audio TwK-D8 Digital Sound Processor - #98102
JL Audio TwK-D8 Digital Sound Processor is a state-of-the-art digital signal processor engineered to deliver world-class system tuning capabilities in an easy-to-use format. Equipped with an advanced 24-bit DSP processor, the TwK™ D8 is equipped with a digital optical (Toslink) input and connects directly to our FiX™ 82 OEM Integration DSP, or any 2-channel digital (S/PDIF) output, to maintain an all-digital signal path. The TwK™ D8 is also equipped with flexible output options, 80 total bands of equalization and powerful mixing tools. The included DRC-200 Digital Remote Controller offers dual level controls, toggles up to six presets, and has an LED indicator.
Configuration
The TwKD8's Optical input can accept a digital signal from any device outputting a 2-channel PCM signal, with a sample rate up to 96 kHz, such as JL's FiX82 OEM integration DSP. The TuN 2.0 software allows signal routing with a clear, user-friendly screen interface which is separated into two main sections: Setup and Tune. Different tune settings can be saved and recalled as Presets. A total of 10 Presets plus a Valet Preset can be stored in one Project file, with 6 Preset available for quick selection during use.
DRC-200
The JL Audio DRC-200 is a panel-mounted, wired digital remote controller that connects to the JLid port of the TwKD8. It consists of dual-concentric rotary controls with stops, push-button functionality for the inner knob, and a separate RGB LED status indicator that can be dash mounted. The control knob and the LED are both wired into a single RJ-45 socket via 46" cables. An 18' control cable, terminating in male RJ-45 jacks, plugs into this socket and is run back to the TwK88. The inner knob controls the Level for any channel assigned to it, and the outer knob can be assigned to control Subwoofer Level, Fader, or Zone control. Each knob can be independently assigned to any or all signal channels.
Features & Specs
Features & Specs
Documents
Documents
Warranty
Warranty
Payment as low as
This monthly payment does not include any applicable tax or interest
Free Shipping |
Lowest Price Guarantee
This product is backorderable
Does not apply to special order items.
Product Descriptions
Product Descriptions
JL Audio TwK-D8 Digital Sound Processor - #98102
JL Audio TwK-D8 Digital Sound Processor is a state-of-the-art digital signal processor engineered to deliver world-class system tuning capabilities in an easy-to-use format. Equipped with an advanced 24-bit DSP processor, the TwK™ D8 is equipped with a digital optical (Toslink) input and connects directly to our FiX™ 82 OEM Integration DSP, or any 2-channel digital (S/PDIF) output, to maintain an all-digital signal path. The TwK™ D8 is also equipped with flexible output options, 80 total bands of equalization and powerful mixing tools. The included DRC-200 Digital Remote Controller offers dual level controls, toggles up to six presets, and has an LED indicator.
Configuration
The TwKD8's Optical input can accept a digital signal from any device outputting a 2-channel PCM signal, with a sample rate up to 96 kHz, such as JL's FiX82 OEM integration DSP. The TuN 2.0 software allows signal routing with a clear, user-friendly screen interface which is separated into two main sections: Setup and Tune. Different tune settings can be saved and recalled as Presets. A total of 10 Presets plus a Valet Preset can be stored in one Project file, with 6 Preset available for quick selection during use.
DRC-200
The JL Audio DRC-200 is a panel-mounted, wired digital remote controller that connects to the JLid port of the TwKD8. It consists of dual-concentric rotary controls with stops, push-button functionality for the inner knob, and a separate RGB LED status indicator that can be dash mounted. The control knob and the LED are both wired into a single RJ-45 socket via 46" cables. An 18' control cable, terminating in male RJ-45 jacks, plugs into this socket and is run back to the TwK88. The inner knob controls the Level for any channel assigned to it, and the outer knob can be assigned to control Subwoofer Level, Fader, or Zone control. Each knob can be independently assigned to any or all signal channels.
