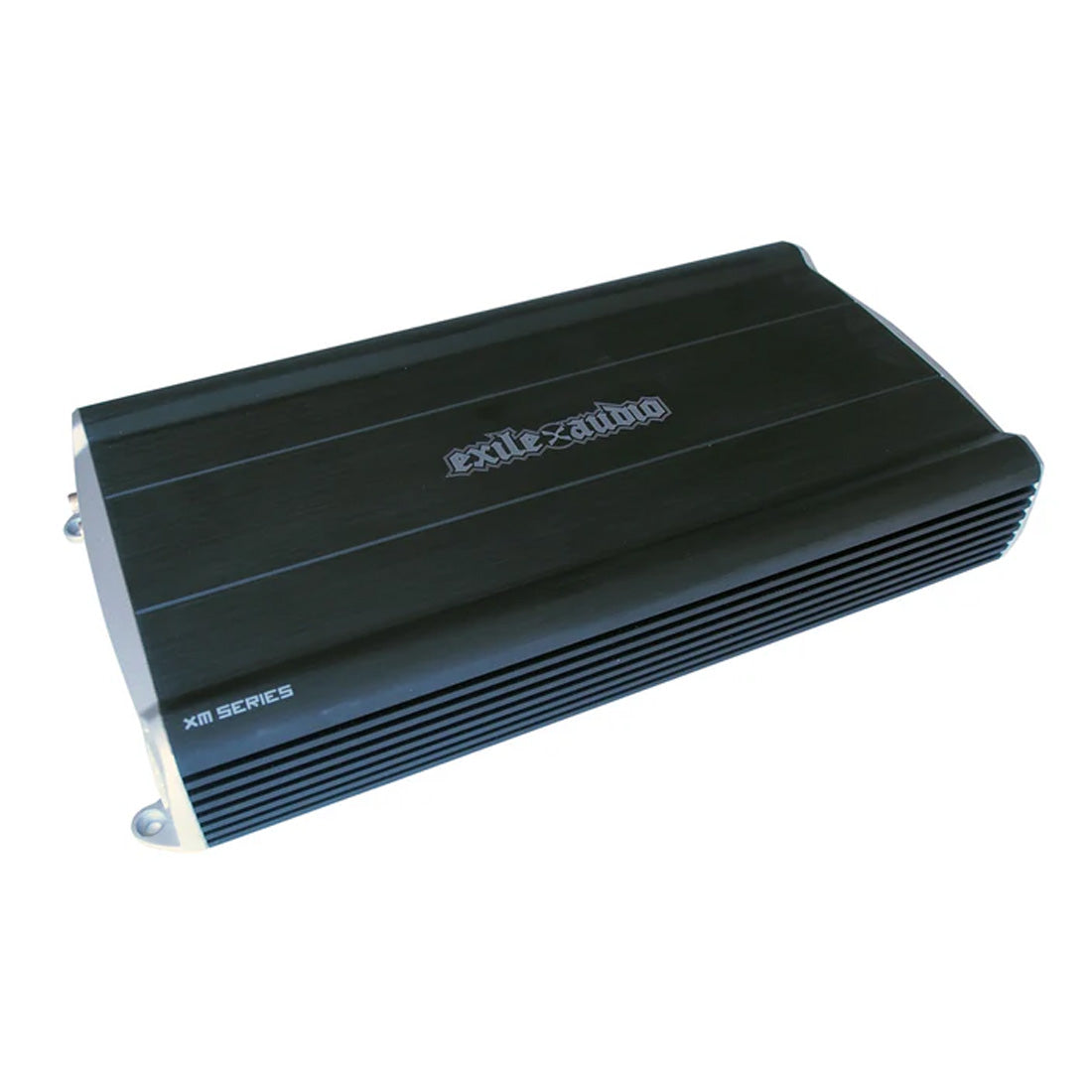

Exile Audio XM154 XM Series 4-Channel Class D Marine Amplifier (XM15.4)

Exile Audio XM154 XM Series 4-Channel Class D Marine Amplifier (XM15.4)

Exile Audio XM154 sets the tone right away with serious power and a build made for harsh environments. This XM Series 4-channel Class D marine amplifier is designed to thrive where moisture, heat, and vibration are part of the daily grind. Think of it like a rugged engine block for your audio system. Compact, efficient, and built to keep pushing no matter where it’s mounted.

Built for Marine and Extreme Environments

The Exile Audio XM154 is all about durability. It uses a coated five-layer epoxy circuit board and stainless steel hardware throughout the amplifier. That combination helps protect the internal components from corrosion and wear, making it a smart choice for marine, outdoor, or extreme setups. It feels less like delicate electronics and more like industrial equipment built to last.

Serious Power Across Four Channels

This amplifier stands out most when it comes to raw power. At 4 ohms, it delivers 150 watts per channel across all four channels. Drop the load to 2 ohms and it steps up to 225 watts per channel. Need more muscle? Bridge it at 4 ohms and you get 450 watts across two channels. It’s like having multiple gears available, letting your system run exactly how you want it.

Efficient Class D Performance

Running Class D architecture, the Exile Audio XM154 keeps efficiency front and center. With operational efficiency rated above 85 percent, it produces strong output without wasting energy as heat. That efficiency works hand in hand with a damping factor greater than 200, helping maintain control and clarity even when things get loud.

Advanced Cooling That Pulls Its Weight

Heat management is handled by a heat sink that means business. The XM Series heat sink uses 9.8 grams of aluminum per millimeter, which puts it in a different league for heat dissipation. Picture a massive radiator on a performance vehicle. It quietly pulls heat away so the amplifier can stay consistent under pressure.

Sound Control and Tuning Flexibility

Fine-tuning is where the Exile Audio XM154 becomes especially versatile. The gain range spans from 0.2 to 6 volts, making it adaptable to a wide range of signal inputs. A low pass crossover adjustable from 50 to 250 Hz works alongside a subsonic crossover adjustable from 15 to 250 Hz. Add bass boost at 45 Hz, adjustable from 0 to +18 dB, and you have control that lets the sound hit exactly how you want it to feel. A remote bass control is also included for on-the-fly adjustments.

Clean Output with Low Distortion

This amplifier doesn’t just play loud, it plays clean. Total harmonic distortion stays under 0.5 percent, and the signal-to-noise ratio is rated at 92 dB. That means your music comes through with clarity and minimal noise, even when the volume climbs.

Compact Size with Practical Design

Despite its output, the Exile Audio XM154 keeps a manageable footprint. It measures 12.7 inches long, 7.5 inches wide, and just 2.3 inches tall. Power handling is supported by three 40-amp fuses and recommended 4 AWG power and ground wiring, reinforcing that this amplifier is built to handle serious current without breaking a sweat.

It all comes together as a balanced mix of power, control, and durability. The Exile Audio XM154 feels purpose-built for environments where lesser amplifiers struggle, delivering consistent performance with the confidence of solid engineering behind it.

FAQs

1. What type of amplifier is the Exile Audio XM154? It is a 4-channel Class D marine amplifier designed for high efficiency and strong power output.
2. How much power does the Exile Audio XM154 produce? It delivers 150 watts x 4 at 4 ohms, 225 watts x 4 at 2 ohms, and 450 watts x 2 when bridged at 4 ohms.
3. Is the Exile Audio XM154 suitable for marine use? Yes, it features a coated five-layer epoxy circuit board and stainless steel construction suited for marine and extreme environments.
4. What tuning controls are included on the Exile Audio XM154? It includes adjustable gain, low pass crossover, subsonic crossover, bass boost at 45 Hz, and a remote bass control.
5. How efficient is the Exile Audio XM154? The amplifier operates at greater than 85 percent efficiency, helping reduce heat while maintaining strong performance.
