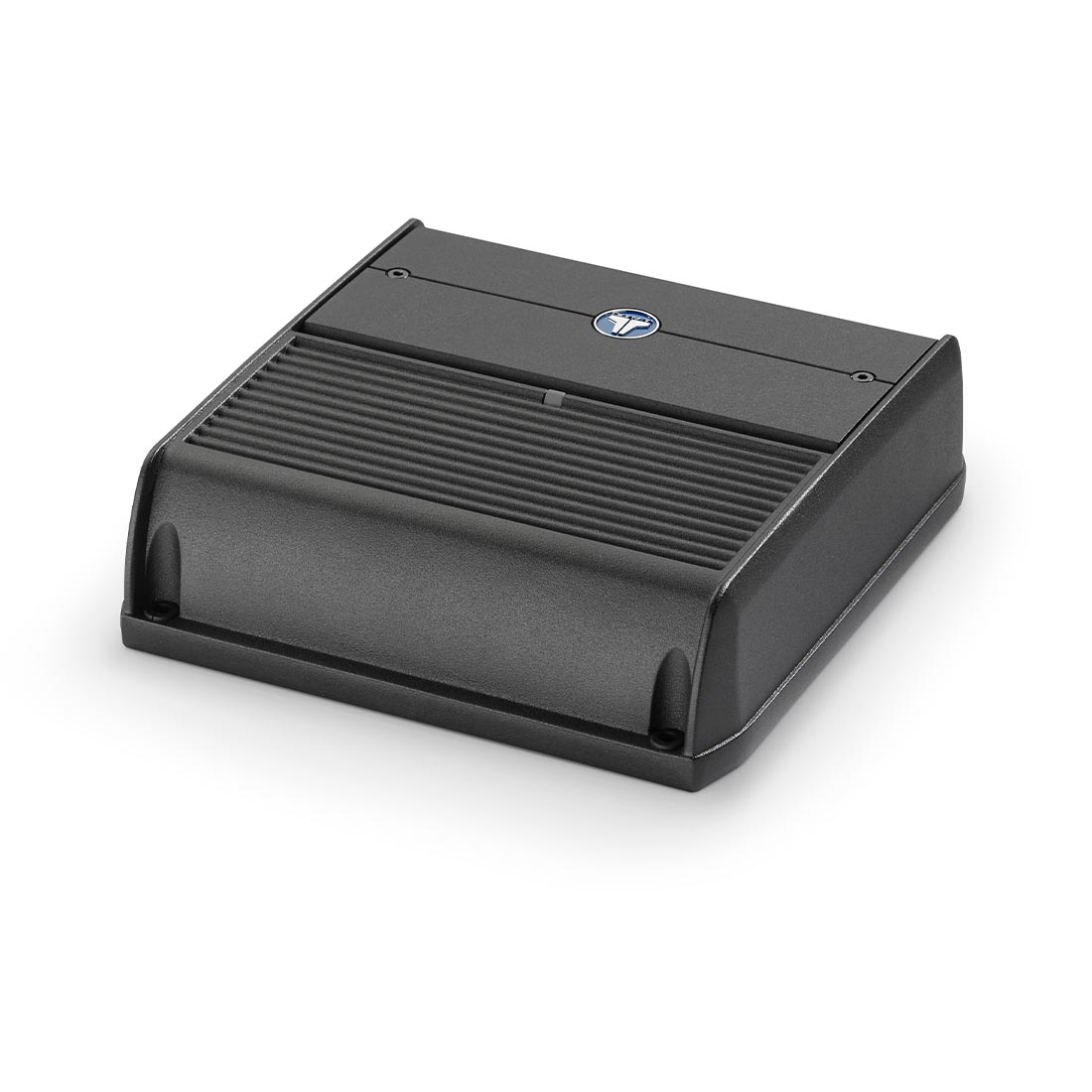

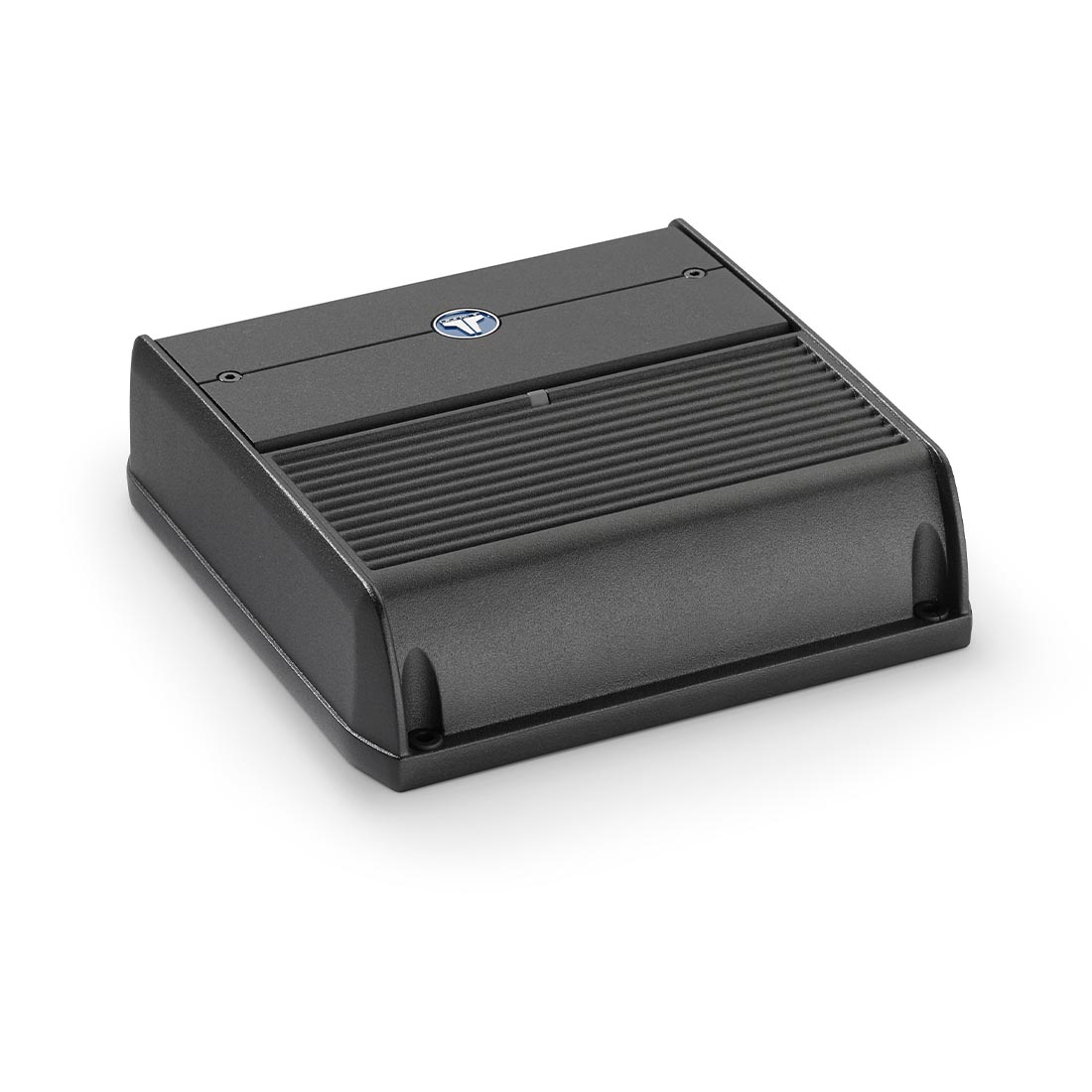

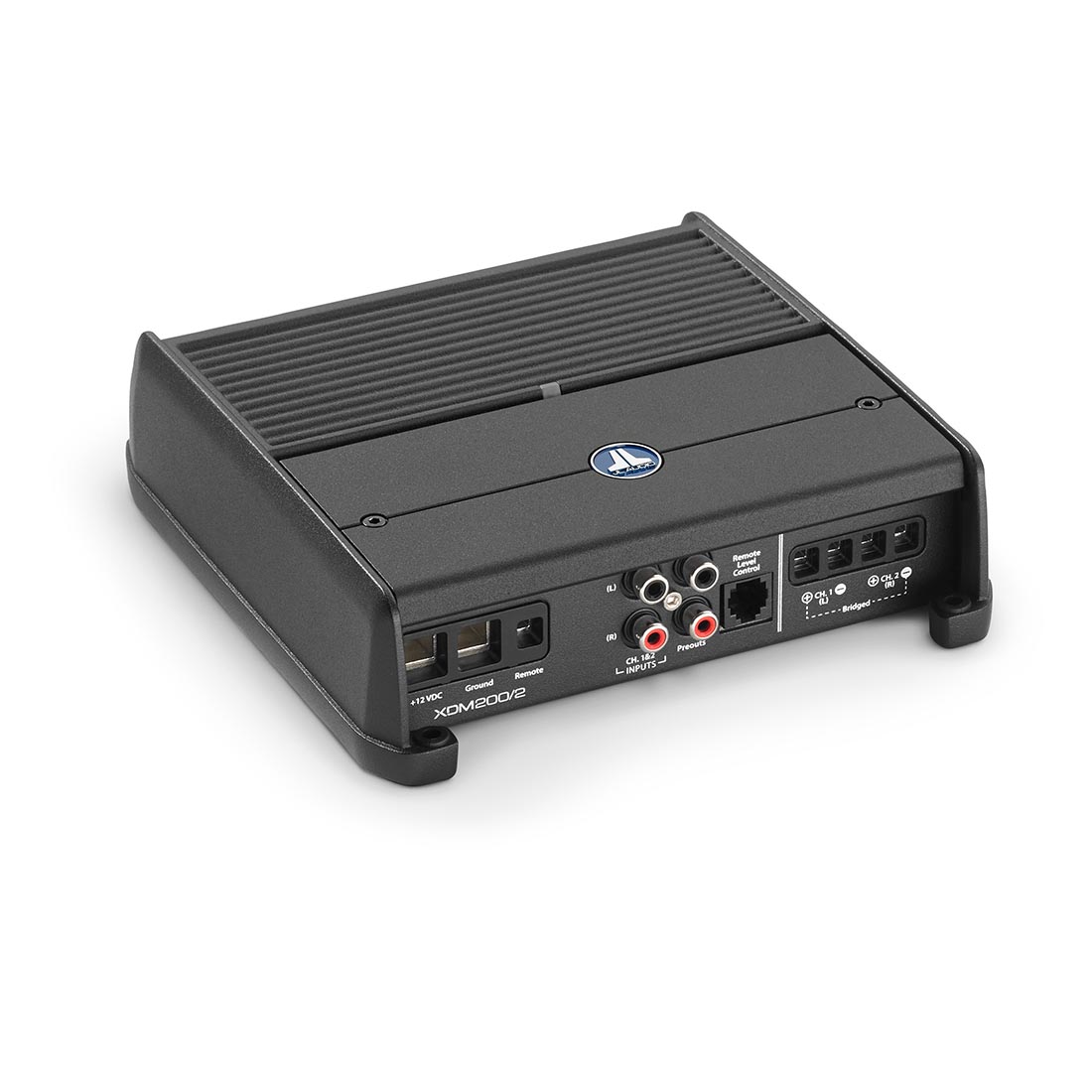

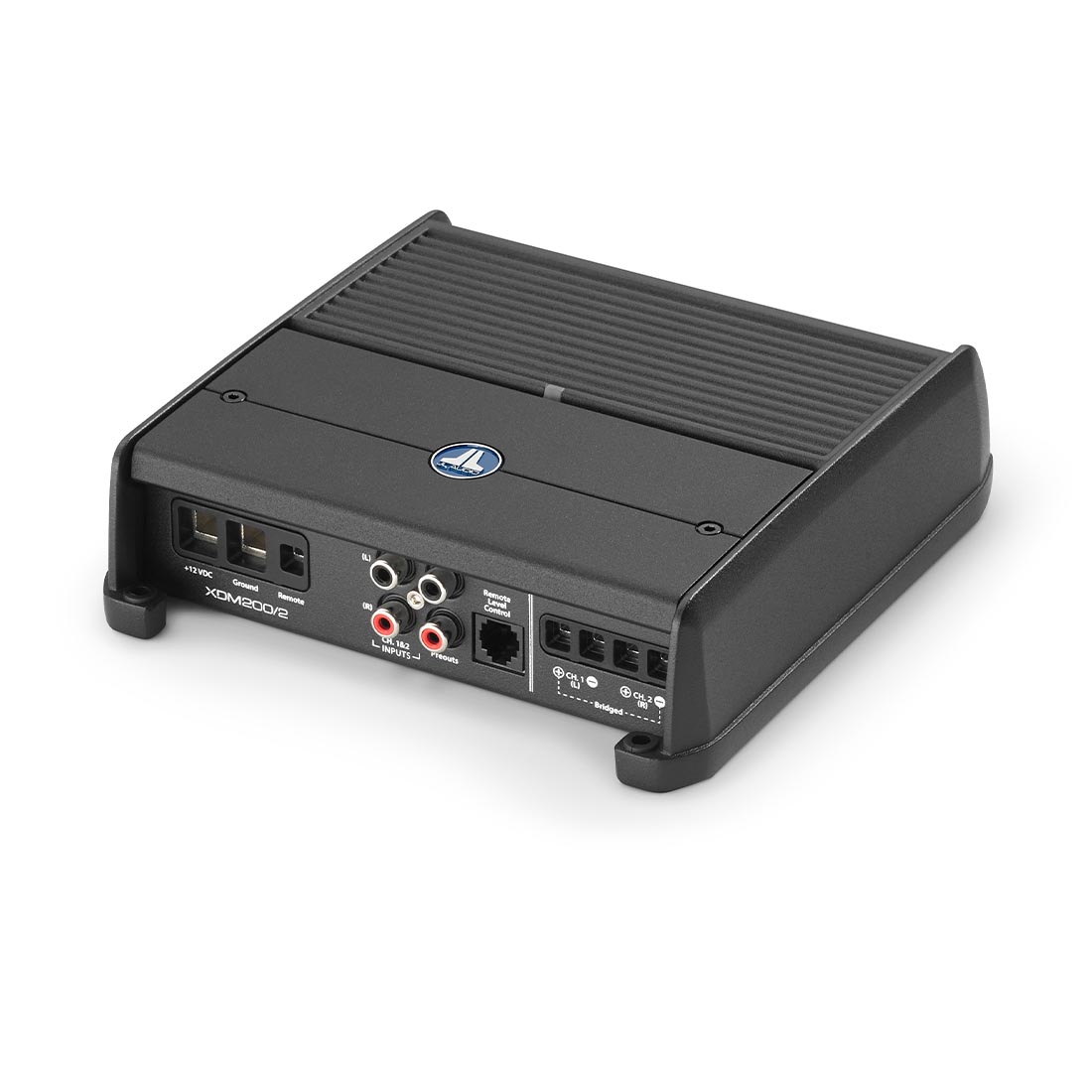

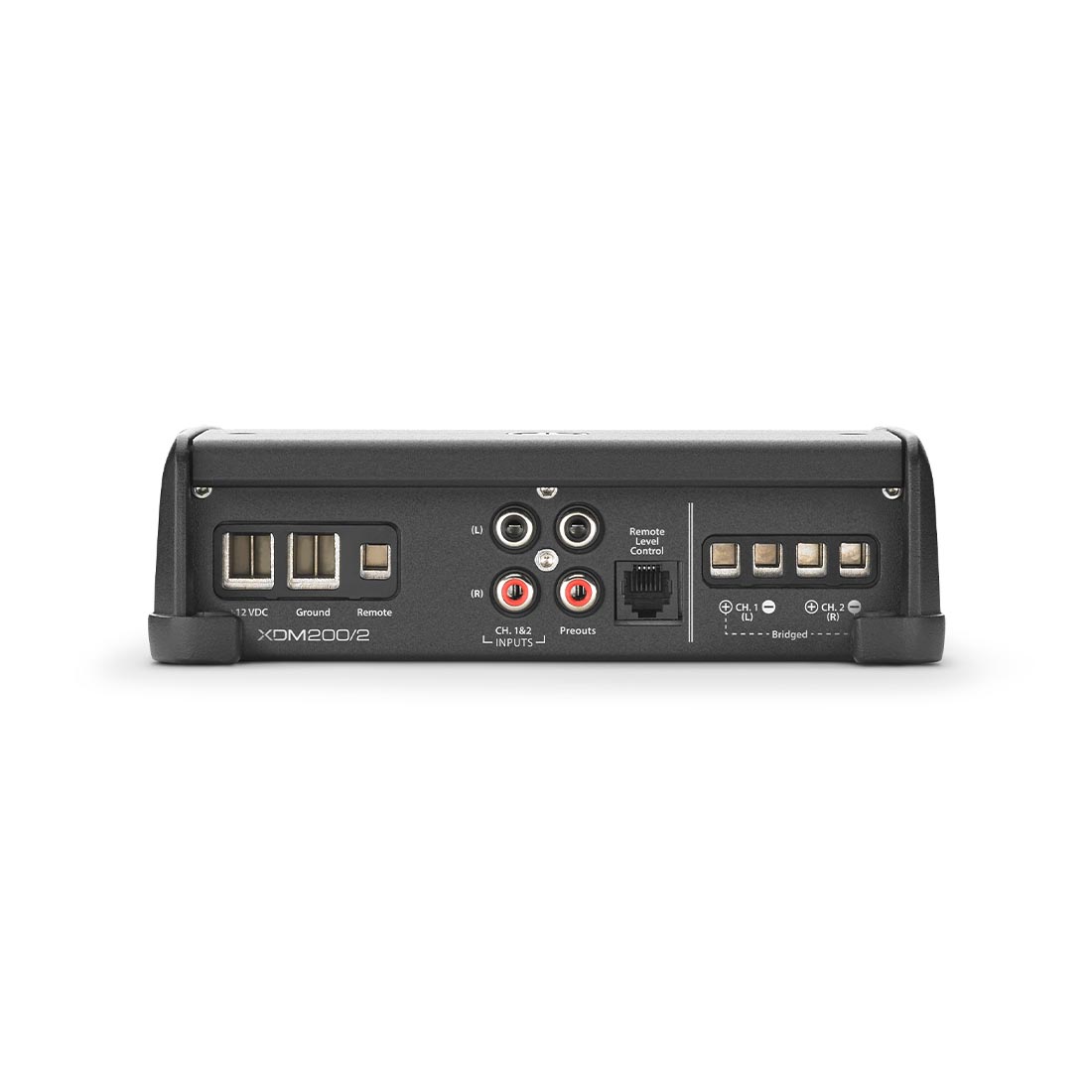

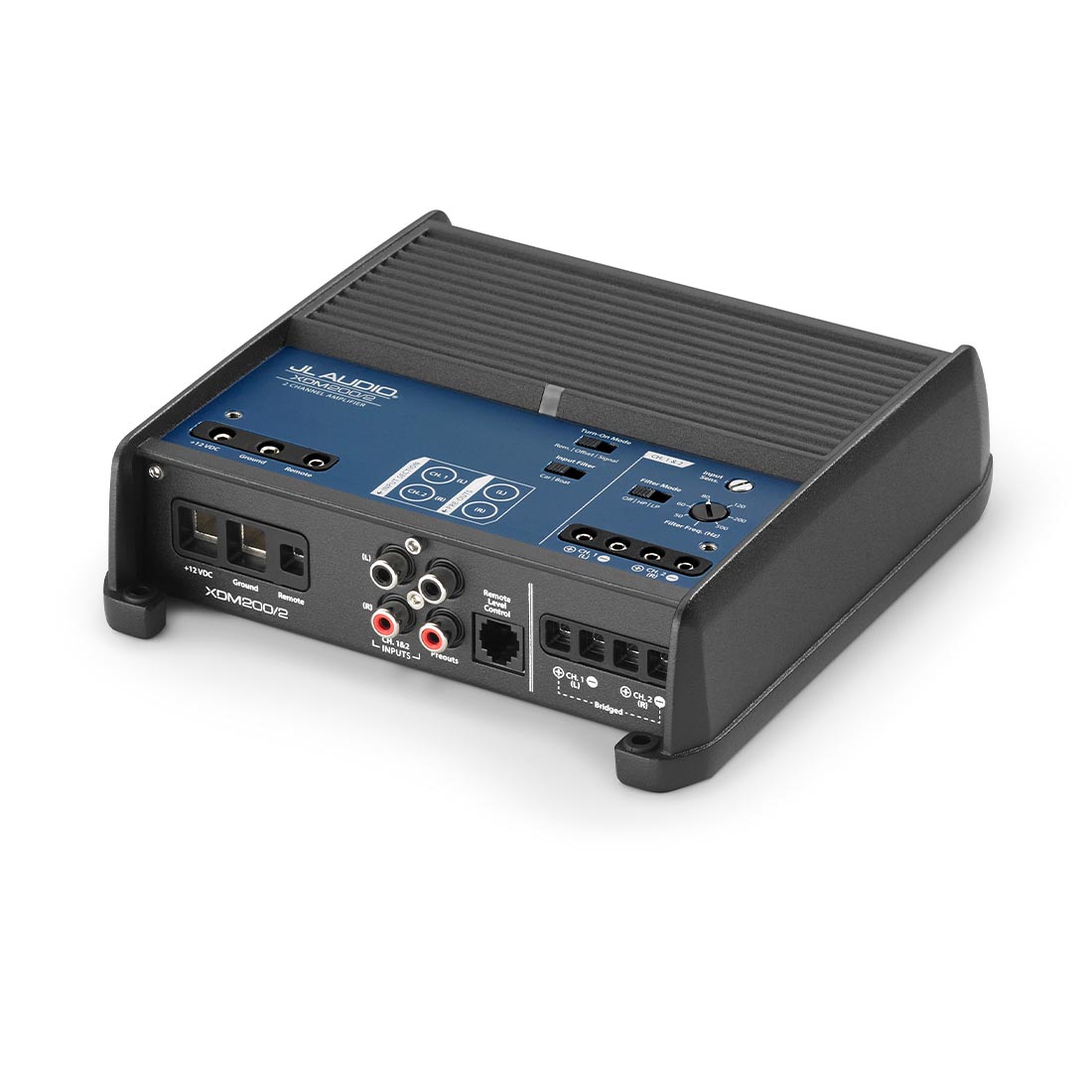

JL Audio XDM200/2 2 Channel 200 W Class D Full-Range Car/Marine Amplifier – #98679
XDM200/2: 2-Channel Class D Full-Range Car/Marine Amplifier, 100 W x 2 @ 2 Ohm / 75 W x 2 @ 4 Ohm - 14.4V
The small XDM200/2 delivers an astounding 100 watts per channel into a 2 ohm load at 14.4 V and 1% THD, giving it a tremendous full-range punch. Our cutting-edge NexD™ high-speed switching design, which enables full bandwidth Class D operation with incredibly low distortion and exceptional efficiency, is the technology that enables this much power in such a small chassis.
The XDM200/2 is designed with marine-grade materials and has a special dual-mode input filter for noise-free performance in boats or cars. For simple factory system upgrades, automatic turn-on capability (through signal detection or DC-offset sensing) is also built in.
The XDM200/2 includes a 12 dB / octave filter which can be configured as a low-pass or high-pass filter and offers continuously variable cutoff frequency selection from 50-500 Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), the amplifier's level can be adjusted directly from the driver's seat or cockpit.

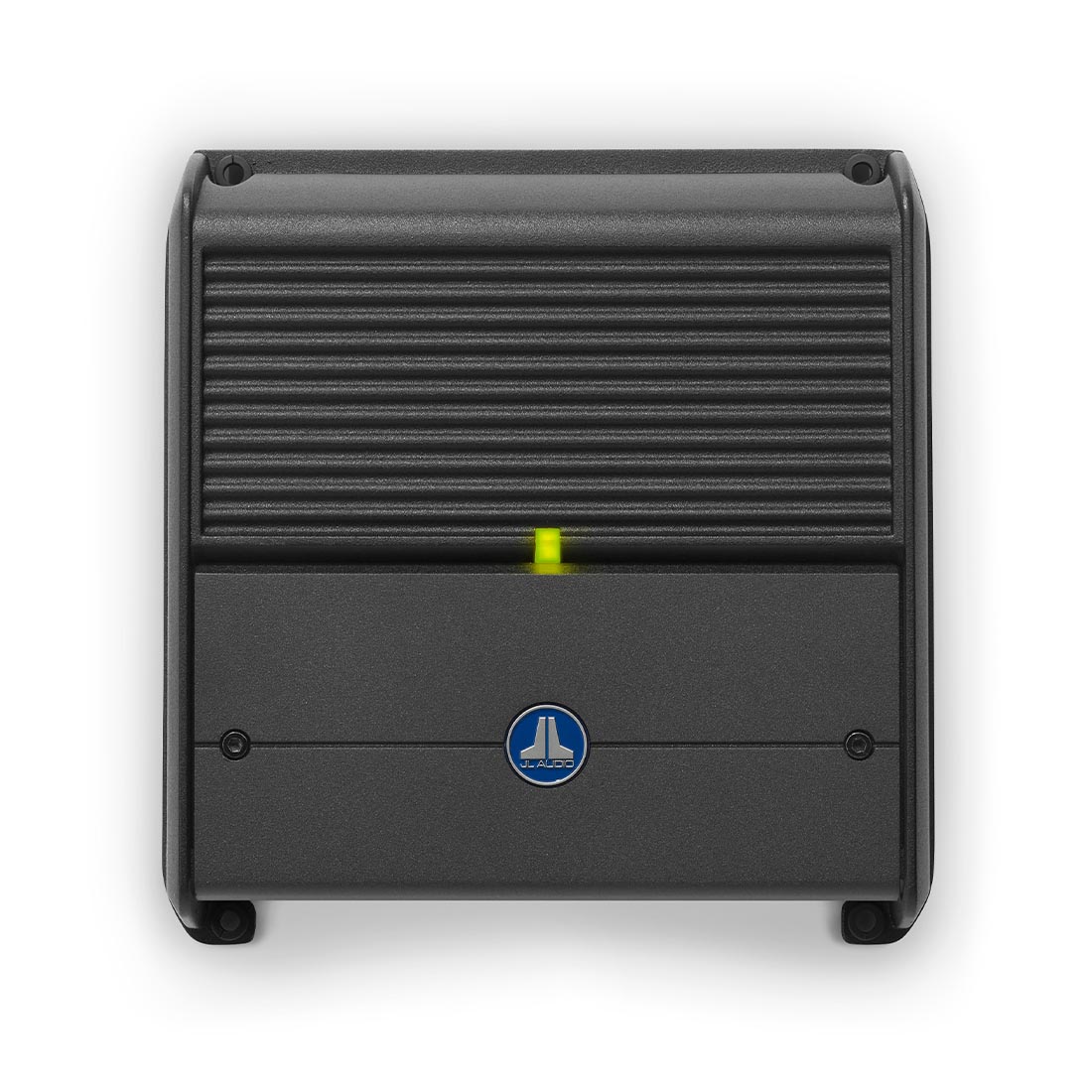

Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.
One Amp for Land or Sea!
- Marine-grade materials on every model for maximum application versatility from just one amplifier line.
- Exclusive, dual mode input filter, for noise-free performance in boats OR cars, every time!
- Automatic turn-on option via Signal-Sensing or DC-Offset sensing

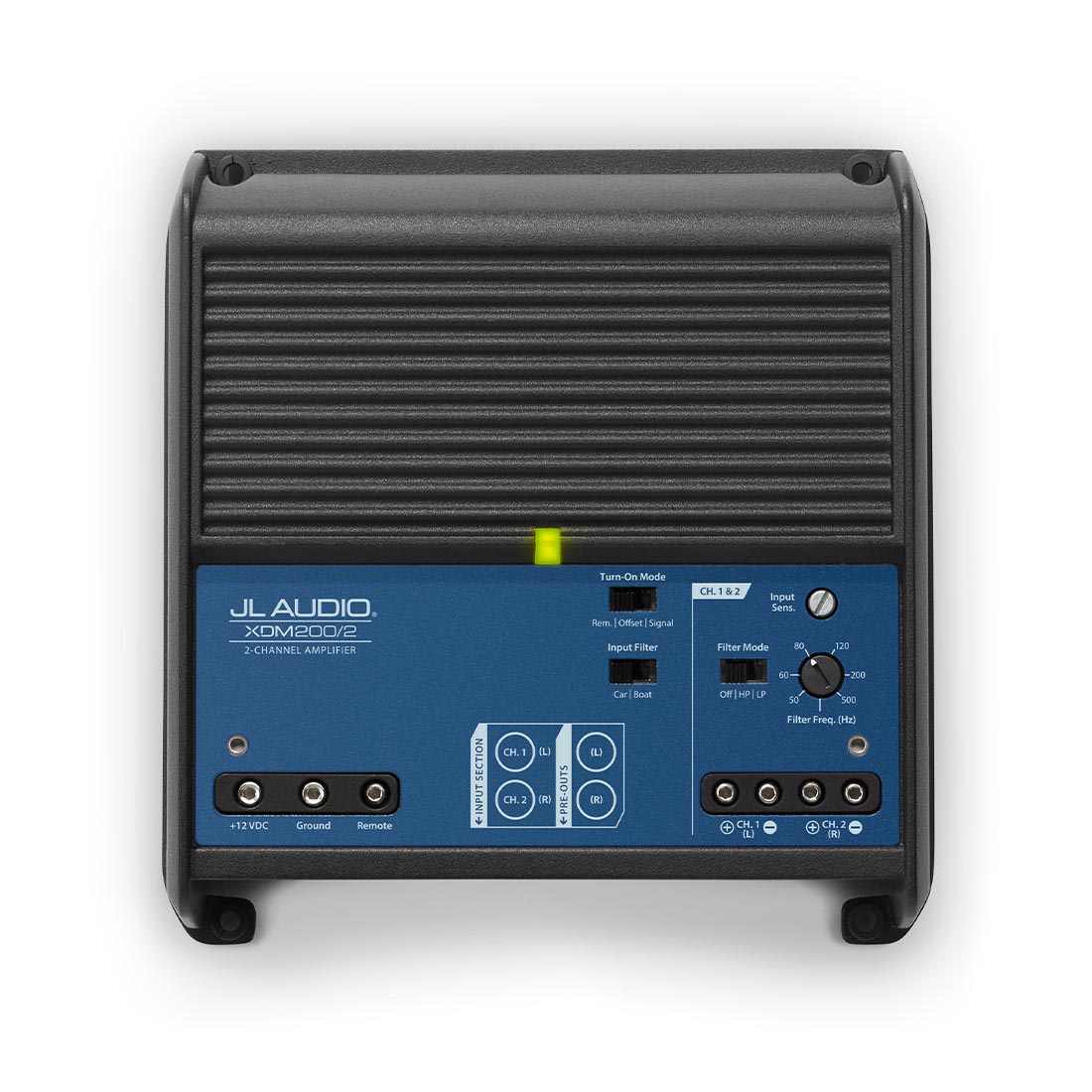

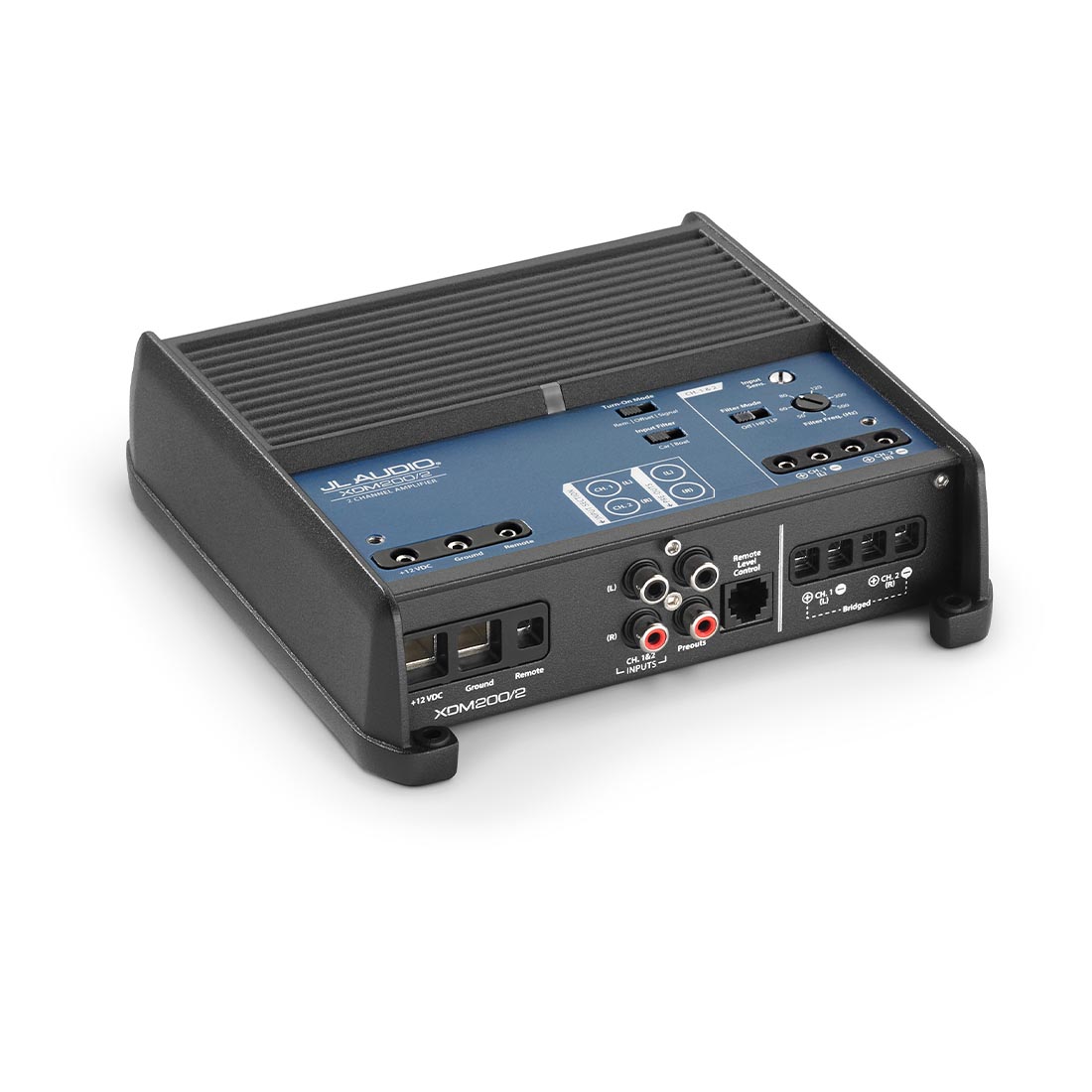

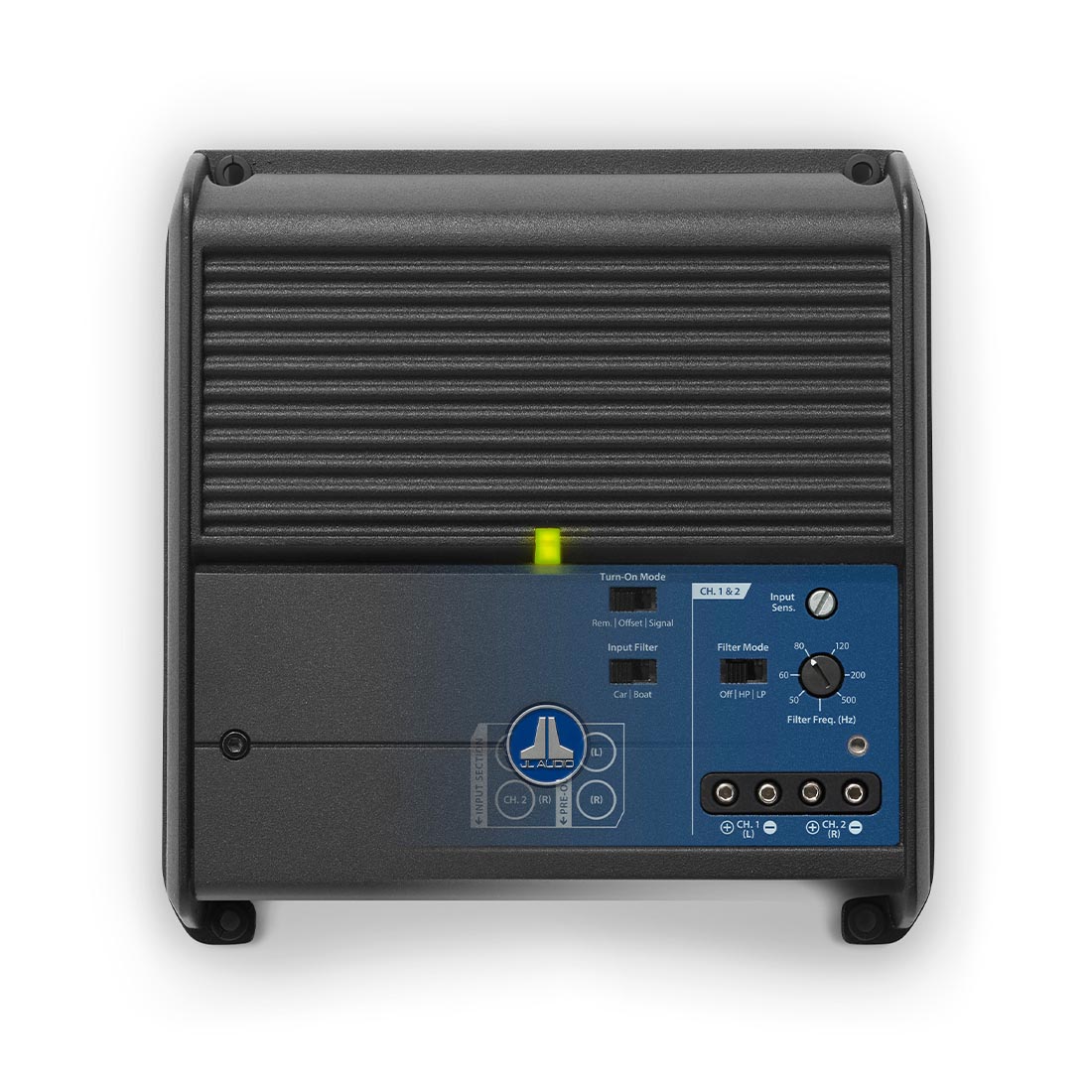

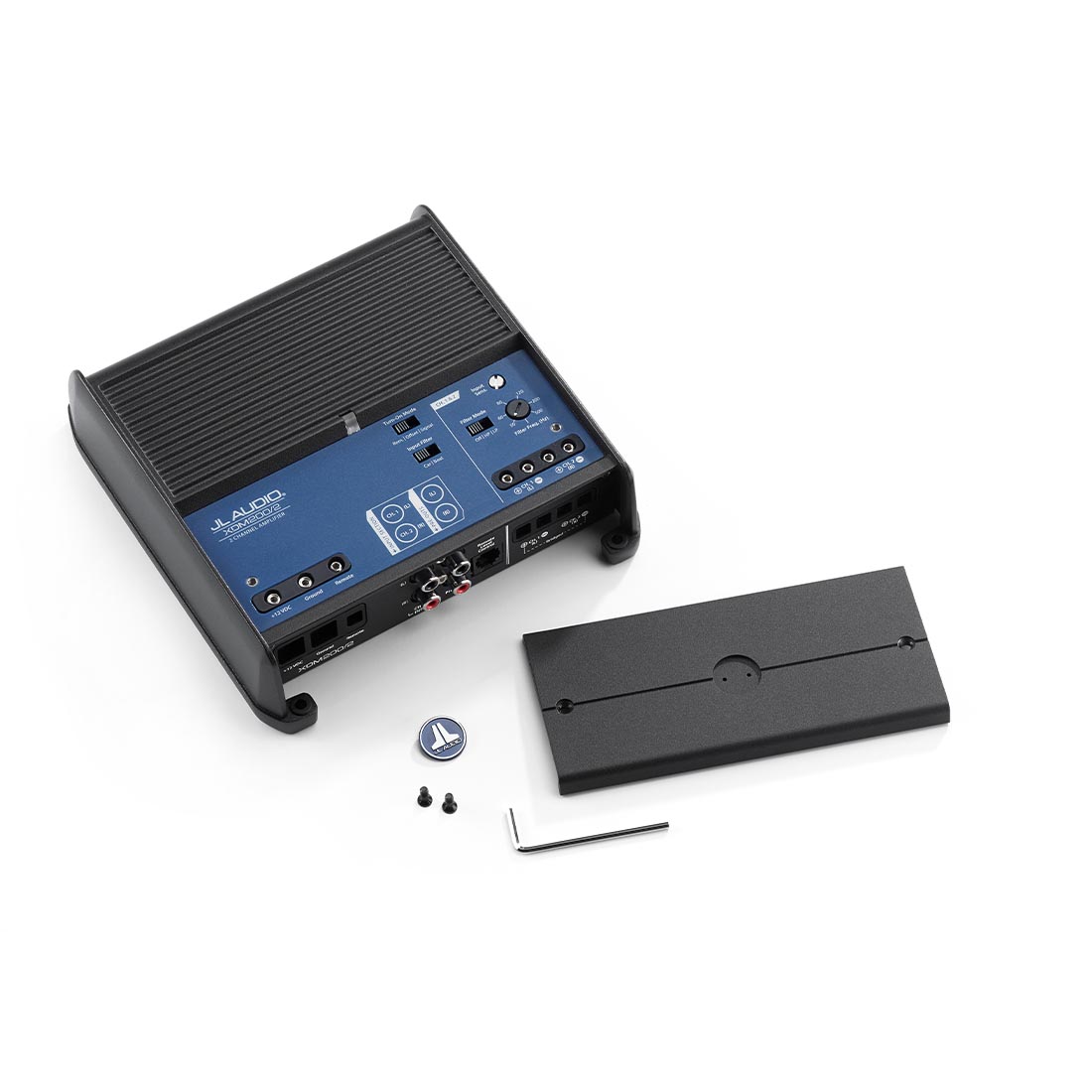

- All controls on top, beneath a gasketed, removable cover for easy access.
#2 Compact Design / Amazing Versatility
- Fits nearly anywhere: 6.85 x 7.09 x 2.05 in. (174 x 180 x 52 mm).
- Perfect for almost any 2-channel implementation
- Bridgeable to power a subwoofer system or a center channel
- Suitable for a wide range of applications, including automotive, marine, motorcycle and powersports.
#3 NexDTM Switching Amplifier Technology
- Our advanced switching technology delivers exceptional efficiency to reduce current draw and heat, permitting reliable high power output from a compact, easy to install design.
- Ultra-high speed switching and control circuitry delivers super-clean full-range audio with very low distortion and noise.
Here are a few examples of how the XDM200/2 can be used:
- Four-Channel Satellite Amp (drive front and rear speakers with 75W x 4)
- Three-Channel System Amp (drive front speakers with 75W x 2 and a subwoofer with up to 200W)
- Two-Channel, High-Power Satellite Amp (drive 1 pr. of speakers with 200W x 2)
- Two-Channel, High-Power Subwoofer Amp (drive two subwoofers with 200W x 2)
#4 Studio-Grade Signal Processing
- 12dB/octave high or low-pass filter with fully-variable frequency selection from 50-500 Hz via detented, calibrated potentiometer.
- Optional remote level controllers (HD-RLC or MHD-RLC).
- Preamp outputs (pass-through type)
#5 Advanced Rollback Protection
- Amplifier will never shut down due to thermal overload. EVER.
- Totally transparent to user in most cases... Restores full power operation when it has cooled down to safe temperature.
- Unitary Cast Alloy Chassis for superior heat dissipation and mechanical integrity.

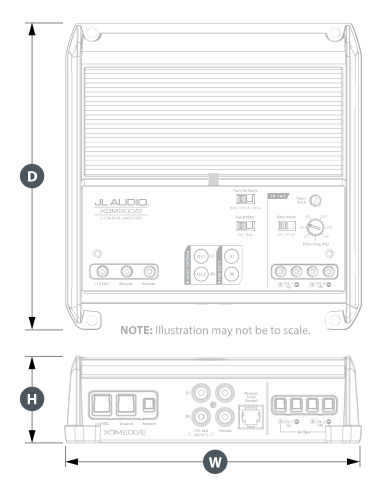

XDM200/2 Physical Specifications:
- Height (H): 2.05 in / 52 mm
- Width (W): 6.85 in / 174 mm
- Depth (D): 7.09 in / 180 mm
- Net Weight: 3.75 lb / 1.70 kg
