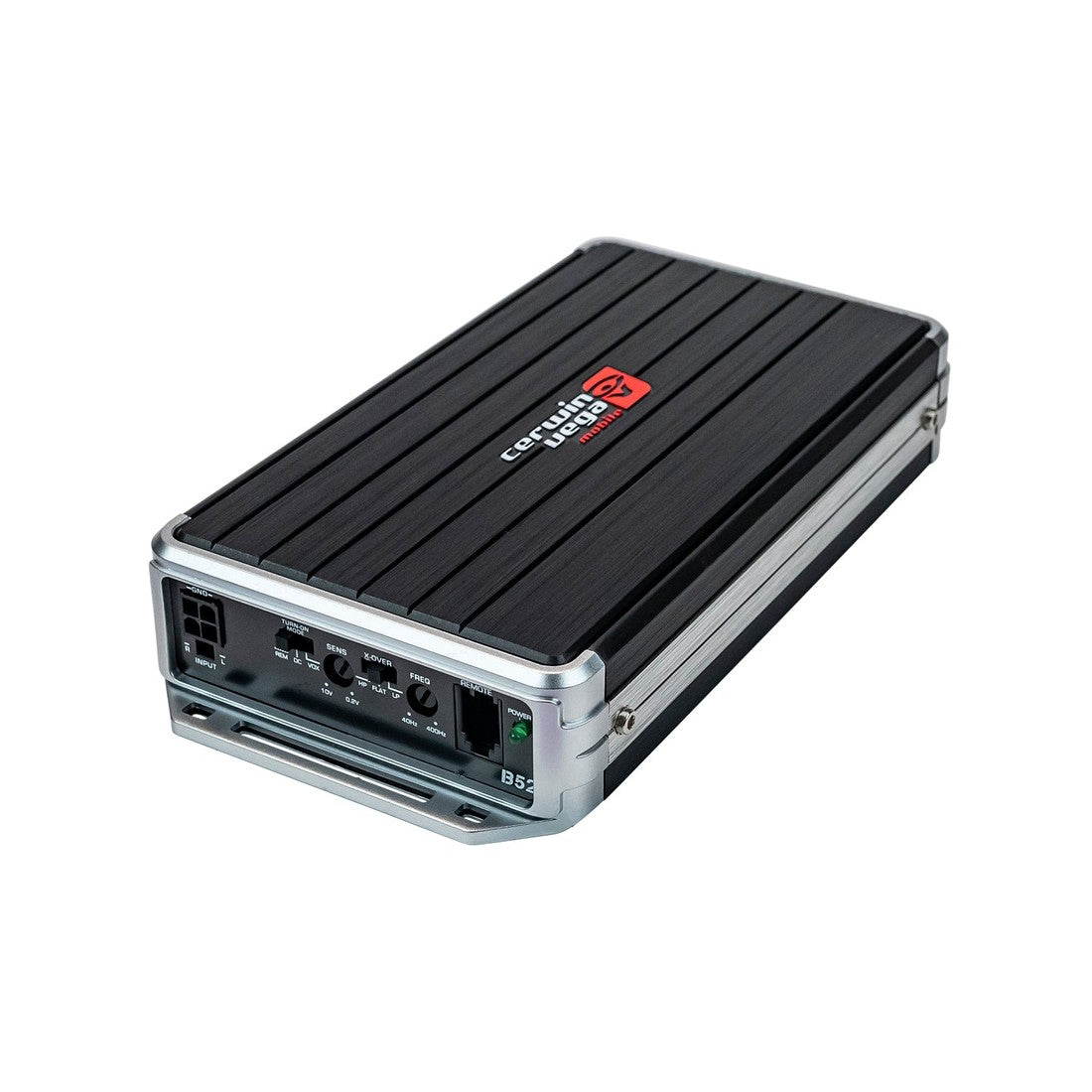

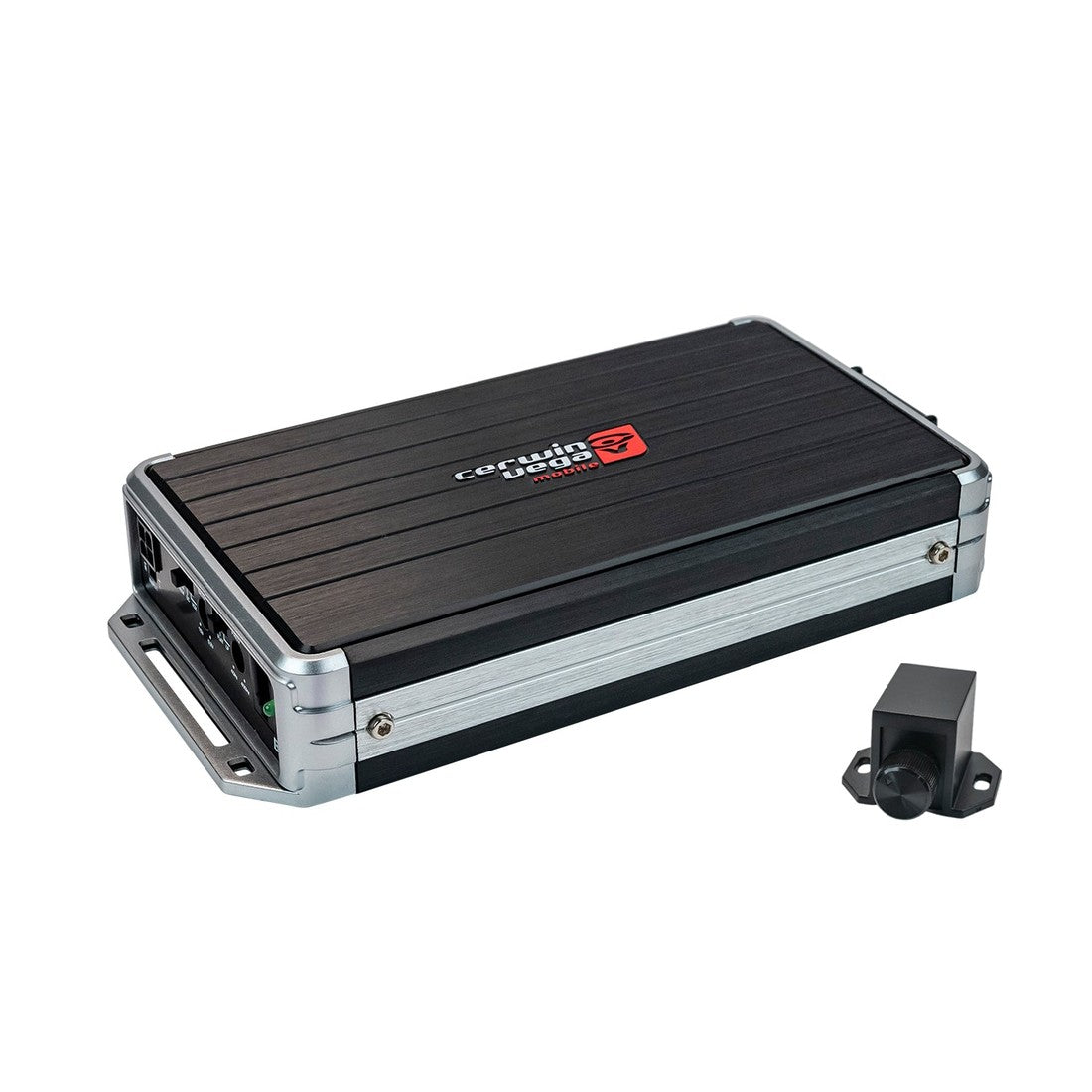

Cerwin Vega B52 Stealth Bomber Series 2-Channel 500W Full-Range Class D Amplifier

Cerwin Vega B52 Stealth Bomber Series 2-Channel 500W Full-Range Class D Amplifier

The Cerwin Vega B52 Stealth Bomber 2-Channel Class D Full Range Amplifier is a compact powerhouse engineered to deliver clean, dynamic sound with impressive efficiency. Built with high-efficiency full-range Class D digital topology and a Class D IR chipset with Direct-FET Power MOSFET output stage, it is designed for stable power performance, sound clarity, and flexible installation in modern car audio systems.

Compact Design for Tight Installation Spaces

Part of the innovative Cerwin Vega Stealth Bomber Series, the B52 combines advanced digital amplifier technology with a sleek, ultra-compact design that fits easily into tight installation spaces. Its ultra-compact high-density aluminum alloy chassis also provides excellent heat dissipation and structural protection for consistent performance in demanding automotive environments.

• Dimensions: 7.7” x 4.02” x 1.4”
• Ultra-compact high-density aluminum alloy chassis
• Weight: 2.8 lb
• Water Resistant Conformal PCB Board Coating

Clean, Dynamic Full-Range Performance

The Cerwin Vega B52 features a high-efficiency full-range Class D digital topology that provides powerful audio output while minimizing energy loss and heat generation. At its core, a Class D IR chipset with Direct-FET Power MOSFET output stage delivers precise signal processing and stable power performance so your music remains crisp, detailed, and distortion-free even at higher listening levels.

• 150W x 2 RMS at 4Ω
• 250W x 2 RMS at 2Ω
• 500W x 1 RMS bridged at 4Ω
• Frequency response: 70Hz–20kHz

Flexible System Configuration

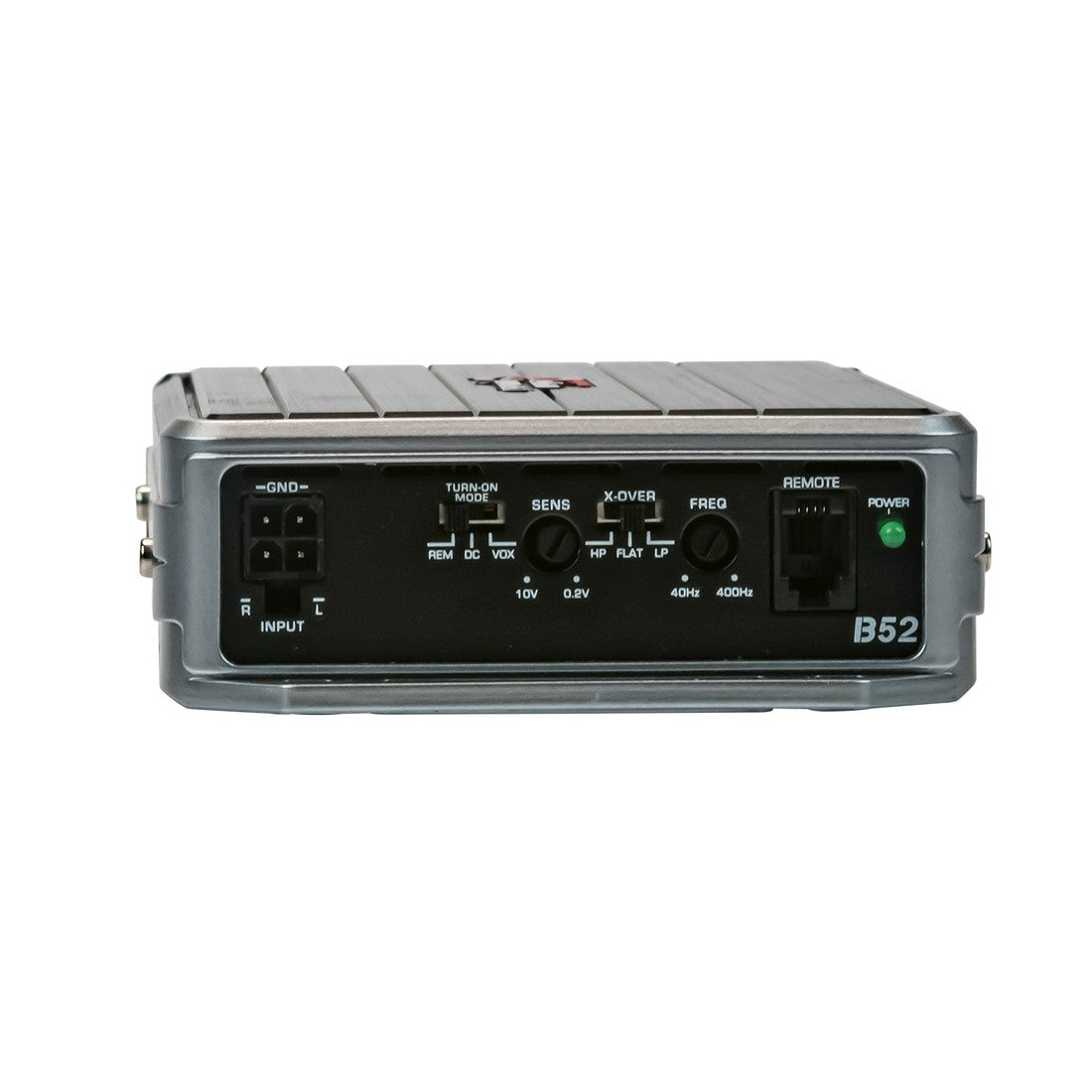

For sound customization, the amplifier includes switchable 12dB crossovers (HP/FLAT/LP), allowing you to configure it for full-range speakers or dedicated subwoofer applications. The VEGA Bass Boost feature enhances low-frequency response, while the remote turn-on configurator (REM/DC/VOX) enables seamless integration with factory or aftermarket head units.

• 12dB switchable HP/FLAT/LP crossovers
• Variable High-Pass / Variable Low-Pass: 40Hz–400Hz
• Remote turn-on configurator: REM/DC/VOX
• VEGA Bass Boost

Built-In Protection and Reliability

Built for durability and reliability, the Cerwin Vega B52 includes advanced rollback power and thermal protection to safeguard the amplifier during extreme operating conditions. These built-in safety features help maintain long-term reliability and consistent audio performance.

• Advanced rollback power protection
• Thermal protection
• Full PWM power supply

FAQs

1. Will this amplifier fit in tight installation spaces? Yes. The Cerwin Vega B52 uses a sleek, ultra-compact design and measures 7.7” x 4.02” x 1.4”.
2. Can it integrate with factory or aftermarket head units? Yes. It includes a remote turn-on configurator (REM/DC/VOX) for seamless integration with factory or aftermarket head units.
3. Can this amplifier be configured for speakers or subwoofer applications? Yes. The switchable 12dB crossovers (HP/FLAT/LP) allow configuration for full-range speakers or dedicated subwoofer applications.
