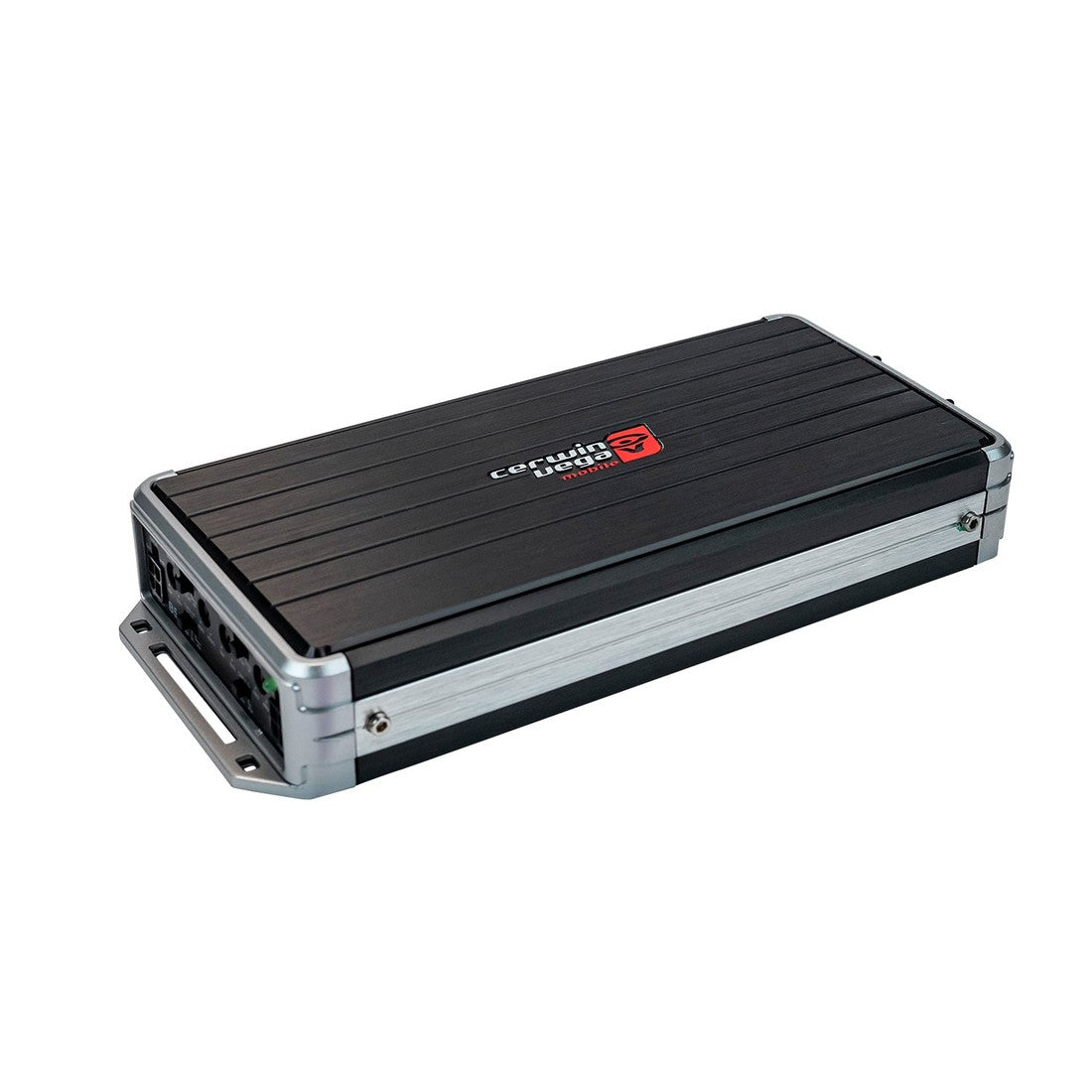

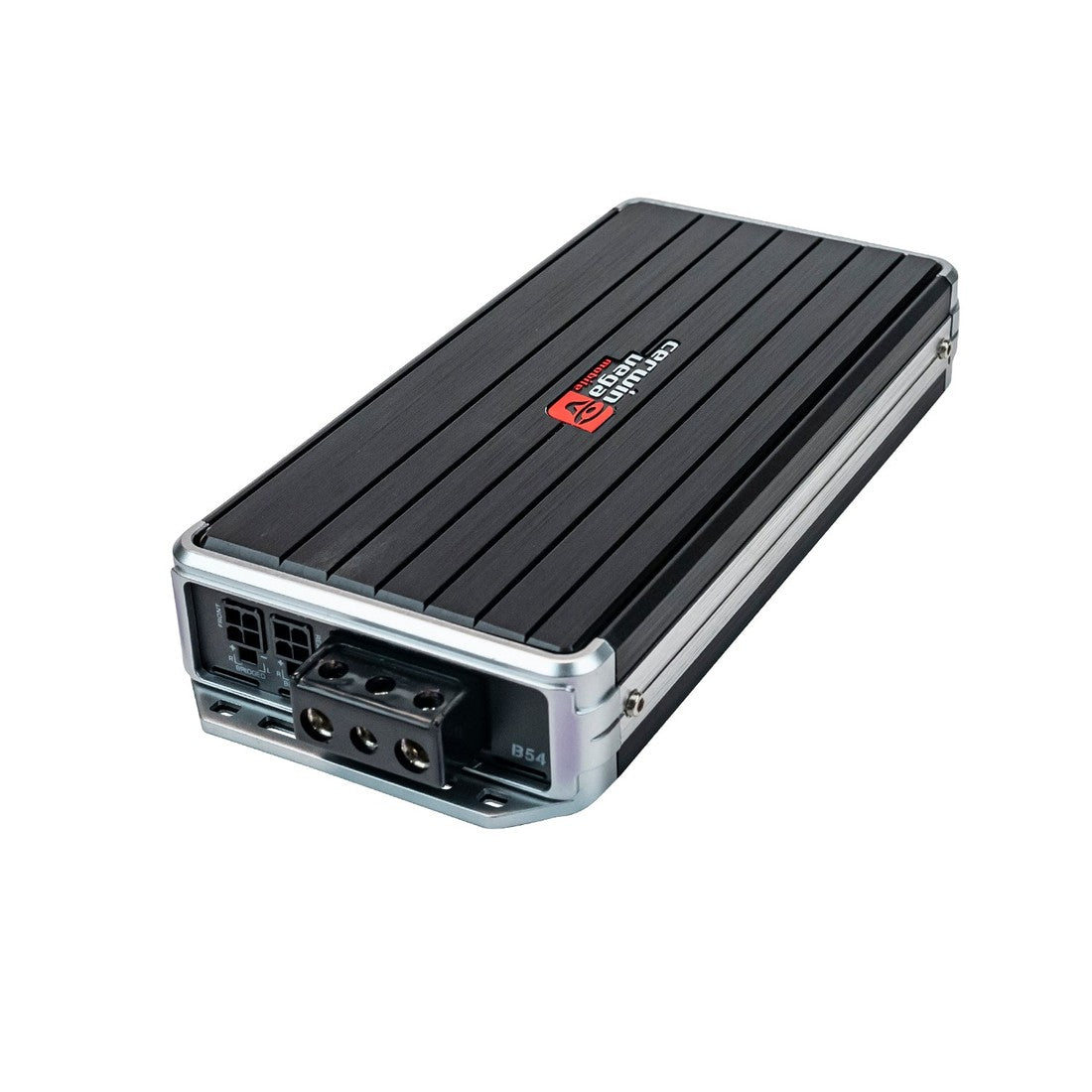

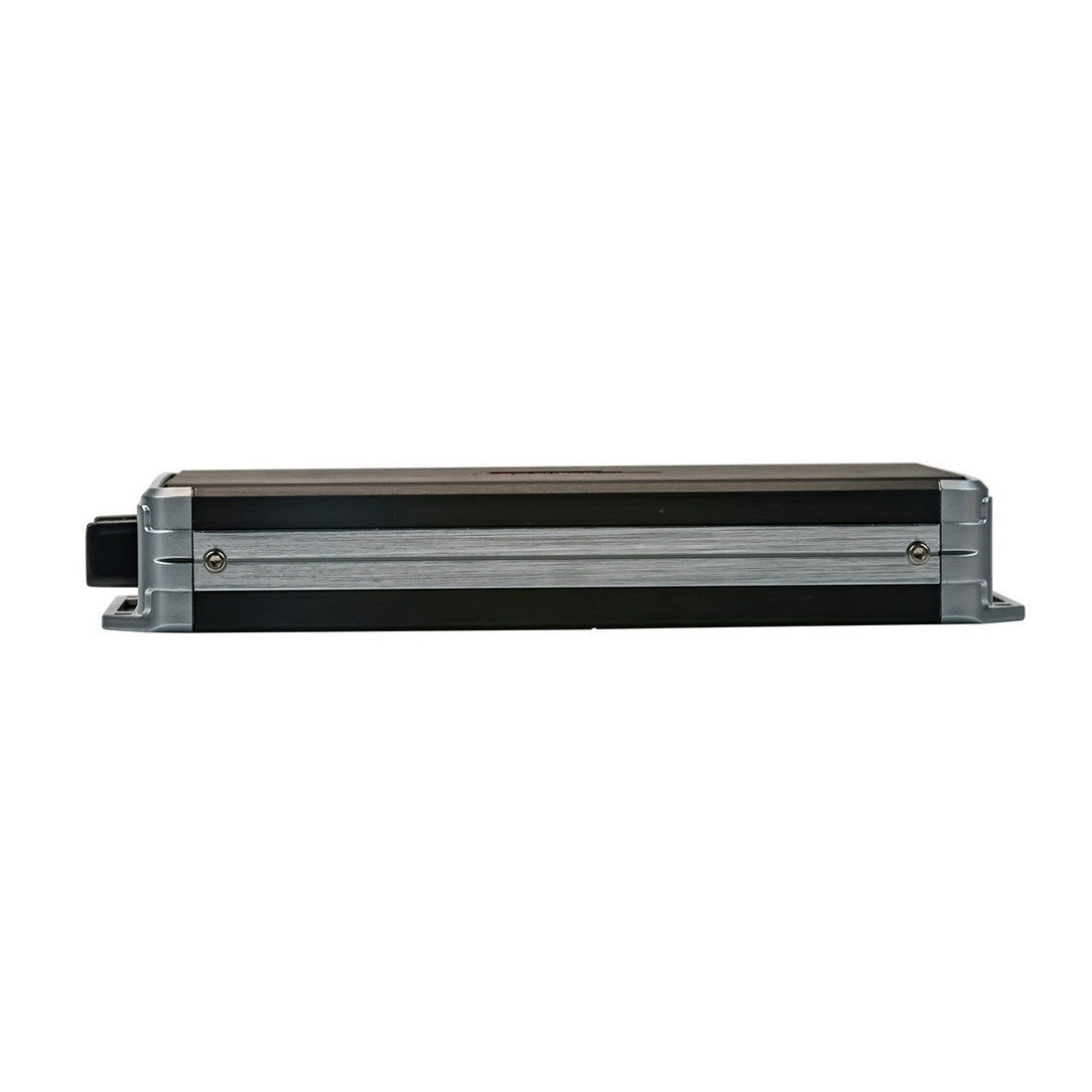

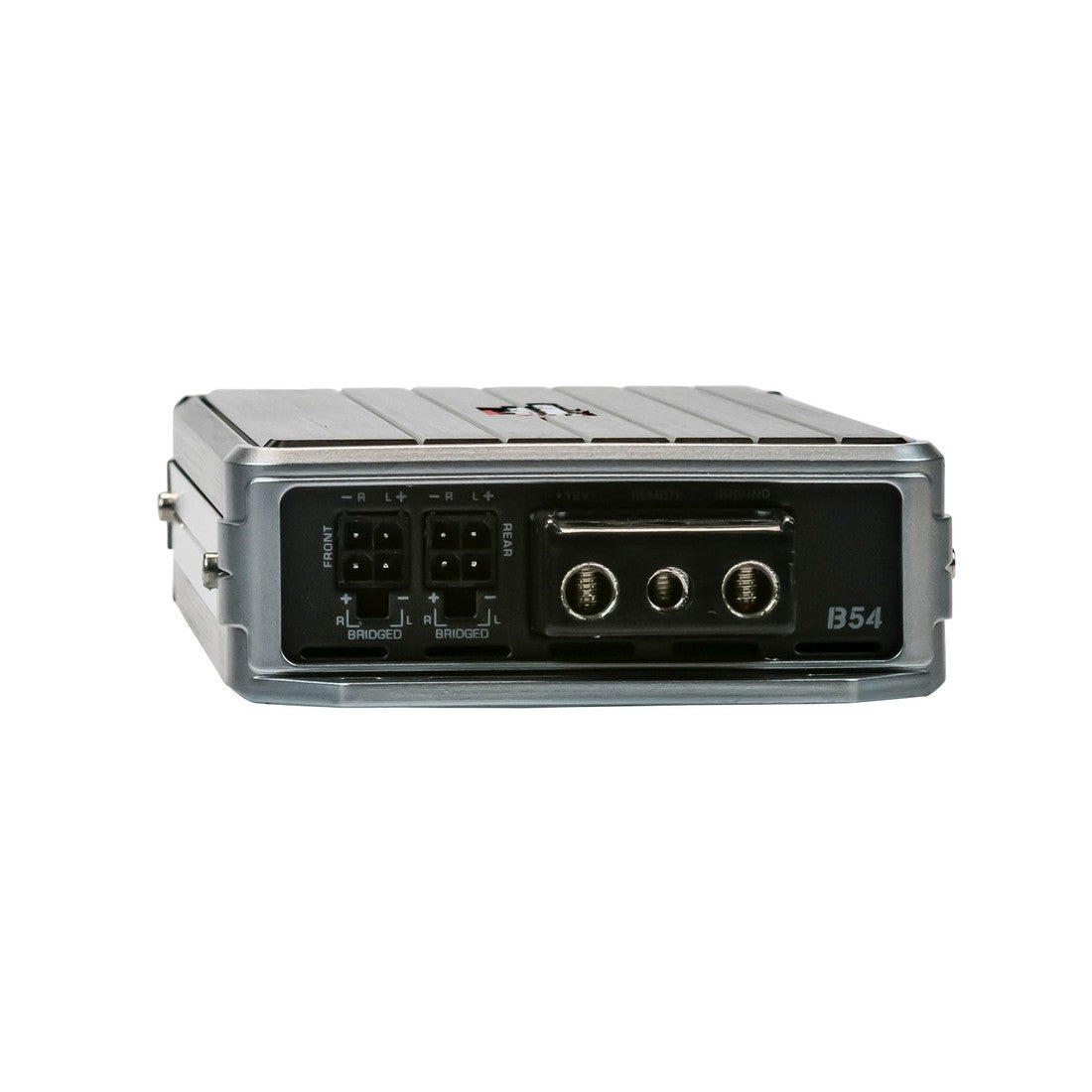

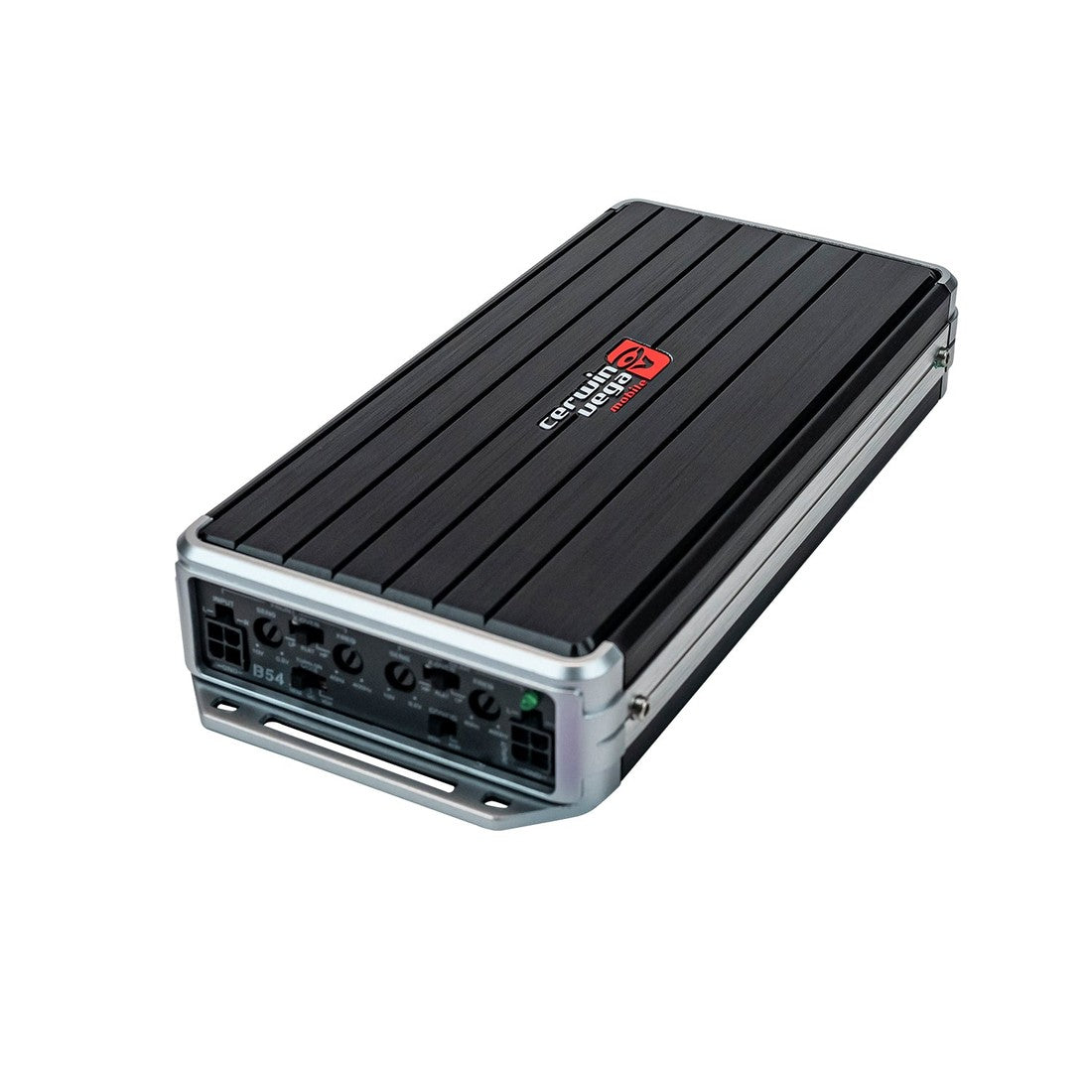

Cerwin Vega B54 Stealth Bomber Series 4-Channel 600W Full-Range Class D Amplifier

Cerwin Vega B54 Stealth Bomber Series 4-Channel 600W Full-Range Class D Amplifier

The Cerwin Vega B54 Stealth Bomber 4-Channel Class D Full-Range Amplifier is engineered to deliver exceptional clarity, efficiency, and performance in a compact, space-saving design. Built with high-efficiency Class D full-range digital amplifier topology, a Class D IR chipset, and Direct-FET Power MOSFET output technology, it is designed for modern car audio installations where space is limited but performance cannot be compromised.

Compact Power for Multi-Channel Systems

The B54 is designed to power your entire audio system while maintaining compact dimensions that fit easily under seats, behind panels, or in tight vehicle compartments. Its high-output capability and multi-channel flexibility make it a strong fit for modern speaker system upgrades.

• 4-channel Class D full-range amplifier
• 80W x 4 RMS at 4 ohms
• 150W x 4 RMS at 2 ohms
• 300W x 2 RMS bridged at 4 ohms
• Dimensions: 8.8” x 4.0” x 1.4”

Efficient Class-D Design with Precise Signal Processing

Using high-efficiency Class D full-range digital amplifier topology, the Cerwin Vega B54 produces powerful output with minimal heat and energy loss. Its Class D IR chipset and Direct-FET Power MOSFET output stage provide stable power and precise signal processing for crisp highs, detailed midrange, and controlled low-frequency response.

• High-efficiency digital amplifier topology
• Full Range Class D IR Chipset
• DirectFET Power Mosfet Output Stage
• THD: 0.05% (1KHz @ 4Ω)

Built for Durability and Reliable Operation

The ultra-compact high-density aluminum alloy chassis provides excellent thermal management and rugged protection. Advanced rollback power and thermal protection help safeguard the amplifier and connected components during extreme operating conditions, while the Water Resistant Conformal PCB Board Coating adds durability.

• Ultra-compact aluminum alloy chassis design
• Advanced power and thermal protection
• Water Resistant Conformal PCB Board Coating

Flexible Tuning and Easy Integration

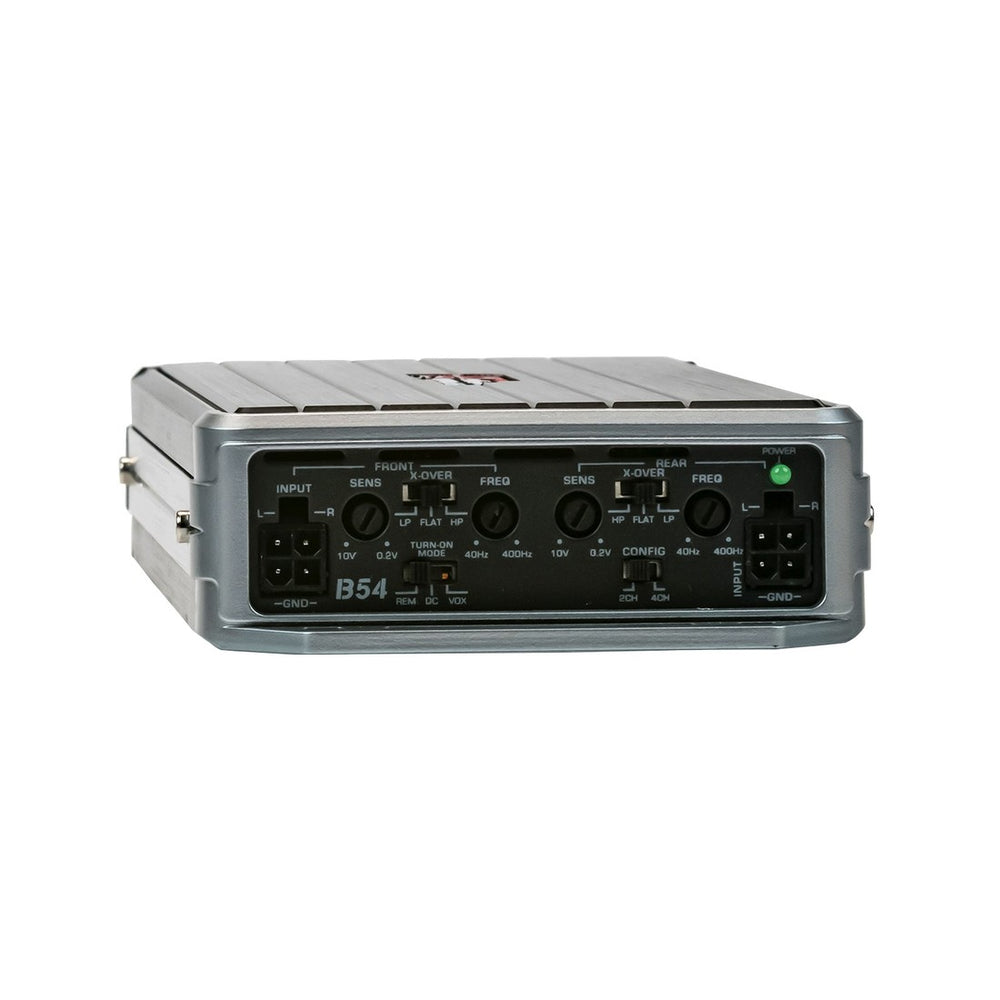

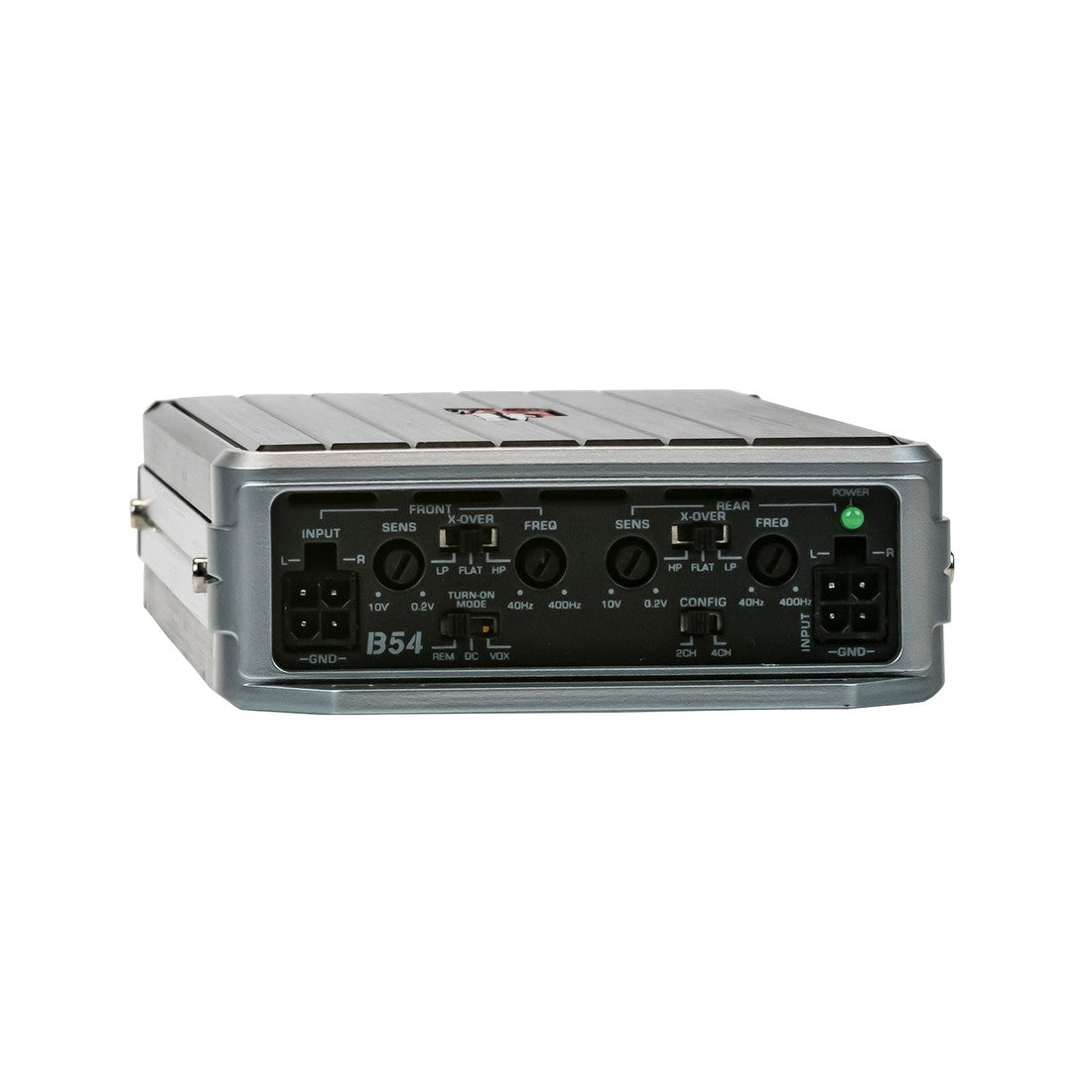

The Cerwin Vega B54 offers flexible audio tuning with switchable 12dB HP/FLAT/LP crossovers, allowing channels to be configured for full-range speakers or bridge channels for subwoofer applications. A remote turn-on configurator (REM/DC/VOX) supports seamless integration with both factory and aftermarket head units, while VEGA Bass Boost enhances low-frequency output.

• 12dB switchable HP/FLAT/LP crossovers
• Variable High-Pass: 40Hz-400Hz
• Variable Low-Pass: 40Hz-400Hz
• VEGA Bass Boost
• Remote turn-on configurator (REM/DC/VOX)

FAQs

1. Will this amplifier fit in tight installation spaces? Yes. The ultra-compact chassis measures 8.8” x 4.0” x 1.4”, making it suitable for installation under seats, behind panels, or in tight vehicle compartments.
2. Can the Cerwin Vega B54 integrate with factory and aftermarket head units? Yes. It includes a remote turn-on configurator (REM/DC/VOX) for seamless integration with both factory and aftermarket head units.
3. Can this amplifier be configured for speakers or bridged subwoofer applications? Yes. It features switchable 12dB HP/FLAT/LP crossovers for full-range speakers or bridged channel setups, and it delivers 300W x 2 RMS bridged at 4 ohms.
4. Does the amplifier include built-in protection? Yes. Advanced rollback power and thermal protection help safeguard the amplifier and connected components during extreme operating conditions.
