Cerwin Vega CVP3600.1 CVP Series 3600W Class D Monoblock Amplifier (CVP36001)

Cerwin Vega CVP3600.1 CVP Series 3600W Class D Monoblock Amplifier with Compact Chassis (CVP36001)

The Cerwin Vega CVP3600.1 is a 1-channel CVP Series Monoblock Class D Amplifier engineered for serious bass enthusiasts who demand maximum output in a compact, space-saving design. Built specifically for subwoofer applications, it delivers deep, controlled low-frequency power with installation flexibility for modern vehicles.

Compact Chassis for Flexible Installation

Part of the newly redesigned CVP Series Amplifiers, the Cerwin Vega CVP3600.1 combines power, performance, and affordability in a small chassis that fits where larger amplifiers may not. Its compact footprint makes it ideal for cars, trucks, and SUVs where space is limited.

• Compact chassis design
• Dimensions: 9.65" x 4.92" x 1.93"
• Can be mounted under a seat, behind a panel, or in a tight trunk space
• Weight: 5.0 lb

Deep, Controlled Bass Output

Designed specifically for subwoofer applications, this mono car amplifier delivers strong bass response with the unmistakable punch that defines Cerwin Vega performance. It enhances impact and overall system balance while maintaining clarity and consistency at high volume levels.

• 3600 watts max power
• RMS Power @ 4Ω: 500W x 1
• RMS Power @ 2Ω: 900W x 1
• RMS Power @ 1Ω: 1300W x 1
• Frequency Response: 10Hz-400Hz
• Bass Boost: 12dB

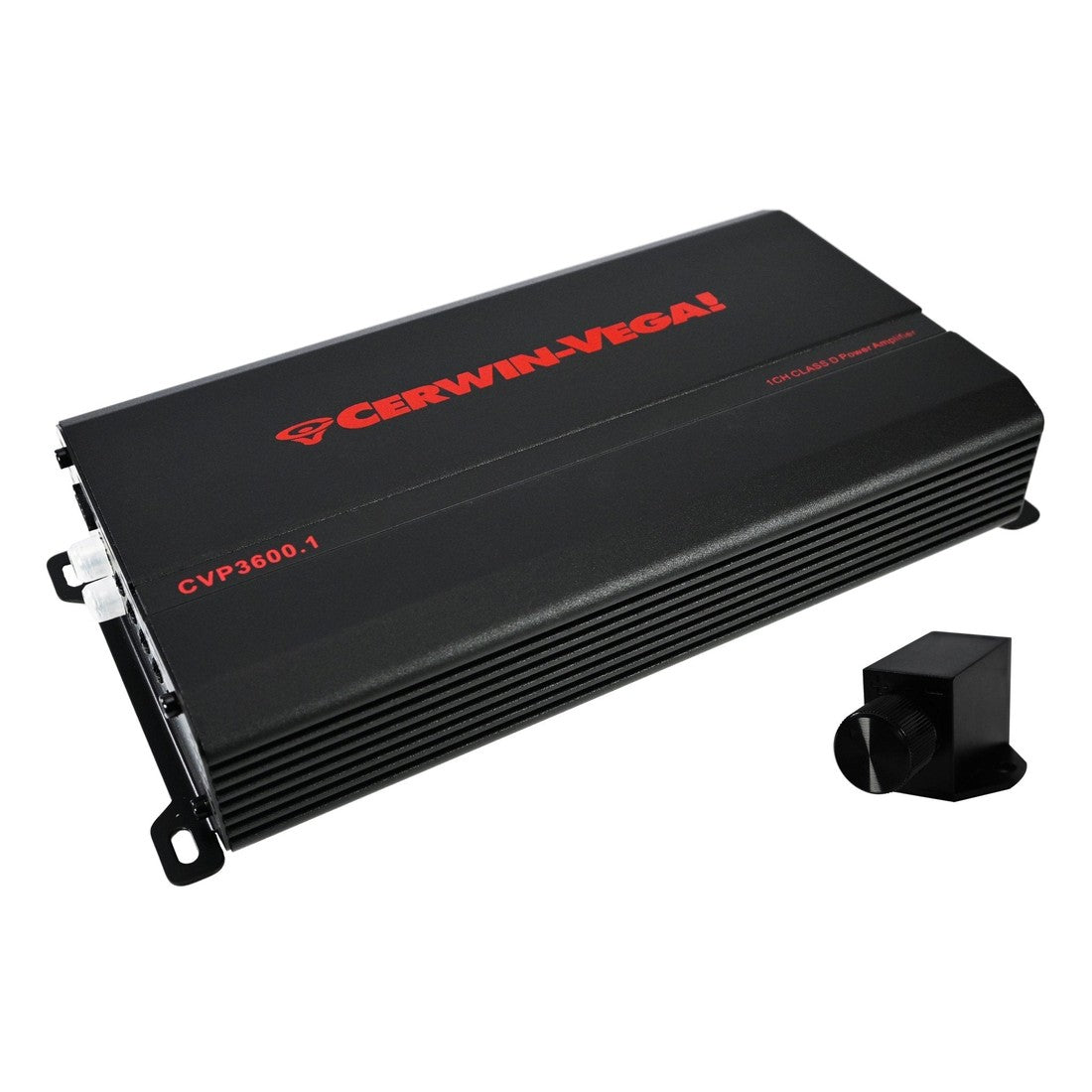

• Subwoofer Level Remote Control Included

Easy Integration with Factory and Aftermarket Radios

Equipped with high-level inputs, the Cerwin Vega CVP3600.1 integrates seamlessly with both factory and aftermarket radios, making it an excellent upgrade for OEM systems without replacing the head unit. This installation flexibility helps simplify system upgrades across a wide range of vehicles.

• High-Level Inputs with Auto Turn On (4v-8v)
• Sensitivity: 250mV-6V
• Adjustable Low-Pass Filter: 52Hz-400Hz
• High Pass Filter/Subsonic: 10Hz-50Hz

Built for Stable, Reliable Operation

Built with reliability and efficiency in mind, the Cerwin Vega CVP3600.1 ensures stable operation and consistent power delivery for daily driving or high-performance setups. Integrated protection features help support dependable performance.

• Full MOSFET DC-DC PWM Power Supply
• Double Sided 2-Layer PC Board
• SMD Technology
• Short Circuit Protection
• Low Impedance Protection
• Reverse Polarity Protection
• Over Heating Protection
• Power Protection Indicator
• Fuse: 35A x 4

FAQs

1. Is the Cerwin Vega CVP3600.1 designed for subwoofers? Yes. It is designed specifically for subwoofer applications and delivers deep, controlled low-frequency power.
2. Can this amplifier work with a factory radio? Yes. It includes high-level inputs and integrates with both factory and aftermarket radios.
3. Is a remote bass level control included? Yes. A Subwoofer Level Remote Control is included with the Cerwin Vega CVP3600.1.
4. Will it fit in a tight installation space? Yes. Its compact chassis is intended for installation under a seat, behind a panel, or in a tight trunk space.
