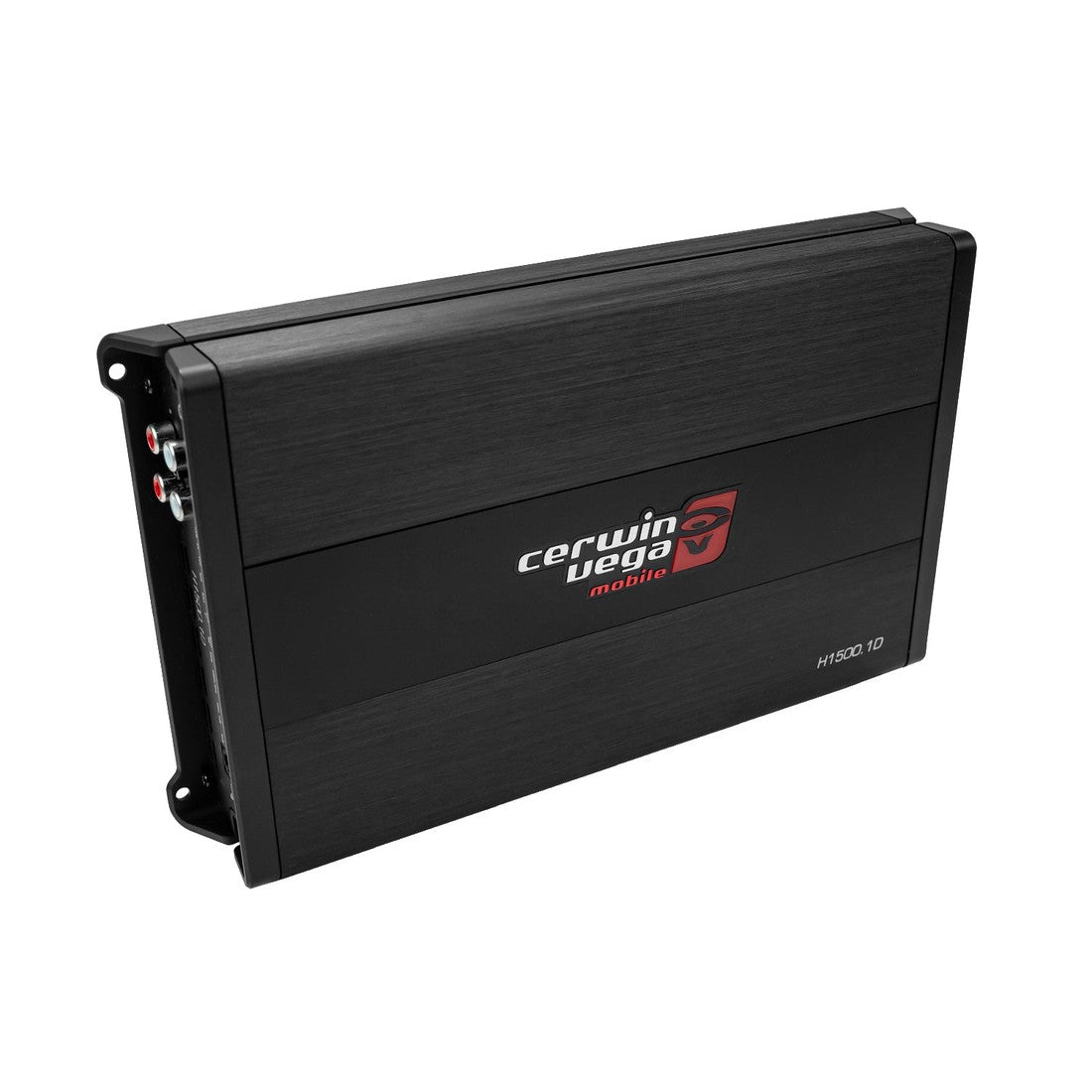

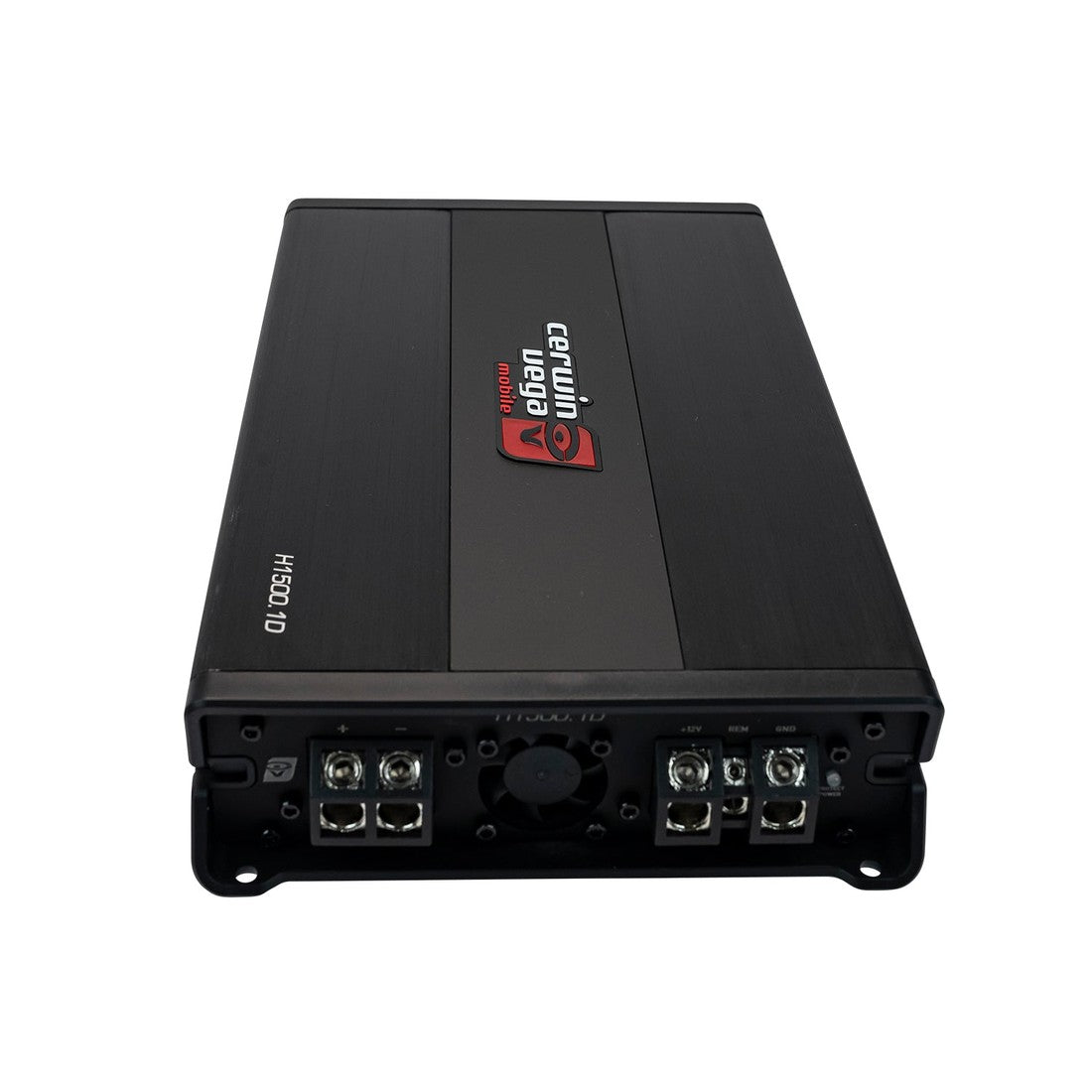

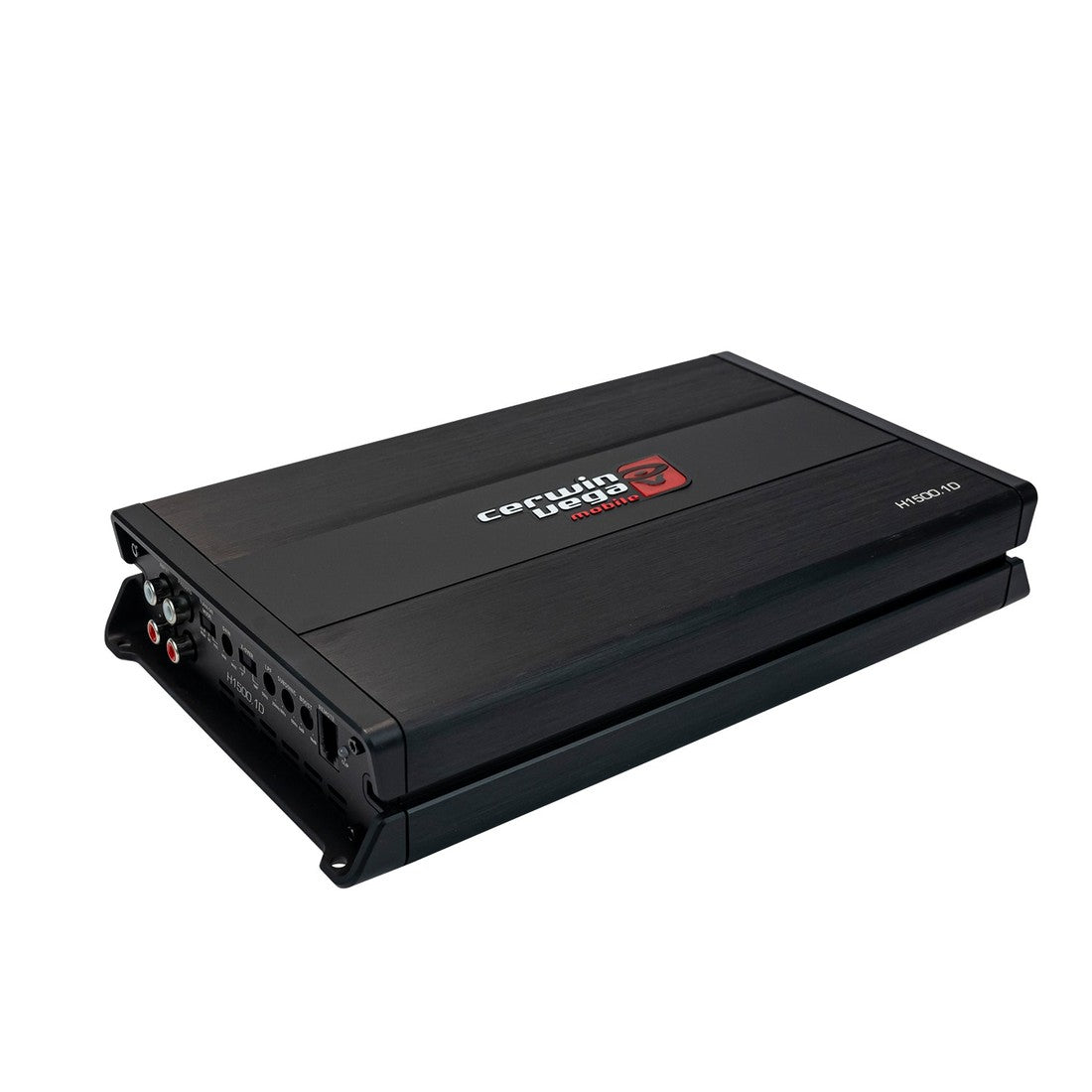

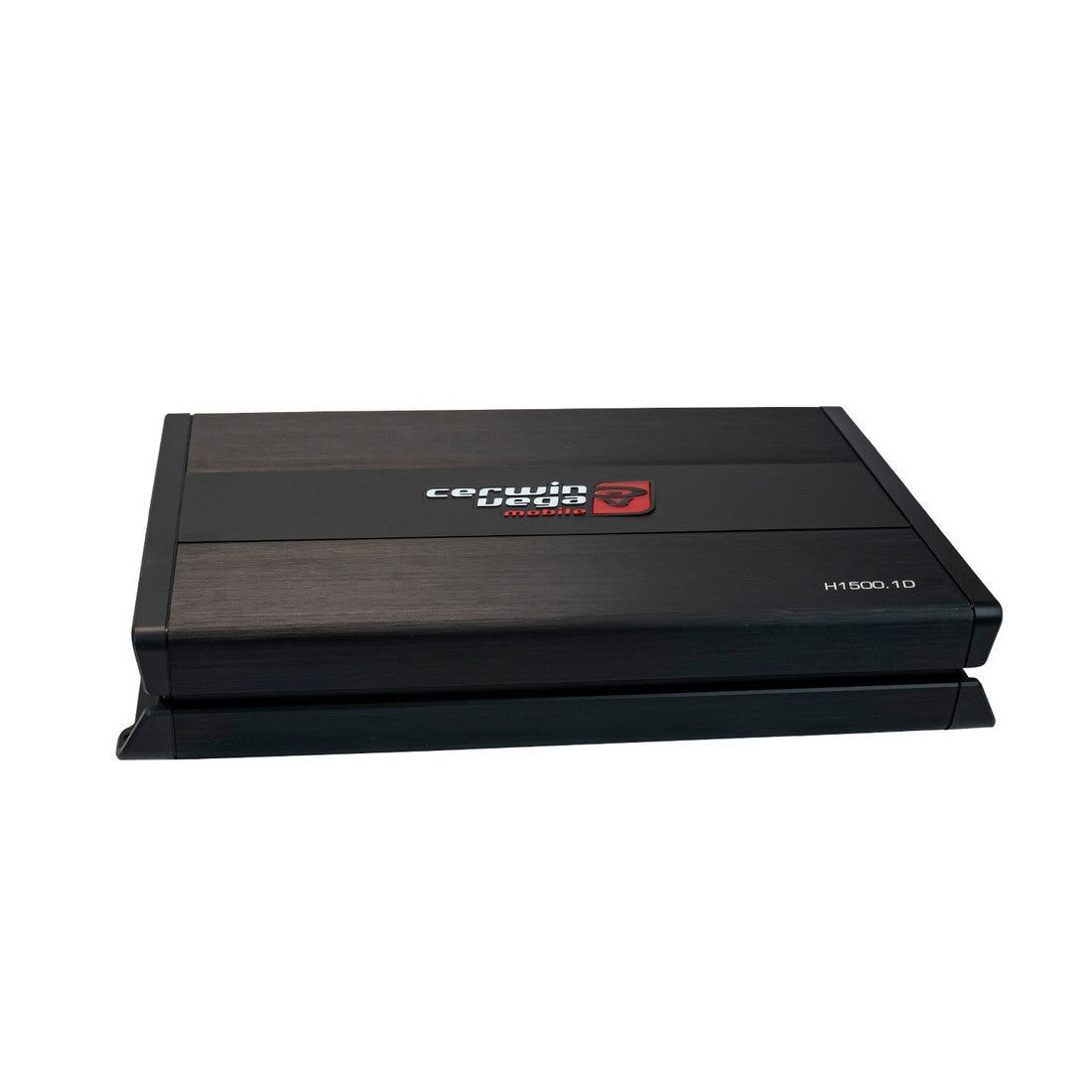

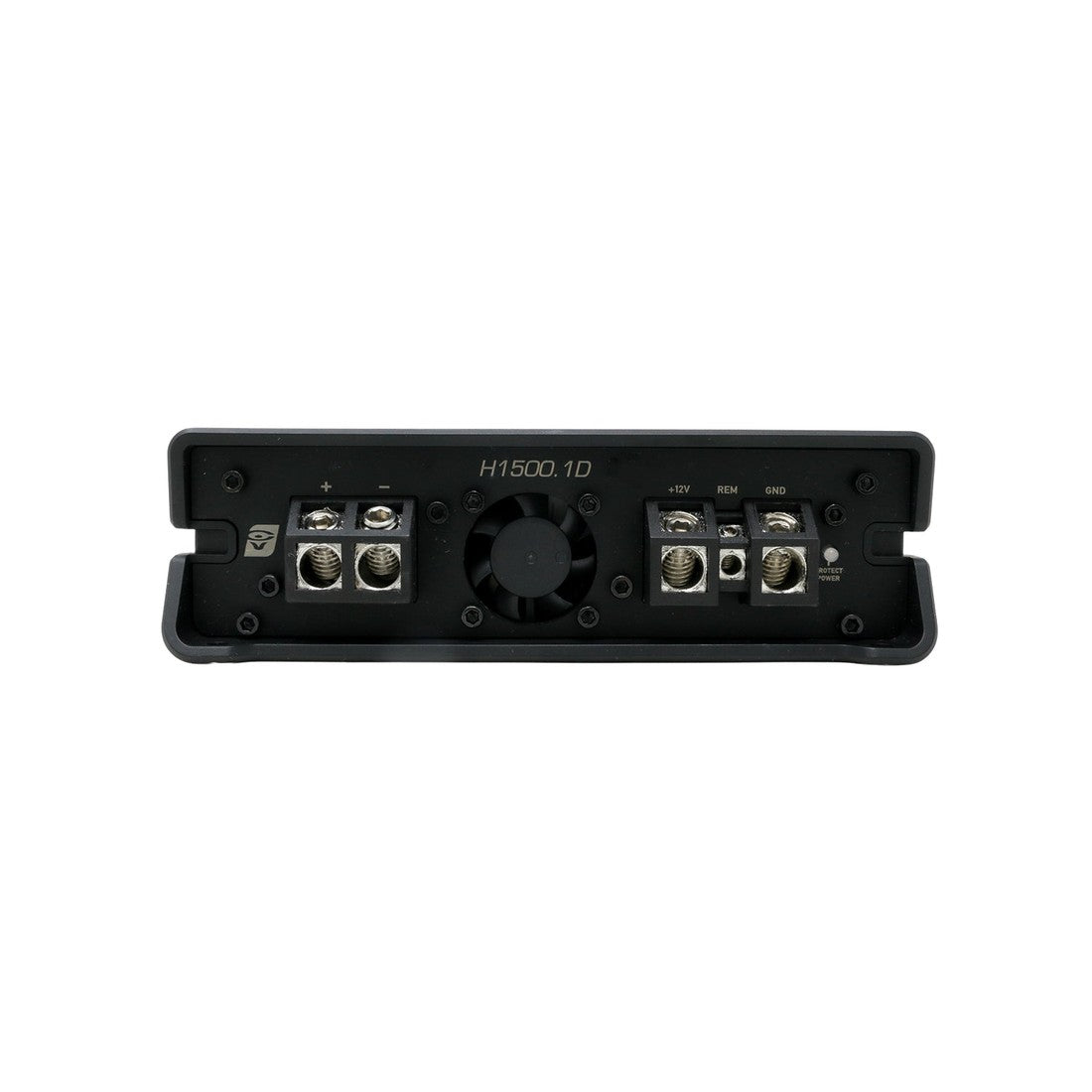

Cerwin Vega H1500.1D HED Series 1500W Class D Monoblock Amplifier (H15001D)

Cerwin Vega H1500.1D HED Series 1500W Class D Monoblock Amplifier (H15001D)

The Cerwin Vega H1500.1D HED Series monoblock amplifier is engineered to deliver powerful bass output, exceptional efficiency, and long-lasting reliability for car audio systems. Built around advanced Class D amplifier technology and a lightweight aluminum chassis, it is designed to drive high-performance subwoofers while maintaining clean, distortion-free sound.

High-Efficiency Class-D Power for Subwoofers

This Class D monoblock car amplifier is built to provide the consistent power required for deep, impactful bass. Its high-efficiency design maximizes power output while minimizing heat generation, helping reduce unnecessary strain on your vehicle’s electrical system.

• Class D monoblock amplifier
• 600W x 1 RMS at 4Ω
• 1000W x 1 RMS at 2Ω
• 1500W x 1 RMS at 1Ω

Engineered for Clean, Controlled Low Frequency Performance

The Cerwin Vega H1500.1D is ideal for powering car audio subwoofers with strong low-frequency response and tight bass control. Optimized circuitry and precision engineering help the amplifier maintain clear, accurate sound reproduction even at high output levels.

• Frequency response: 50Hz-500Hz
• THD: <0.3%
• Damping Factor (50Hz @ 4Ω): >100
• Variable Low-Pass: 50Hz-250Hz
• Variable Sub-Sonic: 50Hz-250Hz

Cool Operation and Long-Term Reliability

A lightweight aluminum chassis enhances heat dissipation and improves overall thermal management, helping keep the amplifier running cool during extended high-power listening sessions. Combined with rugged construction and high-quality internal components, this design supports reliable operation and long-term performance in demanding environments.

• Lightweight aluminum chassis
• Improved heat dissipation
• Durable construction
• Compact footprint for flexible installation
• Dimensions: 11” x 6.3” x 1.9”

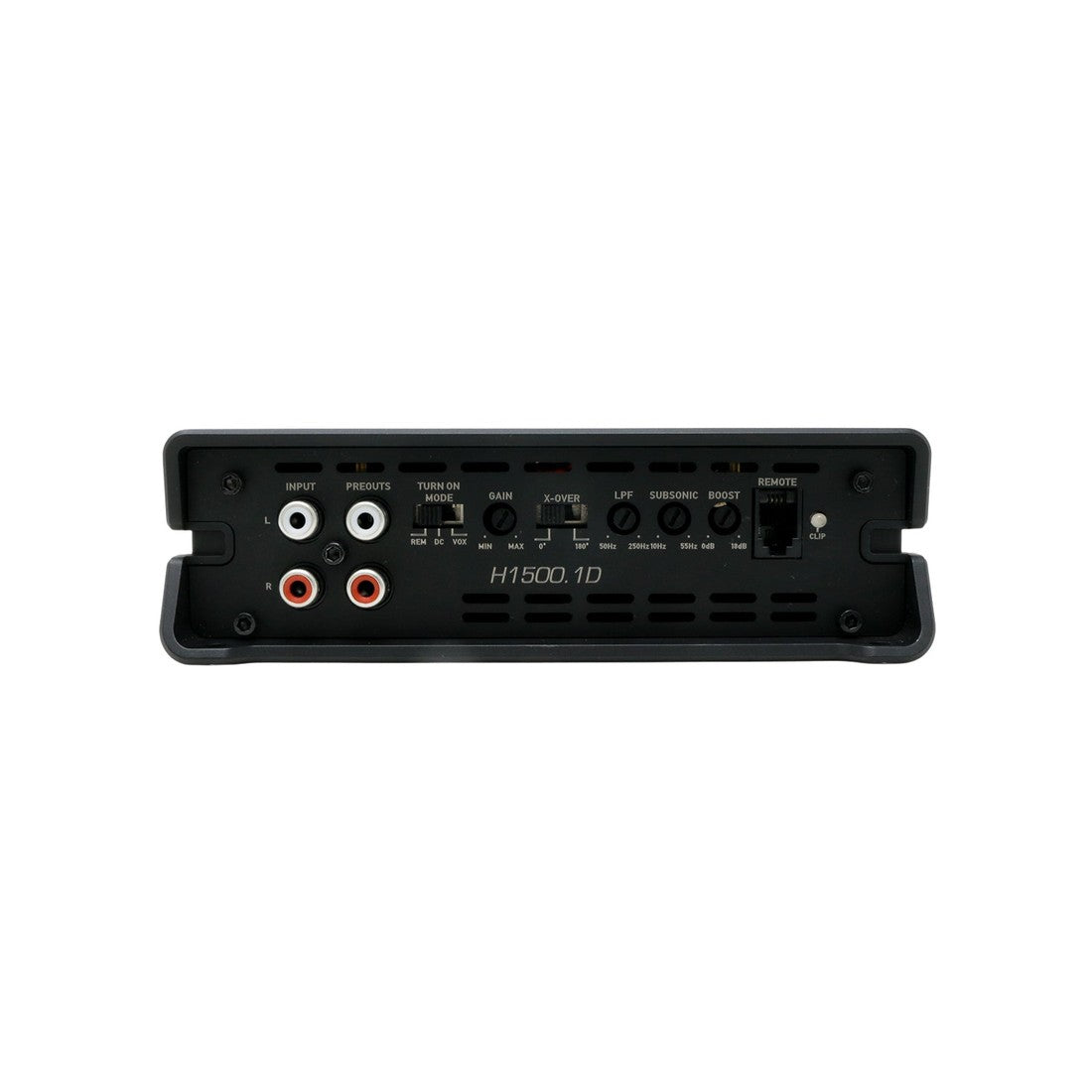

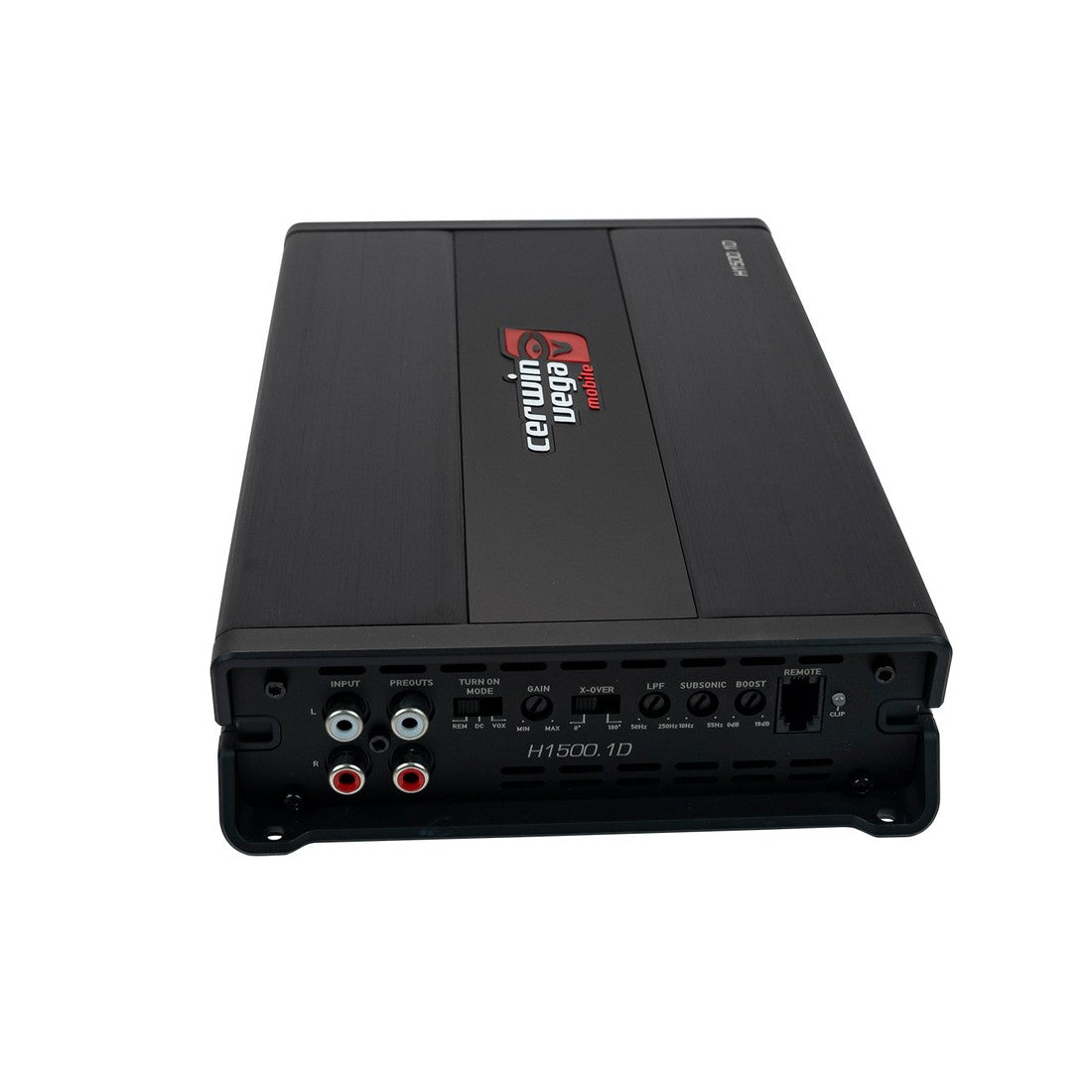

Flexible Setup and Built-In Control Features

Designed for a wide range of vehicles and custom audio builds, the Cerwin Vega H1500.1D includes practical setup features that support installation flexibility and system adjustment. The included bass control and LED clipping indicator make it easier to tailor output and help set gains.

• Selectable Turn On Mode: REM/VOX/DC
• Selectable Phase: 0°-180°
• Bass Boost: 0dB-18dB
• LED Power/Protect Light Indicator
• LED Clipping Indicator - Helps Set Gains
• Bass Control Included

FAQs

1. What is the Cerwin Vega H1500.1D designed to power? It is engineered for high-performance car audio subwoofers and is ideal for high-output bass systems or factory system upgrades.
2. Can I fine-tune the bass output? Absolutely. It features adjustable low-pass and subsonic filters, 0-18dB bass boost, and a variable phase control for precise tuning.
3. Is it easy to install in tight spaces? Yes. Its compact size and slim aluminum chassis make it suitable for a wide range of vehicle installations.
4. How much power does the H1500.1D deliver? It provides 600W RMS at 4Ω, 1000W RMS at 2Ω, and up to 1500W RMS at 1Ω for high-output subwoofer setups.
