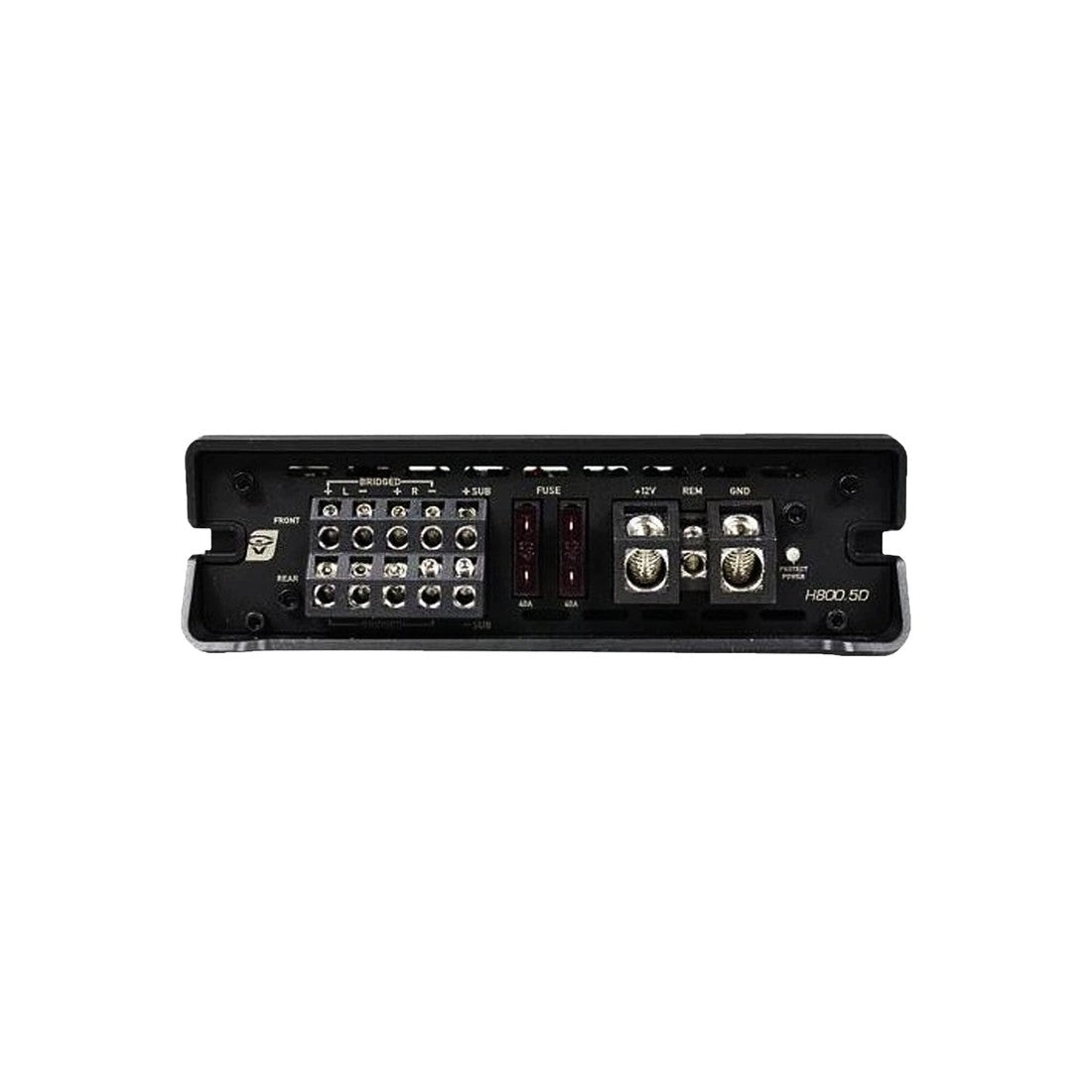

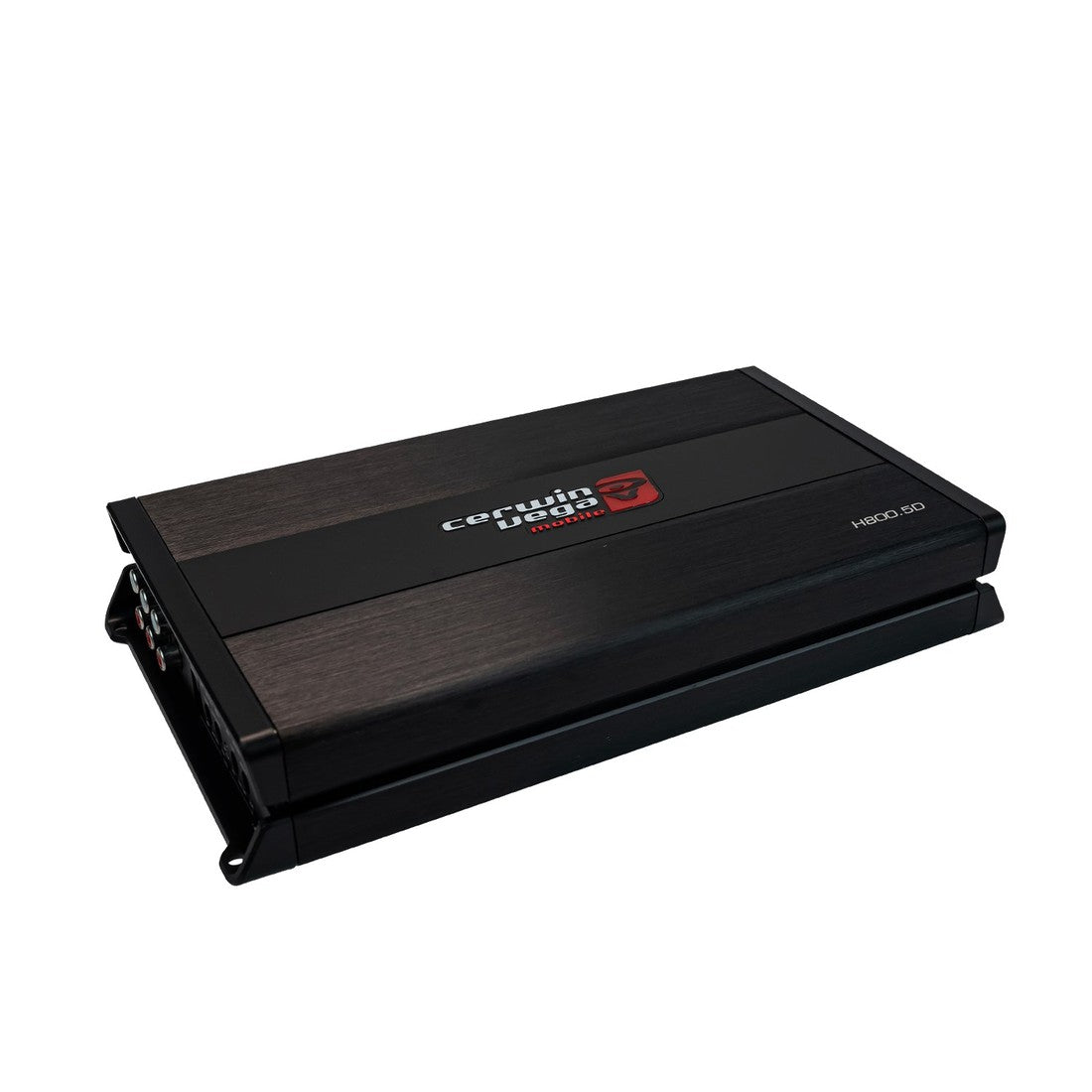

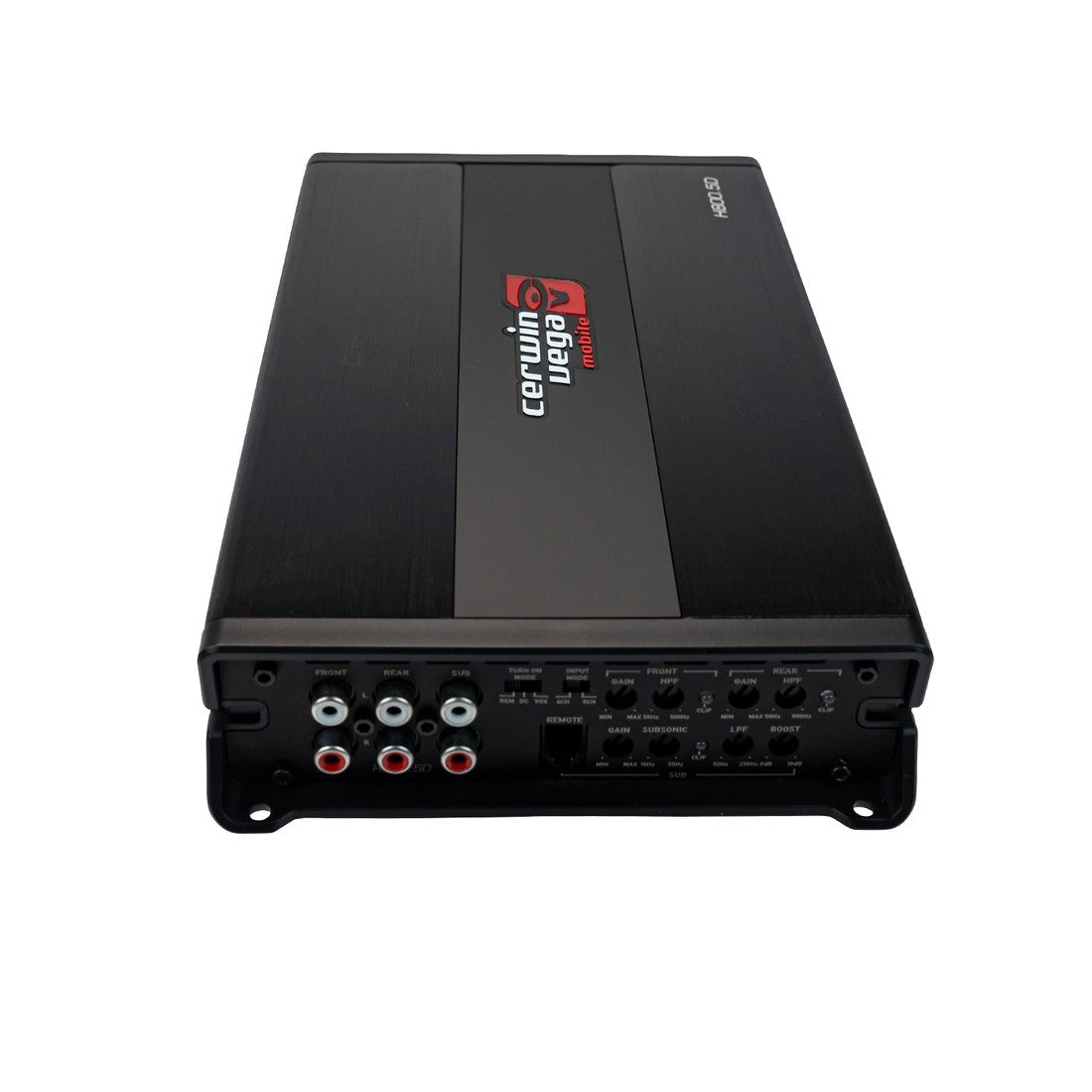

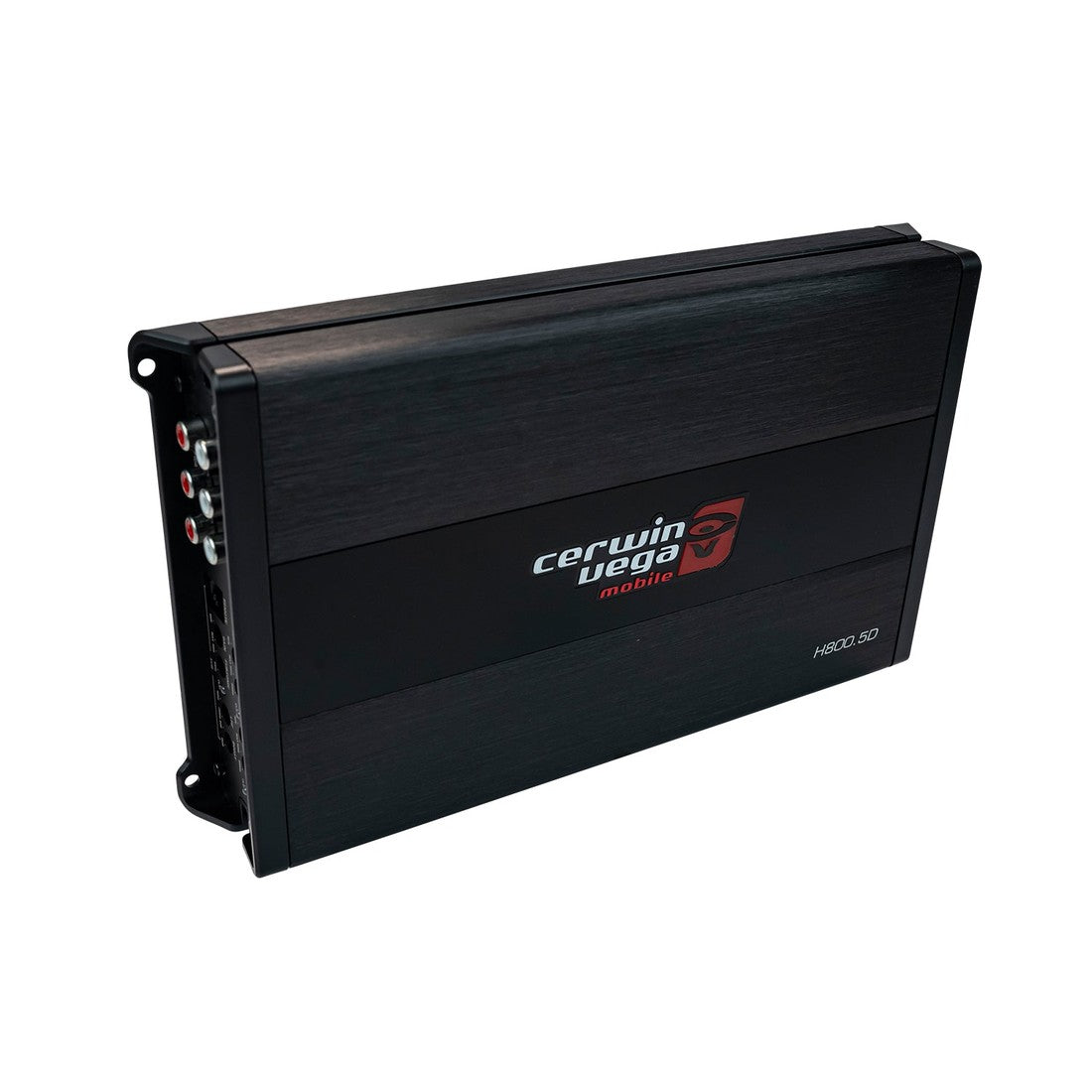

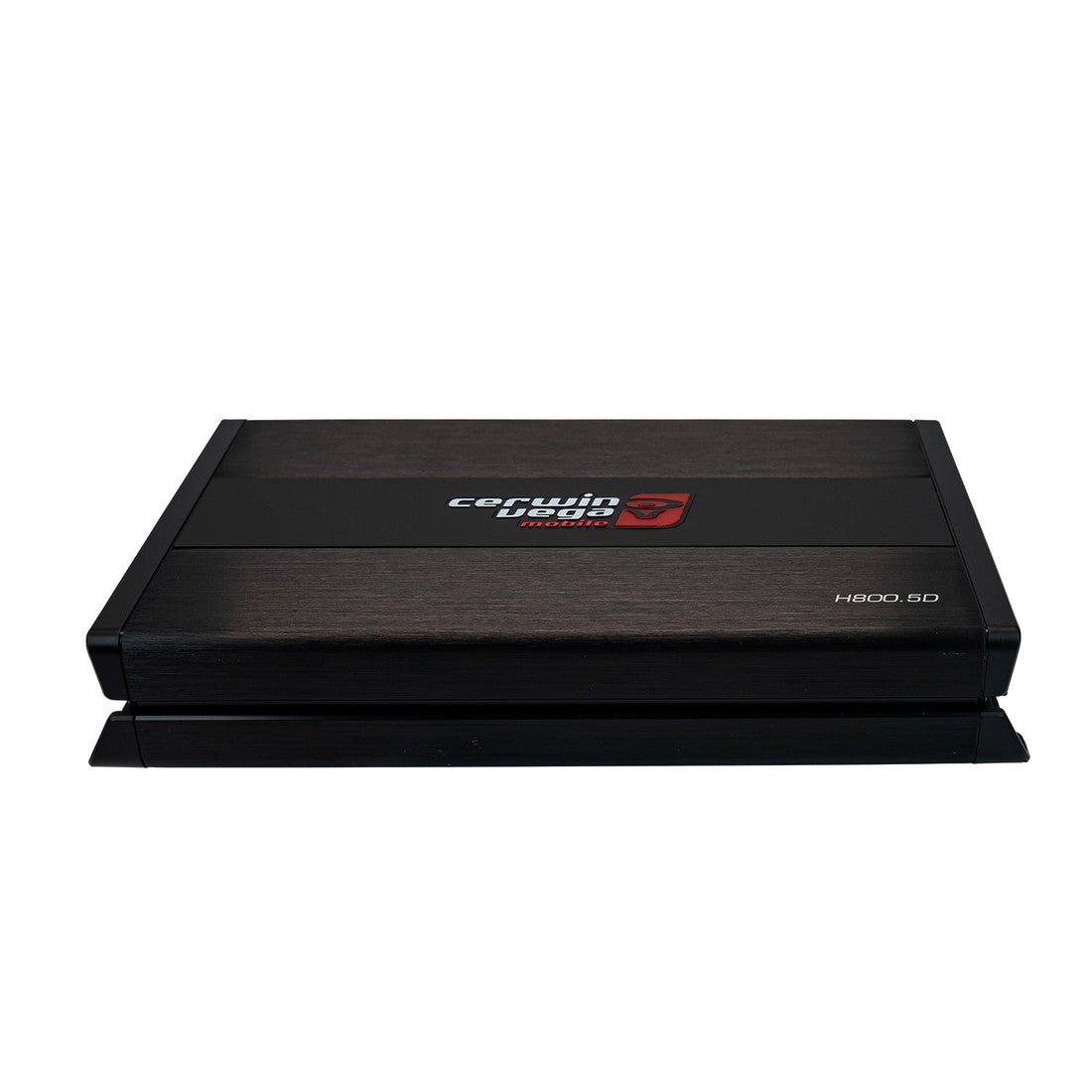

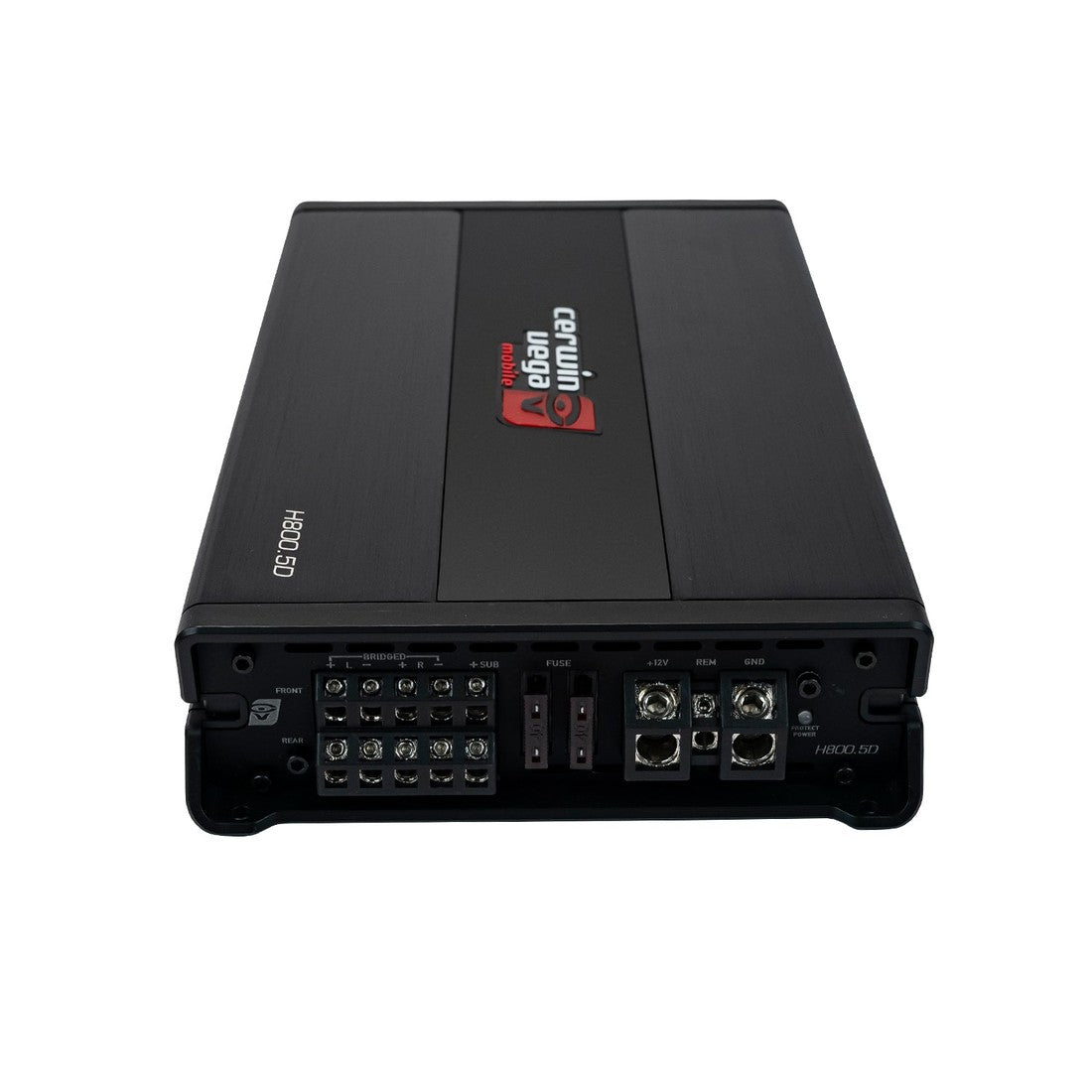

Cerwin Vega H800.5D HED Series 5-Channel 800W Full-Range Class D Amplifier (H8005D)

Cerwin Vega H800.5D HED Series 5-Channel 800W Full-Range Class D Amplifier (H8005D)

The Cerwin Vega H800.5D HED Series 5-Channel Full-Range Class D Amplifier is a powerful and efficient all-in-one solution for upgrading your vehicle audio system. Engineered with advanced Class D digital amplifier technology, it powers full-range speakers and a subwoofer from a single compact chassis while maintaining high efficiency and minimal heat generation.

Complete System Power from One Amplifier

This 5-channel car amplifier is designed to power your entire system with one compact unit. Four channels drive front and rear speakers, while the dedicated mono subwoofer channel delivers the deep, hard-hitting bass Cerwin Vega is known for, reducing system complexity while maximizing audio performance.

• 5-channel full-range car amplifier
• Four channels for front and rear speakers
• Dedicated mono subwoofer channel
• 85W x 4 & 180W x 1 RMS at 4Ω
• 125W x 4 & 300W x 1 RMS at 2Ω
• 250W x 2 bridged at 4Ω & 180W x 1

High-Efficiency Class-D Performance

Built with advanced Class D digital amplifier technology, the Cerwin Vega H800.5D maximizes power output while maintaining high efficiency and minimal heat generation. This design ensures clean, distortion-free sound and helps reduce strain on your vehicle’s electrical system.

• High-efficiency Class D technology
• THD: <0.3%
• S/N Ratio (A weighted @1W): >90dB
• Bandwidth: 10Hz-30kHz, 10Hz-300Hz

Aluminum Chassis for Heat Dissipation and Durability

The lightweight aluminum chassis enhances heat dissipation and durability for long-lasting reliability. This rugged design helps keep the amplifier operating at optimal temperatures during demanding listening sessions for consistent, reliable power delivery.

• Lightweight aluminum chassis
• Durable construction for long-lasting reliability
• 11” x 6.3” x 1.9” compact dimensions
• Weight: 5.66 lb

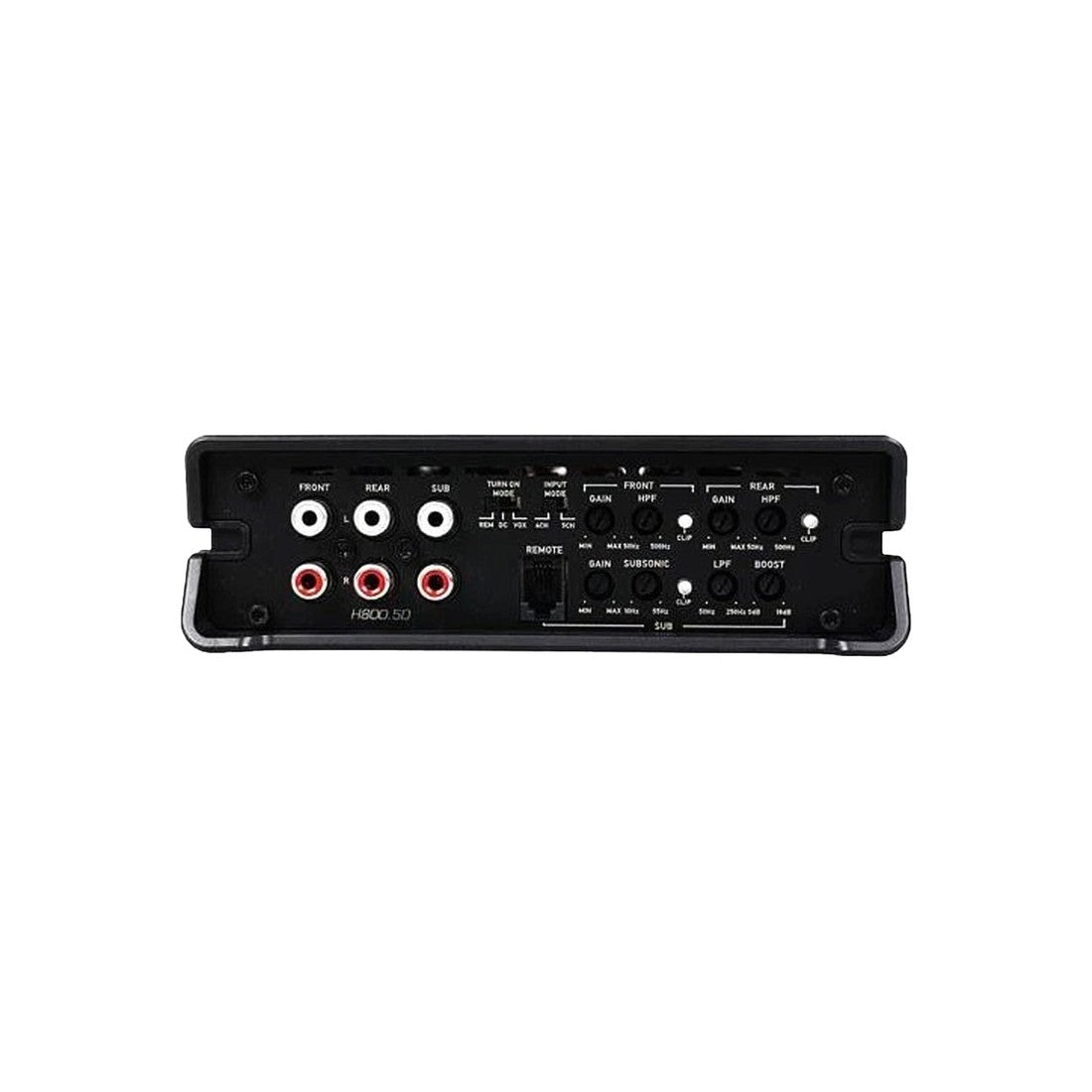

Flexible Installation and Setup

The compact footprint of the Cerwin Vega H800.5D allows flexible installation in cars, trucks, and SUVs, making it an excellent choice for factory system upgrades or custom audio setups. Built-in setup features support easier integration and tuning during installation.

• Selectable X-over: Low Pass / Flat / High Pass
• High Pass: 50Hz-500Hz
• Variable Low-Pass: 50Hz-500Hz
• Variable Sub-Sonic: 10Hz-55Hz (Sub)
• Selectable Turn On Mode: REM / VOX / DC
• LED Clipping Indicator - Helps Set Gains
• LED Power/Protect Light Indicator

FAQs

1. What can the Cerwin Vega H800.5D power? The H800.5D can power a complete car audio system, including four full-range speakers and one subwoofer from a single amplifier.
2. How much power does the H800.5D produce? It delivers 85W x 4 + 180W x 1 RMS at 4 ohms, or up to 125W x 4 + 300W x 1 RMS at 2 ohms.
3. Is this a Class D amplifier? Yes. The H800.5D uses efficient Class D technology for strong output, reduced heat, and cleaner performance in a compact design.
4. Does it have built-in crossovers? Yes. It includes adjustable high-pass, low-pass, and subsonic filters for easier speaker and subwoofer tuning.
5. Is the Cerwin Vega H800.5D easy to install? Yes. Its compact aluminum chassis allows flexible installation in cars, trucks, and SUVs with limited space.
