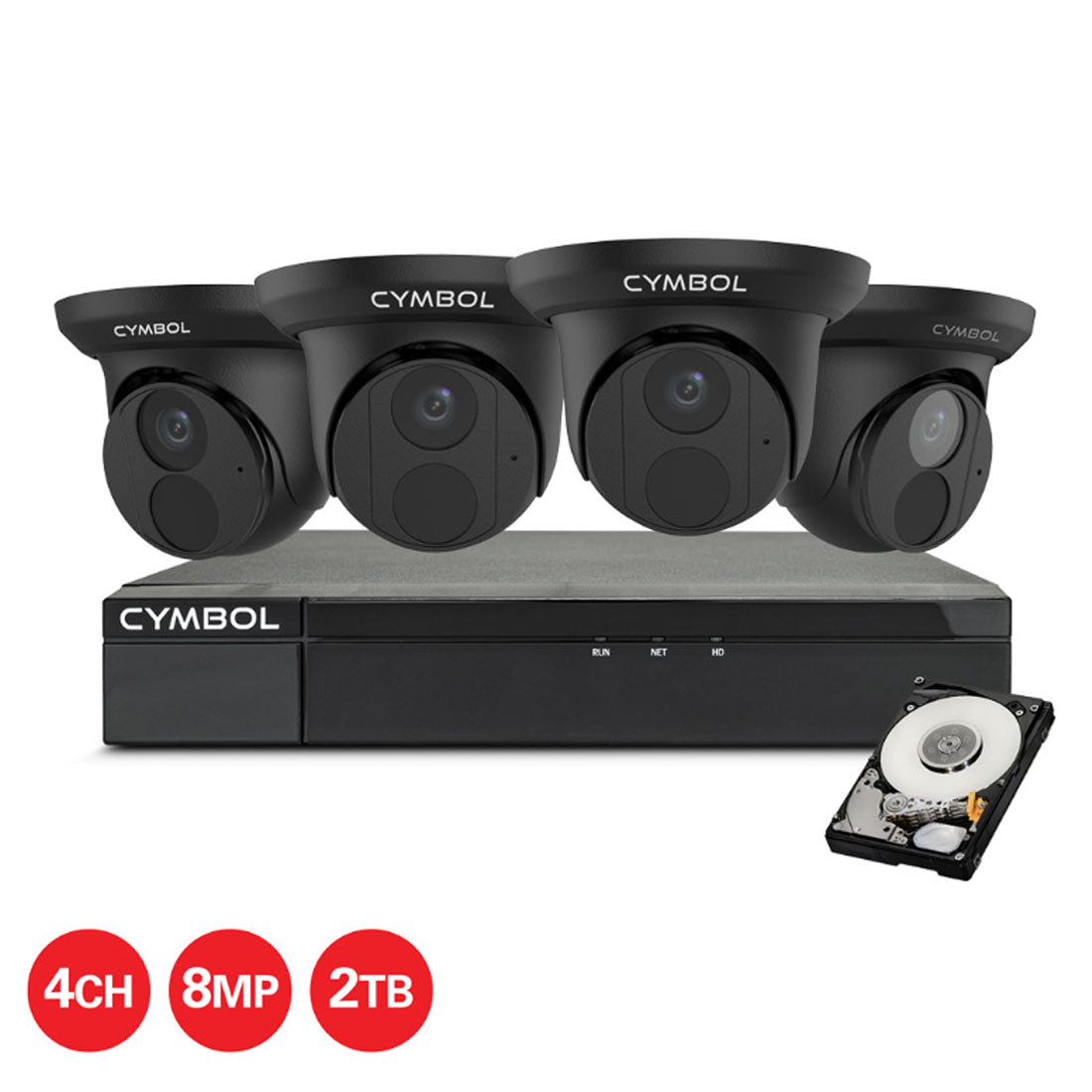

Cymbol 4CH IP Kit With 4 x 8MP Turret Cameras and 4CH 2TB NVR - Black

Cymbol 4K 4CH 4PoE 4/1 Alarm Network Video Recorder

VIDEO/AUDIO INPUT

• IP Video Input : 4-ch
• Two-way Audio Input : 1-ch, RCA

NETWORK

• Incoming Bandwidth : 80Mbps
• Outgoing Bandwidth : 64Mbps
• Remote Users : 128
• Protocols : TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP
• Browser : IE(IE10/11) for Windows, Firefox (version 52.0+), Chrome (version 45+), Edge (version 79+)

VIDEO/AUDIO OUTPUT

• HDMI/VGA Output

HDMI : 4K (3840x2160/30Hz), 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz

VGA : 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz

• Recording Resolution : 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
• Audio Output : 1-ch, RCA
• Audio Compression : G.711A, G.711U
• Synchronous Playback : 4-ch
• Liveview display : 1/4
• Corridor Mode Screen : 3/4

SNAPSHOT

• FTP/Schedule/Event Snapshot : 4-ch snapshot, up to D1 resolution

DECODING

• Decoding format : Ultra 265/H.265/H.264
• Liveview/Playback : 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
• Capability : Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30
  H.264: 2 x 16MP(4800*2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30

HARD DISK

• SATA : 1 SATA interface
• Capacity : Up to 16TB for each disk (The max HDD capacity varies with environment temperature)

SMART

• VCA Detection by Camera : Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, UMD(Ultra Motion Detection)
• VCA Search : Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report
• People counting : People Flow Counting, Crowd Density Monitoring
• Smart Intrusion Prevention (SIP) by Camera : 4-ch

GENERAL ALARM

• General Alarm : Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
• Alert Alarm : IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal

EXTERNAL INTERFACE

• Network Interface : 1 RJ45 10M/100M self-adaptive Ethernet Interface
• USB Interface : Rear panel: 1 x USB2.0, 1 x USB3.0
• RS232 / RS485 : NA / NA
• Alarm In / Alarm Out : NA / NA

POE

• Interface : 4 RJ45 10M/100M self-adaptive Ethernet Interface
• Max Power :

Max 30W for single port

Max 50W in total

• Supported Standard : IEEE 802.3at, IEEE 802.3af

GENERAL

• Power Supply : 48 V/1.35 A
• Power Consumption : ≤ 10W (without HDD)
• Working Environment : -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)
• Dimensions (W×D×H) : 260mm × 222mm × 47mm (10.2” × 8.7” × 1.8”)
• Weight (without HDD) : ≤ 1.1Kg (2.43lb)

CERTIFICATION

• Certification : CE, FCC, UL, RoHS, WEEE
• CE : EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
• FCC : Part15 Subpart B

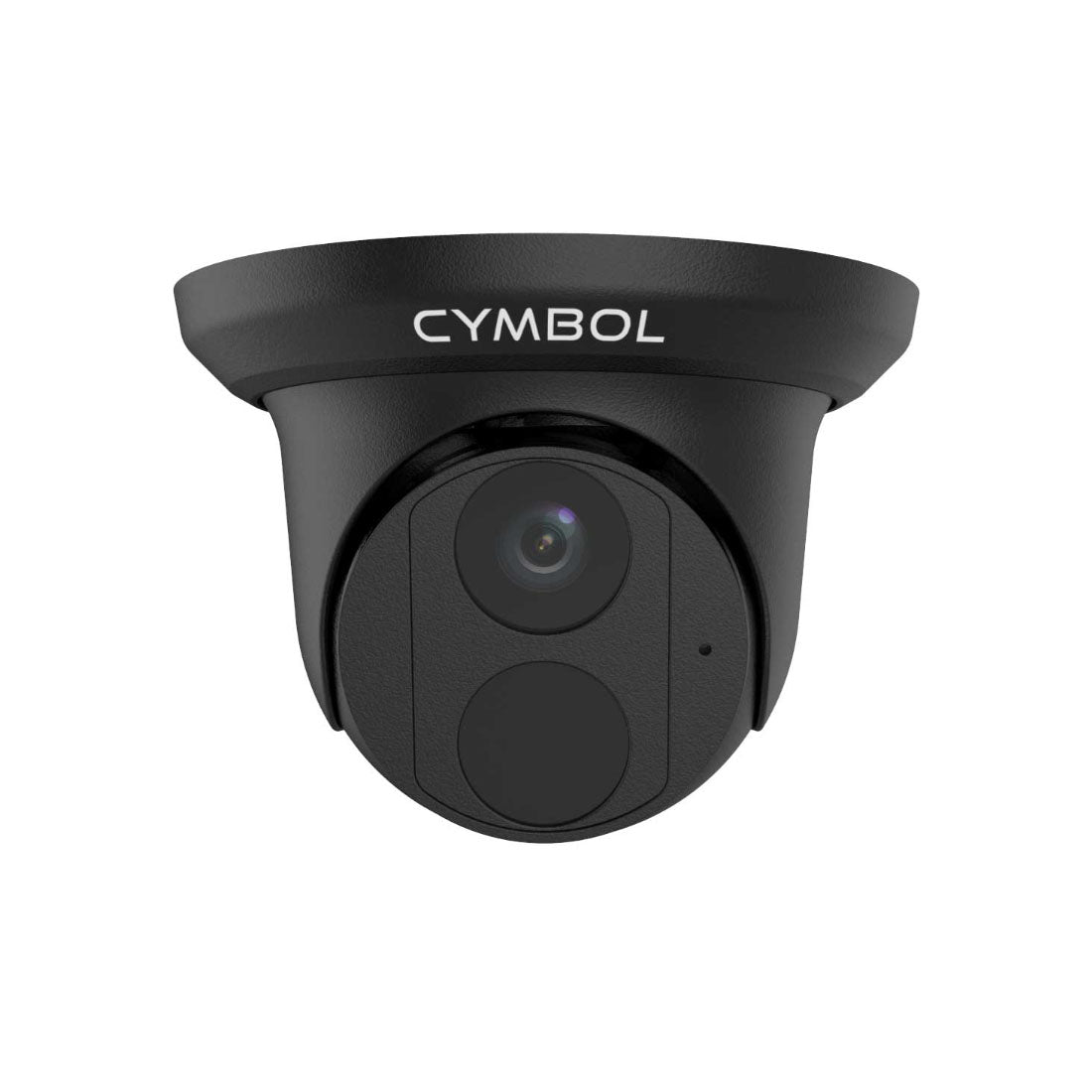

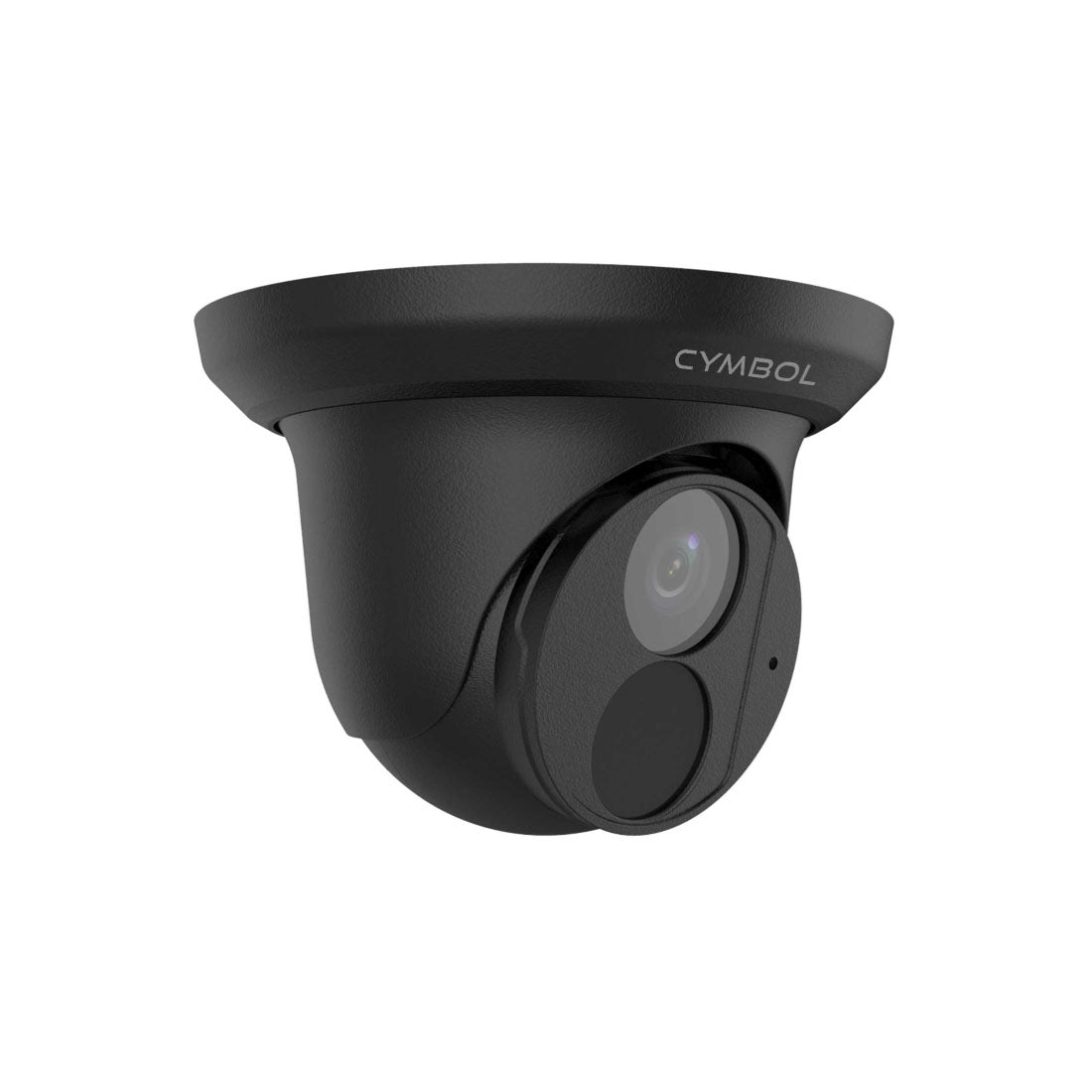

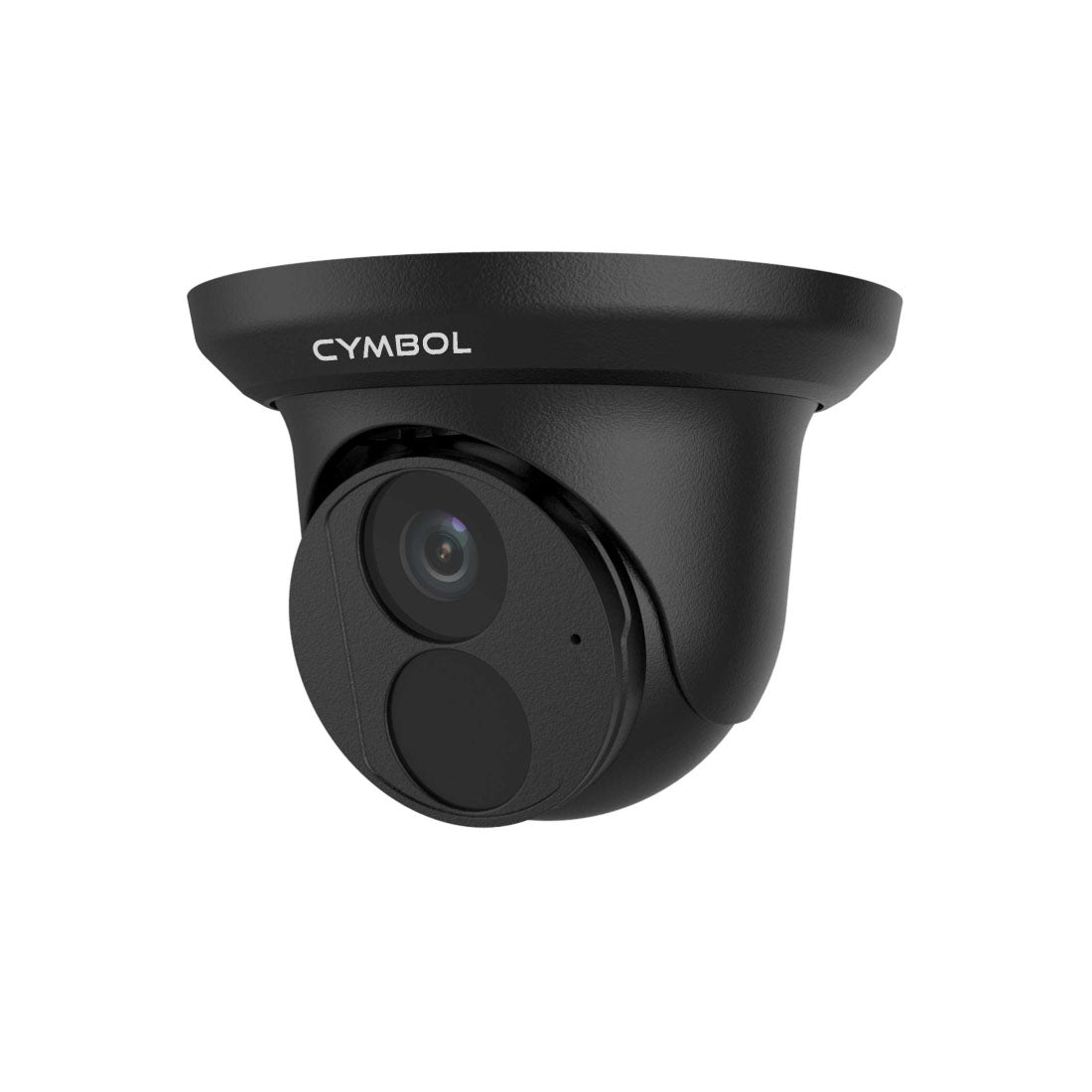

Cymbol 8MP 4K Starlight IR Turret Camera 2.8mm V2 – Black

Camera

• Sensor : 1/2.7″, 8.0 megapixel, progressive scan, CMOS
• Lens : 2.8mm@F2.0
• DORI Distance
  Lens (mm) : 2.8, 4.0
  Detect (m) : 84.0, 120.0
  Observe (m) : 33.6, 48.0
  Recognize (m) : 16.8, 24.0
  Identify (m) : 8.4, 12.0
• Angle of View (H) : 112.4°
• Angle of View (V) : 60.1°
• Angle of View (O) : 146.1°
• Adjustment angle
  Pan: 3° ~ 360°
  Tilt: 0° ~ 80°
  Rotate: 3° ~ 360°
• Shutter : Auto/Manual, 1 ~ 1/100000s
• Minimum Illumination
  Colour: 0.0025Lux (F2.0, AGC ON)
  0Lux with IR on
• Digital Noise Reduction : 2D/3D DNR
• Day/Night : IR-cut filter with auto switch (ICR)
• S/N : >56dB
• IR Range : Up to 30m (98 ft) IR range
• Wavelength : 850nm
• IR On/Off Control : Auto/Manual
• Defog : Digital Defog
• WDR : 120dB

Video

• Video Compression : Ultra 265, H.265, H.264, MJPEG
• H.264 code profile : Baseline profile, Main profile, High profile
• Frame Rate
  Main Stream : 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps;
  Sub Stream : 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
  Third Stream : D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
• Video Bit Rate : 128 Kbps~16 Mbps
• OSD : Up to 8 OSDs
• Privacy Mask : Up to 4 areas
• ROI : Up to 8 areas
• Motion Detection : Up to 4 areas


• White Balance : Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
• Smart IR : Support
• Flip : Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
• Dewarping : Supported
• HLC : Supported
• BLC : Supported

Audio

• Audio Compression : G.711
• Suppression : Supported
• Sampling Rate : 8KHZ

Storage

• Edge Storage : Micro SD, up to 256GB
• Network Storage : ANR

Network

• Protocols : IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
• Compatible Integration : ONVIF (Profile S, Profile G, Profile T), API
• Client
  CYMCAM2
  GUARDSTATION
  STAR4LIVE
• Web Browser :
  Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
  Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+

Interface

• Network : 1 RJ45 10M/100M Base-TX Ethernet
• Built-in Mic : Supported
• Certifications
  CE: EN 60950-1
  UL: UL60950-1
  FCC: FCC Part 15

General

• Power
  DC 12V±25%, PoE (IEEE 802.3af)
  Power consumption : Max 5.0W
• Dimensions (L × W × H) : Φ126 x 94mm (Φ5” x 3.7”)
• Net Weight : 0.44kg (0.97lb)
• Material : Metal
• Working Environment : -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Storage Environment : -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Surge Protection : 4KV
• Ingress Protection : IP67
• Reset Button : N/A

WD Purple™ 2TB SATA 6 Gb/s 3.5 inch Surveillance HDD

Product Highlights

• Engineered specifically for 24/7 mainstream surveillance systems
• AllFrame™ technology delivers optimizations for write-intensive, low bitrate, high stream-count workloads typical to mainstream surveillance applications
• Multiple Cameras, Multiple Streams
• Wide Compatibility & Seamless Integration
• Enhanced Workload Ratings
• 2-year limited Provo warranty
