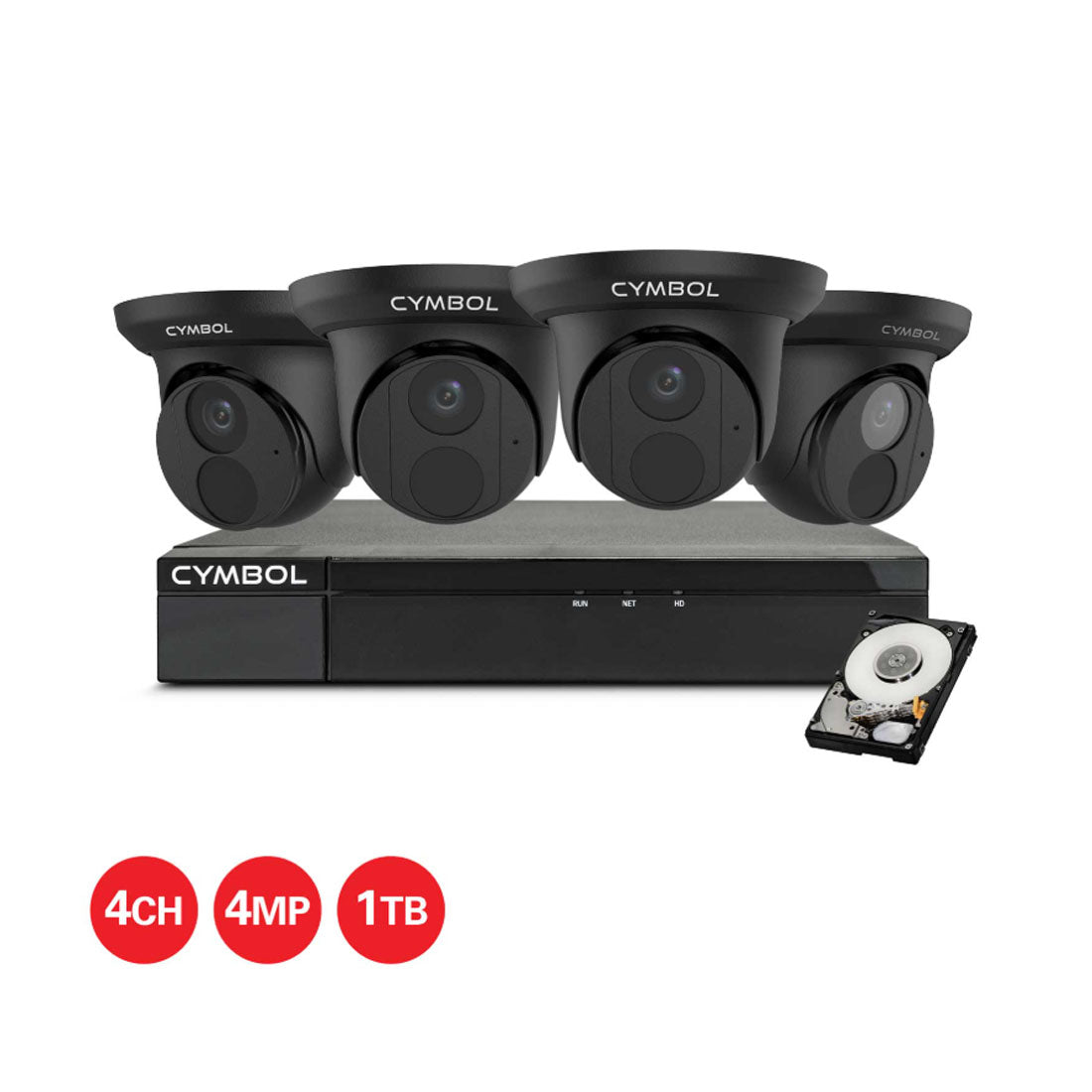

Cymbol 4Channel IP Camera Kit With 4 x 4MP Black Turret Cameras and 4Channel 1TB NVR

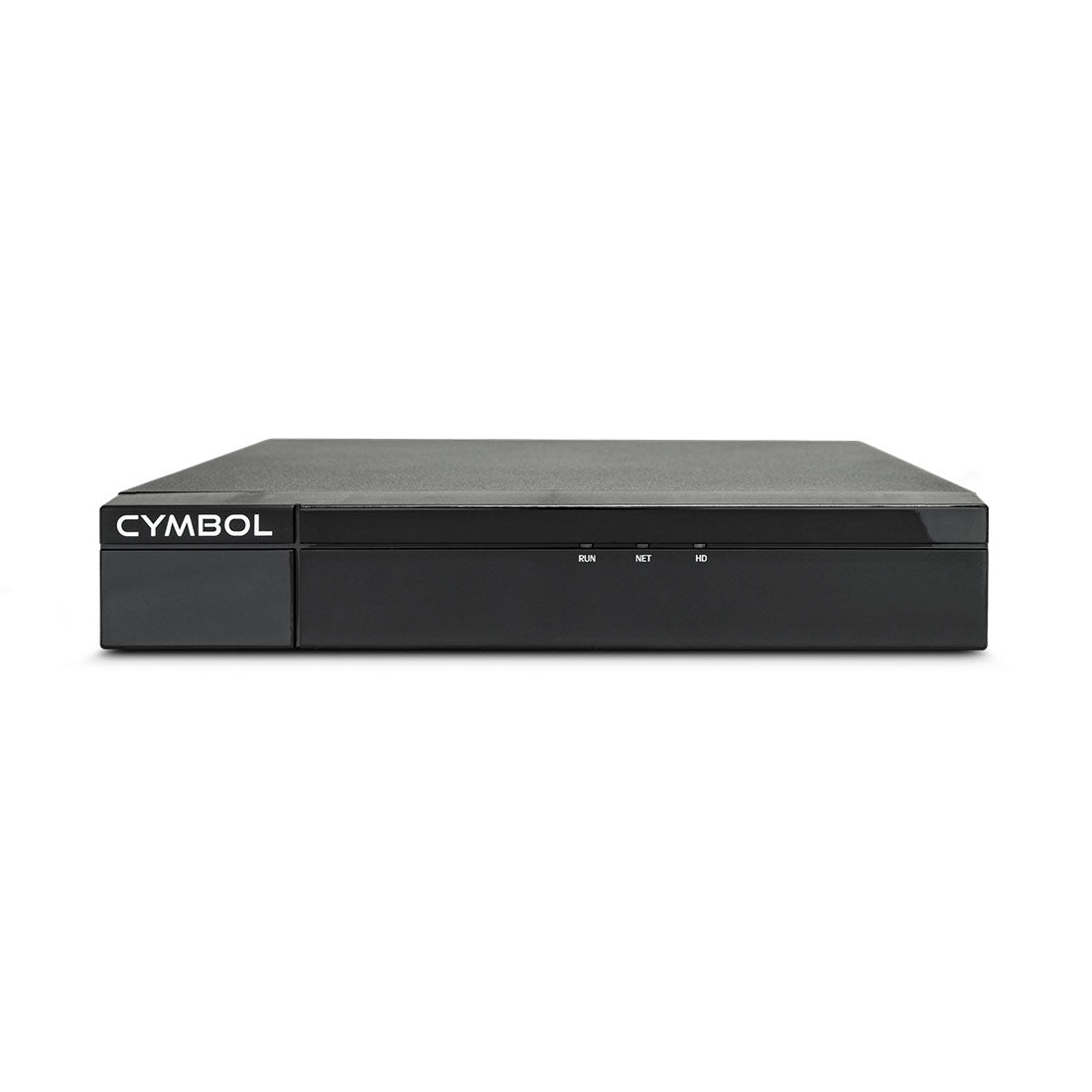

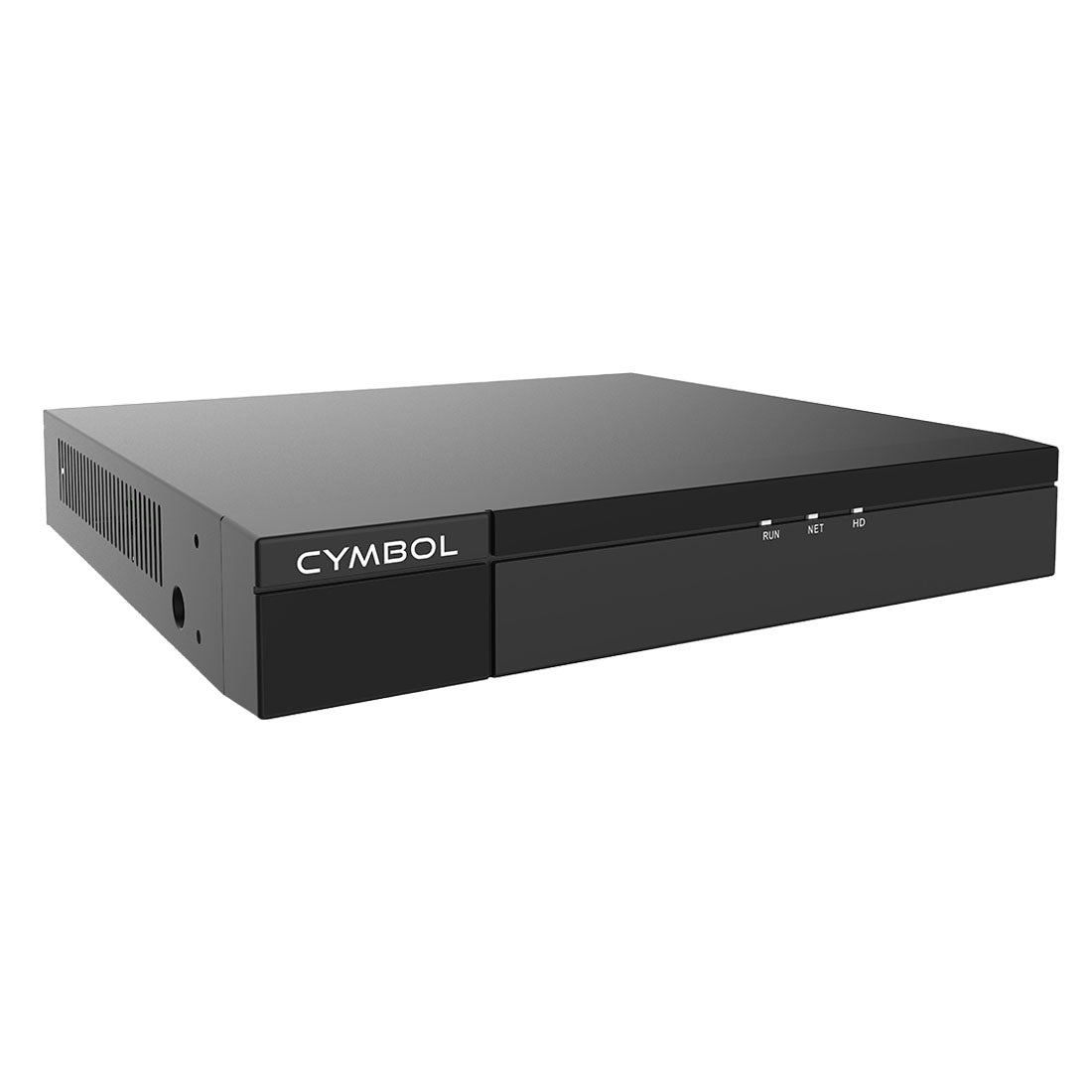

Cymbol 4K 4CH 4PoE 4/1 Alarm Network Video Recorder

VIDEO/AUDIO INPUT

• IP Video Input : 4-ch
• Two-way Audio Input : 1-ch, RCA

NETWORK

• Incoming Bandwidth : 80Mbps
• Outgoing Bandwidth : 64Mbps
• Remote Users : 128
• Protocols : TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP
• Browser : IE(IE10/11) for Windows, Firefox (version 52.0+), Chrome (version 45+), Edge (version 79+)

VIDEO/AUDIO OUTPUT

• HDMI/VGA Output

HDMI : 4K (3840x2160/30Hz), 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz

VGA : 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz

• Recording Resolution : 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
• Audio Output : 1-ch, RCA
• Audio Compression : G.711A, G.711U
• Synchronous Playback : 4-ch
• Liveview display : 1/4
• Corridor Mode Screen : 3/4

SNAPSHOT

• FTP/Schedule/Event Snapshot : 4-ch snapshot, up to D1 resolution

DECODING

• Decoding format : Ultra 265/H.265/H.264
• Liveview/Playback : 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
• Capability : Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30
  H.264: 2 x 16MP(4800*2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30

HARD DISK

• SATA : 1 SATA interface
• Capacity : Up to 16TB for each disk (The max HDD capacity varies with environment temperature)

SMART

• VCA Detection by Camera : Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, UMD(Ultra Motion Detection)
• VCA Search : Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report
• People counting : People Flow Counting, Crowd Density Monitoring
• Smart Intrusion Prevention (SIP) by Camera : 4-ch

GENERAL ALARM

• General Alarm : Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
• Alert Alarm : IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal

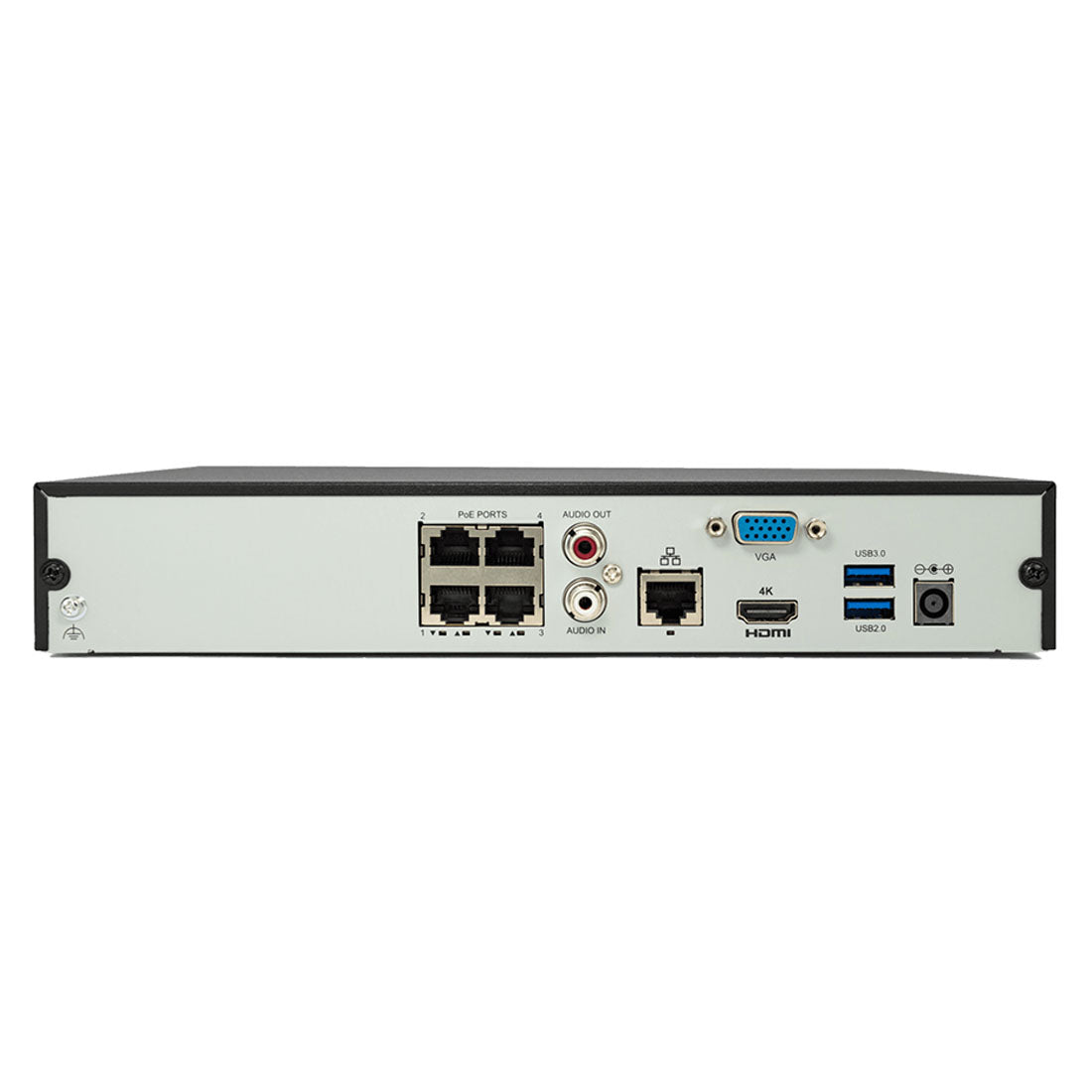

EXTERNAL INTERFACE

• Network Interface : 1 RJ45 10M/100M self-adaptive Ethernet Interface
• USB Interface : Rear panel: 1 x USB2.0, 1 x USB3.0
• RS232 / RS485 : NA / NA
• Alarm In / Alarm Out : NA / NA

POE

• Interface : 4 RJ45 10M/100M self-adaptive Ethernet Interface
• Max Power :

Max 30W for single port

Max 50W in total

• Supported Standard : IEEE 802.3at, IEEE 802.3af

GENERAL

• Power Supply : 48 V/1.35 A
• Power Consumption : ≤ 10W (without HDD)
• Working Environment : -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)
• Dimensions (W×D×H) : 260mm × 222mm × 47mm (10.2” × 8.7” × 1.8”)
• Weight (without HDD) : ≤ 1.1Kg (2.43lb)

CERTIFICATION

• Certification : CE, FCC, UL, RoHS, WEEE
• CE : EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
• FCC : Part15 Subpart B

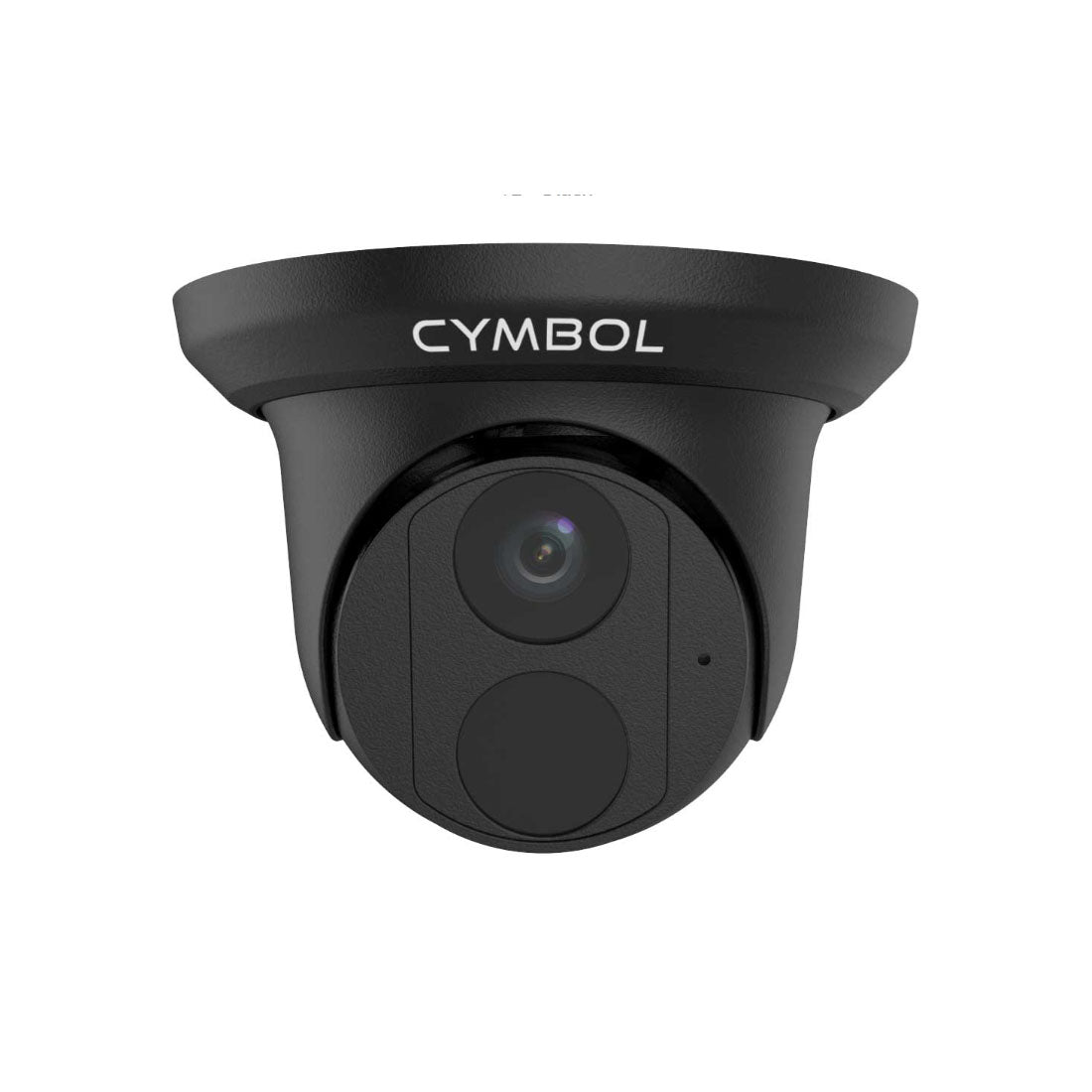

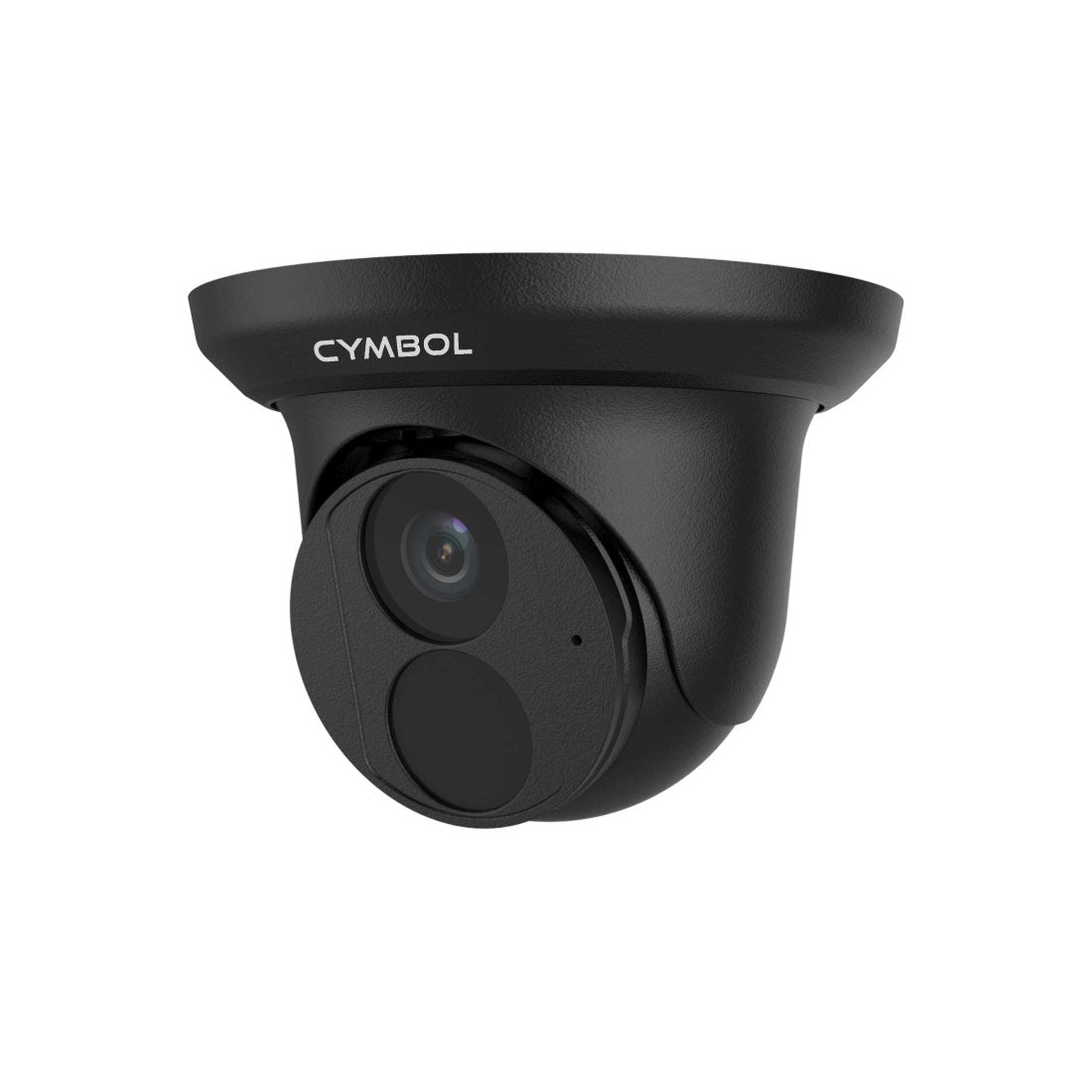

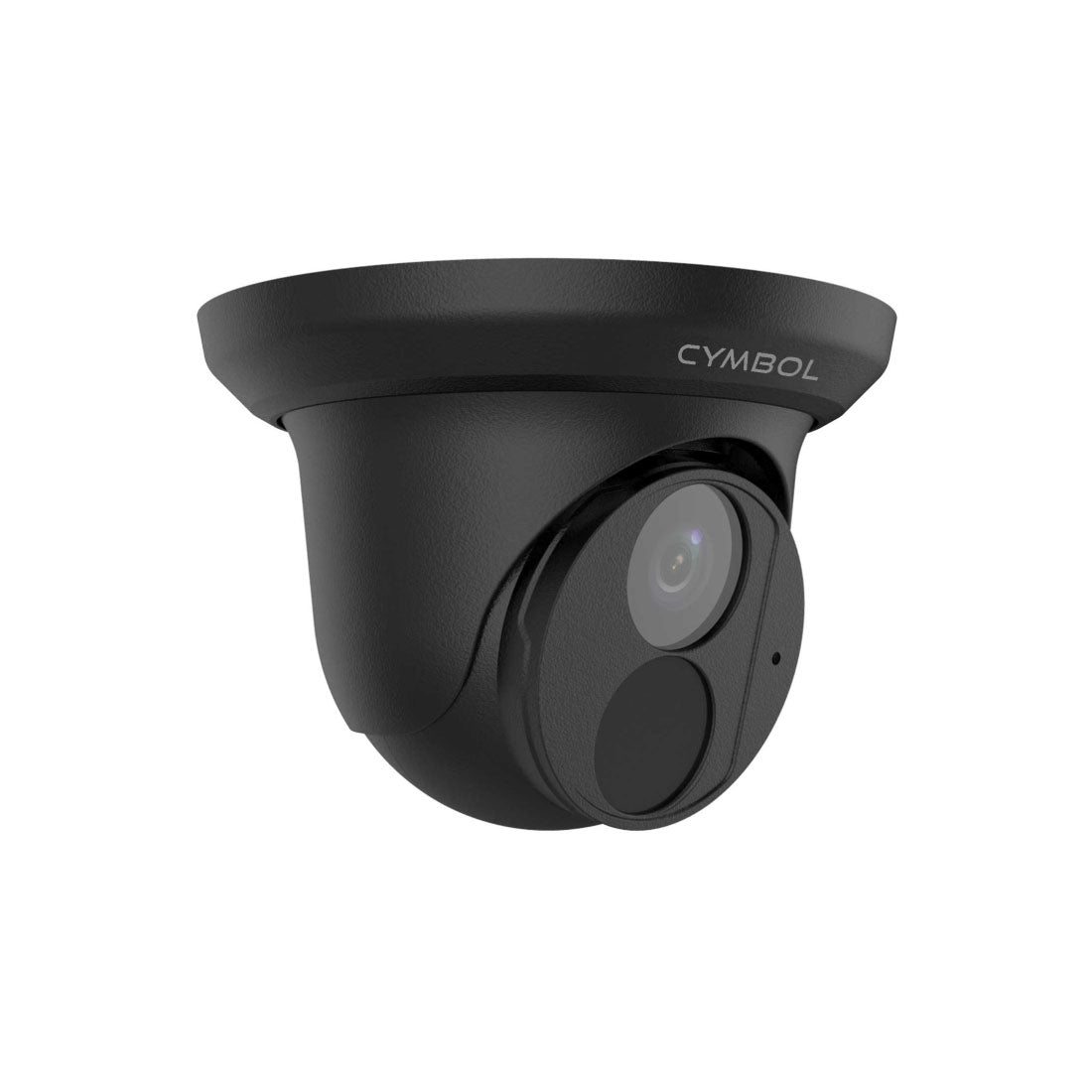

Cymbol 4MP WDR Starlight IR Fixed Turret Camera 2.8mm V2 – Black

CAMERA

• Sensor : 1/3”, 4.0 megapixel, progressive scan, CMOS
• Minimum Illumination :
  Colour : 0.003Lux (F1.6, AGC ON)
  0 lux with IR on
• Day/Night : IR-cut filter with auto switch (ICR)
• Shutter : Auto/Manual, 1 ~ 1/100000s
• Adjustment angle : Pan : 0° ~ 360° Tilt : 0° ~ 80° Rotate : 0° ~ 360°
• WDR : 120dB
• S/N : >52dB

LENS

• Lens : 2.8mm@F1.6
• Iris : Fixed
• Field of View : (H) 101.1°/ (V) 55.3° / (D) 111.1°
• DORI Distance
  - Detect 63m
  - Observe 25.2m
  - Recognize 12.6m
  - Identify : 6.3m

ILLUMINATOR

• IR Range : Up to 30m (98 ft) IR range
• Wavelength : 850nm
• IR On/Off Control : Auto/Manual

VIDEO

• Video Compression : Ultra 265, H.265, H.264, MJPEG
• H.264 code profile : Baseline profile, Main profile, High profile
• Frame Rate
  - Main Stream :
  4MP (2688*1520), Max 25fps
  4MP (2560*1440), Max 25fps
  3MP (2304*1296), Max 30fps
  2MP (1920*1080), Max 30fps
  - Sub Stream:
  720P (1280*720), Max 25fps
  D1 (720*576), Max 30fps
  640*360, Max 30fps
  - Third Stream : N/A
• Video Bit Rate : 128 Kbps~16 Mbps
• OSD : Up to 4 OSDs
• Privacy Mask : Up to 4 areas
• ROI : Up to 8 areas
• Motion Detection : Up to 4 areas


• White Balance : Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2
• Image Setting : Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser
• Digital Noise Reduction : 2D/3D DNR
• Smart IR : Support
• Flip : Normal / Vertical / Horizontal / 180° / 90° Clockwise / 90° Anti-clockwise
• Dewarping : Support
• HLC : Support
• BLC : Support
• Defog : Digital Defog

ANALYTICS

• Basic Analytics : Motion detection, Tampering alarm, Audio detection, Cross Line detection‡, Intrusion detection‡, Ultra Motion Dectection*
  * Only compatible with select NVRs
  ‡ Only triggered by Humans
• Other Functions : Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication

AUDIO

• Audio Compression : G.711
• Sampling Rate : 8KHz

STORAGE

• Edge Storage : Micro SD, up to 256GB
• Network Storage : ANR, NAS (NFS)

NETWORK

• Protocols : IPv4, IPv6,IGMP, ICMP, ARP,TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS, SSH
• Compatible Integration : ONVIF (Profile S, Profile G, Profile T), API, SDK
• User/Host : Up to 32 users. 2 user levels: administrator, common user, operator
• Security : Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF

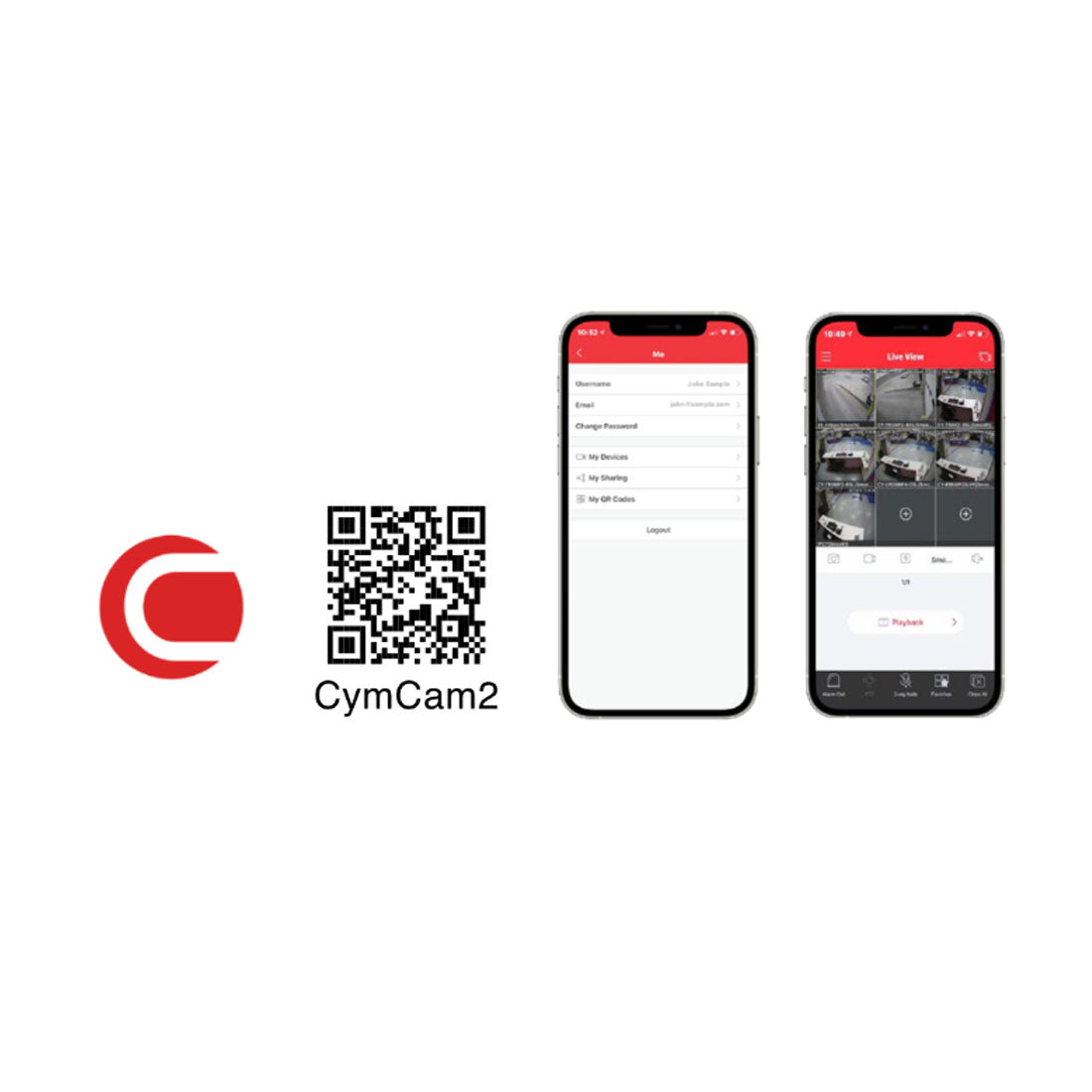

• Client : CymCam2 / Guard Station / Star4Live
• Web Browser
  - Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+
  - Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+

INTERFACE

• Audio I/O : N/A
• Alarm I/O : N/A
• Built-in Mic : Support
• Network : 1 x RJ45 10M/100M Base-TX Ethernet

GENERAL

• Power
  - DC 12V±25%, PoE (IEEE 802.3af)
  - Power consumption : Max 6W
• Power Interface : Ø 5.5mm coaxial power plug
• Dimensions : 126mm x 94mm (5" x 3.7") (L × H)
• Weight : 0.35kg (0.77lb)
• Material

- Camera : metal
- Housing : metal
- Ring : plastic

• Working/Storage Environment : -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Surge Protection : 2KV
• Reset Button : N/A
• Protection : IP67
