Furman CN-2400S Contractor Series Smart Sequencer Power Conditioner

Product Description

Furman CN-2400S Contractor Series Smart Sequencer Power Conditioner

SmartSequencing with advanced AC protection and noise filtration.

Designed for Commercial A/V Installers, the CN-2400S combines robust control capabilities via SmartSequencing™ Technology, advanced AC protection, AC noise filtration, and optional compatibility with the BlueBOLT® Remote Power and Energy Management Platform (BB-RS232 adaptor required, sold separately).

The new Furman CN-2400S is one of the first products to feature Furman’s SmartSequencing™ technology, which allows large and complex A/V systems to be safely powered on and off with a simple press of a button or turn of a key, even by nontechnical personnel. SmartSequencing’s bidirectional communications between installed units enables a primary unit to control and sequence multiple secondary units, ensuring multizone electronic systems are powered on and off safely and dependably from a single control point across an entire installation. Units can be connected via current loop at runs of more than 1,000 feet with backwards compatibility with Furman’s legacy sequencers.

In addition, the Furman CN-2400S offers robust control options, equipped with RS-232 ports and command sets for integration with control systems. An optional RS-232-to-Ethernet adaptor (sold separately) adds full IP-addressability to the unit, allowing it to be controlled, programmed, and monitored from a smartphone, tablet, PC, or any Web-enabled device via Telnet, direct HTTP: connection, or Panamax/Furman’s BlueBOLT®-hosted remote power and energy management platform.

Furman CN-2400S Features:

  • Diagnostic Lights - Diagnostic lights provide valuable system information including power quality, “Protectection Ok” indicator, and Extreme Voltage indicator.
  • Remote Access (RS-232) - RS-232 compatibility & command set provide integration with control systems, open source and control programming.
  • BlueBOLT Compatible® - BlueBOLT provides remote access to reboot components, power equipemnt on/off, and monitor power quality via the internet from anywhere in the world.
  • Nine Total Outlets - The CN-2400S contains eight rear panel NEMA 5-20R outlets and one front panel NEMA 5-15R outlet.
  • Surge Protection - Series Multi-Stage Protection (SMP) Technology provides the highest level of surge & spike protection available.
  • Noise Filtration - Linear Filtration Technology (LiFT) reduces AC noise linearly across a very wide bandwidth for unequaled audio & video clarity.
  • Voltage Protection - Extreme Voltage Shutdown (EVS) circuity safely powers down itself and connected equipment during unsafe voltage periods.
  • SmartSequencing™ - SmartSequencing allows bidirectional, safe sequenced power up/down operations via the push of a button or turn of a key.

Features & Specs

  • Family : Contractor Series
  • Line Voltage : 120 (Volts)
  • Blue BOLT Enabled : Yes
  • AC Protection : Automatic Voltage Shutoff: No
  • AC Voltage Input Range : 90-139VAC, 50/60Hz
  • Maximum AC Current Rating : 20 amps (Thermal breaker)
  • AC Cord : 3/12AWG, 10 feet, black, fixed, NEMA 5-20P plug

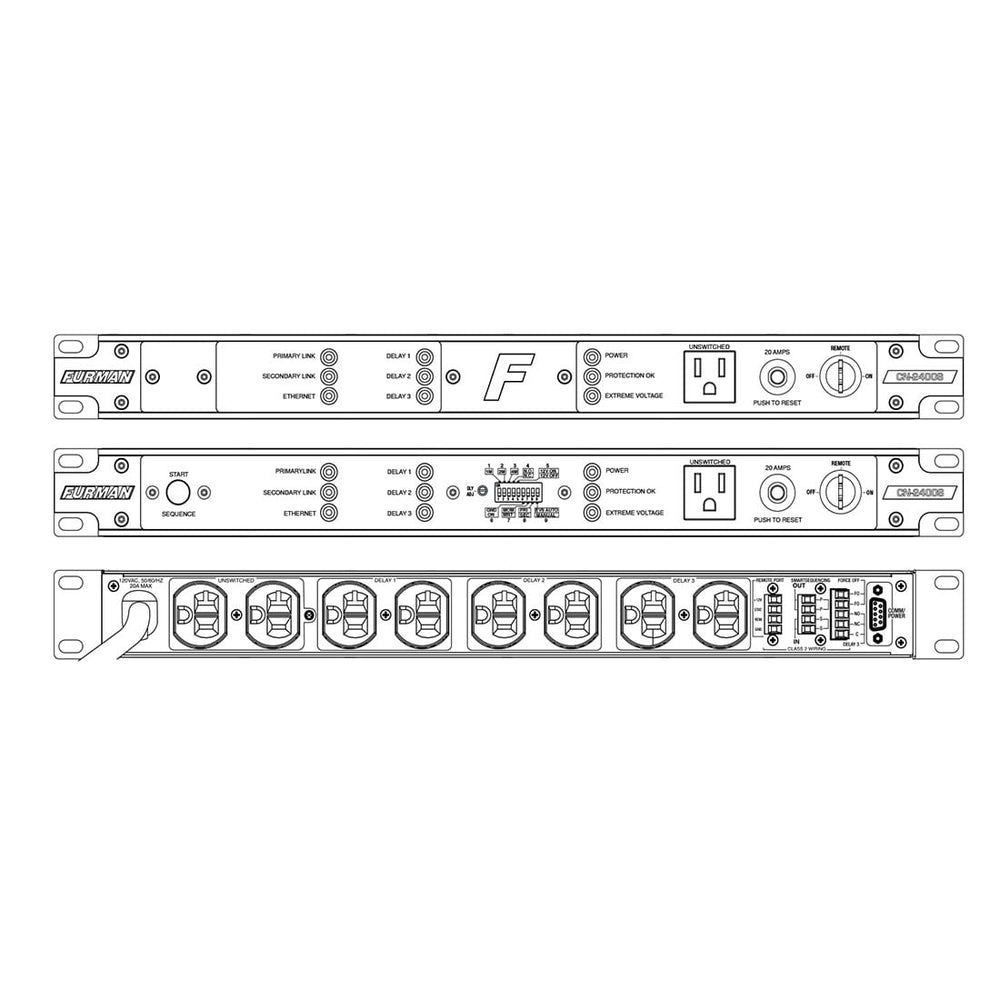

  • Rear Panel : Outlets 2 Unswitched NEMA 5 20R’s (1 duplex), 6 Sequenced NEMA 5-20R’s (3 duplexes each controlled by separate relay)
  • Front Panel : One NEMA 5-15R Convenience Outlet, Unswitched
  • AC Surge Protection : SMP
  • Spike Protection Mode : Line to neutral, zero ground leakage
  • Spike Clamping Voltage : 188VAC peak @ 6,000 volts/3,000 amps
  • Response Time : 1 nanosecond
  • Maximum Surge Current : 6,500 Amps
  • AC Under voltage Protection : EVS, 77VAC+/-3VAC
  • AC Overvoltage Protection : EVS, 145VAC+/-5VAC
  • AC Overvoltage Reset Modes : Manual and Auto-reset (configurable)
  • AC Filtering : LiFT
  • Noise Attenuation : Linear, 10dB @10KHz, 40dB@100KHz, 50dB@500KHz
  • Operating Temperature Range : 5C (40F) to 40C (105F) degrees
  • Humidity Range : <90% rH (Relative Humidity)
  • Key switch : Front panel, 3-position keyswitch (On, Off, Remote)
  • Keys Included : 1 pair
  • Pushbutton : Switch Front panel, hidden by security cover
  • Circuit Breaker : Front panel, pushbutton, 20A Thermal Breaker
  • Front panel diagnostic indicators : Primary link, Secondary link, Ethernet, Remote off, Delay 1, Delay 2, Delay 3, Power, Protection OK, Extreme Voltage
  • DIP Switches : Front panel- Hidden by security cover, 1 Minute Delay, 2 Minute Delay, 4 Minute Delay, Force Off NO/NC, 12V Mode On/Off BND Mode On, Momentary/Maintained, Primary/Secondary, EVS
  • Reset : Auto/Manual
  • Potentiometer : Front panel, hidden by security cover, fine tune delay adjust
  • Remote Terminal : +5-30VDC In, 12VDC (12mA) Out
  • Smart Sequencing : Phoenix 4-Pin Connector, Screw Terminals, Primary & Secondary Links (Current Loop – 1000’ nominal)
  • Remote Terminal : Phoenix 4-Pin Connector With Screw Terminals; +12V, STAT, REM, GND (Class 2 Wiring)
  • Force : Off/Delay 3 Terminal Phoenix 5-Pin Connector With Screw Terminals, FORCE OFF, DELAY 3 (Class 2 Wiring)
  • RS-232 Compatible : Yes, DB-9 Connector
  • IP Addressability : Optional, via BB-RS232 Ethernet/RS-232 Adaptor (sold separately) for IP control via Telnet, HTTP, BlueBOLT®
  • Voltmeter : Available with RS-232/Ethernet option, ± 2VAC accuracy
  • Ammeter : Available with RS-232/Ethernet option, ±1A accuracy
  • Power Consumption : (No Load) 10 Watts
  • Safety Agency : NRTL-C, RoHS Compliant
  • Weight : 13 (Lbs)

Other Specifications

  • AC Voltage Input Range : 90-139VAC, 50/60Hz\
  • Maximum AC Current Rating : 20 amps (Thermal breaker)
  • AC Cord : 3/12AWG, 10 feet, black, fixed, NEMA 5-20P plug
  • Rear Panel Outlets : 2 Unswitched NEMA 5 20R’s (1 duplex), 6 Sequenced NEMA 5-20R’s (3 duplexes each controlled by separate relay)
  • Front Panel : One NEMA 5-15R Convenience Outlet, Unswitched
  • AC Surge Protection : SMP
  • Spike Protection : Mode Line to neutral, zero ground leakage
  • Spike Clamping Voltage : 188VAC peak @ 6,000 volts/3,000 amps
  • Response Time : 1 nanosecond
  • Maximum Surge Current : 6,500 Amps
  • AC Under voltage Protection : EVS, 77VAC+/-3VAC
  • AC Overvoltage Protection : EVS, 145VAC+/-5VAC
  • AC Overvoltage Reset Modes : Manual and Auto-reset (configurable)
  • AC Filtering : LiFT
  • Noise Attenuation : Linear, 10dB @10KHz, 40dB@100KHz, 50dB@500KHz
  • Operating Temperature Range : 5C (40F) to 40C (105F) degrees
  • Humidity Range : <90% rH (Relative Humidity)
  • Key switch : Front panel, 3-position keyswitch (On, Off, Remote)
  • Keys Included : 1 pair
  • Pushbutton : Switch Front panel, hidden by security cover
  • Circuit Breaker : Front panel, pushbutton, 20A Thermal Breaker
  • Front panel diagnostic indicators : Primary link, Secondary link, Ethernet, Remote off, Delay 1, Delay 2, Delay 3, Power, Protection OK, Extreme Voltage
  • DIP Switches : Front panel- Hidden by security cover, 1 Minute Delay, 2 Minute Delay, 4 Minute Delay, Force Off NO/NC, 12V Mode On/Off BND Mode On, Momentary/Maintained, Primary/Secondary, EVS
  • Reset : Auto/Manual
  • Potentiometer : Front panel, hidden by security cover, fine tune delay adjust
  • Remote Terminal : +5-30VDC In, 12VDC (12mA) Out
  • Smart Sequencing : Phoenix 4-Pin Connector, Screw Terminals, Primary & Secondary Links (Current Loop – 1000’ nominal)
  • Remote Terminal : Phoenix 4-Pin Connector With Screw Terminals; +12V, STAT, REM, GND (Class 2 Wiring)
  • Force : Off/Delay 3 Terminal Phoenix 5-Pin Connector With Screw Terminals, FORCE OFF, DELAY 3 (Class 2 Wiring)
  • RS-232 Compatible : Yes, DB-9 Connector
  • IP Addressability : Optional, via BB-RS232 Ethernet/RS-232 Adaptor (sold separately) for IP control via Telnet, HTTP, BlueBOLT®
  • Voltmeter : Available with RS-232/Ethernet option, ± 2VAC accuracy
  • Ammeter : Available with RS-232/Ethernet option, ±1A accuracy
  • Power Consumption : (No Load) 10 Watts
  • Safety Agency : NRTL-C, RoHS Compliant

Documents

Warranty

Furman Canada Offers 15 Years Limited Warranty
SKU: CN2400S UPC: 654061028468

Save $163.00

$1,249.00
$1,412.00
or

Payment as low as

$104.08/mo
Info icon

This monthly payment does not include any applicable tax or interest

Flash Sale Ends:

Covers shipping up to 7% of product value. If costs exceed this, we'll quote before shipping or cancel and refund. Free ShippingFree Shipping |

We guarantee the best price in Canada—before or 30 days after purchase.* Lowest Price GuaranteeLowest Price Guarantee*

  • Surge Protection – Series Multi-Stage Protection (SMP) Technology provides the highest level of surge & spike protection available.
  • Noise Filtration – Linear Filtration Technology (LiFT) reduces AC noise linearly across a very wide bandwidth for unequaled audio & video clarity.
  • Voltage Protection – Extreme Voltage Shutdown (EVS) circuity safely powers down itself and connected equipment during unsafe voltage periods.
  • SmartSequencing™ – SmartSequencing allows bidirectional, safe sequenced power up/down operations via the push of a button or turn of a key.
  • Diagnostic Lights – Diagnostic lights provide valuable system information including power quality, “Protectection Ok” indicator, and Extreme Voltage indicator.
  • Remote Access (RS-232) – RS-232 compatibility & command set provide integration with control systems, open source and control programming.
  • Nine Total Outlets – The CN-2400S contains eight rear panel NEMA 5-20R outlets and one front panel NEMA 5-15R outlet.
Sign up to get notified when it's in stock!

Remember to select the correct model if there are multiple options.

Call for Expert Help

*Quantities may be limited. First come first served. Gibbys Electronic Supermarket does not guarantee a notification when the product is in stock. By signing up, you agree to subscribe to our newsletters, receive marketing emails or be contacted by Gibbys Electronic Supermarket. You also agree to Gibbys' Terms & Conditions.

Phone icon

Call 1-866-696-7189

Call for Expert AdviceCall for Expert Advice
Info icon

Does not apply to special order items.

30-day Return Policy

We guarantee the best price in Canada—before or 30 days after purchase.*

Lowest Price Guarantee*

Product Description

Furman CN-2400S Contractor Series Smart Sequencer Power Conditioner

SmartSequencing with advanced AC protection and noise filtration.

Designed for Commercial A/V Installers, the CN-2400S combines robust control capabilities via SmartSequencing™ Technology, advanced AC protection, AC noise filtration, and optional compatibility with the BlueBOLT® Remote Power and Energy Management Platform (BB-RS232 adaptor required, sold separately).

The new Furman CN-2400S is one of the first products to feature Furman’s SmartSequencing™ technology, which allows large and complex A/V systems to be safely powered on and off with a simple press of a button or turn of a key, even by nontechnical personnel. SmartSequencing’s bidirectional communications between installed units enables a primary unit to control and sequence multiple secondary units, ensuring multizone electronic systems are powered on and off safely and dependably from a single control point across an entire installation. Units can be connected via current loop at runs of more than 1,000 feet with backwards compatibility with Furman’s legacy sequencers.

In addition, the Furman CN-2400S offers robust control options, equipped with RS-232 ports and command sets for integration with control systems. An optional RS-232-to-Ethernet adaptor (sold separately) adds full IP-addressability to the unit, allowing it to be controlled, programmed, and monitored from a smartphone, tablet, PC, or any Web-enabled device via Telnet, direct HTTP: connection, or Panamax/Furman’s BlueBOLT®-hosted remote power and energy management platform.

Furman CN-2400S Features:

  • Diagnostic Lights - Diagnostic lights provide valuable system information including power quality, “Protectection Ok” indicator, and Extreme Voltage indicator.
  • Remote Access (RS-232) - RS-232 compatibility & command set provide integration with control systems, open source and control programming.
  • BlueBOLT Compatible® - BlueBOLT provides remote access to reboot components, power equipemnt on/off, and monitor power quality via the internet from anywhere in the world.
  • Nine Total Outlets - The CN-2400S contains eight rear panel NEMA 5-20R outlets and one front panel NEMA 5-15R outlet.
  • Surge Protection - Series Multi-Stage Protection (SMP) Technology provides the highest level of surge & spike protection available.
  • Noise Filtration - Linear Filtration Technology (LiFT) reduces AC noise linearly across a very wide bandwidth for unequaled audio & video clarity.
  • Voltage Protection - Extreme Voltage Shutdown (EVS) circuity safely powers down itself and connected equipment during unsafe voltage periods.
  • SmartSequencing™ - SmartSequencing allows bidirectional, safe sequenced power up/down operations via the push of a button or turn of a key.

Features & Specs

  • Family : Contractor Series
  • Line Voltage : 120 (Volts)
  • Blue BOLT Enabled : Yes
  • AC Protection : Automatic Voltage Shutoff: No
  • AC Voltage Input Range : 90-139VAC, 50/60Hz
  • Maximum AC Current Rating : 20 amps (Thermal breaker)
  • AC Cord : 3/12AWG, 10 feet, black, fixed, NEMA 5-20P plug
  • Rear Panel : Outlets 2 Unswitched NEMA 5 20R’s (1 duplex), 6 Sequenced NEMA 5-20R’s (3 duplexes each controlled by separate relay)
  • Front Panel : One NEMA 5-15R Convenience Outlet, Unswitched
  • AC Surge Protection : SMP
  • Spike Protection Mode : Line to neutral, zero ground leakage
  • Spike Clamping Voltage : 188VAC peak @ 6,000 volts/3,000 amps
  • Response Time : 1 nanosecond
  • Maximum Surge Current : 6,500 Amps
  • AC Under voltage Protection : EVS, 77VAC+/-3VAC
  • AC Overvoltage Protection : EVS, 145VAC+/-5VAC
  • AC Overvoltage Reset Modes : Manual and Auto-reset (configurable)
  • AC Filtering : LiFT
  • Noise Attenuation : Linear, 10dB @10KHz, 40dB@100KHz, 50dB@500KHz
  • Operating Temperature Range : 5C (40F) to 40C (105F) degrees
  • Humidity Range : <90% rH (Relative Humidity)
  • Key switch : Front panel, 3-position keyswitch (On, Off, Remote)
  • Keys Included : 1 pair
  • Pushbutton : Switch Front panel, hidden by security cover
  • Circuit Breaker : Front panel, pushbutton, 20A Thermal Breaker
  • Front panel diagnostic indicators : Primary link, Secondary link, Ethernet, Remote off, Delay 1, Delay 2, Delay 3, Power, Protection OK, Extreme Voltage
  • DIP Switches : Front panel- Hidden by security cover, 1 Minute Delay, 2 Minute Delay, 4 Minute Delay, Force Off NO/NC, 12V Mode On/Off BND Mode On, Momentary/Maintained, Primary/Secondary, EVS
  • Reset : Auto/Manual
  • Potentiometer : Front panel, hidden by security cover, fine tune delay adjust
  • Remote Terminal : +5-30VDC In, 12VDC (12mA) Out
  • Smart Sequencing : Phoenix 4-Pin Connector, Screw Terminals, Primary & Secondary Links (Current Loop – 1000’ nominal)
  • Remote Terminal : Phoenix 4-Pin Connector With Screw Terminals; +12V, STAT, REM, GND (Class 2 Wiring)
  • Force : Off/Delay 3 Terminal Phoenix 5-Pin Connector With Screw Terminals, FORCE OFF, DELAY 3 (Class 2 Wiring)
  • RS-232 Compatible : Yes, DB-9 Connector
  • IP Addressability : Optional, via BB-RS232 Ethernet/RS-232 Adaptor (sold separately) for IP control via Telnet, HTTP, BlueBOLT®
  • Voltmeter : Available with RS-232/Ethernet option, ± 2VAC accuracy
  • Ammeter : Available with RS-232/Ethernet option, ±1A accuracy
  • Power Consumption : (No Load) 10 Watts
  • Safety Agency : NRTL-C, RoHS Compliant
  • Weight : 13 (Lbs)

Other Specifications

  • AC Voltage Input Range : 90-139VAC, 50/60Hz\
  • Maximum AC Current Rating : 20 amps (Thermal breaker)
  • AC Cord : 3/12AWG, 10 feet, black, fixed, NEMA 5-20P plug
  • Rear Panel Outlets : 2 Unswitched NEMA 5 20R’s (1 duplex), 6 Sequenced NEMA 5-20R’s (3 duplexes each controlled by separate relay)
  • Front Panel : One NEMA 5-15R Convenience Outlet, Unswitched
  • AC Surge Protection : SMP
  • Spike Protection : Mode Line to neutral, zero ground leakage
  • Spike Clamping Voltage : 188VAC peak @ 6,000 volts/3,000 amps
  • Response Time : 1 nanosecond
  • Maximum Surge Current : 6,500 Amps
  • AC Under voltage Protection : EVS, 77VAC+/-3VAC
  • AC Overvoltage Protection : EVS, 145VAC+/-5VAC
  • AC Overvoltage Reset Modes : Manual and Auto-reset (configurable)
  • AC Filtering : LiFT
  • Noise Attenuation : Linear, 10dB @10KHz, 40dB@100KHz, 50dB@500KHz
  • Operating Temperature Range : 5C (40F) to 40C (105F) degrees
  • Humidity Range : <90% rH (Relative Humidity)
  • Key switch : Front panel, 3-position keyswitch (On, Off, Remote)
  • Keys Included : 1 pair
  • Pushbutton : Switch Front panel, hidden by security cover
  • Circuit Breaker : Front panel, pushbutton, 20A Thermal Breaker
  • Front panel diagnostic indicators : Primary link, Secondary link, Ethernet, Remote off, Delay 1, Delay 2, Delay 3, Power, Protection OK, Extreme Voltage
  • DIP Switches : Front panel- Hidden by security cover, 1 Minute Delay, 2 Minute Delay, 4 Minute Delay, Force Off NO/NC, 12V Mode On/Off BND Mode On, Momentary/Maintained, Primary/Secondary, EVS
  • Reset : Auto/Manual
  • Potentiometer : Front panel, hidden by security cover, fine tune delay adjust
  • Remote Terminal : +5-30VDC In, 12VDC (12mA) Out
  • Smart Sequencing : Phoenix 4-Pin Connector, Screw Terminals, Primary & Secondary Links (Current Loop – 1000’ nominal)
  • Remote Terminal : Phoenix 4-Pin Connector With Screw Terminals; +12V, STAT, REM, GND (Class 2 Wiring)
  • Force : Off/Delay 3 Terminal Phoenix 5-Pin Connector With Screw Terminals, FORCE OFF, DELAY 3 (Class 2 Wiring)
  • RS-232 Compatible : Yes, DB-9 Connector
  • IP Addressability : Optional, via BB-RS232 Ethernet/RS-232 Adaptor (sold separately) for IP control via Telnet, HTTP, BlueBOLT®
  • Voltmeter : Available with RS-232/Ethernet option, ± 2VAC accuracy
  • Ammeter : Available with RS-232/Ethernet option, ±1A accuracy
  • Power Consumption : (No Load) 10 Watts
  • Safety Agency : NRTL-C, RoHS Compliant

Documents

Warranty

Furman Canada Offers 15 Years Limited Warranty

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

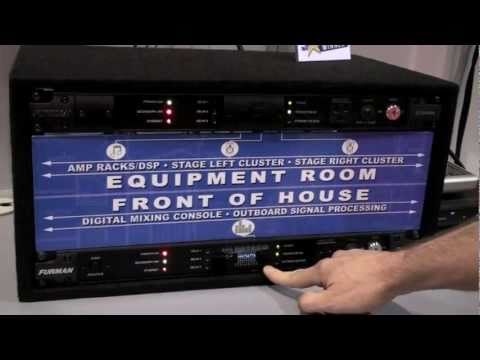

Furman CN-2400S Contractor Series Smart Sequencer Power Conditioner

Furman CN-2400S Contractor Series Smart Sequencer Power Conditioner

$1,249.00 $1,412.00

Key Points

  • Surge Protection – Series Multi-Stage Protection (SMP) Technology provides the highest level of surge & spike protection available.
  • Noise Filtration – Linear Filtration Technology (LiFT) reduces AC noise linearly across a very wide bandwidth for unequaled audio & video clarity.
  • Voltage Protection – Extreme Voltage Shutdown (EVS) circuity safely powers down itself and connected equipment during unsafe voltage periods.
  • SmartSequencing™ – SmartSequencing allows bidirectional, safe sequenced power up/down operations via the push of a button or turn of a key.
  • Diagnostic Lights – Diagnostic lights provide valuable system information including power quality, “Protectection Ok” indicator, and Extreme Voltage indicator.
  • Remote Access (RS-232) – RS-232 compatibility & command set provide integration with control systems, open source and control programming.
  • Nine Total Outlets – The CN-2400S contains eight rear panel NEMA 5-20R outlets and one front panel NEMA 5-15R outlet.

Tags

N/A

Features

N/A

Type

N/A
View product
Back to top
