Euphoria EA1.600 Full Range Class D Monoblock Car Amplifier (EA1600)

Euphoria EA1.600 Full Range Class D Monoblock Car Amplifier (EA1600)

The Euphoria EA1.600 is built for drivers who want strong, controlled bass in a compact footprint. This full range Class D monoblock subwoofer amplifier delivers focused low-end power with the flexibility and tuning control serious systems demand.

Solid Power for Real Bass Performance

The Euphoria EA1.600 delivers clean output across multiple impedance loads, making it easy to match with different subwoofer configurations.

• 1 x 600 Watts @ 1 ohm
• 1 x 300 Watts @ 2 ohms
• 1 x 150 Watts @ 4 ohms

Whether you’re running a low-impedance setup for maximum output or a higher load for balanced performance, this amplifier adapts without losing composure.

Full Range Class D Efficiency

Efficiency isn’t optional—it’s essential. The Euphoria EA1.600 uses high-efficiency full range Class D technology to deliver serious output while operating within a 9–16 volt working range. It’s designed to perform smoothly with modern vehicle electrical systems.

The 4-layer PCB layout supports cleaner, more accurate audio reproduction. Large gauge power wire inputs and direct connect speaker outputs reinforce stable current flow and dependable performance.

Advanced Crossover and Filtering Control

Control is everything when dialing in subwoofer performance. The Euphoria EA1.600 features ACT adaptive crossover technology to shape your bass response exactly how you want it.

• Low Pass Filter: 40Hz – 250Hz
• Sub Sonic Filter: 10Hz – 50Hz

The adjustable low-pass filter keeps unwanted frequencies out of your subwoofer, while the subsonic filter protects against ultra-low frequencies that can reduce efficiency. It’s about refining your low end so it sounds tight instead of overwhelming.

Bass Optimization and Precision Tuning

Sometimes you want extra impact. The Bass EQ at 45Hz allows adjustment from 0dB to 12dB, giving you the ability to emphasize low-frequency punch when needed.

Durable metal potentiometers ensure your settings remain consistent over time. Once your system is tuned, it stays locked in. The included remote gain control makes real-time bass adjustment simple, letting you fine-tune output from the driver’s seat.

Signal Integrity and Audio Accuracy

Clean signal input makes a difference. The Euphoria EA1.600 features audiophile-grade Tiffany RCA connectors for improved signal transfer and reduced interference.

Low-level input sensitivity ranges from 350mV to 7V, allowing compatibility with a variety of signal sources. With a frequency response of 20Hz – 250Hz, a signal-to-noise ratio under 87dB, and a damping factor under 400 at 100Hz, this amplifier maintains clarity and controlled bass response.

Protection and Status Monitoring

APC audio circuit protection helps safeguard your system during operation. The SESI operation status indicator keeps you informed of amplifier performance at a glance, adding confidence when pushing your system harder.

Compact Dimensions for Tight Spaces

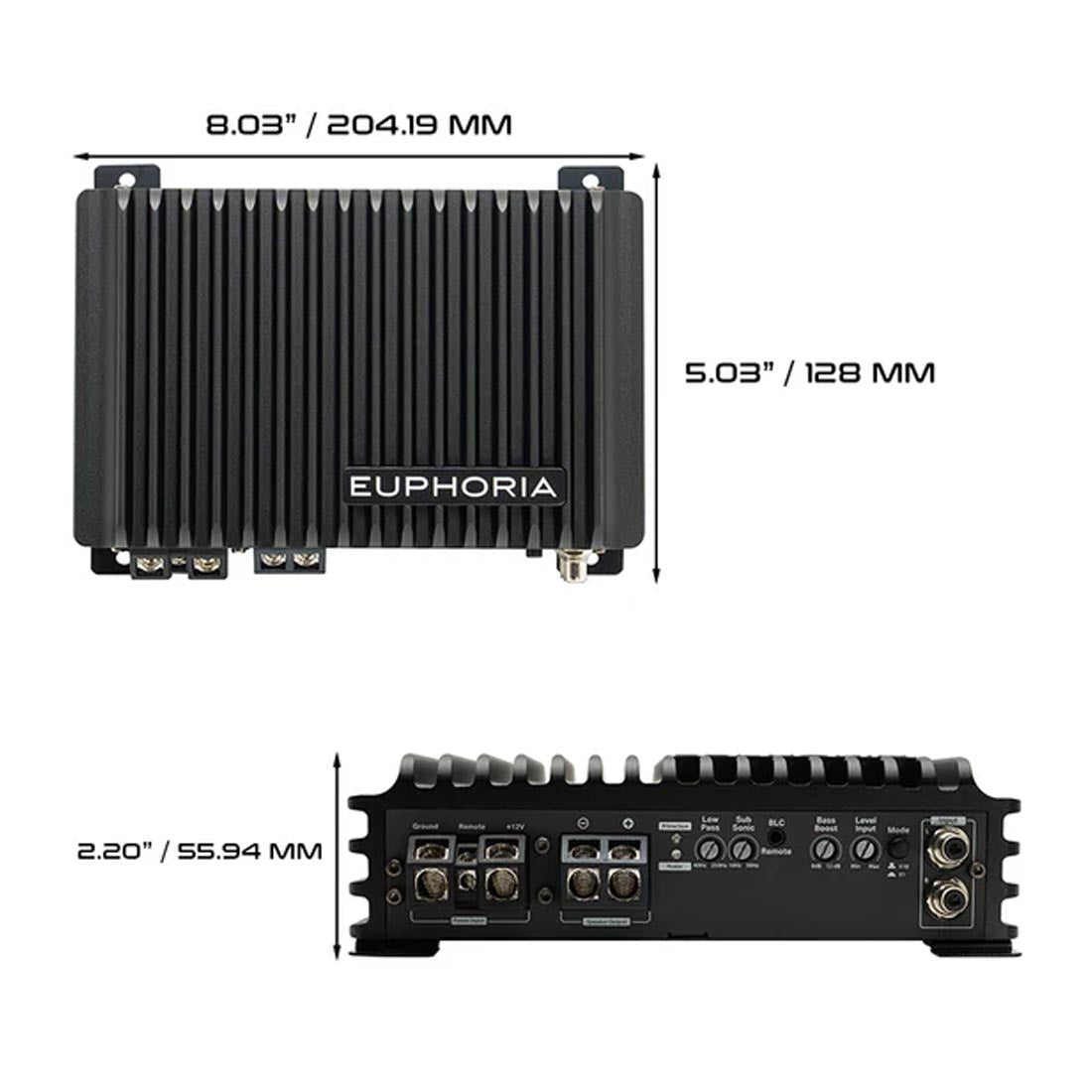

The Euphoria EA1.600 is designed to fit where larger amplifiers cannot. Its compact chassis measures:

• Length: 8.03 inches (204.19 mm)
• Width: 5.03 inches (128 mm)
• Height: 2.20 inches (55.94 mm)

Small in size but strong in output, it offers installation flexibility without sacrificing power.

The Euphoria EA1.600 combines efficient Class D performance, adaptive filtering, and solid construction into a compact monoblock amplifier. With flexible impedance support, precise tuning controls, and dependable protection features, it delivers controlled, customizable bass that elevates your entire audio system.

FAQs

1. What is the power output of the Euphoria EA1.600? It delivers 600 watts at 1 ohm, 300 watts at 2 ohms, and 150 watts at 4 ohms.
2. What impedance loads does the Euphoria EA1.600 support? It supports 1, 2, and 4-ohm loads, giving you flexible subwoofer pairing options.
3. What tuning controls are included on the Euphoria EA1.600? It features an adaptive low-pass filter (40Hz–250Hz), adaptive subsonic filter (10Hz–50Hz), and Bass EQ at 45Hz adjustable from 0dB to 12dB.
4. Does the Euphoria EA1.600 include a remote control? Yes, it comes with a remote gain control so you can adjust bass levels from the dash.
5. What are the dimensions of the Euphoria EA1.600? The amplifier measures 8.03 inches in length, 5.03 inches in width, and 2.20 inches in height.
