TOA BG-235 35W Mixer Amplifier
Product Descriptions
Product Descriptions
TOA BG-235 35-Watt Mixer Amplifier with MOH/Zone 2 Output
The TOA BG-235 combines a 35-watt power amplifier with a three-input mixer, giving restaurants, retail stores, and banquet halls a single, space-saving unit for background music and clear voice announcements.
Simplify Music and Paging in One Compact Unit
Three rear-panel inputs let you connect a microphone and up to two music sources, then mix them directly inside the amplifier. Input 1 is switchable Mic/Line, so a paging mic can instantly take priority over music—ideal for quick announcements without complicated external gear.
Two-Channel Broadcast with Dedicated MOH/Zone 2 Output
A separate 600 Ω balanced output feeds music-on-hold or a second room while the main speakers continue playing. Any of the three inputs can be assigned to this MOH/Zone 2 jack, and adding an optional BA-235 or BA-260 booster amplifier doubles your coverage without running new source lines.
- 35 W continuous power drives 4 Ω, 25 V, or 70 V speaker runs.
- Automatic or manual muting with adjustable sensitivity keeps announcements intelligible by ducking background audio only when needed.
- Recessed bass and treble controls (±10 dB) prevent accidental tampering once the system is tuned.
Fast, Reliable Installation

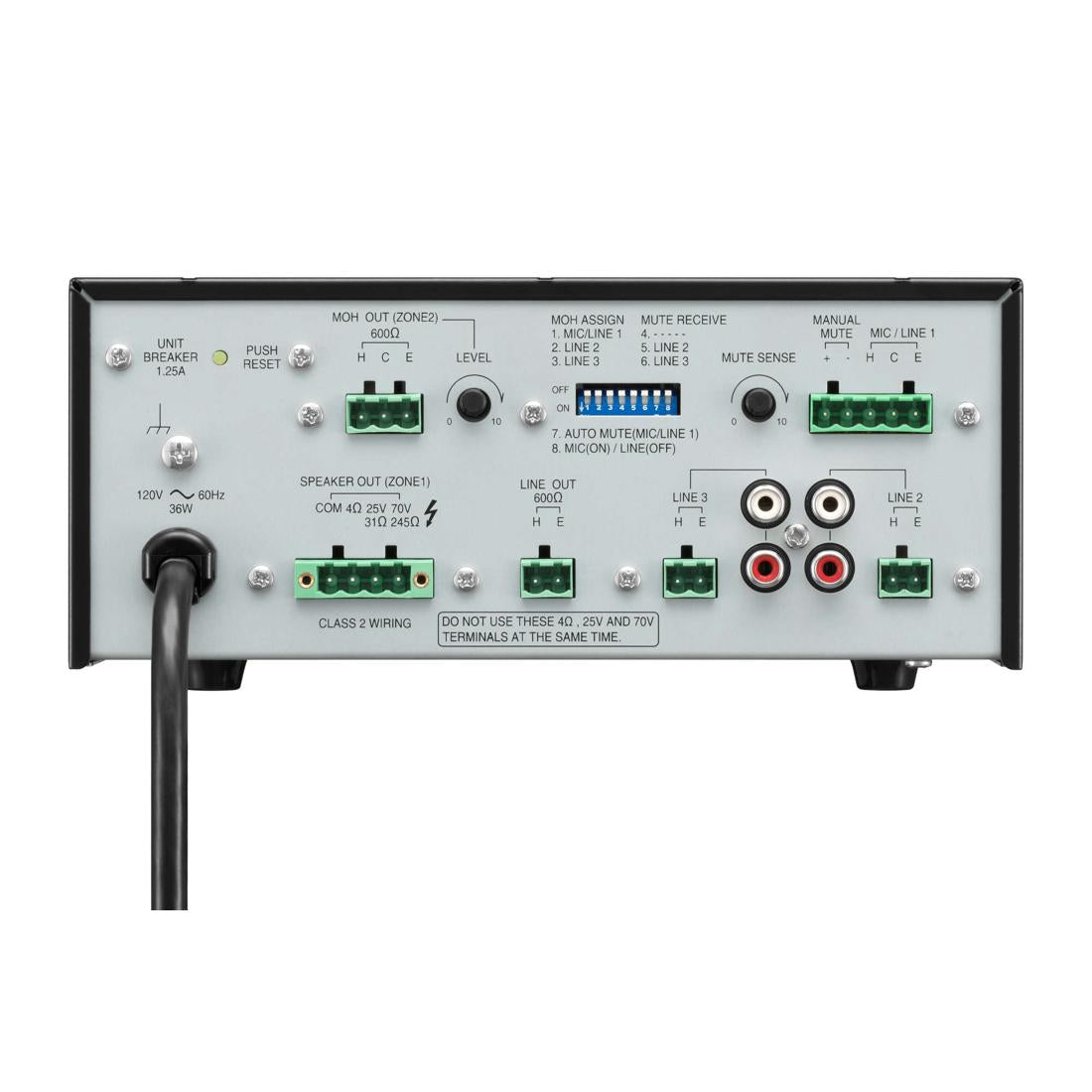

Removable terminal blocks for every input and output speed up rack wiring, while rear DIP switches handle mic/line selection, mute assignment, and MOH routing—no menus or software required.
Frequently Asked Questions
-
Can the BG-235 power both low-impedance and 70 V speaker lines?
Yes. The rear panel provides 4 Ω, 25 V (18 Ω), and 70 V (140 Ω) outputs.
-
Will the microphone automatically override music?
Input 1 includes an auto-mute circuit. When audio from the paging mic reaches the user-set threshold, Line 2 and Line 3 are momentarily reduced so announcements remain clear.
-
What rack hardware is needed?
The optional MB-25B-BK bracket mounts one BG-235 in a standard equipment rack; the MB-25B-J kit mounts two units side by side.
Add the TOA BG-235 to your cart now to streamline background music and paging in one dependable chassis. Need system design advice? Call or visit Gibbys Electronic Supermarket to speak with an audio expert.
