WiiM Amp Ultra 100W/Ch Streaming Amplifier With 3.5" Touchscreen

WiiM Amp Ultra Audio Streaming 2 Channel Amplifier

WiiM Amp Ultra is a 100W per channel hi‑fi streaming amplifier that powers passive speakers and simplifies music and TV audio in one compact hub. With Wi‑Fi 6, HDMI ARC, built‑in RoomFit room calibration, and a 3.5″ touchscreen, it delivers clean, room‑tuned sound with straightforward control.

100W per channel

Because the amplifier uses dual TI TPA3255 Class‑D modules and Post Filter Feedback (PFFB), it maintains low distortion and steady performance across different speaker loads. In practice, that means it can drive bookshelf, floor‑standing, or in‑wall speakers confidently at 8Ω or 4Ω without the tonal shifts some amps exhibit under load.

Flagship DAC and analog stage for high‑fidelity detail

The ESS ES9039Q2M SABRE DAC, paired with six TI OPA1612 op‑amps, lowers noise and preserves micro‑detail. This combination reduces digital harshness and improves dynamic contrast, so quiet passages stay clean and transients hit with precision.

Built‑in RoomFit room calibration and flexible EQ

Rooms color sound. The Amp Ultra’s RoomFit measures your speakers in your space and corrects response for a more balanced soundstage and even bass. For fine‑tuning, it adds 24 preset EQ profiles, 10‑band graphic and parametric EQ, per‑input EQ, and subwoofer crossover control to dial in the exact balance you want.

HDMI ARC with Dolby Digital for TV and movies

Connect a TV via HDMI ARC to bring broadcast, streaming apps, and consoles into the same system. Volume follows the TV remote, and Dolby Digital support preserves surround mixes down to your stereo setup for clear dialogue and impactful effects.

Next‑gen wireless streaming: Wi‑Fi 6 and Bluetooth 5.3

Tri‑band Wi‑Fi 6 improves stability and reduces latency, so high‑resolution streams stay solid across the home. Bluetooth 5.3 with SBC and AAC makes quick hand‑offs from a phone straightforward when guests want to share a track.

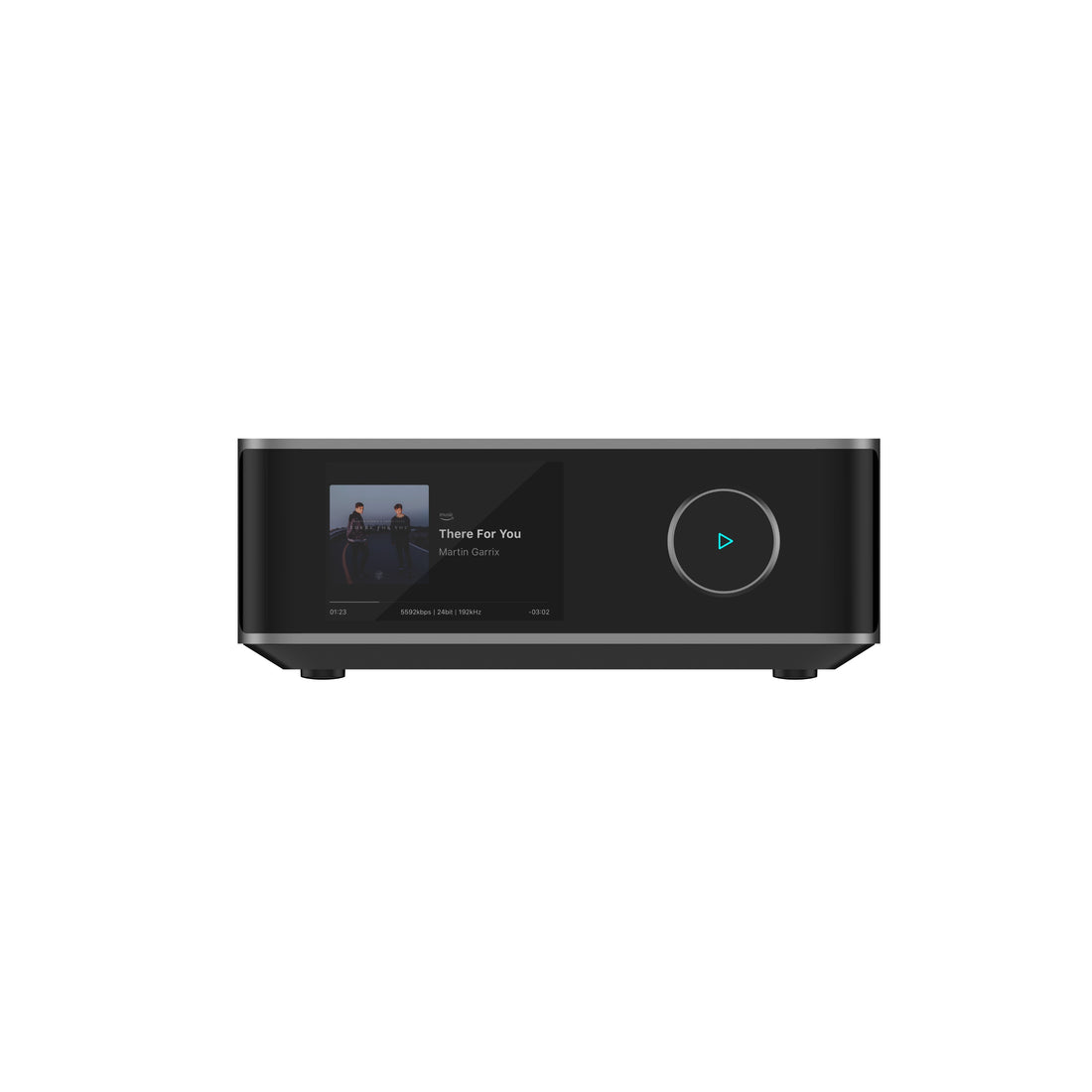

3.5″ glass touchscreen, smart presets, and voice control

The front touchscreen gives immediate access to album art, VU meters, input switching, and one‑tap presets. For full system control, use the WiiM Home app or the WiiM Voice Remote 2 with push‑to‑talk, rechargeable battery, and dedicated playback buttons. It also works with Alexa and Google Assistant for hands‑free basics.

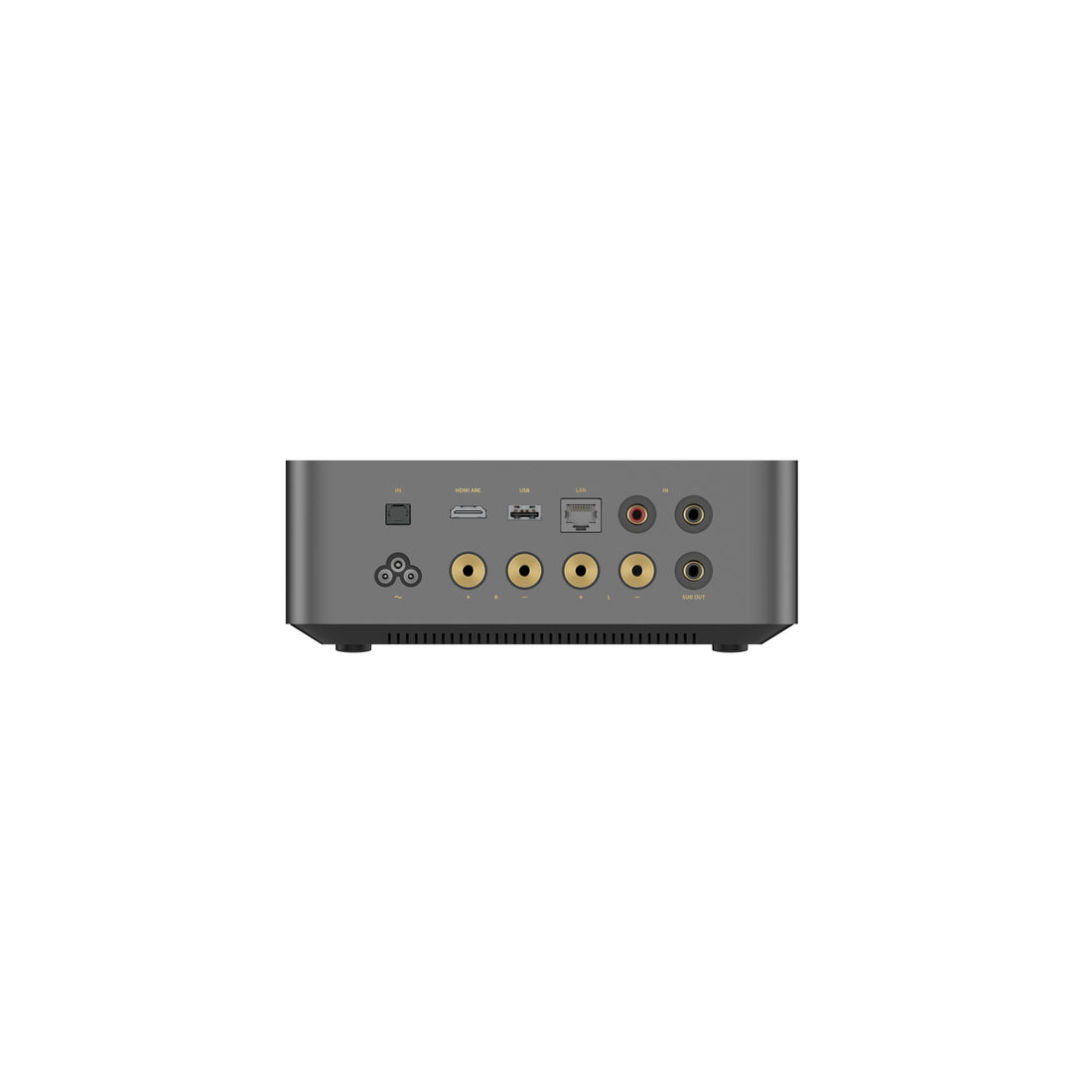

Versatile connectivity for turntables, CD players, and more

A Line‑In handles analog sources like a turntable with a built‑in or external phono preamp, a CD player, or a tape deck. There’s a dedicated Subwoofer Out (RCA) with adjustable crossover and gain for a clean blend. It integrates with WiiM, Alexa Cast, and Google Cast multi‑room systems and is compatible with Control4, RTI, URC, and NICE platforms.

Thermal design that stays quiet and reliable

High output generates heat, so the Amp Ultra manages it with a copper heat pipe, a large aluminum heatsink, and precision PID control. This combination moves heat efficiently and regulates temperature in real time, helping prevent throttling and keeping distortion low during long listening sessions.

All your music, in one place

Stream directly from popular platforms—Spotify, TIDAL, Qobuz, Amazon Music, Deezer, Pandora, TuneIn, SoundCloud, iHeartRadio, and more—through the WiiM Home app or your preferred casting protocol. Over‑the‑air firmware updates add services and features over time.

At‑a‑glance features

• 100W per channel at 8Ω with ultra‑low distortion
• ESS ES9039Q2M SABRE DAC, dual TI TPA3255 amps, six TI OPA1612 op‑amps
• Post Filter Feedback (PFFB) for load‑independent performance
• Built‑in RoomFit room calibration
• Wi‑Fi 6 (tri‑band) and Bluetooth 5.3 with SBC/AAC
• HDMI ARC with Dolby Digital and TV remote volume
• 3.5″ glass‑covered touchscreen with smart presets and VU meters
• 24 preset EQs, 10‑band graphic and parametric EQ, per‑input EQ
• Subwoofer out with adjustable crossover
• Multi‑room with WiiM, Alexa Cast, and Google Cast
• Control via WiiM Home app, voice assistants, or WiiM Voice Remote 2
• Unibody aluminum chassis with advanced thermal management
• OTA updates for new features and optimizations

FAQs

• What speakers can I use with WiiM Amp Ultra?

  It supports most passive speakers between 2–8 ohms. It can power bookshelf, tower, in‑wall, or outdoor speakers—up to four speakers total (two pairs in parallel at 4Ω).

• Can I connect my turntable or CD player?

  Yes. Use the Line‑In for analog sources. For a turntable, use a model with a built‑in phono stage or add an external preamp between the turntable and the Amp Ultra.

• Does it support HDMI ARC?

  Yes. HDMI ARC lets a TV send audio to the Amp Ultra and control volume from the TV remote. Dolby Digital is supported for an immersive home theater experience.

• Can I use it with my subwoofer?

  Yes. Connect an active subwoofer to the Subwoofer Out (RCA). Set crossover frequency and gain in the app to blend bass smoothly with your speakers.

• Does WiiM Amp Ultra work with smart home systems?

  It works with Alexa and Google Assistant and supports multi‑room via WiiM, Alexa Cast, and Google Cast. It also integrates with Control4, RTI, URC, and NICE platforms.

• What music services are supported?

  Spotify, TIDAL, Qobuz, Amazon Music, Deezer, Pandora, TuneIn, SoundCloud, iHeartRadio, and more are available via the WiiM Home app or your preferred casting method.

Ready to set up a smarter hi‑fi system?

Add WiiM Amp Ultra to cart to power speakers, stream high‑resolution music, and elevate TV audio with one device. Have questions about speaker matching or setup? Add to Cart now or call/visit Gibbys Electronic Supermarket for tailored advice from an in‑store expert.
