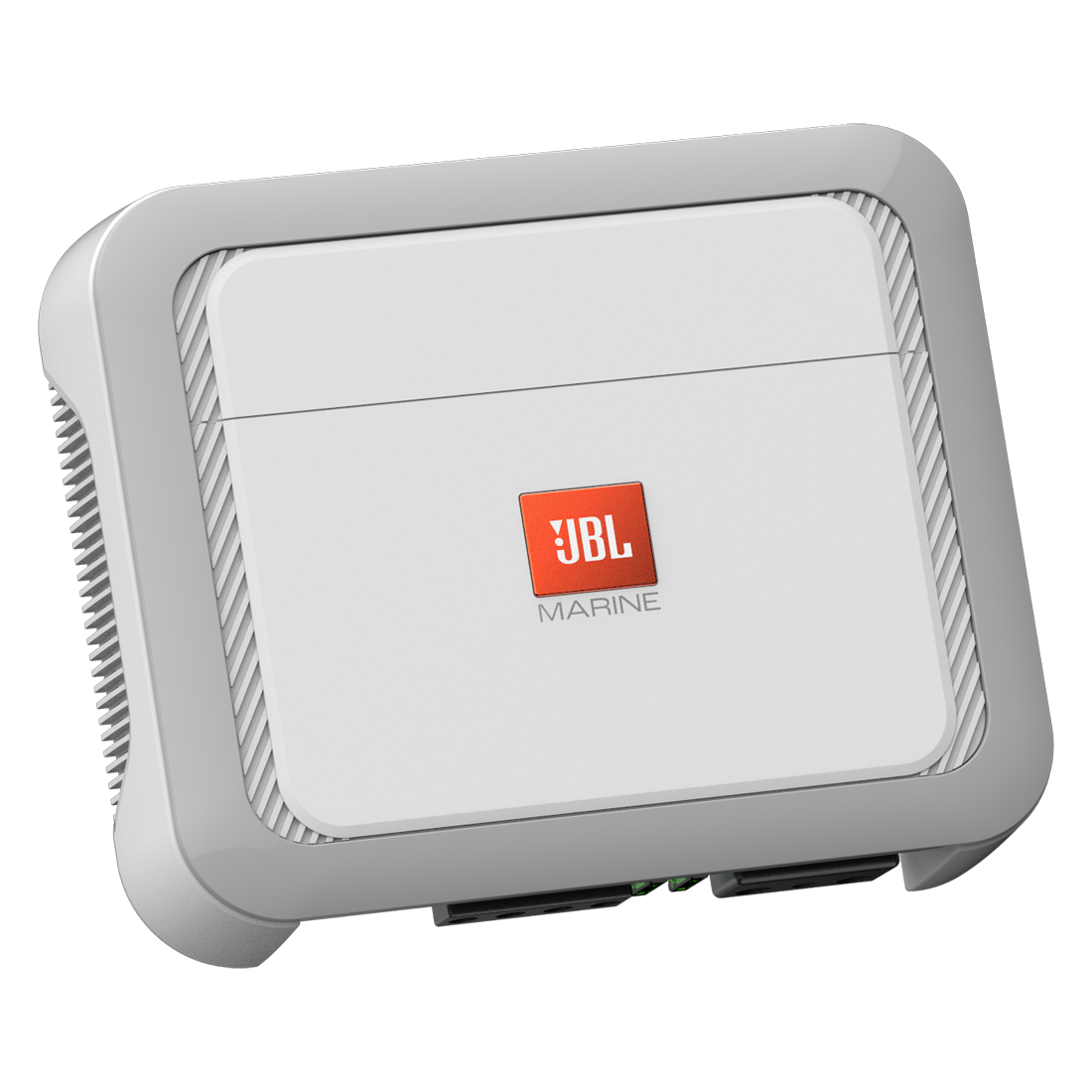

JBL Marine A600 Mono Subwoofer Amplifier With 600W RMS At 2 Ohms
Product Description
Product Description
JBL Marine A600 Mono Subwoofer Amplifier With 600W RMS At 2 Ohms
The JBL A600 brings powerful mono subwoofer performance to marine audio systems while keeping its footprint compact. Additionally, its Class D amplifier design delivers up to 600 watts RMS at 2 ohms while minimizing current draw. Meanwhile, flexible tuning controls, high- and low-level inputs, and built-in protection give you practical control over your boat's bass system.

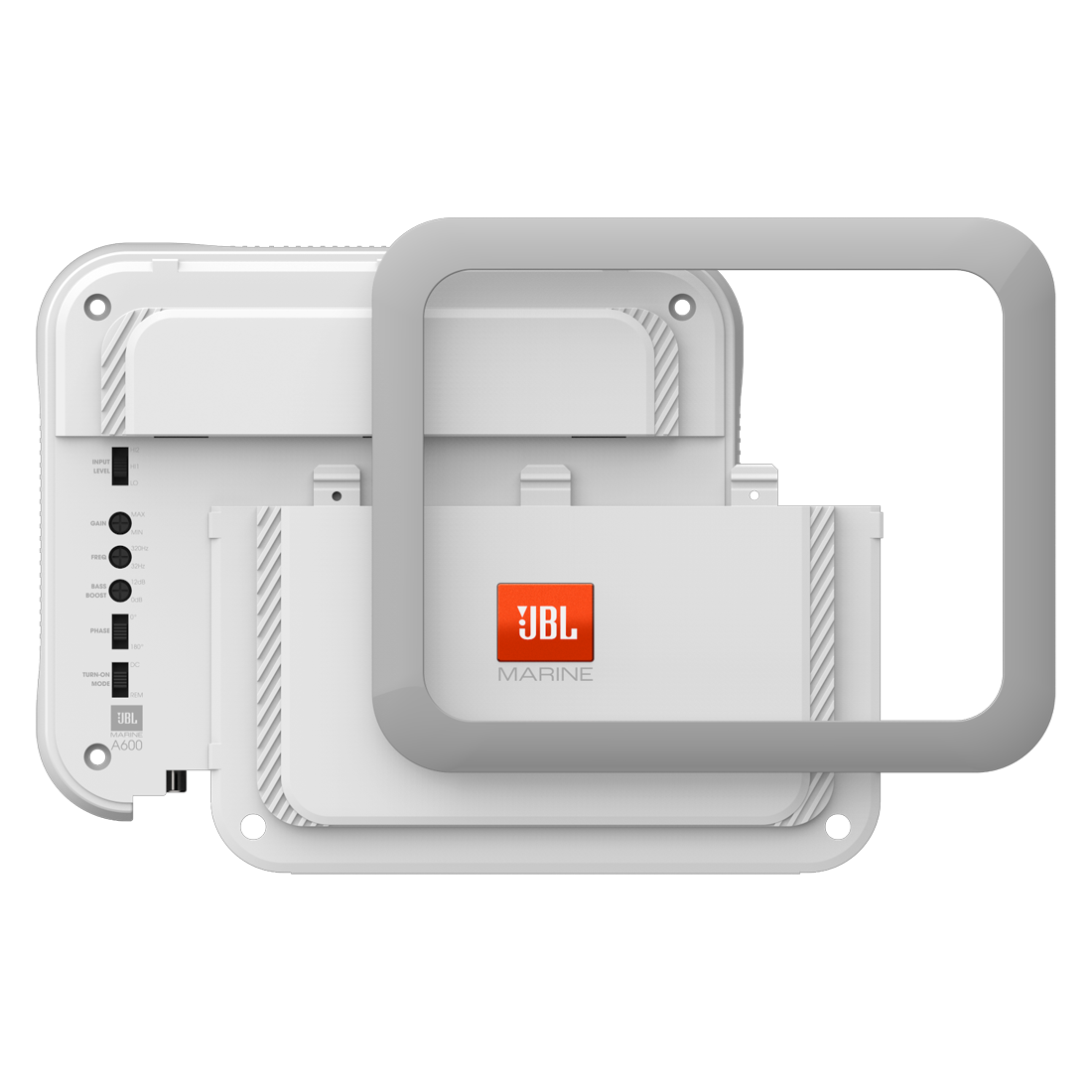

Compact Design for Space-Saving Setups
Space can be limited when adding audio equipment to a boat. The JBL A600 features a low-profile chassis and compact dimensions, making it easier to fit into tighter areas. Measuring 220mm x 51.3mm x 180mm, or 8-11/16 x 2-1/16 x 7-1/8 inches, it delivers serious amplification without requiring a bulky enclosure.
Powerful Class D Mono Amplification
The JBL A600 uses efficient Class D amplifier technology to provide high output while minimizing current draw. Additionally, it delivers 350 watts RMS at 4 ohms and 600 watts RMS at 2 ohms. Moreover, with a maximum power rating of 1200 watts, it provides focused power for your marine subwoofer system.
Fine-Tune Your Bass Performance
Want more control over how your subwoofer sounds? The JBL A600 includes a variable low-pass filter ranging from 32Hz to 320Hz at 12 dB per octave. You can also adjust the variable bass boost from 0 to 12 dB at 45Hz, giving you more flexibility when shaping your low-frequency performance.
A built-in phase switch lets you select between 0 and 180 degrees. This feature helps with system tuning based on the type of enclosure and its location within your boat.
Adjustable Input Level Control
The JBL A600 gives you precise control over input sensitivity. When using low-level inputs, you can adjust sensitivity between 200mVrms and 4Vrms. With high-level inputs, the adjustment range extends from 1Vrms to 22Vrms.
This flexibility makes it easier to match the amplifier with different audio source levels while maintaining consistent performance.
Works with Factory and Aftermarket Marine Stereos
Thanks to both speaker-level and low-level inputs, the JBL A600 can integrate with factory and aftermarket marine stereo systems. You are not limited to a single type of audio source, giving you more options when building or upgrading your system.
Low Noise and Distortion
Clean bass depends on more than raw power. The JBL A600 uses Balanced Differential Inputs to help reduce noise and distortion, even when operating at high output levels. This design also makes the amplifier less susceptible to line-induced radiated engine noise.
The result is a cleaner signal path that helps your subwoofer deliver the low frequencies you expect without unnecessary interference.
Built-In Protection for Reliable Operation
The JBL A600 includes onboard circuitry designed to protect the amplifier against shorts, high temperatures, overvoltage, and undervoltage. An LED indicator alerts you when one of these protection conditions occurs, helping you quickly identify potential system issues.
Convenient Remote Bass Control
Adjusting your bass level does not require reaching for the amplifier itself. The included RBC wired remote allows convenient volume adjustment from the driver's seat. The package also includes a 16.5-foot remote control cable with RJ-25 plugs on both ends.
Selectable Turn-On Mode
The JBL A600 features a selectable turn-on mode that switches between DC and REM operation. This allows the amplifier to adapt to high-level or low-level signals while providing additional flexibility for the remote turn-on configuration.
The selectable mode can also help protect the battery by reducing unwanted current drain when you do not intend to use the amplifier.
JBL A600 General Specifications
- 350 watts RMS x 1 at 4 ohms
- 600 watts RMS x 1 at 2 ohms
- 1200 watts maximum power
- Class D amplifier technology
- Variable low-pass filter: 32Hz-320Hz, 12 dB/octave
- Variable bass boost: 0-12 dB at 45Hz
- Phase switch: 0 or 180 degrees

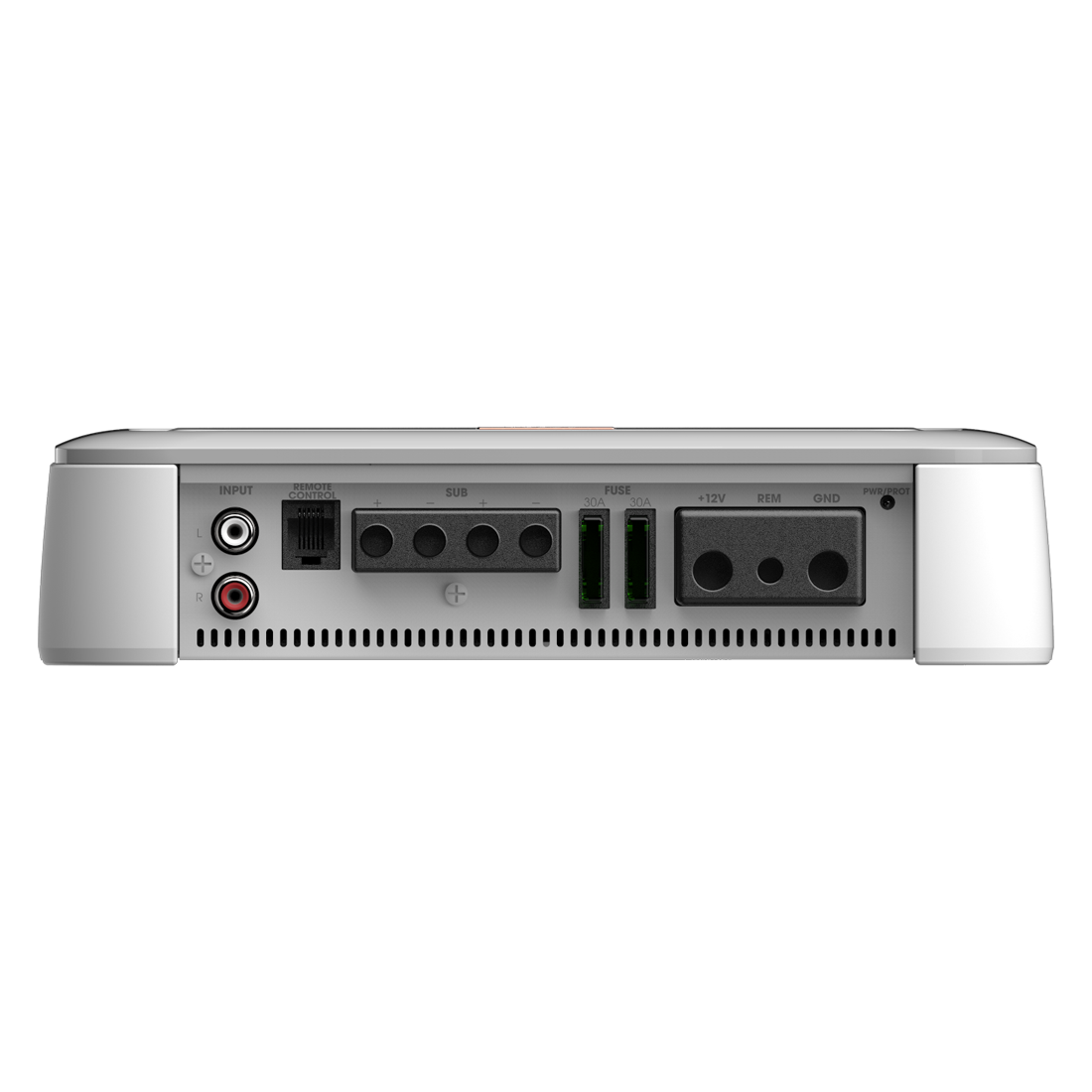

- Preamp and speaker-level inputs
- Fuse rating: 30A x 2
- 8-gauge power and ground leads recommended
- Dimensions: 220mm x 51.3mm x 180mm
- Dimensions: 8-11/16 x 2-1/16 x 7-1/8 inches
- Power wiring and hardware not included with amplifier
What's in the Box?
- One JBL Marine A600 mono subwoofer marine amplifier
- Four 30A ATO fuses, including two installed and two spare
- Two bare wire-to-RCA adapters
- Remote bass control module
- 16.5-foot remote control cable with RJ-25 plugs
- Two M3 x 15mm self-tapping screws for the remote
- Four M4 x 53mm mounting screws
- Owner's Manual
- Two JBL stickers
- One logo badge
Focused Power and Flexible Control
The JBL A600 combines strong mono amplification with the controls needed to fine-tune a marine subwoofer system. Its compact chassis saves space, while Class D technology delivers up to 600 watts RMS at 2 ohms. Add adjustable crossover settings, bass boost, flexible inputs, noise-reducing technology, and onboard protection, and you have an amplifier designed to deliver controlled low-frequency performance on the water.
Frequently Asked Questions
How much RMS power does the JBL A600 produce? The JBL A600 delivers 350 watts RMS at 4 ohms and 600 watts RMS at 2 ohms. Its maximum power rating is 1200 watts.
Does the JBL A600 have an adjustable low-pass filter? Yes. Specifically, it includes a variable low-pass filter adjustable from 32Hz to 320Hz. Additionally, the filter features a 12 dB per octave slope for greater tuning control.
Can I adjust the bass output from the driver's seat? Yes. Additionally, the included RBC wired remote provides convenient bass volume adjustment. Meanwhile, it connects using the supplied 16.5-foot remote cable for easy access from the driver's seat.
Does the JBL A600 support both high-level and low-level inputs? Yes. Speaker-level and low-level inputs allow it to work with both factory and aftermarket marine stereo systems.
What protection features are built into the amplifier? The amplifier includes protection against shorts, high temperatures, overvoltage, and undervoltage. An LED indicator alerts you when a protection condition occurs.
